Manufacturer: Extron | Model: EBDB | Part number: 60-1170-01 (also written 60117001)

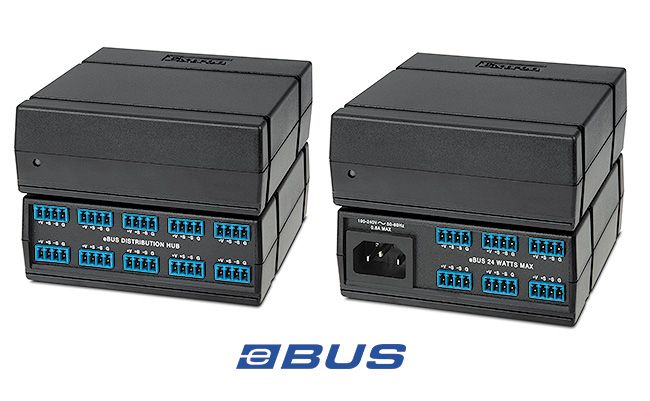

The Extron EBDB (60-1170-01) is a new 10-port eBUS distribution hub available through Ampronix that reduces cable runs in larger IPCP Pro control systems. All ten ports are wired in parallel, so each acts as either an input or output for eBUS communication between a control processor and connected button panels and devices. A front-panel LED indicates when power is present on any port.

Key capabilities

• 10 eBUS ports, all in parallel — each port is an input or output
• Reduces home-run cable count in installations with multiple eBUS endpoints
• Front-panel power LED indicates presence of power on any port
• Quarter-rack, 1U metal enclosure; mounts to rack rails, tables, or lecterns via ZipClip
• Maximum system cable length: 1,000 ft (305 m) in any topology

Where it is used

Classrooms, boardrooms, and multi-room installations where several eBUS button panels and devices connect to one IPCP Pro processor and star-wiring to the processor is not practical.

Specifications at a glance

• Ports: 10 x 4-pole 3.5 mm captive screw eBUS
• Max cable: 1,000 ft (305 m) total in any topology
• Enclosure: 1.7 in H x 4.3 in W x 4.5 in D, quarter rack
• Warranty: 3-year Extron parts and labor

Frequently asked questions

• Is the Extron EBDB 60-1170-01 available new or refurbished? - Ampronix stocks the EBDB (60-1170-01) as a new unit through its authorized Extron distribution agreement.
• Which Extron control processors is the EBDB compatible with? - The 60-1170-01 is designed for use with Extron IPCP Pro series control processors; it distributes eBUS communication across up to 10 devices within the 1,000 ft maximum total cable length.
• Does Ampronix offer support for the Extron EBDB? - Yes. Ampronix provides repair, exchange, and replacement services for the EBDB and the broader Extron control accessories line.

Ampronix is an authorized Extron distributor. Need support for your Extron EBDB? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron control line.

Also referenced as Extron EBDB, eBUS-Distribution-Hub, part number 60117001.
