Details

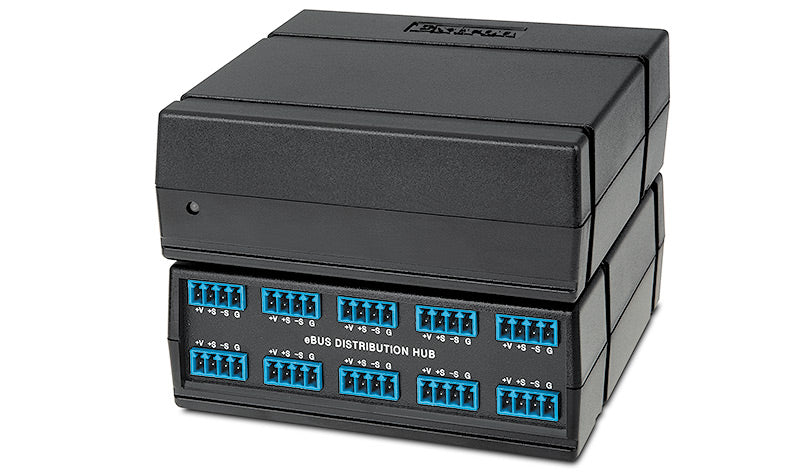

Extron EBDB (part number 60-1170-01) — an eBUS signal distribution hub with ten parallel ports for eBUS-enabled IP Link Pro control processors.

Wiring every button panel back to the processor produces a rack full of home runs. The EBDB replaces that with a single hub: its ten ports are wired in parallel, so each one acts as an input or an output for traffic between an IPCP Pro processor and the eBUS endpoints. Practically, that means one IPCP Pro plus nine endpoints, or ten endpoints on their own. A front-panel LED reports whether power is present on any port. One caution Extron stresses in the setup guide: only one source should feed the +V pins, so never connect the power pin to a device already powered elsewhere.

Key Capabilities

Ten 4-pole 3.5 mm captive screw eBUS ports, all connected in parallel.
Each port works as an input or an output for eBUS communication.
Connects up to ten eBUS devices in daisy-chain or star topology.
Front-panel power LED: unlit means no power, lit means power present.
No configuration required on the hub itself.
ZipClip 200 mounting clip included for desk, rack rail or furniture mounting.
Quarter-rack width lets four units share one rack shelf.

Where It Is Used

Sits in racks, under desks, on lectern shelves or strapped to a projector pole in classrooms, boardrooms and multi-room installations where several eBUS button panels and endpoints must reach one control processor without individual cable runs.

Specifications at a Glance

eBUS pin configuration: +V = +12 VDC, +S = + signal, -S = - signal, G = ground
Maximum system cable length: 1000 ft (305 m) total, any topology
Enclosure: high impact, high temperature plastic, 1.7 in H x 4.3 in W x 4.5 in D
Product weight: 0.8 lb (0.4 kg); shipping weight 3 lbs (2 kg)
Recommended cable: Extron STP20-2/1000 or STP20-2P/1000

Also referenced as Extron EBDB, EBDB hub, part number 60117001.

Specifications

Part Number: 60-1170-01

Manufacturer: Extron

Model: EBDB

Condition: New

Product Type: eBUS signal distribution hub for use with eBUS-enabled IP Link Pro control processors

eBUS Control Ports: 10 x 3.5 mm captive screw connectors, 4 pole, connected in parallel so each port can act as an input or an output

Device Capacity: Up to nine eBUS endpoint devices plus one IPCP Pro control processor, or ten endpoint devices

eBUS Pin Configuration: +V = +12 VDC; +S = + signal; -S = - signal; G = ground

Indicators: Front panel power LED; unlit means no power is present, lit means power is present on one or more ports

Power: Supplied by the IPCP Pro or an additional power supply; power should be supplied by only one source and the power pin must not be connected to a device already powered elsewhere

Configuration: The EBDB itself requires no setup; other eBUS system components are configured with Extron Global Configurator in GC Professional or GC Plus mode

Recommended Cable Type: Extron STP20-2/1000 or STP20-2P/1000 cable

Maximum System Cable Length: 1000 feet (305 meters) sum total for the eBUS system regardless of topology; power injection may be required depending on cabling topology and primary power supply wattage

Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing

Cooling: Convection, no vents

Rack Mounting: Yes, with an optional 1U rack shelf, with the included ZipClip 200 mounting clip, or by securing to rack rails with tie wraps; one quarter rack wide, so up to four units mount side by side on a shelf

Furniture Mounting: Yes, with the included ZipClip 200 mounting clip

Pole Mounting: Yes, using tie wraps

Enclosure Type: High impact, high temperature plastic

Enclosure Dimensions: 1.7 in H x 4.3 in W x 4.5 in D, 1U high and quarter rack wide (4.2 cm H x 10.9 cm W x 11.4 cm D)

Product Weight: 0.8 lb (0.4 kg)

Shipping Weight: 3 lbs (2 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance: Complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

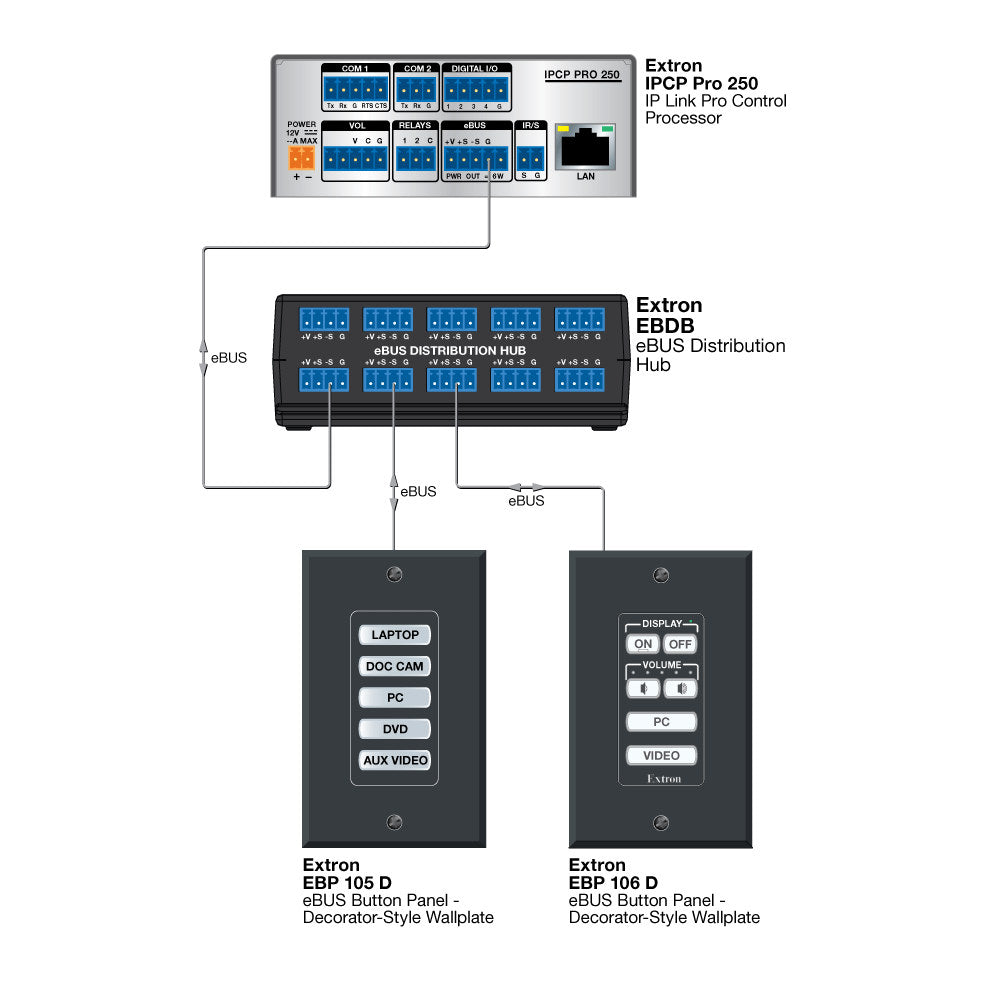

Diagram

Resources

Manual | EBDB 60-1170-01 | EBDB Setup Guide

Manual | EBDB 60-1170-01 | eBUS Technology Reference Guide

Specifications | EBDB 60-1170-01 | EBDB

Panel Drawing | EBDB 60-1170-01 | EBDB
