Extron DXP 84 HD 4K PLUS 8x4 HDMI 4K60 Matrix Switcher 60-1494-21

Extron DXP 84 HD 4K PLUS 8x4 HDMI 4K60 Matrix Switcher 60-1494-21

Manufacturer: Extron

Type: Matrix Switchers

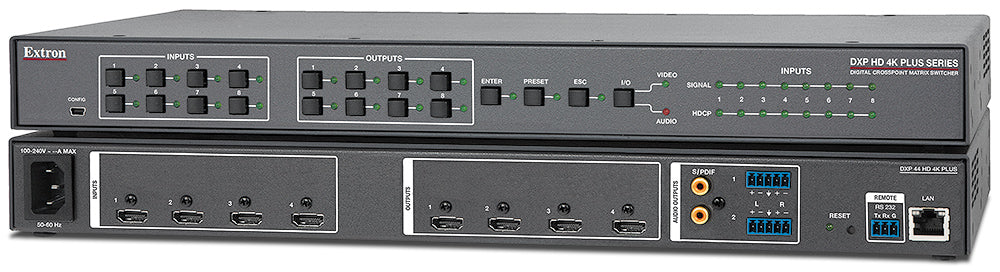

Extron DXP 84 HD 4K PLUS 8x4 HDMI Matrix Switcher

  • • Extron DXP 84 HD 4K PLUS 8x4 HDMI matrix switcher
  • • 8 HDMI inputs to 4 outputs in a 1U chassis
  • • 4096x2160 at 60 Hz, up to 18 Gbps
  • • Sales, replacement and exchange
  • • Part# 60-1494-21 / 60149421

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-DXP84HD4KPLUS-60149421

Details

Manufacturer: Extron; Model: DXP 84 HD 4K PLUS; Part number: 60-1494-21 (also written 60149421)

The Extron DXP 84 HD 4K PLUS (60-1494-21) is a new fixed 8x4 HDMI matrix switcher available through Ampronix for multi-source conferencing installations. It routes any of eight HDMI sources to any or all four outputs simultaneously with analog stereo and S/PDIF audio de-embedding on every output. Supports 4096x2160 at 60 Hz at data rates up to 18 Gbps, HDCP 2.3 compliant. Control via RS-232, USB, or Ethernet with Extron SIS commands.

Key capabilities

  • Fixed 8x4 matrix with independent, simultaneous routing to every output
  • Video bandwidth up to 18 Gbps, supporting 4096x2160 at 60 Hz
  • Analog stereo and S/PDIF digital audio de-embedding on every output
  • HDCP 2.3 compliant
  • Control via RS-232, USB, or Ethernet with Extron SIS commands

Where it is used

Divisible conference rooms, lecture capture systems, and command-room video walls where eight laptops, cameras, or players share four displays and recorders.

Specifications at a glance

  • Matrix size: 8x4; max data rate: 18 Gbps
  • Mounting: 1U rack; weight: 5.3 lbs
  • Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions about the Extron DXP 84 HD 4K PLUS 8x4 HDMI 4K60 Matrix Switcher

Is the Extron DXP 84 HD 4K PLUS 60-1494-21 available new or refurbished?

Ampronix stocks the DXP 84 HD 4K PLUS (60-1494-21) as a new unit through its authorized Extron distribution agreement.

How does the DXP 84 differ from the DXP 44 and DXP 88 in the same series?

The DXP 84 provides 8 inputs and 4 outputs; the DXP 44 (60-1493-21) has 4 inputs and 4 outputs, and the DXP 88 (60-1495-21) has 8 inputs and 8 outputs. All share the same 4K/60 18 Gbps platform.

Does Ampronix offer replacement and exchange for the Extron DXP 84 HD 4K PLUS?

Yes. Ampronix provides sales, replacement and exchange for the DXP 84 HD 4K PLUS and the broader Extron DXP matrix switcher line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron DXP 84 HD 4K PLUS? Ampronix provides sales, replacement and exchange for this product and the broader Extron line.

Also referenced as Extron DXP84HD4KPLUS, DXP-84-HD-4K-PLUS, part number 60149421.

Related: Extron products, Video Solutions.
