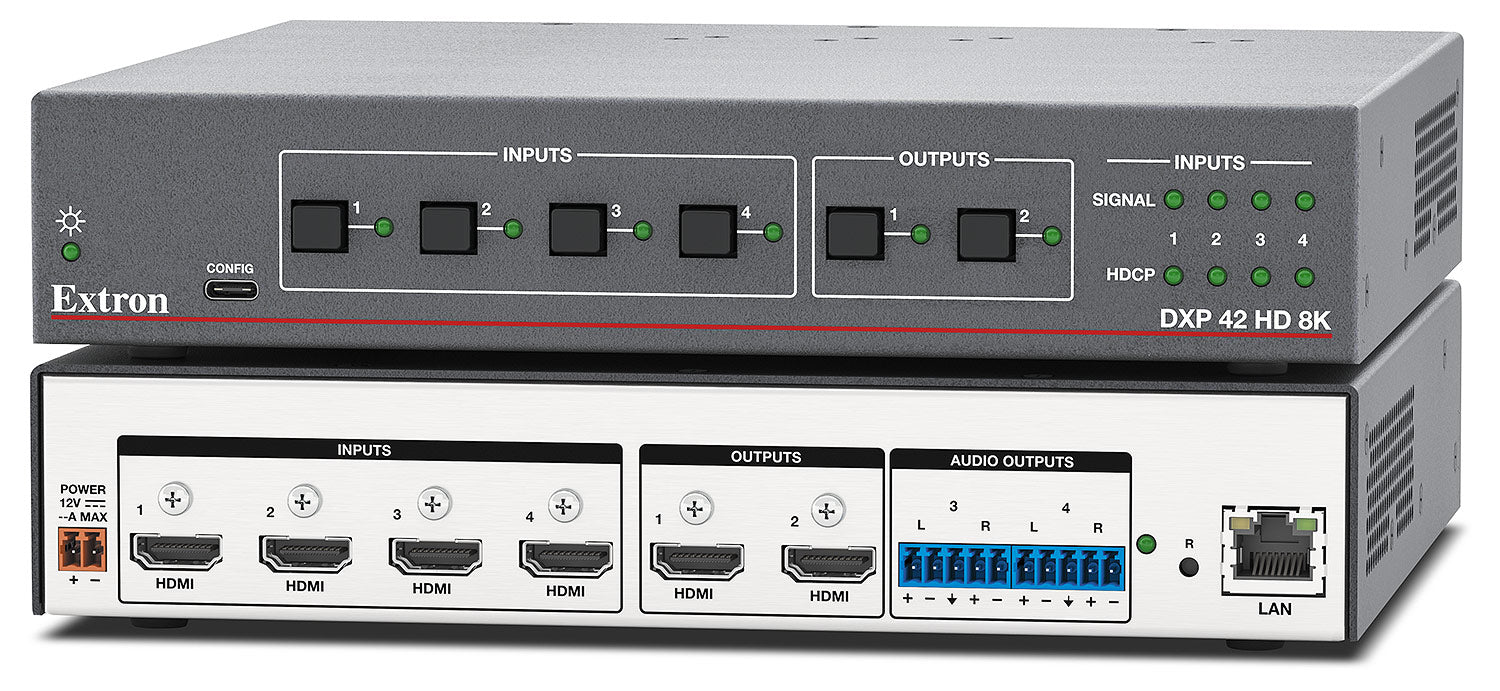

Extron DXP 42 HD 8K (part number 60-1879-01) — a fixed 4x2 HDMI matrix switcher built for next-generation single-room installations.

This switcher routes any of its HDMI sources to any or all of its outputs while extracting audio for separate distribution, letting an integrator combine video switching and audio de-embedding in a single chassis instead of stacking separate boxes. It passes 7680x4320 (8K) at 30 Hz, or 8K at 60 Hz with 4:2:0 sampling video at data rates up to 40.1 Gbps, keeping pace with HDCP 2.3-protected sources and full HD color depth without a transcoder in the signal path.

Key Capabilities

Fixed 4x2 matrix with independent, simultaneous routing to every output
Video bandwidth up to 40.1 Gbps, supporting 7680x4320 (8K) at 30 Hz, or 8K at 60 Hz with 4:2:0 sampling content
Analog stereo audio de-embedding on every output for legacy amplifiers and speakers
HDR10, HDR10+, and Dolby Vision pass-through for high-dynamic-range source content
Control via USB-C or Ethernet with Extron SIS commands (no RS-232 port on this model)

Where It Is Used

Built for facilities migrating to 8K and high-frame-rate 4K workflows, this compact switcher fits control rooms, medical imaging suites, and premium huddle spaces where a small number of HDMI 2.1 sources must reach up to two displays without giving up bandwidth headroom.

Specifications at a Glance

Matrix size: 4x2
Max. data rate: 40.1 Gbps
Mounting: half-rack, 1U shelf or optional under-desk mount
Weight: 1.5 lbs
Backed by a 3-year product warranty; the external power supply carries Extron's 7-year Everlast coverage.

Also referenced as Extron DXP42HD8K, DXP-42-HD-8K, part number 60187901.

Specifications

Part Number: 60-1879-01

Manufacturer: Extron

Model: DXP 42 HD 8K

Condition: New

Routing: 4x2 fixed matrix (4 HDMI inputs, 2 HDMI outputs)

Frame rate: 24, 25, 30, 50, 60, or 120 fps (subject to max. data rate)

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits per color (subject to max. data rate)

Signal type: HDMI 2.1, HDCP 2.3

Max. video data rate: 40.1 Gbps

Resolution range: Up to 8K (7680x4320) at 30 Hz (4:4:4), or 8K at 60 Hz (4:2:0). VESA: 640x480 to 7680x4320. SMPTE: up to 1080p at 240 Hz or 8K at 60 Hz (4:2:0). Ultra-wide/5K: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080, 5120x1440, 5120x2160, 5120x2560, 5120x2880

Video formats: RGB and YCbCr digital video

Video standards: DVI 1.0, HDMI 2.1, HDCP 1.x, HDCP 2.3

HDR support: HDR10, HDR10+, and Dolby Vision

Video input: 4x single link HDMI (or DVI-D with adapter), 4x female 19-pin HDMI type A connectors

Input cable length: Up to 15 feet (4.0 m)

Horizontal frequency: 15 kHz to 270 kHz for resolutions up to 40.1 Gbps

Vertical frequency: 24 Hz to 240 Hz for resolutions up to 40.1 Gbps

EDID emulation: 128 to 512 byte EDID support (1 to 4 blocks)

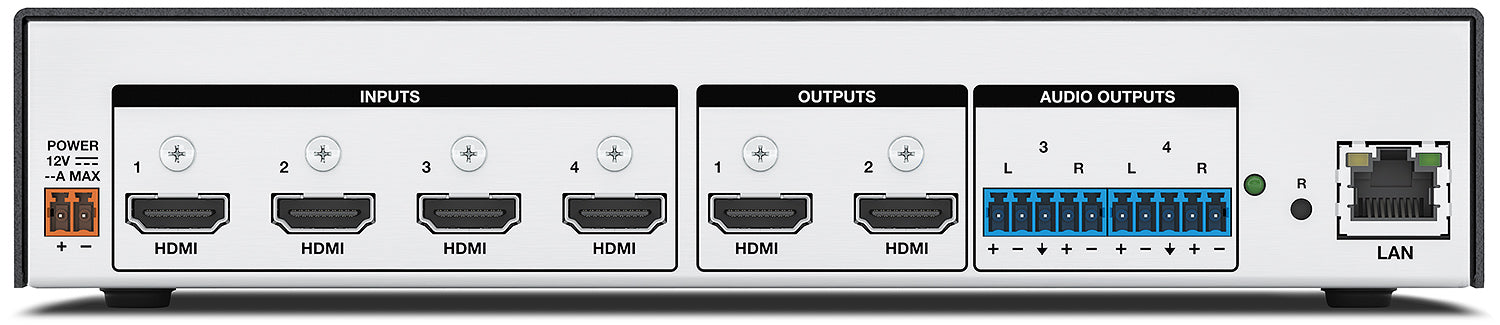

Video output: 2x single link HDMI (or DVI-D with adapter), 2x female 19-pin HDMI type A connectors

Power for active cables: 1.25 W total power per HDMI output

Peripheral device power: 250 mA per HDMI output

Audio gain: Unbalanced output: -6 dB; balanced output: 0 dB

Audio frequency response: 20 Hz to 20 kHz, +/- 0.5 dB

Audio THD + Noise: Less than 0.1%, 20-20 kHz, nominal level

Audio S/N: Greater than 90 dB at max. balanced output, unweighted

Audio crosstalk: -80 dB or better at 1 kHz, fully loaded

Stereo channel separation: Greater than 80 dB at 1 kHz

Audio input: 4x HDMI, embedded, 4x female 19-pin HDMI type A connectors

HDMI pass-through audio: LPCM up to 7.1/24-bit/192 kHz, Dolby Digital EX, Dolby Digital Plus, Dolby Digital 5.1, Dolby Digital 2.0 Surround, Dolby Digital 2.0, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS-X, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-Channel

Digital audio output: 2x digital embedded audio on HDMI, 2x female HDMI type A connectors

Analog audio output: 2x stereo, balanced or unbalanced, (2) 3.5 mm captive screw connectors, 5-pole

Analog audio impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: +/- 0.1 dB channel to channel

Maximum output level (Hi-Z): Greater than +12 dBV balanced, or +6 dBV unbalanced

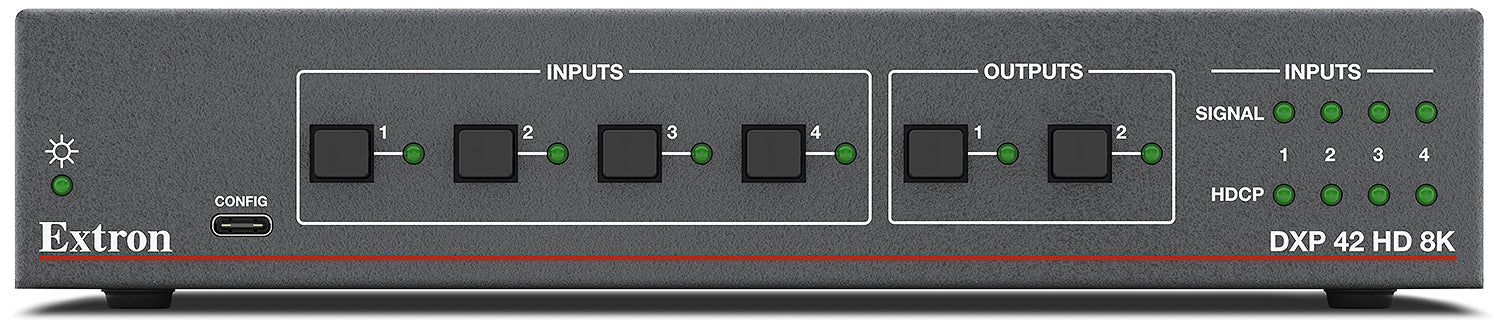

USB control port: 1x female USB-C, front panel; IP over USB-C; USB 2.0 high speed

LAN Ethernet port: 1x RJ-45 connector, 10/100Base-T half/full duplex with autodetect

Ethernet protocol: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Program control: Extron Simple Instruction Set (SIS), Extron Product Configuration Software (PCS), internal web pages

Power supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 1.5 A, 18 W

Power consumption: Device: 22.7 W. Device and power supply: 25.5 W

Ambient temperature/humidity: Storage: -40 to +158 F (-40 to +70 C), 10-90% noncondensing. Operating: +32 to +104 F (0 to +40 C), 10-90% noncondensing

Cooling: Convection, vents on both sides

Thermal dissipation: Device: 68.8 BTU/hr. Device and power supply: 78.4 BTU/hr

Mounting: Rack mountable with optional rack shelf kit; furniture mountable with optional under-desk mounting kit

Enclosure type: Metal

Enclosure dimensions: 1.75" H x 8.75" W x 8.0" D (4.4 x 22.2 x 20.3 cm), 1U high, half rack wide. Depth excludes connectors

Product weight: 1.5 lbs (0.7 kg)

Regulatory compliance: CE, c-UL, UL, C-Tick, FCC Class A, ICES, and VCCI

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

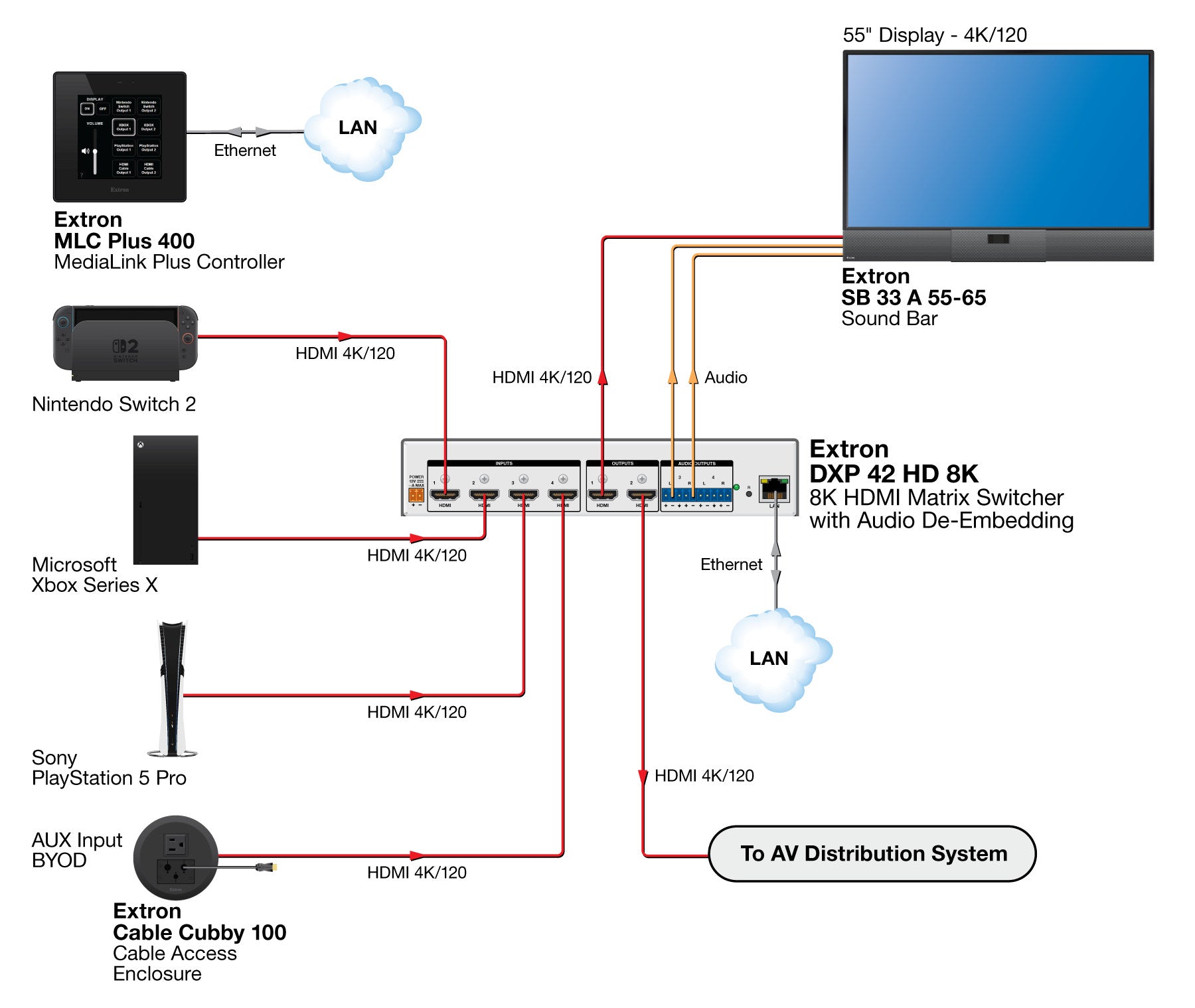

Diagram

Resources

Brochure | DXP 42 HD 8K 60-1879-01 | DXP 42 HD 8K

Specifications | DXP 42 HD 8K 60-1879-01 | DXP 42 HD 8K

Panel Drawing | DXP 42 HD 8K 60-1879-01 | DXP 42 HD 8K
