Details

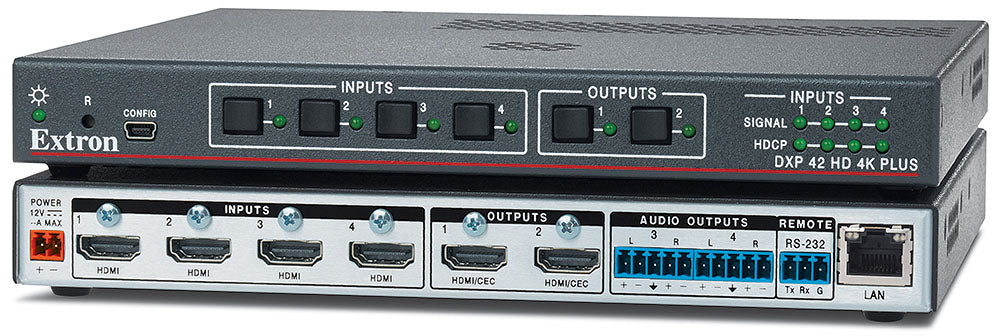

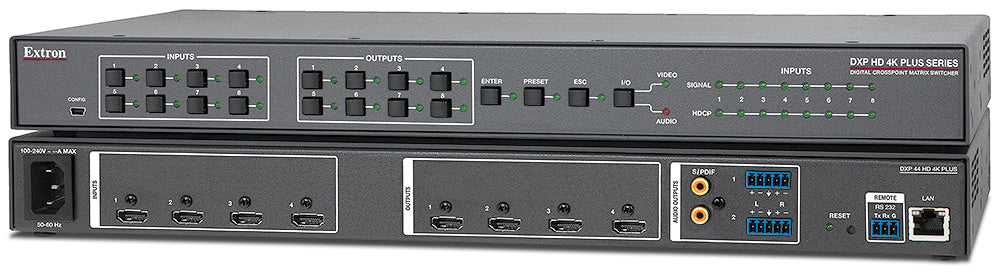

Extron DXP 42 HD 4K PLUS (part number 60-1678-01) — a fixed 4x2 HDMI matrix switcher built for compact single-room installations.

This switcher routes any of its HDMI sources to any or all of its outputs while extracting audio for separate distribution, letting an integrator combine video switching and audio de-embedding in a single chassis instead of stacking separate boxes. It passes 4096x2160 at 60 Hz video at data rates up to 18 Gbps, keeping pace with HDCP 2.3-protected sources and full HD color depth without a transcoder in the signal path.

Key Capabilities

Fixed 4x2 matrix with independent, simultaneous routing to every output
Video bandwidth up to 18 Gbps, supporting 4096x2160 at 60 Hz content
Analog stereo audio de-embedding on every output for legacy amplifiers and speakers
Independent per-output stereo volume control at the front panel or over the network
Control via RS-232, USB, or Ethernet with Extron SIS commands

Where It Is Used

This half-rack, externally powered unit fits huddle rooms, small classrooms, and equipment carts where a single source needs to reach up to two displays or one display and one recorder without a full rack of gear.

Specifications at a Glance

Matrix size: 4x2
Max. data rate: 18 Gbps
Mounting: half-rack shelf or optional under-desk mount
Weight: 1.5 lbs
Backed by a 3-year product warranty; the external power supply carries Extron's 7-year Everlast coverage.

Also referenced as Extron DXP42HD4KPLUS, DXP-42-HD-4K-PLUS, part number 601678 01.

Specifications

Part Number: 60-1678-01

Manufacturer: Extron

Model: DXP 42 HD 4K PLUS

Condition: New

Routing: 4x2 fixed matrix (4 HDMI inputs, 2 HDMI outputs)

Frame rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps (subject to max. data rate)

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits per color

Signal type: HDMI 2.0, HDCP 2.3

Max. video data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Resolution range: Up to 1080p at 120 Hz or 4K at 60 Hz (4:4:4 chroma sampling); 5120x1080, 5120x1440, 5120x2160, 5120x2560, or 5120x2880 at 30 Hz (4:4:4 chroma sampling, some rates require custom EDID)

Video formats: RGB and YCbCr digital video

Video standards: DVI 1.0, HDMI 1.4, HDMI 2.0, HDCP 1.n and 2.3

Horizontal frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Peripheral device power: 250 mA per HDMI output

Video input: 4x HDMI, HDCP compliant, 4x female HDMI type A connectors

Video output: 2x HDMI, HDCP compliant, 2x female HDMI type A connectors

Power for active cables: 4.2 W total for all HDMI ports, 1.1 W per HDMI port max

Analog de-embedding: LPCM up to 2.0 channel, 24-bit, 96 kHz

HDMI pass-through audio: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats

Audio gain (individual audio groups): Unbalanced output: -6 dB; balanced output: 0 dB

Audio frequency response: 20 Hz to 20 kHz, +/- 0.5 dB

Audio THD + Noise: Less than 0.01% at 20-20 kHz, nominal level

Audio S/N: Greater than 90 dB at maximum output, unweighted

Audio crosstalk: -80 dB or better at 1 kHz, fully loaded

Stereo channel separation: Greater than 80 dB at 1 kHz

Audio output: 2x HDMI embedded; 2x stereo, balanced or unbalanced

Audio output connectors: HDMI: 2x female; Stereo: 2x 3.5 mm captive screw, 5-pole

Stereo audio impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: +/- 0.1 dB channel to channel

D/A conversion: 24-bit, 192 kHz

Maximum output level (Hi-Z): Greater than +12 dBu balanced, or +6 dBu unbalanced

Output volume range: -90 to 0 dB, control range 0 to 90 in 1 dB steps

Serial control port: 1 bidirectional RS-232

Serial control connector: 1x 3.5 mm captive screw, 3-pole (rear panel)

Baud rate and protocol: 300 to 115200 baud; 7 or 8 data bits; 1 or 2 stop bits; no, even, odd, mark, or space parity. Default: 9600 baud, 8 data bits, 1 stop bit, no parity

Serial pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

USB control port: 1x front panel female USB mini-B, USB 2.0 low speed

Ethernet control port: 1x female RJ-45, 10/100Base-T half/full duplex with autodetect

Ethernet default settings: IP address 192.168.254.254; subnet mask 255.255.0.0; gateway 0.0.0.0; DHCP off

Web server: Up to 200 simultaneous sessions; 40.0 MB nonvolatile user memory

Program control: Extron Product Configuration Software (PCS), Extron Simple Instruction Set (SIS), Microsoft Edge, Telnet

Power supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 1.5 A, 18 W

Power consumption (full load): Device: 16 W. Device with power supply: 17.5 W

Power consumption (power save): Mode 1 - Device: 5.57 W, with power supply: 6.99 W. Mode 2 - Device: 5.58 W, with power supply: 7.1 W

Cooling: Convection, vents on top and sides

Thermal dissipation (full load): Device: 51.2 BTU/hr. Device with power supply: 56.3 BTU/hr

Mounting: Rack mountable with optional rack shelf kit; back-of-rack mountable with optional kit; furniture mountable with optional under-desk kit

Enclosure dimensions: 1.0" H x 8.75" W x 8.0" D (2.5 x 22.2 x 20.3 cm), half rack wide. Depth excludes connectors

Product weight: 1.5 lbs (0.7 kg)

Temperature/humidity: Storage: -40 to +158 F (-40 to +70 C), 10-90% noncondensing. Operating: +32 to +122 F (0 to +50 C), 10-90% noncondensing

Enclosure type: Metal

Regulatory compliance: CE, C-tick, c-UL, UL, FCC Class A, ICES, PSE, KC, VCCI, RoHS, and WEEE

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

Diagram
