Details

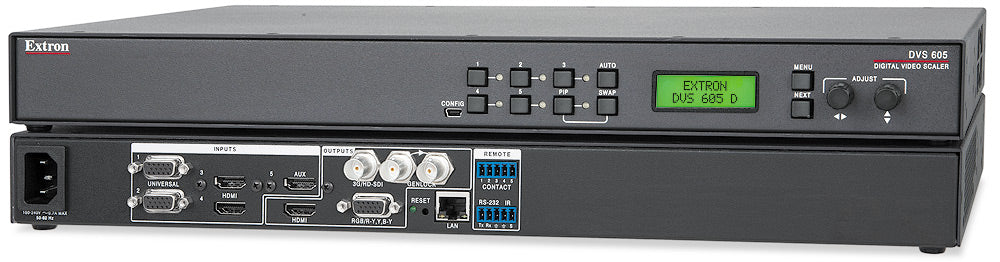

Extron DVS 605 D (part number 60-1059-03) is a 1U rack video scaler that adds a genlocked SDI output to the DVS 605 platform.

Like the base DVS 605, this model accepts three HDMI inputs plus two auto-sensing analog inputs and scales any of them, but it adds a third simultaneous output: 3G/HD-SDI with a genlock input and loop-through for locking to house sync. A 12-bit decoder with 3D-adaptive comb filtering handles deinterlacing up to 1080i, and seamless switching moves cleanly between all five inputs. Integrators use this configuration when a room needs to feed an SDI recorder, router, or streaming encoder alongside standard HDMI and analog displays, without dedicated audio switching.

Key Capabilities

Scales 3 HDMI and 2 analog inputs to simultaneous HDMI, analog, and 3G/HD-SDI outputs
SDI output includes a genlock input and loop-through for broadcast timing
12-bit video processing with 3D-adaptive comb filter deinterlacing
Picture-in-picture and seamless switching across all five video inputs
Ethernet, RS-232, USB, and 5-input contact closure control

Where It Is Used

Conference rooms, boardrooms, classrooms, and lecture halls with a recording or distribution requirement use the DVS 605 D to add an SDI feed for a recorder or streaming encoder alongside standard presentation displays.

Specifications at a Glance

Inputs: 3 HDMI + 2 analog (RGBHV/component/S-video/composite)
Outputs: HDMI + analog + 3G/HD-SDI video, with genlock
Resolution: up to 1920x1200 / 2K sampled pixel for pixel
Enclosure: 1.72" H x 17.5" W x 10.5" D, 1U full rack, 5.1 lbs

Also referenced as Extron DVS605D, DVS-605-D, part number 60105903.

Specifications

Part Number: 60-1059-03

Manufacturer: Extron

Model: DVS 605 D

Condition: New

Video Input: 2 RGBHV/RGBS/RGsB/RGBcvS/component video (YUVi or YUVp/HDTV)/S-video/composite video + 3 HDMI, 2 female 15-pin HD + 3 female HDMI type A

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 75 Hz

Resolution range: 640x480 to 1920x1200 (reduced blanking), NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K sampled pixel for pixel

Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM; DVI 1.0, HDMI 1.3, HDCP 1.4

Decoder: 12 bit digital (3D-adaptive comb filter)

Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)

Colors: 1 billion (10 bit processing)

Video Output: 1 scaled RGBHV/RGBS/RGsB/component video (YUVp/HDTV) + 1 HDMI + (1) 3G-SDI or HD-SDI with genlock, 1 female 15-pin HD + 1 female HDMI type A + 3 female BNC (SDI, genlock, genlock loop-through)

Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4 and 2.3, SMPTE 292M and 424M

Sync input/output type: Input: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video. Output: RGBHV, RGBS, RGsB, bi-level or tri-level component video

Sync input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p tri-level component; 0.3 Vp-p bi-level component or RGsB

Sync output level: TTL: 5.0 Vp-p, unterminated

Sync impedance: Input horizontal 75 ohms, vertical 510 ohms; Output 75 ohms

Max. input voltage: 5.0 Vp-p

Output polarity: Positive or negative (selectable)

Serial control port: 1 bidirectional RS-232, rear panel 3.5 mm captive screw connector, 5 pole (uses 3)

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

USB control port: 1 front panel female mini USB B, USB 2.0 high speed

Ethernet control port: 1 female RJ-45 connector, 10/100Base-T half/full duplex with autodetect

Contact closure: 1 rear panel 3.5 mm captive screw connector, 5 pole; pins 1-5 = inputs 1-5

IR remote control input: Rear panel captive screw connector shared with RS-232 (2 poles): 38 kHz, hardwired, modulated TTL level (0-5V) infrared up to 1 MHz

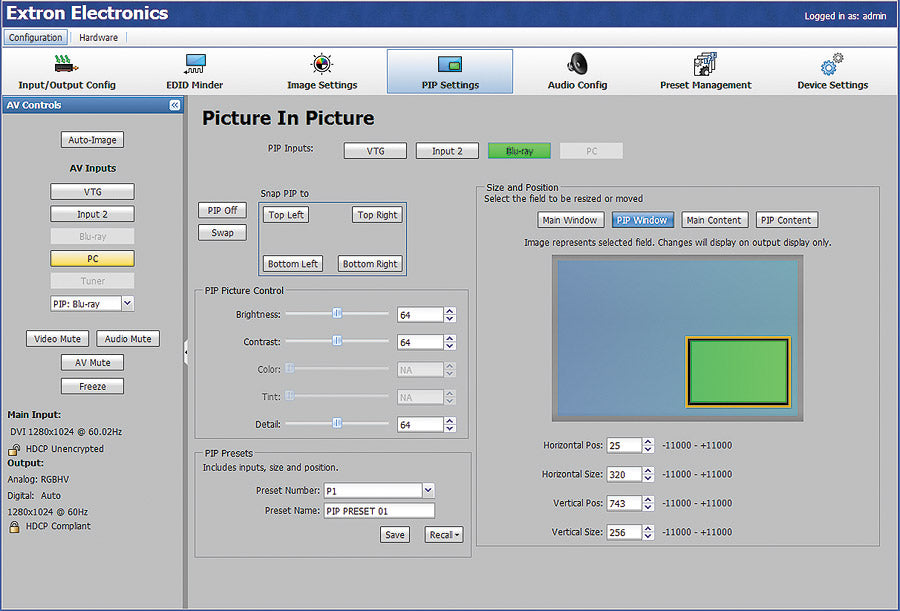

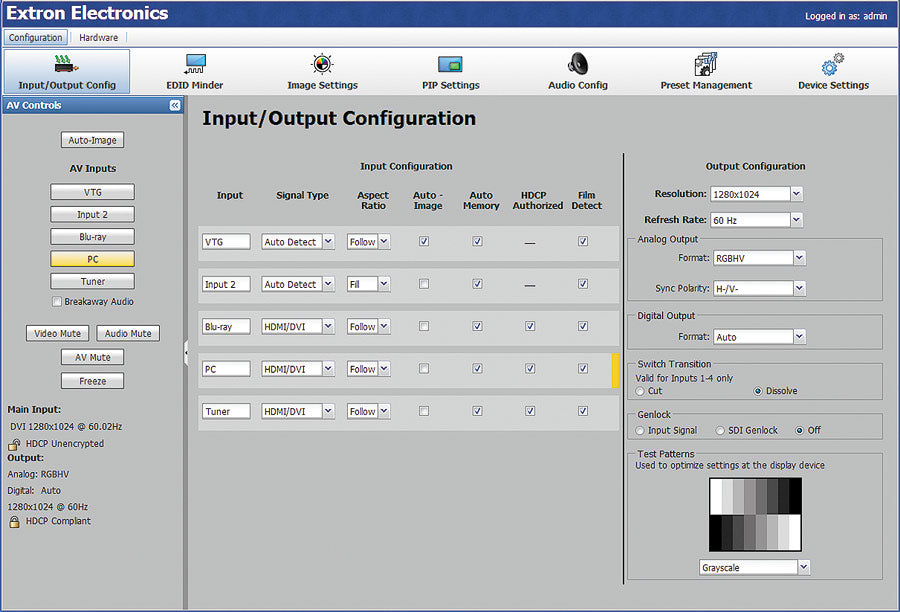

Program control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer

Power supply: Internal, Input 100-240 VAC, 50-60 Hz

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Fan, air flows right to left (as viewed from front panel)

Mounting: Rack mount yes, with included pre-installed brackets

Enclosure: Metal, 1.72" H x 17.5" W x 10.5" D (1U high, full rack wide), depth excludes connectors and knobs, width excludes rack ears

Product weight: 5.1 lbs (2.3 kg)

Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, KC, VCCI, UL. Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

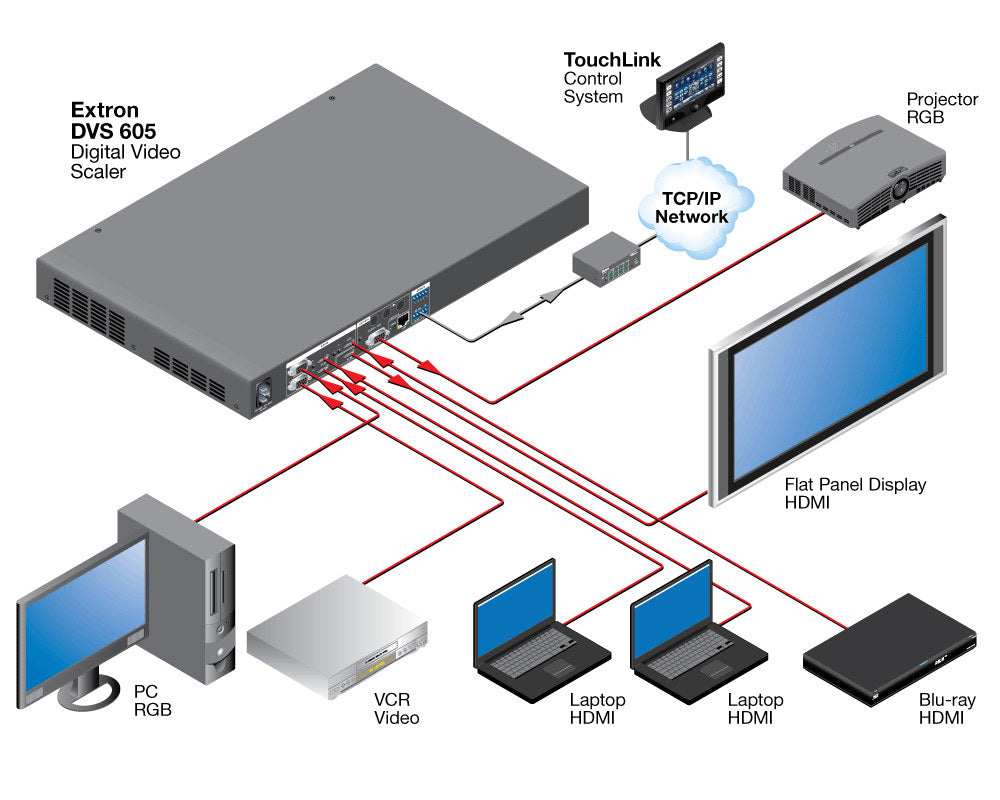

Diagram

Resources

Brochure | DVS 605 D 60-1059-03 | DVS 605 (dvs605_revB.pdf)

Brochure | DVS 605 D 60-1059-03 | Everlast Power Supplies

Brochure | DVS 605 D 60-1059-03 | Extron Government Solutions

Brochure | DVS 605 D 60-1059-03 | Alimentatori Everlast

Brochure | DVS 605 D 60-1059-03 | DVS 605 (dvs_605_A4_jp_ONLINE.pdf)

Brochure | DVS 605 D 60-1059-03 | DVS 605 (dvs_605_A4_REV_B_ch_ONLINE.pdf)

Brochure | DVS 605 D 60-1059-03 | DVS 605 (DVS-605_BR_A4_SP_RevA.pdf)

Brochure | DVS 605 D 60-1059-03 | DVS 605A - Spec Sheet

Brochure | DVS 605 D 60-1059-03 | Everlast 电源

Brochure | DVS 605 D 60-1059-03 | Everlast-Netzteile

Brochure | DVS 605 D 60-1059-03 | Extron-Lösungen für Behörden

Brochure | DVS 605 D 60-1059-03 | Fuentes de alimentación Everlast

Brochure | DVS 605 D 60-1059-03 | Solutions Extron pour structures gouvernementales

Brochure | DVS 605 D 60-1059-03 | Soluzioni Extron per ambienti governativi

Brochure | DVS 605 D 60-1059-03 | Sources d'alimentation Everlast

Manual | DVS 605 D 60-1059-03 | Cleaning Instruction Card

Manual | DVS 605 D 60-1059-03 | DVS 605 User Guide

Manual | DVS 605 D 60-1059-03 | DVS 605 取扱説明書

Specifications | DVS 605 D 60-1059-03 | DVS 605 Series

Panel Drawing | DVS 605 D 60-1059-03 | DVS 605

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DVS 605 D HDMI/Analog/SDI Video Scaler 60-1059-03

Name: Extron DVS 605 D HDMI/Analog/SDI Video Scaler 60-1059-03
Brand: Extron
SKU: EXTRON-DVS605D-60105903
Availability: InStock

Manufacturer: Extron

Type: Scalers & Signal Processors

Extron DVS 605 D HDMI/Analog/SDI Video Scaler

• Scales 3 HDMI and 2 analog inputs to simultaneous HDMI, analog, and 3G/HD-SDI outputs
• SDI output includes a genlock input and loop-through for broadcast timing
• 12-bit video processing with 3D-adaptive comb filter deinterlacing
• Picture-in-picture and seamless switching across all five video inputs
• Ethernet, RS-232, USB, and 5-input contact closure control
• 1U full-rack metal enclosure at 5.1 lbs with pre-installed mounting brackets

Product discontinued.
