Details

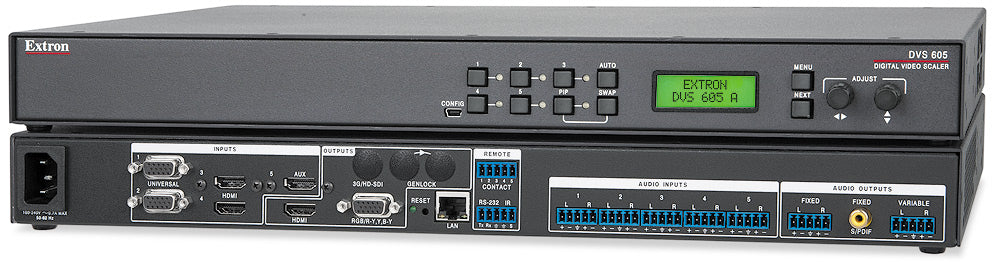

Extron DVS 605 A (part number 60-1059-02) is a 1U rack video scaler that adds dedicated audio switching to the DVS 605 platform.

Like the base DVS 605, this model accepts three HDMI inputs plus two auto-sensing analog inputs and scales any of them to simultaneous HDMI and analog video outputs, with a 12-bit decoder and 3D-adaptive comb filtering handling deinterlacing up to 1080i. The "A" adds a five-input analog audio switcher alongside three HDMI-embedded audio inputs, so sound routes independently of video across analog line, S/PDIF, and HDMI-embedded outputs. Integrators use this configuration when a room needs synchronized or independent audio and video switching without adding a separate audio matrix.

Key Capabilities

Scales 3 HDMI and 2 analog inputs to matched HDMI and analog video outputs
Dedicated audio switching across 5 analog stereo inputs plus 3 HDMI-embedded inputs
Simultaneous analog, S/PDIF, and HDMI-embedded audio outputs
12-bit video processing with 3D-adaptive comb filter deinterlacing

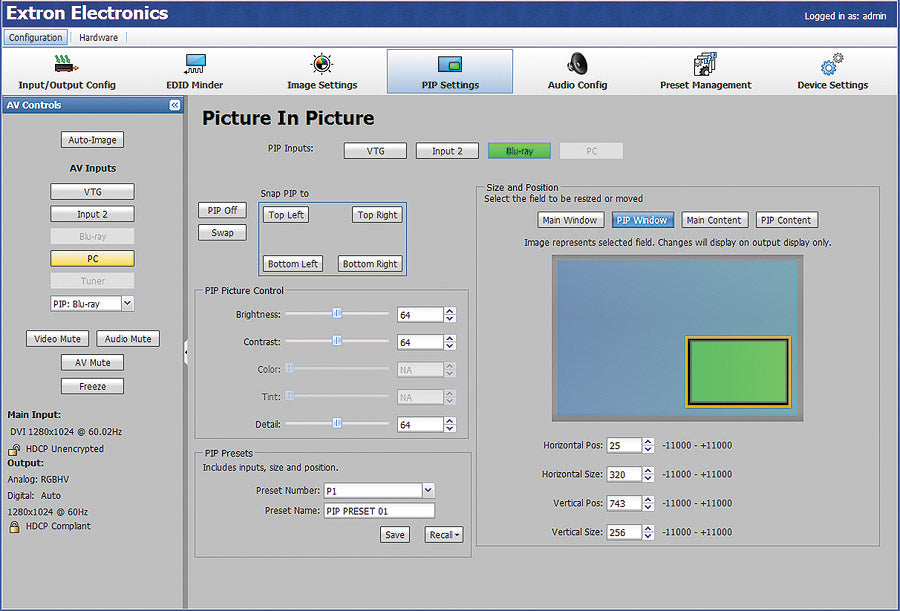

Picture-in-picture and seamless switching across all five video inputs

Where It Is Used

Conference rooms, boardrooms, classrooms, and lecture halls use the DVS 605 A when video sources must be paired with independent audio routing, such as a laptop's HDMI audio feeding a program that has its own microphone or playback audio path.

Specifications at a Glance

Inputs: 3 HDMI + 2 analog video; 5 analog + 3 HDMI-embedded audio
Outputs: 1 scaled analog + 1 HDMI video, plus analog/S-PDIF/HDMI audio
Resolution: up to 1920x1200 / 2K sampled pixel for pixel
Enclosure: 1.72" H x 17.5" W x 10.5" D, 1U full rack, 5.3 lbs

Also referenced as Extron DVS605A, DVS-605-A, part number 60105902.

Specifications

Part Number: 60-1059-02

Manufacturer: Extron

Model: DVS 605 A

Condition: New

Video Input: 2 RGBHV/RGBS/RGsB/RGBcvS/component video (YUVi or YUVp/HDTV)/S-video/composite video + 3 HDMI, 2 female 15-pin HD + 3 female HDMI type A

Video Input impedance: 75 ohms

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 75 Hz

Resolution range: 640x480 to 1920x1200 (reduced blanking), NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K sampled pixel for pixel

Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM; DVI 1.0, HDMI 1.3, HDCP 1.4

Decoder: 12 bit digital (3D-adaptive comb filter)

Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)

Colors: 1 billion (10 bit processing)

Video Output: 1 scaled RGBHV/RGBS/RGsB/component video (YUVp/HDTV) + 1 HDMI, 1 female 15-pin HD + 1 female HDMI type A

Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4

Sync input/output type: Input: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video. Output: RGBHV, RGBS, RGsB, bi-level or tri-level component video

Audio gain: Unbalanced output -6 dB; balanced output 0 dB

Audio frequency response: Line out: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: Preamp <0.110% @ 1 kHz, 20 kHz bandwidth at maximum output; Line out <0.025% @ 1 kHz, 20 kHz bandwidth at maximum output

S/N at maximum power output (unweighted): Preamp 90 dB at rated maximum output; Line out 90 dB at rated maximum output

Crosstalk: Preamp ≤-80 dB @ 1 kHz, fully loaded; Line out ≤-80 dB @ 1 kHz, fully loaded

Stereo channel separation: >84 dB @ 1 kHz

Audio Input: 5 stereo, balanced/unbalanced + 3 stereo de-embedded from HDMI (LPCM-2Ch only), (5) 3.5 mm captive screw 5-pole + 3 female HDMI type A

Audio Input impedance: >10k ohms unbalanced, DC coupled

Audio nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio maximum level: +21 dBu, unbalanced

Analog input gain: -53 dB to +24 dB, adjustable per input

Audio Output: Stereo/mono, balanced/unbalanced - Fixed: 1 analog, 1 S/PDIF digital (LPCM-2Ch, Dolby Digital, or DTS only), 1 HDMI embedded. Variable: 1 analog

Audio Output connectors: (2) 3.5 mm captive screw 5-pole, 1 female RCA (S/PDIF), 1 female HDMI type A (shared with HDMI video)

Audio Output impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: ±0.25 dB channel to channel

Maximum level (Hi-Z): >+21 dBu balanced; >+11 dBu unbalanced

Analog output volume range: 0 dB to -100 dB in 1.0 dB increments

Serial control port: 1 bidirectional RS-232, rear panel 3.5 mm captive screw connector, 5 pole (uses 3)

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

USB control port: 1 front panel female mini USB B, USB 2.0 high speed

Ethernet control port: 1 female RJ-45 connector, 10/100Base-T half/full duplex with autodetect

Contact closure: 1 rear panel 3.5 mm captive screw connector, 5 pole; pins 1-5 = inputs 1-5

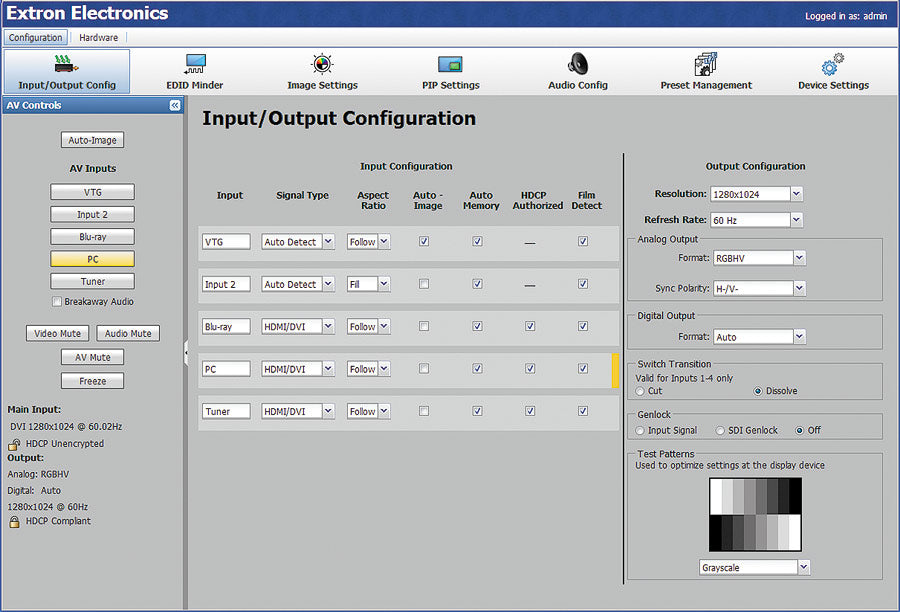

Program control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer

Power supply: Internal, Input 100-240 VAC, 50-60 Hz

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Fan, air flows right to left (as viewed from front panel)

Mounting: Rack mount yes, with included pre-installed brackets

Enclosure: Metal, 1.72" H x 17.5" W x 10.5" D (1U high, full rack wide), depth excludes connectors and knobs, width excludes rack ears

Product weight: 5.3 lbs (2.4 kg)

Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, KC, VCCI, UL. Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor
