Details

Manufacturer: Extron; Model: DVS 605; Part number: 60-1059-01 (also written 60105901)

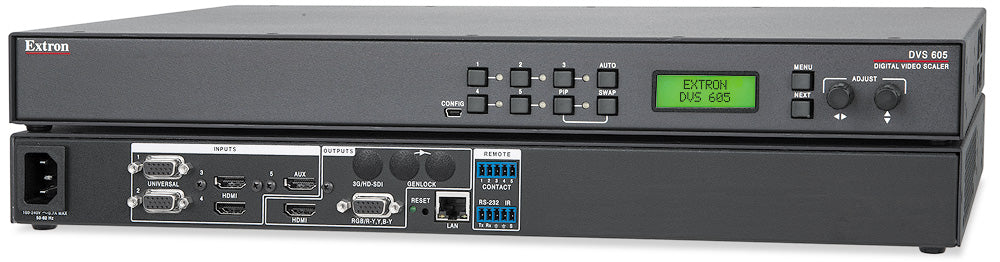

The Extron DVS 605 (60-1059-01) is a new 1U rack video scaler available through Ampronix for unifying HDMI and analog sources. It accepts three HDMI inputs plus two auto-sensing analog inputs (RGBHV, component, S-video, or composite) and scales any of them to simultaneous HDMI and analog outputs with a 12-bit decoder and 3D-adaptive comb filtering for deinterlacing up to 1080i. Seamless switching moves between all five sources without a visible cut.

Key capabilities

Scales 3 HDMI and 2 analog inputs to matched simultaneous outputs
Simultaneous scaled analog and HDMI outputs up to 1920x1200
12-bit video processing with 3D-adaptive comb filter deinterlacing

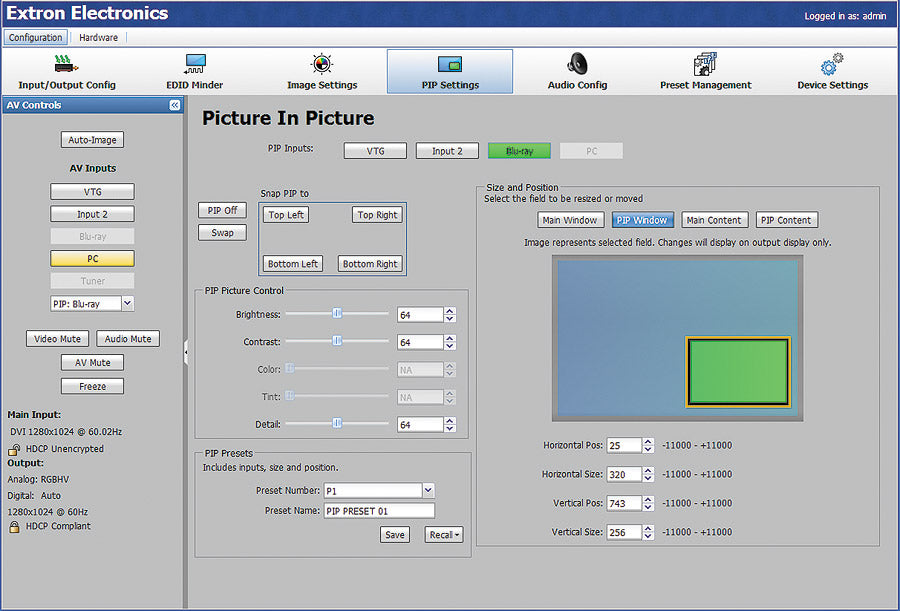

Picture-in-picture and seamless switching between all five inputs
Ethernet, RS-232, USB, and 5-input contact closure control

Where it is used

Conference rooms, boardrooms, classrooms, and lecture halls combining laptops, computers, and legacy analog sources on one shared display system with picture-in-picture and automatic input switching.

Specifications at a glance

Inputs: 3 HDMI + 2 analog (RGBHV/component/S-video/composite)
Outputs: 1 scaled analog + 1 HDMI, simultaneous
Enclosure: 1U full rack, 4.9 lbs

Frequently asked questions about the Extron DVS 605 HDMI and Analog Video Scaler

Is the Extron DVS 605 60-1059-01 available new or refurbished?

Ampronix stocks the DVS 605 (60-1059-01) as a new unit through its authorized Extron distribution agreement.

How does the DVS 605 base model differ from the DVS 605 AD?

The base DVS 605 (60-1059-01) provides scaled HDMI and analog outputs; the DVS 605 AD (60-1059-04) adds a 3G/HD-SDI video output with genlock, a dedicated 5-input analog audio switcher, and S/PDIF audio outputs for production and broadcast environments.

Does Ampronix offer replacement and exchange for the Extron DVS 605?

Yes. Ampronix provides sales, replacement and exchange for the DVS 605 and the broader Extron video scaler line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron DVS 605? Ampronix provides sales, replacement and exchange for this product and the broader Extron line.

Also referenced as Extron DVS605, DVS-605, part number 60105901.

Specifications

Part Number: 60-1059-01

Manufacturer: Extron

Model: DVS 605

Condition: New

Video Input: 2 RGBHV/RGBS/RGsB/RGBcvS/component video (YUVi or YUVp/HDTV)/S-video/composite video + 3 HDMI, 2 female 15-pin HD + 3 female HDMI type A

Nominal level: 1 Vp-p for Y of component video/S-video/composite; 0.7 Vp-p for RGB and R-Y/B-Y; 0.3 Vp-p for C of S-video

Minimum/maximum levels: Analog: 0.0 V to 1.0 Vp-p with no offset

Impedance: 75 ohms

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 75 Hz

Resolution range: 640x480 to 1920x1200 (reduced blanking), NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K sampled pixel for pixel

Return loss: >30 dB @ 5 MHz

DC offset (max. allowable): 0.5 V

Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM; DVI 1.0, HDMI 1.3, HDCP 1.4

Decoder: 12 bit digital (3D-adaptive comb filter)

Analog sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)

Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)

Colors: 1 billion (10 bit processing)

Video Output: 1 scaled RGBHV/RGBS/RGsB/component video (YUVp/HDTV) + 1 HDMI, 1 female 15-pin HD + 1 female HDMI type A

Video Output min/max levels: 0.0-1.0 Vp-p for Y of component video and G of RGsB; 0.0-0.7 Vp-p for RGB and R-Y/B-Y

Video Output impedance: 75 ohms

Video Output return loss: >21 dB @ 5 MHz

Video Output DC offset: ±300 mV max.

Scaled resolution: 640x4806,8,9, 800x6006,8,9, 852x4806,8,9, 1024x7686,8,9, 1024x8526,8,9, 1024x10246,8,9, 1280x7686,8,9, 1280x8006,8,9, 1280x10246,8,9, 1360x7656,8,9, 1360x7686,8,9, 1365x7686,8,9, 1365x10246,8,9, 1366x7686,8,9, 1400x10506,8, 1440x9006,8,9, 1600x9006,8, 1600x12006,8, 1680x10506,8, 1920x12006,8. HDTV 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2048x10801,2,3,4,5,6,7,8

Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4

Sync input/output type: Input: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video. Output: RGBHV, RGBS, RGsB, bi-level or tri-level component video

Sync input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p tri-level component; 0.3 Vp-p bi-level component or RGsB

Sync output level: TTL: 5.0 Vp-p, unterminated

Sync impedance: Input horizontal 75 ohms, vertical 510 ohms; Output 75 ohms

Max. input voltage: 5.0 Vp-p

Output polarity: Positive or negative (selectable)

Serial control port: 1 bidirectional RS-232, rear panel 3.5 mm captive screw connector, 5 pole (uses 3)

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Serial control pin configurations: 1 = Tx, 2 = Rx, 3 = GND, 4 = GND, 5 = modulated IR input

USB control port: 1 front panel female mini USB B, USB 2.0 high speed

Ethernet control port: 1 female RJ-45 connector, 10/100Base-T half/full duplex with autodetect

Ethernet protocol: ARP, DHCP, DNS, HTTP, ICMP (ping), IP, SFTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Ethernet default settings: Link speed/duplex autodetected; DHCP off; IP address 192.168.254.254

Web server: Up to 200 simultaneous sessions

Contact closure: 1 rear panel 3.5 mm captive screw connector, 5 pole; pins 1-5 = inputs 1-5

IR remote control input: Rear panel captive screw connector shared with RS-232 (2 poles): 38 kHz, hardwired, modulated TTL level (0-5V) infrared up to 1 MHz

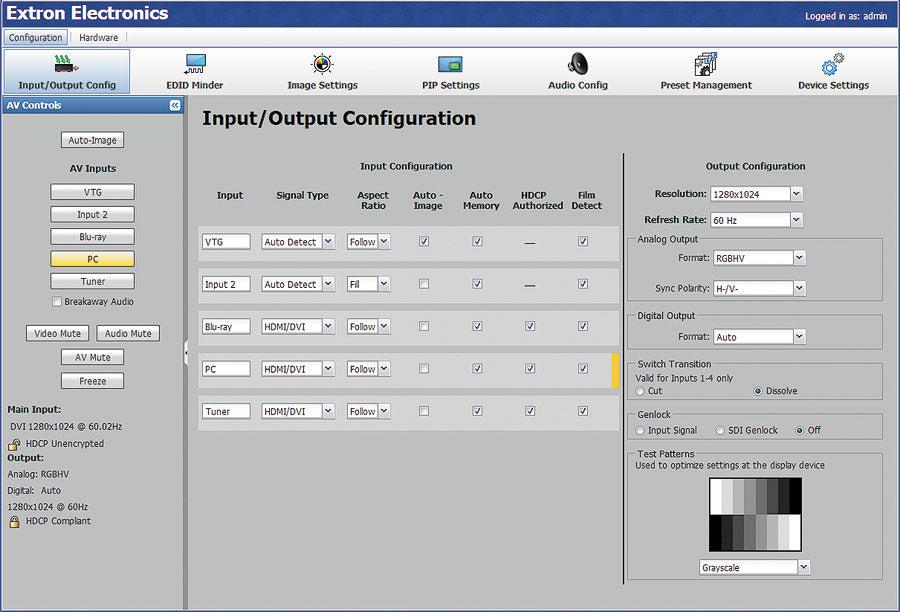

Program control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer

Power supply: Internal, Input 100-240 VAC, 50-60 Hz

Power consumption (full power): 25.7 watts

Power consumption (power save mode): 14.1 watts

Power save mode restore time: Up to 20 seconds

Thermal dissipation (full power): 83.6 BTU/hr

Thermal dissipation (power save mode): 48.2 BTU/hr

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Fan, air flows right to left (as viewed from front panel)

Mounting: Rack mount yes, with included pre-installed brackets

Enclosure: Metal, 1.72" H x 17.5" W x 10.5" D (1U high, full rack wide), depth excludes connectors and knobs, width excludes rack ears

Product weight: 4.9 lbs (2.2 kg)

Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, KC, VCCI, UL. Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor
