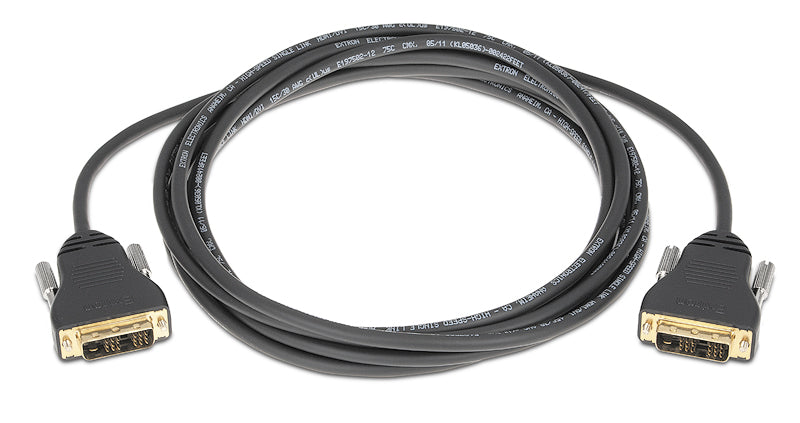

Extron DVID SL Ultra/9 (part number 26-662-09) — a 9 ft (2.7 m) single link DVI-D cable built on Extron's ultra-flexible 30 AWG cable.

Nine feet is an awkward gap for most DVI stock: too long for a jumper, too short to justify a bulky 22 AWG assembly. The DVID SL Ultra construction answers it with a 0.22 in jacket that coils tightly and connectors small enough to sit beside one another on a crowded panel. Extron rates the line for 1920x1200 at 60 Hz and 1080p/60, with data rates to 4.95 Gbps, intrapair skew held to 300 ps and interpair skew to 2.42 ns over 6 m.

Key Capabilities

• 9 ft (2.7 m) ultra-flexible single link DVI-D cable
• Supports 1920x1200 at 60 Hz with data rates to 4.95 Gbps
• Intrapair skew to 300 ps and interpair skew to 2.42 ns per 6 m
• 30 AWG conductors with a 32 AWG tinned copper drain wire
• 0.22 in (5.7 mm) diameter, 0.80 in (20.3 mm) minimum bend radius
• Gold-plated contacts on compact 1.92 in connector shells
• Extron Limited Lifetime Performance warranty

Where It Is Used

Nine-foot runs suit a desk-to-wall-display hop, a lectern connected to a nearby rack, or a mobile imaging cart where the cable travels with the equipment and needs to tolerate being coiled and uncoiled daily.

Specifications at a Glance

• Length: 9 ft (2.7 m)
• Maximum resolution: 1920x1200 @ 60 Hz
• Standard: DVI 1.0
• Bend radius: 0.80 in (20.3 mm)
• Connector: 1 male DVI-D single link to 1 male DVI-D single link

Also referenced as Extron DVIDSLUltra/9, DVID-SL-Ultra-9, part number 2666209. Extron lists 26-662-09 as a retired part number.
