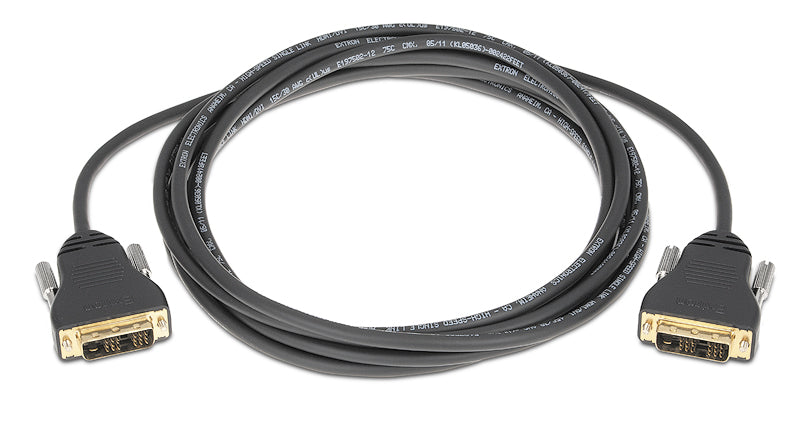

Extron DVID SL Ultra/15 (part number 26-662-15) — at 15 ft (4.5 m) this is the longest cable Extron built in the ultra-flexible DVID SL Ultra family.

Fifteen feet is where the trade-off in this line becomes interesting. The 30 AWG conductors that make the cable so easy to route are thinner than the 22 AWG used in Extron's long-haul DVI assemblies, so Extron caps the series here. Within that limit the ratings are unchanged from the shortest jumper: DVI 1.0, single link DVI-D to 1920x1200 at 60 Hz and 1080p/60, data rates to 4.95 Gbps, and the same 0.22 in (5.7 mm) jacket that turns inside a 0.80 in (20.3 mm) radius.

Key Capabilities

• 15 ft (4.5 m) — the maximum length Extron offered in this series
• Single link DVI-D to 1920x1200 at 60 Hz, data rates to 4.95 Gbps
• Same 0.22 in jacket and 0.80 in bend radius as the shortest lengths
• 30 AWG conductors with a 32 AWG drain wire, tinned copper throughout
• Attenuation of 10 dB or less per 6 m at 825 MHz per DVI 1.0
• Compact gold-plated connectors measuring 1.92 in with the plug
• Extron Limited Lifetime Performance warranty

Where It Is Used

Fifteen-foot flexible runs are chosen for ceiling-mounted projectors fed from a nearby rack, video walls where individual panels are cabled from a shared shelf, and mobile diagnostic or simulation carts that need the longest cable that will still coil neatly for transport.

Specifications at a Glance

• Length: 15 ft (4.5 m)
• Maximum resolution: 1920x1200 @ 60 Hz
• Data rate: up to 4.95 Gbps
• Conductor gauge: 30 AWG conductors, 32 AWG drain wire
• Bend radius: 0.80 in (20.3 mm)

Also referenced as Extron DVIDSLUltra/15, DVID-SL-Ultra-15, part number 2666215. Extron lists 26-662-15 as a retired part number.
