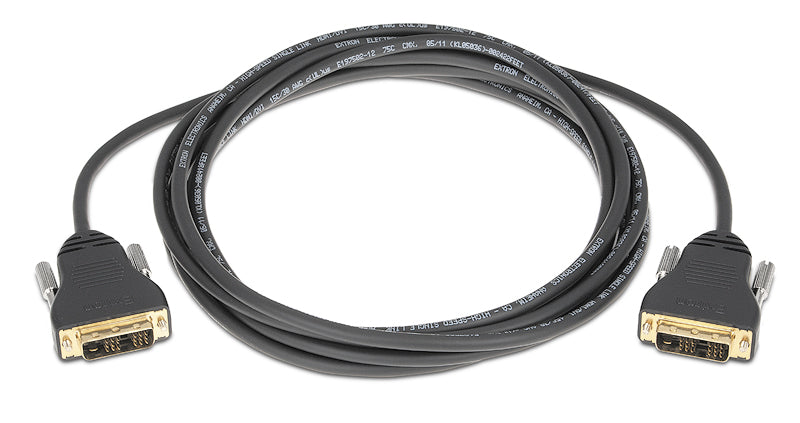

Extron DVID SL Ultra/1.5 (part number 26-662-02) — an 18 in (45 cm) single link DVI-D jumper built on Extron's ultra-flexible 30 AWG cable.

The whole point of the DVID SL Ultra line is getting out of your own way inside a crowded enclosure. At 0.22 in (5.7 mm) across and bending to a 0.80 in (20.3 mm) radius, this jumper turns corners that a standard 0.30 in DVI cable simply cannot, and the compact 1.92 in connector shell clears adjacent ports. At a foot and a half it is the shortest length Extron offered, meant for device-to-device hops rather than cable runs.

Key Capabilities

• 1.5 ft (45 cm) jumper length for stacked or side-by-side gear
• 0.22 in (5.7 mm) diameter with a 0.80 in (20.3 mm) bend radius
• Single link DVI-D to 1920x1200 at 60 Hz, data rates to 4.95 Gbps
• 30 AWG conductors with a 32 AWG drain wire under a PVC jacket
• Compact gold-plated connectors, 1.92 in long including the plug
• Extron Limited Lifetime Performance warranty

Where It Is Used

Short DVI jumpers like this live inside racks, under AV furniture, behind wall-mounted and pole-mounted displays, and in medical carts where a compute module and its panel are bolted within inches of each other and cable strain is a real failure mode.

Specifications at a Glance

• Length: 1.5 ft (45 cm)
• Maximum resolution: 1920x1200 @ 60 Hz
• Conductor gauge: 30 AWG conductors, 32 AWG drain wire
• Bend radius: 0.80 in (20.3 mm)
• Standard: DVI 1.0

Also referenced as Extron DVIDSLUltra/1.5, DVID-SL-Ultra-1-5, part number 2666202. Extron lists 26-662-02 as a retired part number.
