Extron DVID SL Pro/35 Single Link DVI-D Cable
- • Extron DVID SL Pro 35 ft single link DVI-D cable
- • 1920x1200 at 60 Hz; data rates to 4.95 Gbps
- • 22 AWG tinned copper, 0.47 in outer diameter
- • Sales, replacement and exchange
- • Part# 26-649-35 / 2664935
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

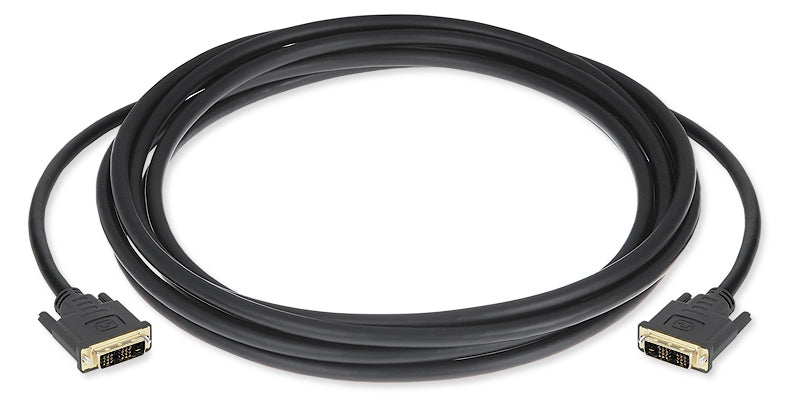

Extron DVID SL Pro/35 (part number 26-649-35) is a 35 ft (10.6 m) male-to-male single link DVI-D cable for room-scale digital video runs.
Thirty-five feet buys an installer real routing freedom: rack to a far wall, floor box to a ceiling projector, or straight across a control room without adding a repeater. This length uses the long-run DVID SL Pro construction, 22 AWG tinned copper conductors and a tinned copper drain wire inside a PVC jacket measuring 0.47 in across. Impedance sits at 100 ohms plus or minus 10 ohms and attenuation stays at 8.2 dB or less per 10 m at 825 MHz, which is what keeps a 1920x1200 image clean at this distance.
Key Capabilities
- 35 ft of single link DVI-D carrying up to 4.95 Gbps.
- Maximum resolution of 1920x1200 at 60 Hz, and 1080p/60 sources.
- Heavier 22 AWG tinned copper conductors for the longer span.
- 0.47 in PVC jacket rated from -25 C to 75 C.
- Far end crosstalk of 20 dB or more per 10 m.
- Gold plated contacts on both male DVI-D single link plugs.
Where It Is Used
A 35 ft DVI-D run typically links a head-end rack to a projector, a large-format display or a remote wall plate. Ampronix ships this length into lecture halls, simulation labs, medical imaging suites, houses of worship and network operations centers where the display is well away from the source equipment.
Specifications at a Glance
- Length: 35 ft (10.6 m)
- Data rate: up to 4.95 Gbps
- Bend radius: 4.50 in (114.3 mm)
- Pair impedance: 100 ohms plus or minus 10 ohms
- Warranty: Extron Limited Lifetime Performance
Frequently asked questions about the Extron DVID SL Pro/35 35ft Single Link DVI-D Cable
Does Ampronix sell the Extron DVID SL Pro/35 35ft Single Link DVI-D Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron DVID SL Pro/35 35ft Single Link DVI-D Cable (26-649-35). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron DVID SL Pro/35 35ft Single Link DVI-D Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron DVID SL Pro/35 35ft Single Link DVI-D Cable. Call Ampronix for a quote.
Is the Extron DVID SL Pro/35 35ft Single Link DVI-D Cable listed under other names?
Yes. The Extron DVID SL Pro/35 35ft Single Link DVI-D Cable is also referenced as Extron DVIDSLPro/35, DVID-SL-Pro-35, part number 2664935. Extron lists 26-649-35 as a retired part number.
What are the key features of the Extron DVID SL Pro/35 35ft Single Link DVI-D Cable?
Key points: 35 ft of single link DVI-D carrying up to 4.95 Gbps; Maximum resolution of 1920x1200 at 60 Hz, and 1080p/60 sources; Heavier 22 AWG tinned copper conductors for the longer span; 0.47 in PVC jacket rated from -25 C to 75 C. Call Ampronix to confirm details for your application.
Also referenced as Extron DVIDSLPro/35, DVID-SL-Pro-35, part number 2664935. Extron lists 26-649-35 as a retired part number.
