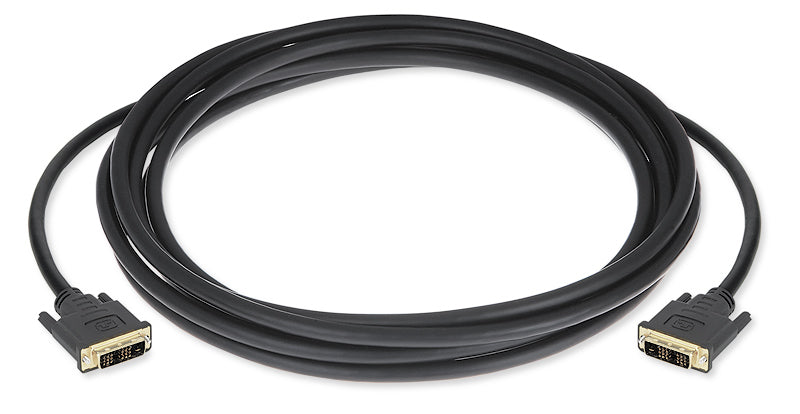

Extron DVID SL Pro/3 (part number 26-649-03) is a 3 ft (90 cm) single link DVI-D interconnect built for short rack and desktop runs.

Ampronix supplies this Extron assembly for installers who want a known-good digital video link between a source and a display instead of an unmarked generic patch lead. Both ends terminate in a male DVI-D single link plug, so it drops straight into switchers, scalers, distribution amplifiers and monitors that use the standard DVI-D connector. At this length the conductor set is 24 AWG silver coated tinned copper with a tinned copper drain wire under a PVC jacket, and the finished cable carries a UL Listing as type CM.

Key Capabilities

• Carries 1920x1200 at 60 Hz, and 1080p/60, within the DVI 1.0 standard.
• Handles data rates as high as 4.95 Gbps on the single link TMDS pairs.
• Pair impedance held to 100 ohms plus or minus 10 ohms for clean digital transmission.
• Gold plated contacts resist oxidation in racks that get re-patched often.
• Slim 0.30 in outer diameter and a 4.20 in bend radius suit tight cable management.
• Attenuation of 8.2 dB or less per 10 m at 825 MHz, measured to the DVI 1.0 standard.

Where It Is Used

Short DVID SL Pro lengths live inside equipment racks and under desks: source to switcher, switcher to scaler, scaler to a local confidence monitor. Ampronix customers deploy them in imaging reading rooms, broadcast machine rooms, classroom lecterns, huddle spaces and control consoles where the run is measured in feet rather than tens of feet.

Specifications at a Glance

• Length: 3 ft (90 cm)
• Maximum resolution: 1920x1200 @ 60 Hz
• Connectors: male DVI-D single link at both ends, gold plated contacts
• Cable: 24 AWG, 0.30 in outer diameter, PVC jacket, UL type CM
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron DVIDSLPro/3, DVID-SL-Pro-3, part number 2664903. Extron lists 26-649-03 as a retired part number.
