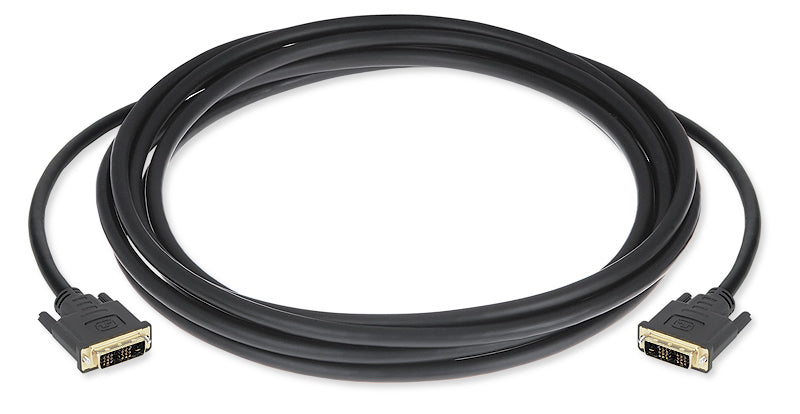

Extron DVID SL Pro/125 (part number 26-649-125) is a 125 ft (38 m) single link DVI-D cable built for the longest passive runs Extron supports in this family.

Beyond a hundred feet, conductor gauge and impedance control decide whether the link is stable. This length uses the heavy DVID SL Pro construction throughout: 22 AWG tinned copper conductors, a tinned copper drain wire and a PVC jacket measuring 0.47 in across, with pairs held at 100 ohms plus or minus 10 ohms. Both terminations are the standard male DVI-D single link plug with gold plated contacts, so nothing about the connection at either end changes from the shorter parts. Extron recommends the HD 4K 101 Plus alongside its 75 to 200 ft lengths where a run needs active extension.

Key Capabilities

• 125 ft of single link DVI-D at up to 1920x1200 and 60 Hz.
• Supports data rates as high as 4.95 Gbps.
• 22 AWG tinned copper conductors reduce loss over the long span.
• Far end crosstalk of 20 dB or more per 10 m.
• 0.47 in jacket with a 4.50 in bend radius.
• Rated 30 V and UL Listed as type CM.

Where It Is Used

This length serves campus and facility-scale installations: a central head end feeding a distant auditorium, a broadcast plant, a large video wall, or a hospital department where imaging displays sit far from the source equipment. Ampronix stocks Extron cable for integrators specifying long permanent DVI-D infrastructure.

Specifications at a Glance

• Length: 125 ft (38 m)
• Maximum resolution: 1920x1200 @ 60 Hz
• Conductor gauge: 22 AWG conductors and drain wire
• Intrapair skew: 350 ps or less per 12 m
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron DVIDSLPro/125, DVID-SL-Pro-125, part number 26649125. Extron lists 26-649-125 as a retired part number.
