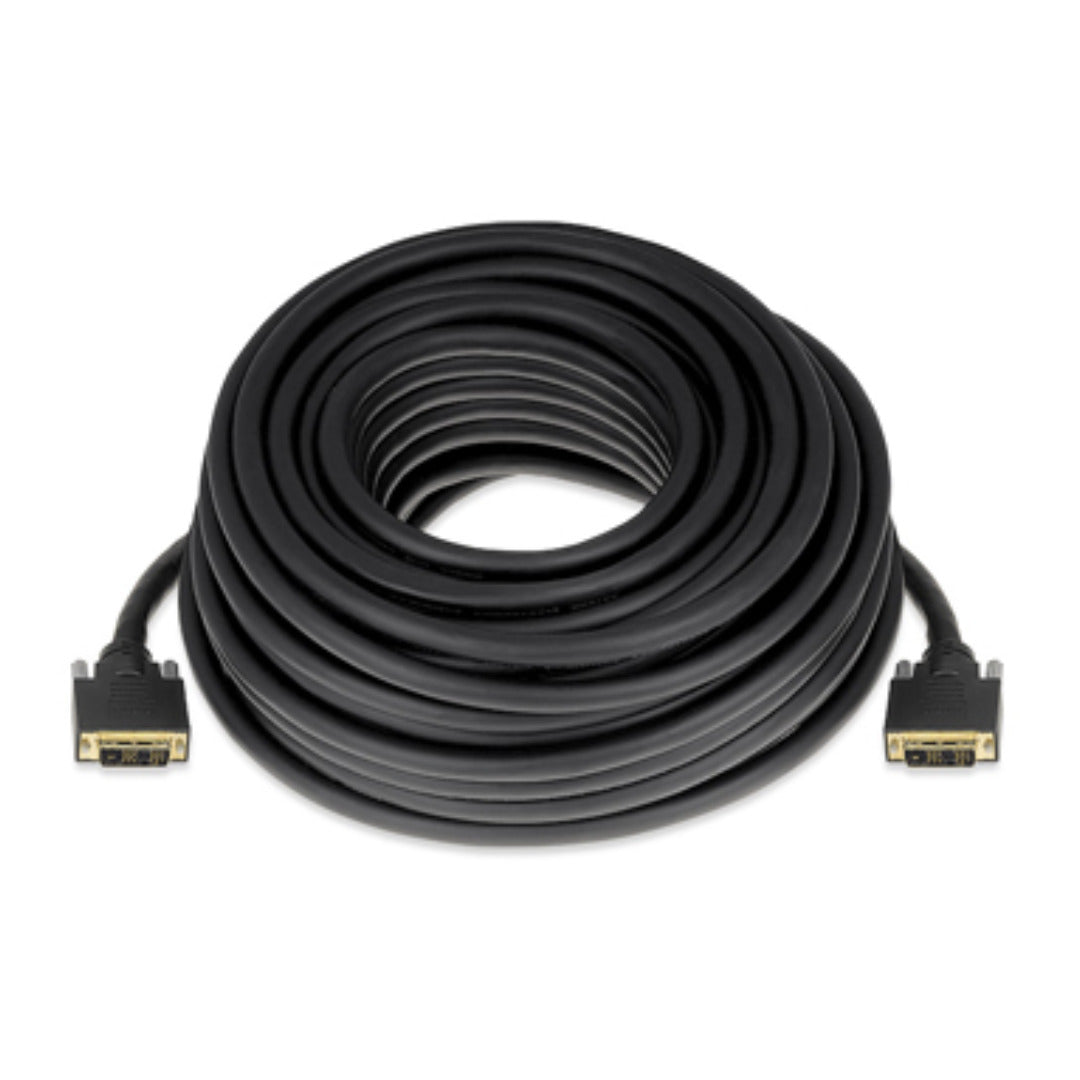

Extron DVID SL Pro/100 (part number 26-649-100) is a 100 ft (30.4 m) single link DVI-D cable for building-scale digital video distribution.

One hundred feet of passive DVI-D only works if the cable is engineered for it, which is why Extron changes the conductor set on the long members of this family. This part uses 22 AWG tinned copper conductors and a tinned copper drain wire under a 0.47 in PVC jacket, holding pair impedance at 100 ohms plus or minus 10 ohms. Skew is specified at 350 ps or less per 12 m within a pair and 2.42 ns or less per 12 m between pairs, which is what keeps the red, green and blue channels arriving together at the far end. For runs that need active support, Extron pairs the 75 to 200 ft lengths with the HD 4K 101 Plus.

Key Capabilities

• 100 ft single link DVI-D run with a 1920x1200 at 60 Hz maximum.
• 22 AWG tinned copper conductors and drain wire.
• Data rate to 4.95 Gbps, vertical frequency to 60 Hz.
• Pair impedance of 100 ohms plus or minus 10 ohms.
• Cable UL Listed as type CM and rated to 30 V.
• Extron Limited Lifetime Performance warranty.

Where It Is Used

A 100 ft DVI-D pull normally crosses floors or wings: equipment room to auditorium, control room to video wall, imaging suite to a remote reading station. Ampronix supplies this length to integrators building permanent infrastructure where re-pulling cable later would be disruptive and expensive.

Specifications at a Glance

• Length: 100 ft (30.4 m)
• Cable outer diameter: 0.47 in (12.0 mm)
• Bend radius: 4.50 in (114.3 mm)
• Attenuation: 8.2 dB or less per 10 m at 825 MHz
• Operating temperature: -25 C to 75 C

Also referenced as Extron DVIDSLPro/100, DVID-SL-Pro-100, part number 26649100. Extron lists 26-649-100 as a retired part number.
