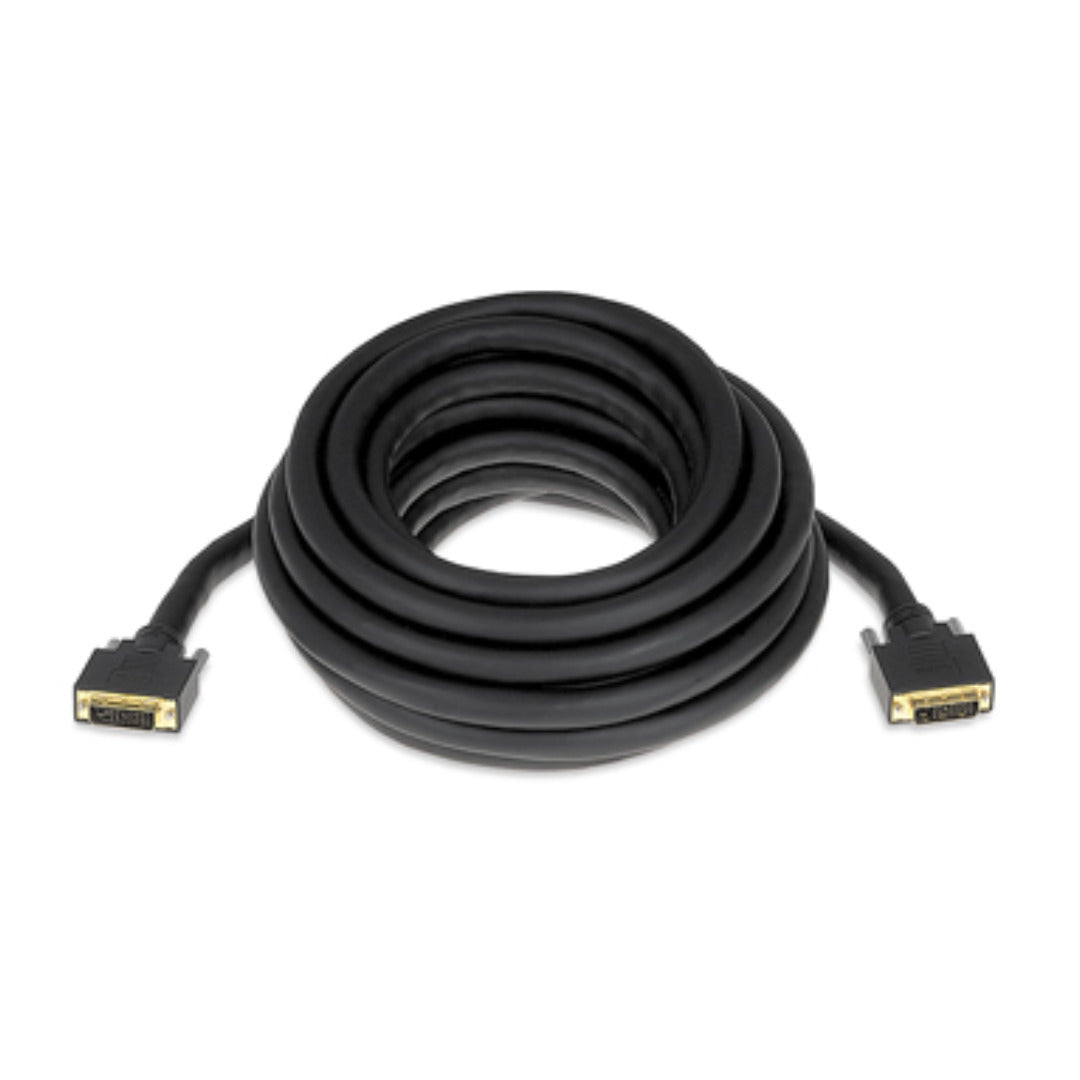

Extron DVID DL Pro/25 (part number 26-651-25) - a 25 ft (7.6 m) dual link DVI-D cable built on heavier 22 AWG conductors for longer in-room runs.

At 25 feet Extron changes the DVID DL Pro construction to 22 AWG tinned copper, a thicker gauge that holds the TMDS pairs stable across the added distance. The assembly is rated to carry 2560x1600 at 60 Hz with up to 10.2 Gbps of throughput and 24-bit color. Pair impedance stays inside 100 ohms ±10 ohms and attenuation remains under 8 dB per 10 m at 0.825 GHz - the margin that keeps a dual link timing from folding part way down the run.

Key Capabilities

• 25 ft reach without giving up dual link DVI-D throughput of 10.2 Gbps
• 2560x1600 at 60 Hz with 24-bit color, 8 bits per color
• 22 AWG tinned copper conductors and drain wire under a PVC jacket
• 0.55 in (14.0 mm) jacket with a 5.50 in (140.0 mm) minimum bend radius
• Intrapair skew to 350 ps per 12 m; interpair skew to 2.4 ns per 12 m
• UL CL2 safety rating and Extron Limited Lifetime Performance coverage

Where It Is Used

A 25 ft dual link run usually crosses a room rather than a rack: a lectern PC feeding a front-of-room display, a control desk driving a wall-mounted review monitor, or a diagnostic workstation separated from its panel by a cable tray or floor box.

Specifications at a Glance

• Length: 25' (7.6 m)
• Maximum resolution: 2560x1600 @ 60 Hz
• Data rate: up to 10.2 Gbps
• Conductor gauge: 22 AWG
• Cable outer diameter: 0.55" (14.0 mm)

Frequently asked questions about the Extron DVID DL Pro/25 25ft Dual Link DVI-D Cable

Also referenced as Extron DVIDDLPro/25, DVID-DL-Pro-25, part number 2665125. Extron lists 26-651-25 as a retired part number.
