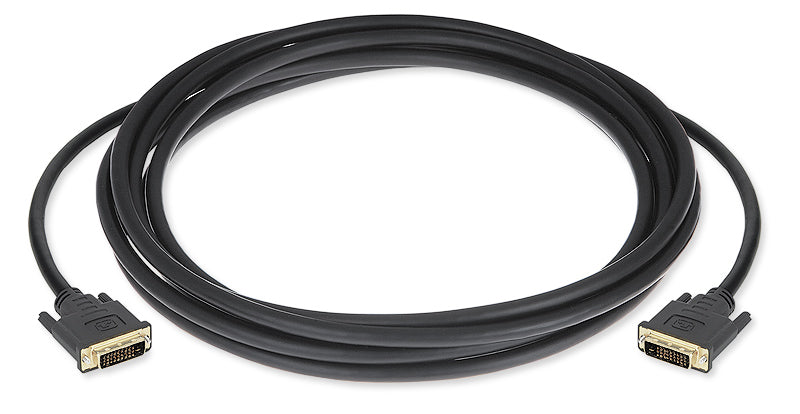

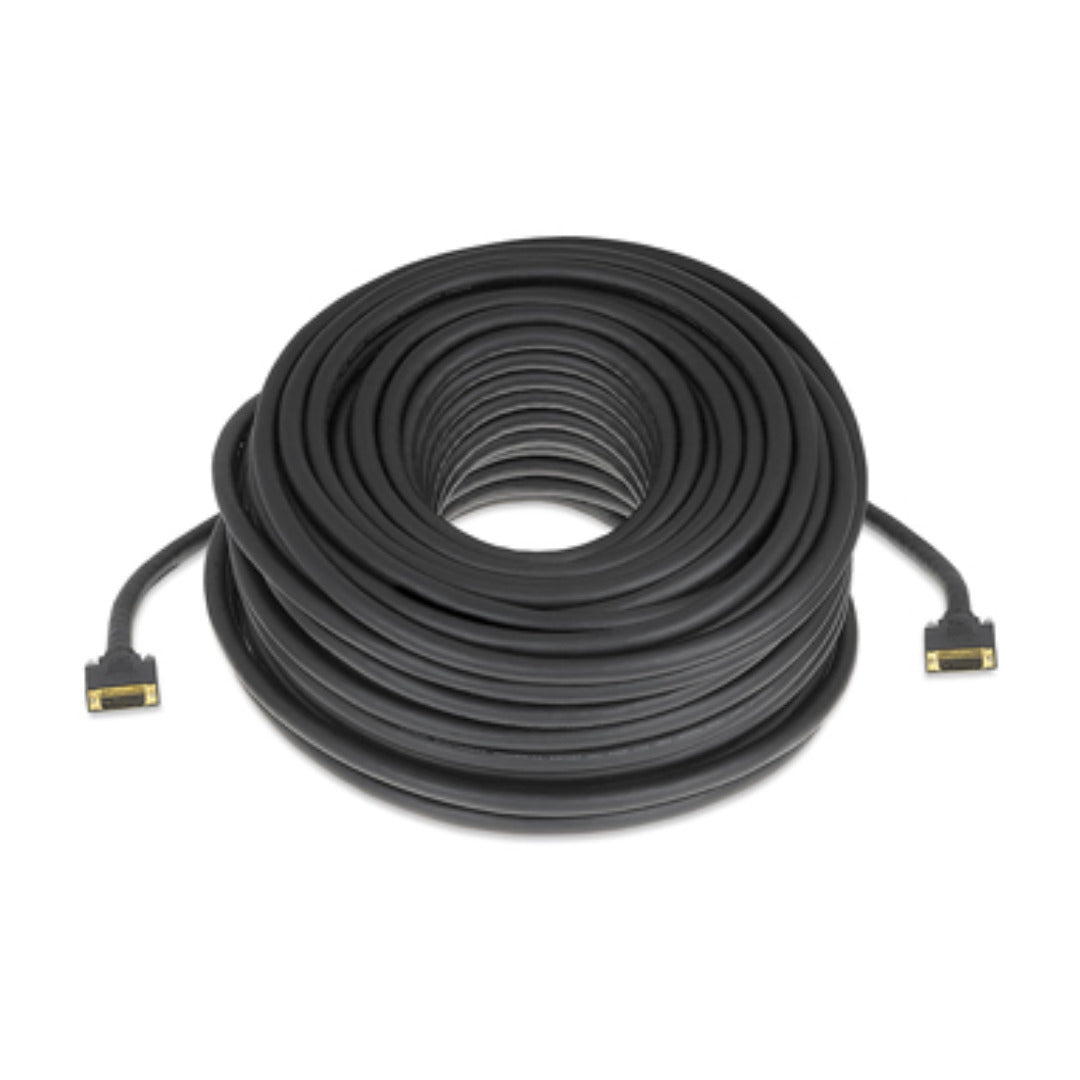

Extron DVID DL Pro/200 (part number 26-651-200) — a 200 ft (60.9 m) dual link DVI-D cable, the longest assembly Extron built in the DVID DL Pro line.

This is a bulk-distance part: 200 feet of 22 AWG tinned copper carrying six TMDS pairs plus DDC and hot-plug detect. Extron's DVID DL Pro construction is rated to DVI 1.0 with throughput to 10.2 Gbps and a maximum resolution of 2560x1600 at 60 Hz. Worth knowing before you specify it: Extron rates full 2560x1600 at 60 Hz and 1080p/60 support out to 75 feet, so at 200 feet plan the timing conservatively or pair the run with signal conditioning.

Key Capabilities

• 200 ft (60.9 m) passive dual link DVI-D assembly
• DVI 1.0 construction rated for data rates to 10.2 Gbps
• 22 AWG tinned copper conductors and drain wire in a PVC jacket
• 0.55 in (14.0 mm) outer diameter, 5.50 in (140.0 mm) minimum bend radius
• Pair impedance 100 ohms plus or minus 10 ohms; attenuation under 8 dB per 10 m at 0.825 GHz
• UL CL2 rated with Extron Limited Lifetime Performance coverage

Where It Is Used

Runs of this length belong to building infrastructure rather than room furniture: risers between floors, arena and stadium control rooms, large lecture theatres, and campus installations where a display sits far from the head end and conduit is already in place.

Specifications at a Glance

• Length: 200 ft (60.9 m)
• Standard: DVI 1.0
• Data rate: up to 10.2 Gbps
• Conductor gauge: 22 AWG
• Cable outer diameter: 0.55 in (14.0 mm)

Also referenced as Extron DVIDDLPro/200, DVID-DL-Pro-200, part number 26651200. Extron lists 26-651-200 as a retired part number.
