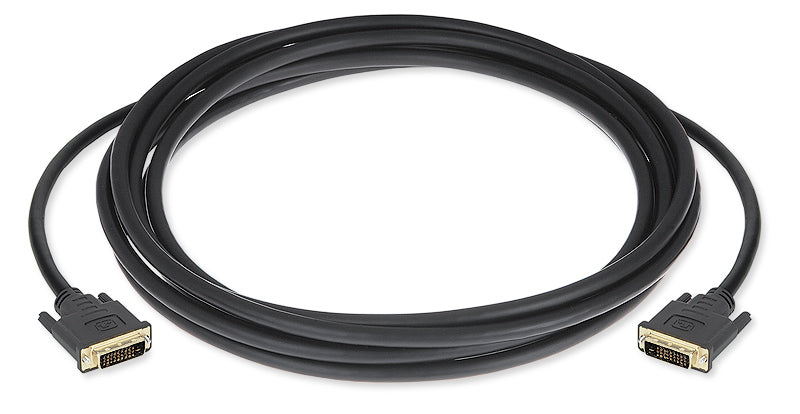

Extron DVID DL Pro/175 (part number 26-651-175) — a 175 ft (53.2 m) dual link DVI-D cable assembly with male DVI-D dual link connectors at both ends. Extron has retired this part number.

At 175 feet this is among the longest dual link DVI-D assemblies Extron ever built, and it exists for installations where replacing the DVI infrastructure was never an option. Construction is 22 AWG tinned copper for both the conductors and the drain wire, jacketed in PVC at 0.55 in outer diameter with a 5.50 in minimum bend radius — a stiff cable that needs a planned pathway. Extron rates the series to DVI 1.0 at up to 10.2 Gbps, holds interpair skew under 2.4 ns per 12 m, and lists the assembly NEC CL2 for in-wall use.

Key Capabilities

• 175 ft (53.2 m) factory-terminated dual link DVI-D assembly.
• 22 AWG tinned copper conductors and drain wire under a PVC jacket.
• DVI 1.0 with data rates to 10.2 Gbps; colour depth to 24 bits, 8 bits per colour.
• 0.55 in (14.0 mm) outer diameter with a 5.50 in (140.0 mm) bend radius.
• Intrapair skew ≤350 ps and interpair skew ≤2.4 ns per 12 m.
• Gold-plated contacts; 100 ohms ±10 ohms pair impedance; NEC CL2 rated.
• Retired Extron part number — useful for matching an existing installed system.

Where It Is Used

The longest legacy DVI links in a building: arena and convention-centre projection, command centres with remote processing rooms, planetarium and simulator installations, and industrial or research facilities where a dual link DVI display is fixed and the source cannot be moved closer.

Specifications at a Glance

• Length: 175 ft (53.2 m), measured tip to tip including connectors
• Series maximum resolution: 2560 x 1600 at 60 Hz; Extron states 25 ft and longer cables support 2560 x 1600 at 60 Hz and 1080p/60 up to 75 ft
• Attenuation: less than 8 dB per 10 m at 0.825 GHz
• Voltage 30 V; temperature rating -25 °C to 75 °C; limited lifetime performance warranty

Also referenced as Extron DVIDDLPro175, DVID-DL-Pro-175, part number 26651175.
