Extron DVID DL Pro/100 Dual Link DVI-D Cable
- • Extron DVID DL Pro 100 ft dual link DVI-D cable
- • 2560x1600 at 60 Hz; data rates to 10.2 Gbps
- • 22 AWG tinned copper, 0.55 in outer diameter
- • Sales, replacement and exchange
- • Part# 26-651-100 / 26651100
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

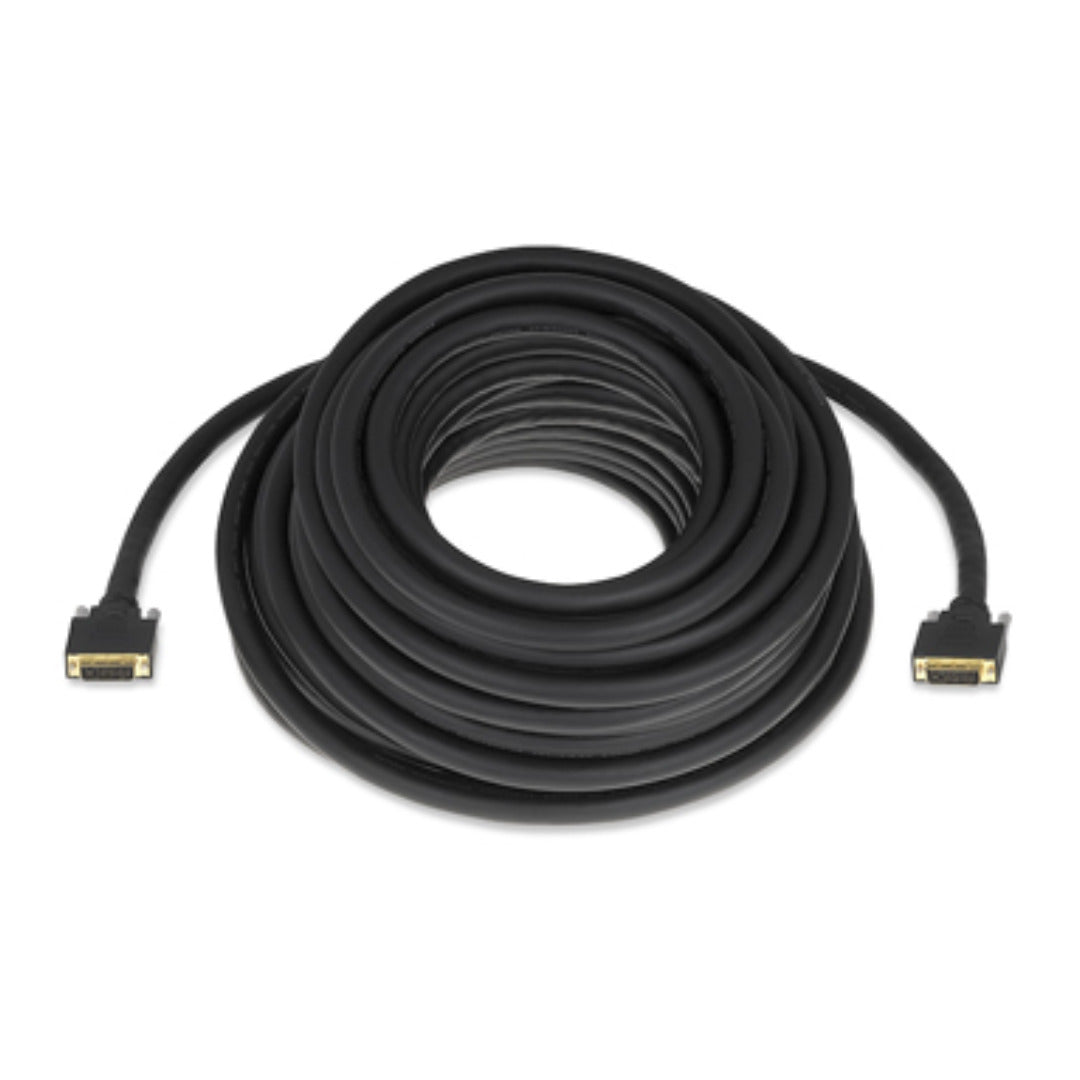

Extron DVID DL Pro/100 (part number 26-651-100) - a 100 ft (30.4 m) dual link DVI-D cable assembly with male DVI-D dual link connectors at both ends. Extron has retired this part number.
Everything above 12 feet in this series switches to a heavier build, and this is why: dual link DVI-D pushes ten and a bit gigabits down copper with no active help at all, so the only lever left is conductor mass. At 100 ft the cable uses 22 AWG tinned copper with a tinned copper drain wire, which takes the jacket out to 0.55 in and the bend radius to 5.50 in. Skew is held to 350 ps intrapair and 2.4 ns interpair per 12 m, and the assembly is NEC CL2 rated for in-wall routing.
Key Capabilities
- 22 AWG tinned copper conductors and drain wire for long-distance dual link DVI-D.
- DVI 1.0 with data rates to 10.2 Gbps and vertical frequency to 60 Hz.
- 0.55 in (14.0 mm) outer diameter with a 5.50 in (140.0 mm) bend radius.
- Intrapair skew ≤350 ps and interpair skew ≤2.4 ns per 12 m.
- Male DVI-D dual link connectors both ends, gold-plated contacts.
- NEC CL2 rated with UL CL2 safety listing; 100 ohms ±10 ohms pair impedance.
- Retired Extron part number - useful for matching an existing installed system.
Where It Is Used
Long uncompressed DVI runs in permanent installations: control-room and dispatch video walls, large-format visualization and simulation rooms, broadcast and post facilities, and campus or hospital installations where a DVI source and its display sit on opposite sides of a floor.
Specifications at a Glance
- Length: 100 ft (30.4 m), measured tip to tip including connectors
- Series maximum resolution: 2560 x 1600 at 60 Hz; Extron states 25 ft and longer cables support 2560 x 1600 at 60 Hz and 1080p/60 up to 75 ft
- Attenuation: less than 8 dB per 10 m at 0.825 GHz
- Voltage 30 V; temperature rating -25 °C to 75 °C; limited lifetime performance warranty
Also referenced as Extron DVIDDLPro100, DVID-DL-Pro-100, part number 26651100.
Frequently asked questions about the Extron DVID DL Pro/100 Dual Link DVI-D Cable 100 ft
Does Ampronix sell the Extron DVID DL Pro/100 Dual Link DVI-D Cable 100 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron DVID DL Pro/100 Dual Link DVI-D Cable 100 ft (26-651-100). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron DVID DL Pro/100 Dual Link DVI-D Cable 100 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron DVID DL Pro/100 Dual Link DVI-D Cable 100 ft. Call Ampronix for a quote.
What are the key features of the Extron DVID DL Pro/100 Dual Link DVI-D Cable 100 ft?
Key points: 22 AWG tinned copper conductors and drain wire for long-distance dual link DVI-D; DVI 1.0 with data rates to 10.2 Gbps and vertical frequency to 60 Hz; 0.55 in (14.0 mm) outer diameter with a 5.50 in (140.0 mm) bend radius; Intrapair skew ≤350 ps and interpair skew ≤2.4 ns per 12 m. Call Ampronix to confirm details for your application.
