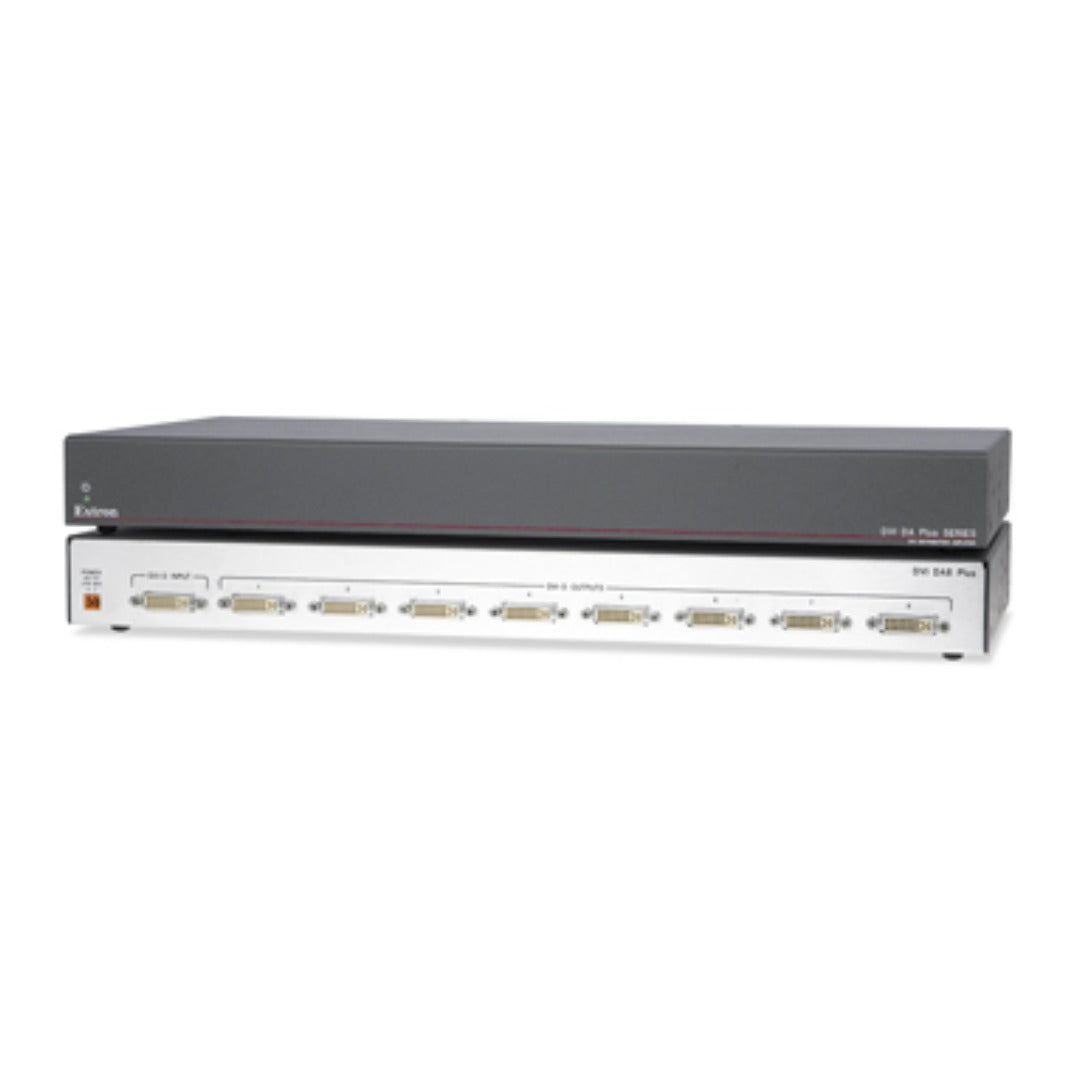

Extron DVI DA8 Plus (part number 60-933-21) — an eight output DVI distribution amplifier with EDID Minder, in a 1U full-rack metal enclosure with mounting brackets supplied.

This is the widest fan-out in the DVI DA Plus family, and it is built so that the eighth display looks the same as the first. The input is equalized before anything else happens, recovering roughly 100 feet of Extron DVI Pro cable carrying 1920x1200 at 8-bit colour. The signal is then retimed and reshaped, and a clean regenerated copy is sent to each of the eight DVI-I outputs. Meanwhile EDID Minder keeps the source talking to a stable EDID, which is what prevents the familiar failure mode where a PC boots to the wrong timing because a display was off. Every output also supplies +5 VDC at 250 mA for downstream in-line devices.

Key Capabilities

• Eight single link DVI-D outputs on female DVI-I connectors from one female DVI-I input.
• 4.95 Gbps maximum data rate, 1.65 Gbps per colour, on a 165 MHz pixel clock.
• Computer video to 1920x1200 plus HDTV 1080p/60 and 2K.
• Automatic input equalization plus retiming to strip jitter before distribution.
• +5 VDC at 250 mA per output for peripheral powering.
• Convection cooled metal chassis with no vents and no moving parts.

Where It Is Used

Surveillance and command centre display banks, utility and process control rooms, healthcare departmental monitor arrays, broadcast machine rooms, and education or corporate installations where a legacy DVI source must reach eight screens with consistent picture quality.

Specifications at a Glance

• I/O: 1 female DVI-I in, 8 female DVI-I out
• Rate: 4.95 Gbps maximum, 165 MHz pixel clock
• Power: external 12 VDC 2 A 24 W; unit draws 12 VDC at 1.5 A max
• Enclosure: metal, 1.75" H x 17.5" W x 8.5" D, 2.8 lbs
• Warranty: 3 years product, 7 years Everlast power supply

Also referenced as Extron DVIDA8Plus, DVI-DA8-Plus, part number 6093321. Extron lists this part number as retired.
