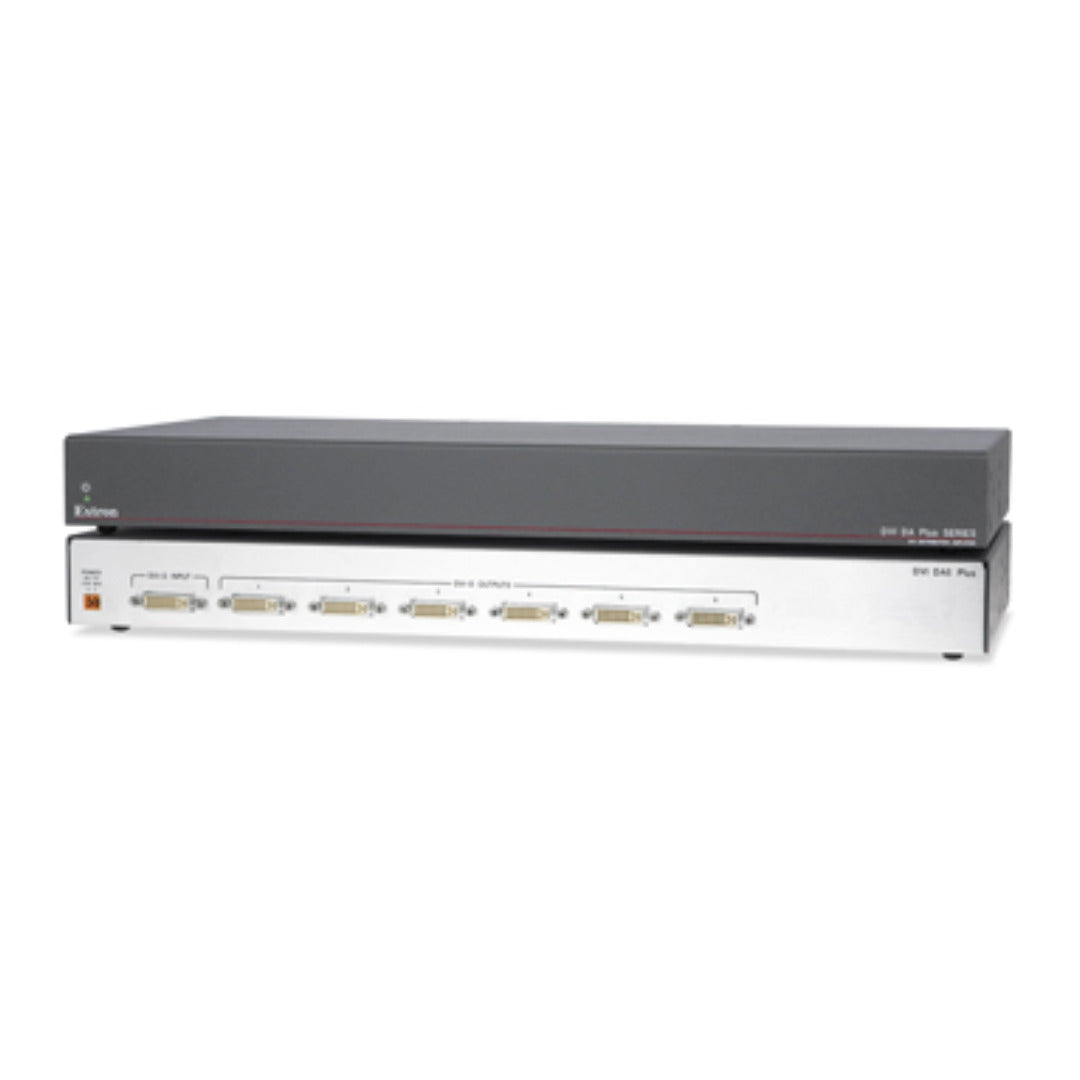

Extron DVI DA6 Plus (part number 60-932-21) — a six output DVI distribution amplifier with EDID Minder, housed in a 1U full-rack metal enclosure with brackets supplied.

Driving six DVI displays from one source is a handshaking exercise as much as a signal one. This amplifier holds a steady EDID conversation with the source through EDID Minder, so the PC or player boots at the intended timing and keeps it even if displays are switched off, unplugged or replaced. On the way in, the DVI stream is equalized for around 100 feet of Extron DVI Pro cable at 1920x1200 with 8-bit colour, then retimed and reshaped so accumulated jitter is stripped out before the signal is fanned to the six outputs. Each output additionally carries +5 VDC at 250 mA, sufficient to power a downstream equalizer or similar in-line accessory.

Key Capabilities

• Six single link DVI-D outputs on female DVI-I connectors from one female DVI-I input.
• 4.95 Gbps maximum data rate, 1.65 Gbps per colour, 165 MHz pixel clock.
• Computer video to 1920x1200 plus HDTV 1080p/60 and 2K.
• Signal regeneration on every output keeps six displays looking identical.
• +5 VDC at 250 mA per output for peripheral powering.
• External 12 VDC 2 A 24 W supply on universal 100-240 VAC input.

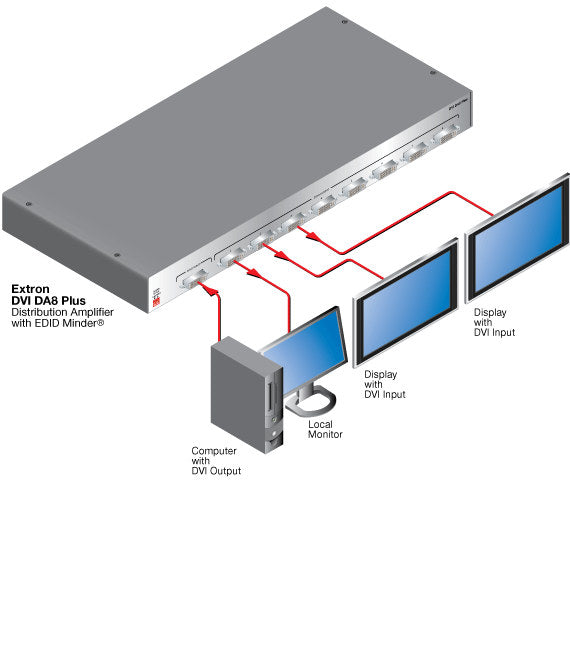

Where It Is Used

Operator consoles in control and dispatch rooms, security monitoring positions, medical imaging suites with several review displays, digital signage clusters, and training or simulation facilities where a single DVI feed has to appear on six screens at once.

Specifications at a Glance

• I/O: 1 female DVI-I in, 6 female DVI-I out
• Rate: 4.95 Gbps maximum, 165 MHz pixel clock
• Power: external 12 VDC 2 A 24 W; unit draws 12 VDC at 1.5 A max
• Enclosure: metal, 1.75" H x 17.5" W x 8.5" D, 1U full rack
• Warranty: 3 years product, 7 years Everlast power supply

Also referenced as Extron DVIDA6Plus, DVI-DA6-Plus, part number 6093221. Extron lists this part number as retired.
