Extron DVI 104 Tx/Rx (part number 60-977-01) — a matched fiber optic transmitter and receiver pair that carries single link DVI-D up to 500 m.

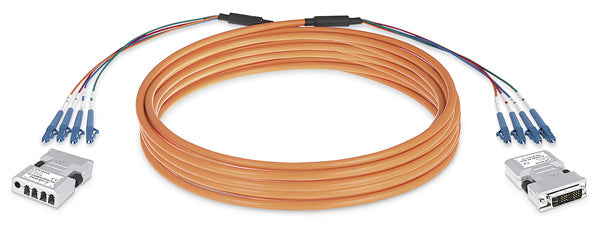

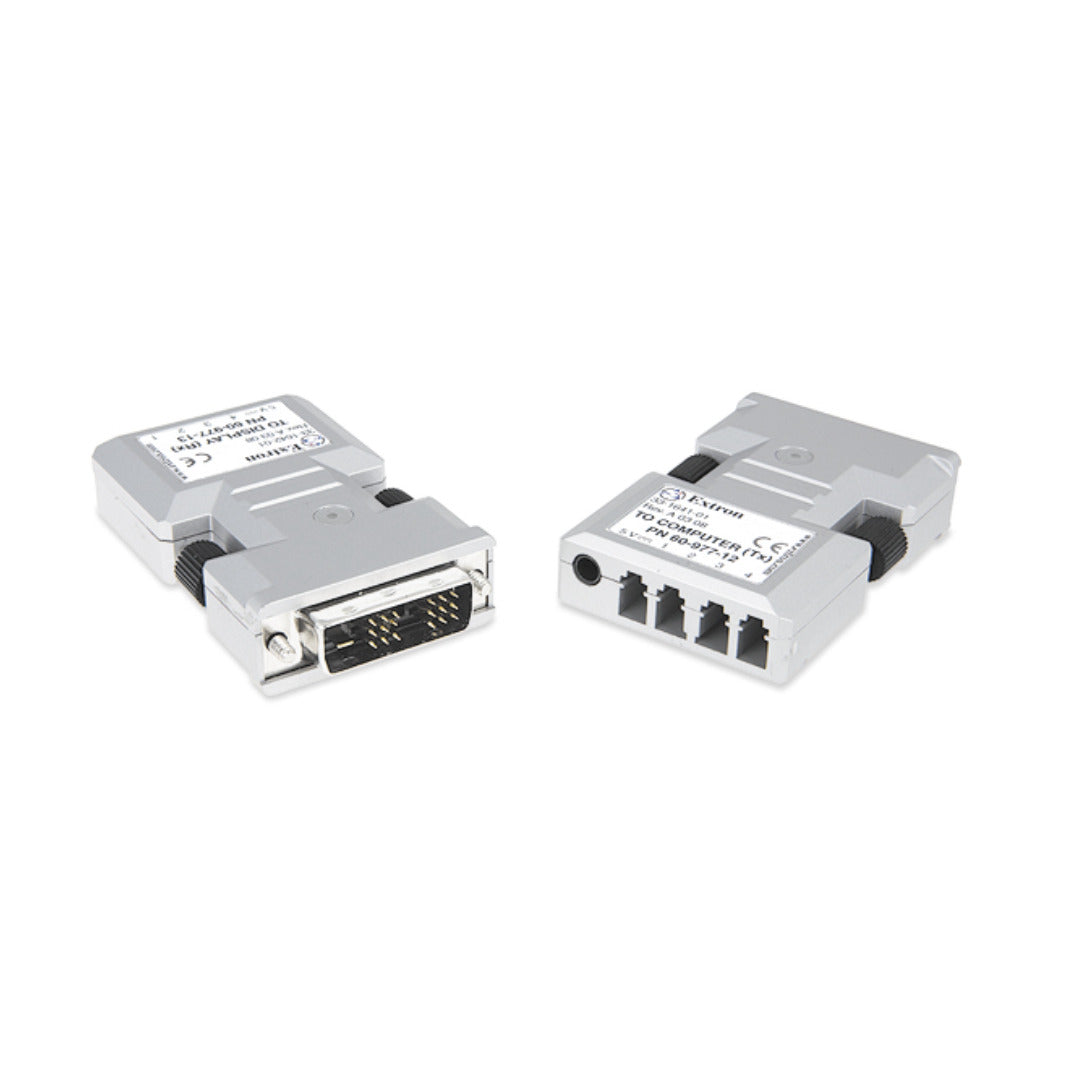

Copper runs out of reach long before a fiber run does. This pair converts a single link DVI-D signal to light at the source, sends it down four 50/125 micron multimode fibers, and converts it back at the display. Each unit is small enough to hang off the DVI connector itself and is secured with thumbscrews, so there is no chassis to mount. Setup is a one-time affair: a recessed EDID Minder button on the transmitter captures the display's EDID to an on-board EEPROM, after which the source boots to the right resolution every time.

Key Capabilities

• Operating distance up to 500 m (1,640 ft) on four multimode fiber optic cables.
• Maximum data rate 4.95 Gbps (1.65 Gbps per color), 165 MHz pixel clock.
• Resolution range up to 1920x1200 or 1080p at 60 Hz with unity gain.
• Four female LC jacks per unit at an 850 nm nominal peak wavelength.
• EDID Minder button stores the display EDID in the transmitter's EEPROM.
• Optical loss budget of 10.5 dB maximum for the link.
• Each unit weighs only 0.1 lbs (0.04 kg) and needs no mounting hardware.

Where It Is Used

Fiber runs of this length suit auditoriums, lecture halls, large boardrooms, houses of worship and campus buildings where a projector or video wall sits hundreds of metres from the source rack and electrical isolation between buildings is a bonus.

Specifications at a Glance

• Standards: DVI 1.0; formats RGB and YCbCr digital video
• Power: external supply, 100-240 VAC in, 5 VDC 3 A 15 watts out
• Power draw: transmitter 1.0 watts, receiver 1.8 watts, both at 5 VDC
• Enclosure: plastic, 0.6 in H x 1.5 in W x 2.3 in D, depth excludes DVI connector
• MTBF: 30,000 hours; warranty 3 years parts and labor

Also referenced as Extron DVI104TxRx, DVI-104-Tx-Rx, part number 6097701.
