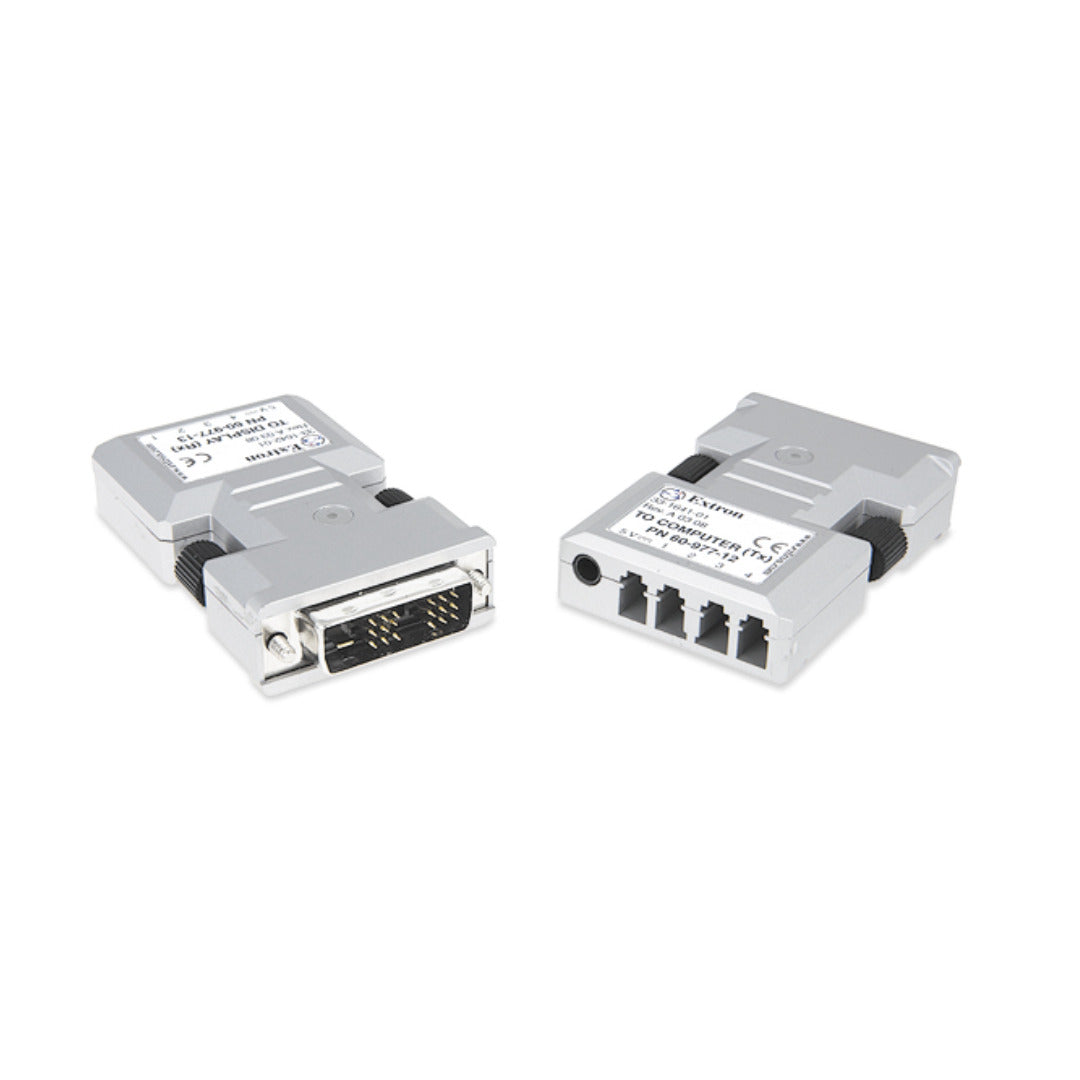

Extron DVI 104 Rx (part number 60-977-13) — the display-end receiver of the DVI 104 fiber optic extender, available on its own.

Marked TO DISPLAY on the top panel, this unit takes four optical channels back to a single link DVI-D output and plugs directly into the display, secured by thumbscrews. Its fiber ports are numbered in reverse of the transmitter — port 4 nearest the power input — but must still be patched number to number, port 1 to port 1. Unlike the transmitter, the receiver has no option to draw power from the video connector: Extron requires an external supply through its 3.5 mm power jack, and the unit draws 1.8 watts at 5 VDC.

Key Capabilities

• Recovers single link DVI from a fiber run as long as 500 m (1,640 ft).
• Passes up to 4.95 Gbps (1.65 Gbps per color) at a 165 MHz pixel clock.
• Outputs resolutions to 1920x1200 or 1080p at 60 Hz at unity gain.
• Four female LC jacks accepting 50/125 micron multimode fiber.
• Requires external 5 VDC power; draws 1.8 watts in operation.
• Plugs directly into the display's DVI input and locks with thumbscrews.
• Green LEDs on both sides confirm the unit is powered.

Where It Is Used

Specified as a spare or as the display-end unit in existing DVI 104 fiber links: projector positions in auditoriums, video walls in lobbies and control rooms, and remote monitors in campus or hospital buildings hundreds of metres from the source.

Specifications at a Glance

• Video output: 1 single link DVI on 1 male DVI-D connector
• Optical: 850 nm nominal peak wavelength, 10.5 dB maximum loss budget
• Enclosure: plastic, 0.6 in H x 1.5 in W x 2.3 in D, 0.1 lbs (0.04 kg)
• Operating range: +32 to +122 degrees F (0 to +50 degrees C)
• MTBF: 30,000 hours; warranty 3 years parts and labor

Also referenced as Extron DVI104Rx, DVI-104-Rx, part number 6097713.
