Details

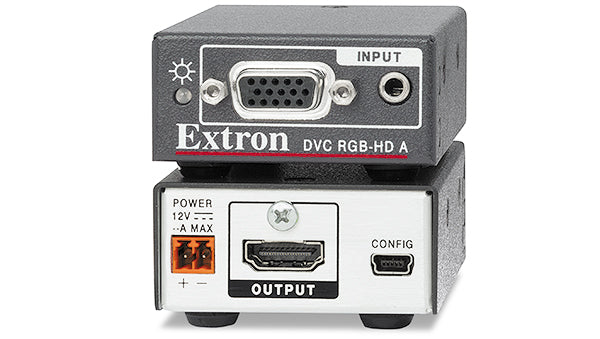

Extron DVC RGB-HD A (part number 60-1614-01) is a compact 1/8-rack converter that turns an analog RGBHV/VGA source into HDMI.

The unit digitizes an incoming RGBHV, RGBS, RGsB, or component video signal up to 1920x1200 reduced blanking and outputs single-link HDMI, letting integrators connect legacy computer graphics equipment to current HDMI displays without a separate scaler. It does not scale the picture; it converts the analog signal and an accompanying 3.5 mm stereo audio input into a matching HDMI signal with embedded audio, so source and display timing stay intact.

Key Capabilities

Converts RGBHV/VGA sources up to 1920x1200 (WUXGA) to single-link HDMI
170 MHz (-3 dB) bandwidth preserves fine image detail through conversion
Embeds a 3.5 mm stereo analog audio input into the HDMI output
Compact 1/8-rack metal enclosure weighs just 0.2 lbs
USB mini-B control port for setup with Extron software

Where It Is Used

Integrators install the DVC RGB-HD A under a table or in a small equipment closet to bring an older VGA laptop, document camera, or legacy computer source onto a modern HDMI display chain in classrooms and huddle rooms.

Specifications at a Glance

Input: 1 RGBHV, 15-pin HD, up to 1920x1200
Output: 1 single-link HDMI Type A
Bandwidth: 170 MHz (-3 dB)
Enclosure: 1.0" H x 2.2" W x 3.0" D, 0.2 lbs

Also referenced as Extron DVCRGBHDA, DVC-RGB-HD-A, part number 60161401.

Specifications

Part Number: 60-1614-01

Manufacturer: Extron

Model: DVC RGB-HD A

Condition: New

Video gain: Unity

Bandwidth: 170 MHz (-3 dB)

Crosstalk: -50 dB @ 10 MHz, -30 dB @ 100 MHz

Video Input: 1 RGBHV, 1 female 15-pin HD

Nominal level: 0.7 Vp-p for RGB

Minimum/maximum levels: Analog 0.3 V to 1.5 Vp-p with no offset

Impedance: 75 ohms

Horizontal frequency: 15 kHz to 145 kHz

Vertical frequency: 30 Hz to 170 Hz

Return loss: <-40 dB @ 5 MHz

Video Output: 1 single-link HDMI (or DVI-D with adapter), 1 female HDMI type A

Standards: DVI 1.0, HDMI 1.1

Audio Input: 1 stereo, unbalanced, (1) 3.5 mm mini audio jack (tip = L, ring = R, sleeve = GND)

Audio Input impedance: >10k ohms, DC coupled

Audio nominal level: -10 dBV

Audio maximum level: +6 dBV, unbalanced

USB control port: 1 female USB mini-B, rear panel, USB 2.0 high speed

Power supply: External (optional), Input 100-240 VAC, 50-60 Hz, Output 12 VDC, 1 A, 12 watts

Power consumption (device only): 1.8 watts

Power consumption (device and power supply): 2.4 watts

Thermal dissipation (device only): 4.9 BTU/hr

Thermal dissipation (device and power supply): 7.1 BTU/hr

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Convection, no vents

Mounting: Rack mount yes (optional 1U rack shelf); Furniture mount yes (included under-desk kit)

Enclosure: Metal, 1.0" H x 2.2" W x 3.0" D (1/8 rack wide)

Product weight: 0.2 lbs (0.1 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance (safety): CE, c-UL, UL

Regulatory compliance (EMI/EMC): CE, C-tick, FCC Class A, ICES, VCCI

Warranty: 3 years parts and labor

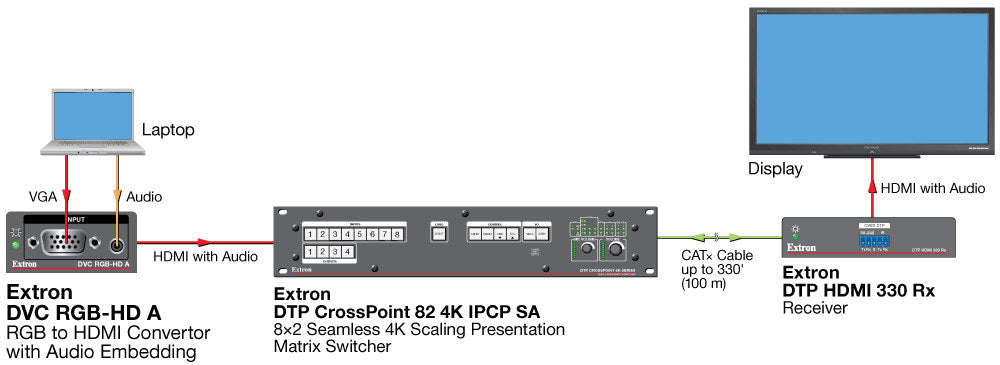

Diagram

Resources

Brochure | DVC RGB-HD A 60-1614-01 | DVC RGB-HD A

Manual | DVC RGB-HD A 60-1614-01 | Cleaning Instruction Card

Manual | DVC RGB-HD A 60-1614-01 | DVC RGB-HD A Setup Guide

Manual | DVC RGB-HD A 60-1614-01 | DVC RGB-HD A User Guide

Specifications | DVC RGB-HD A 60-1614-01 | DVC RGB-HD A

Panel Drawing | DVC RGB-HD A 60-1614-01 | DVC RGB-HD A
