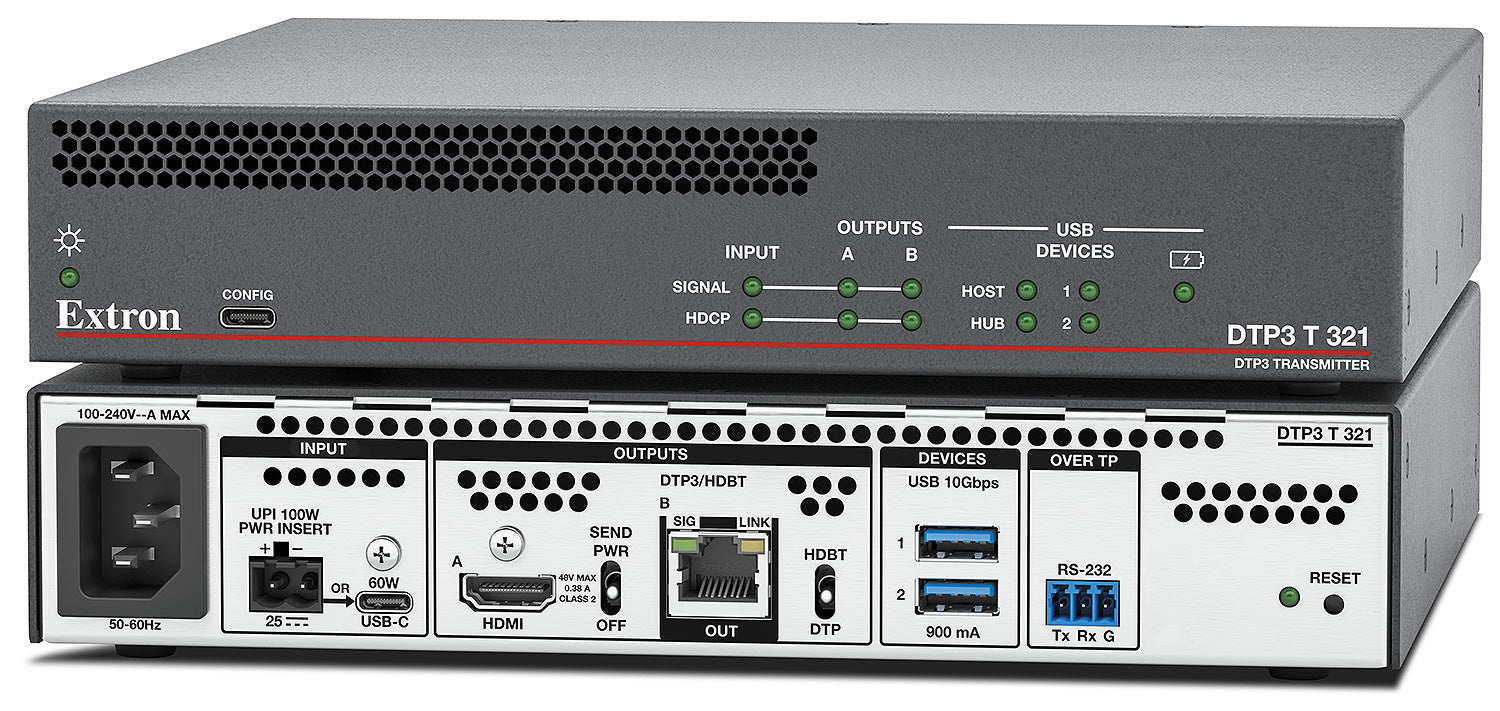

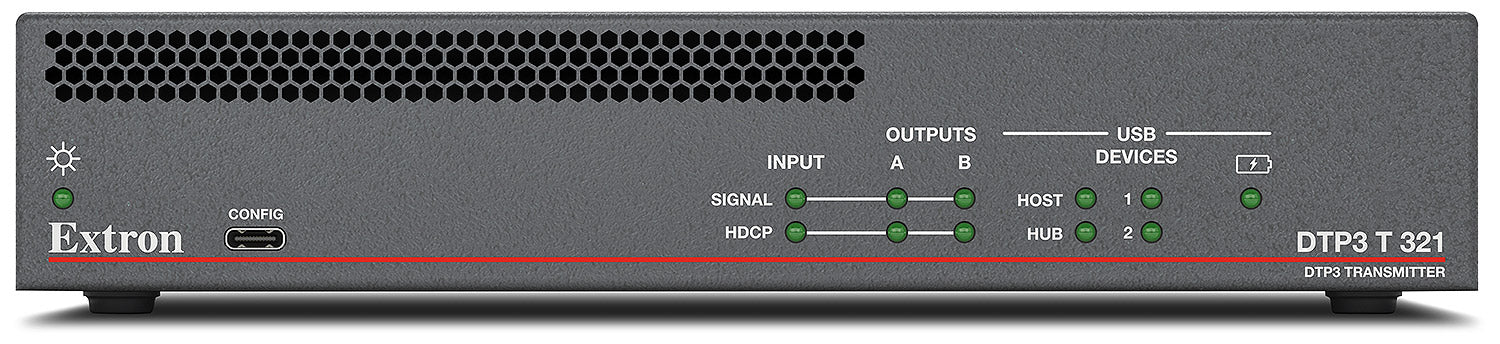

Part Number: 60-2017-52
Manufacturer: Extron
Condition: New

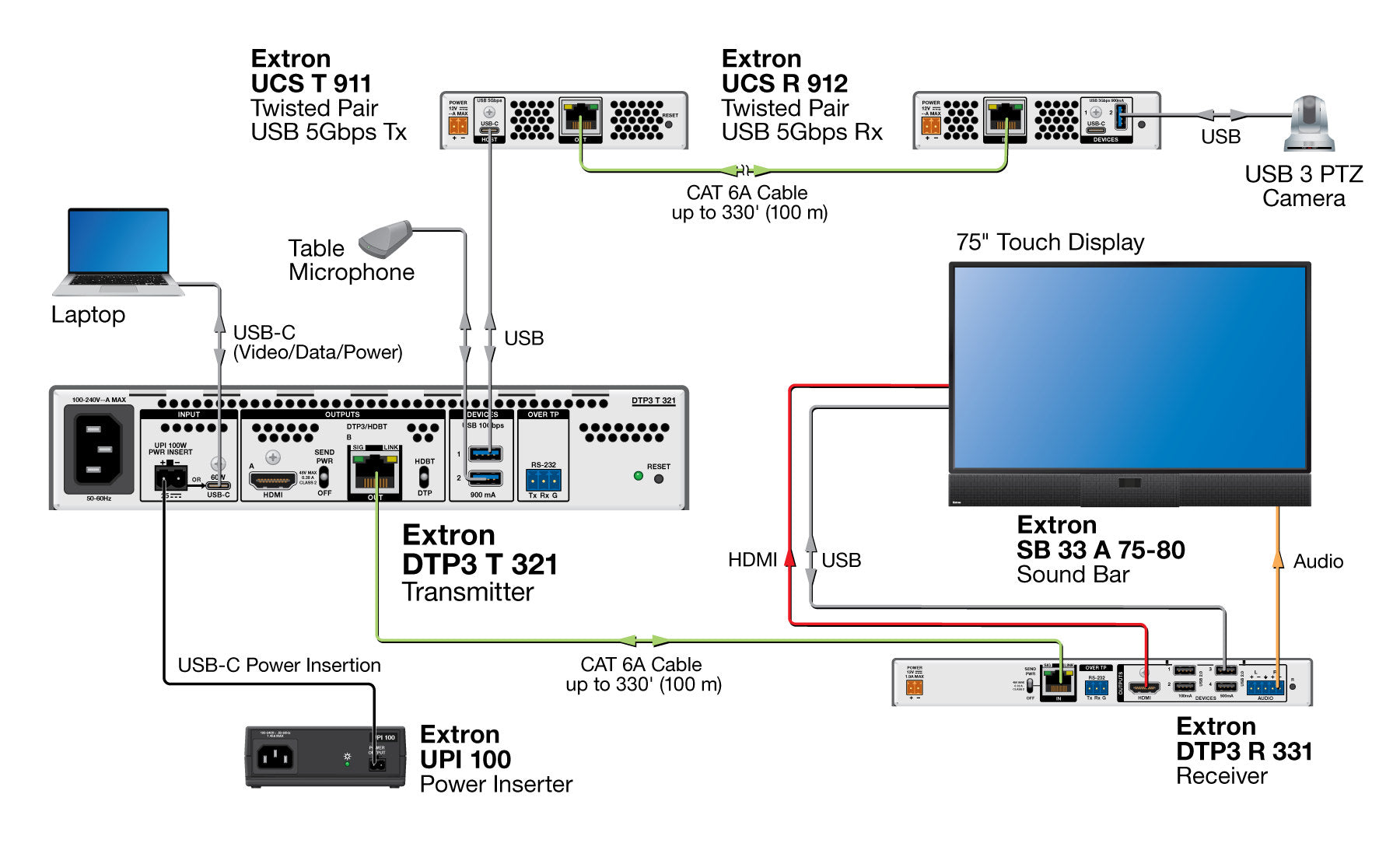

1080p @ 60 Hz: Up to 330' (100 m) using shielded twisted pair STP or XTP DTP 24 cable
4K @ 30 Hz: Up to 330' (100 m) using XTP DTP 22 cable
4K/UHD @ 30 Hz: Up to 330' (100 m) using shielded twisted pair STP or XTP DTP 24 cable
4K/UHD @ 60 Hz (1): Up to 150' (45 m) using shielded twisted pair STP or XTP DTP 24 cable, Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable, Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3'), Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
4K/UHD @ 60 Hz (2): Up to 175' (53 m) using shielded twisted pair STP or XTP DTP 24 cable with no couplers
4K/UHD @ 60Hz (1), (2): Up to 330' (100 m) using XTP DTP 22 cable, Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable, Using 2 couplers with 4' (1.2 m) (max) patch cables (each patch cable cannot exceed 4'), Using two punch downs with 3' (0.9 m) to 8' (2.4 m) patch cables
Available USB power: USB-A 3.2: 900 mA/port
Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity
Bit depth: 16, 20, 24 bit
Cable recommendations: 400 MHz bandwidth, STP (shielded twisted pair)
Cable requirements: Solid conductor, 24 AWG or better
Chroma sampling1: 4:4:4, 4:2:2, or 4:2:0
Color bit depth: 8, 10, or 12 bits — subject to the maximum data rate limit
Color bit depth1: 8, 10, or 12 bits per color

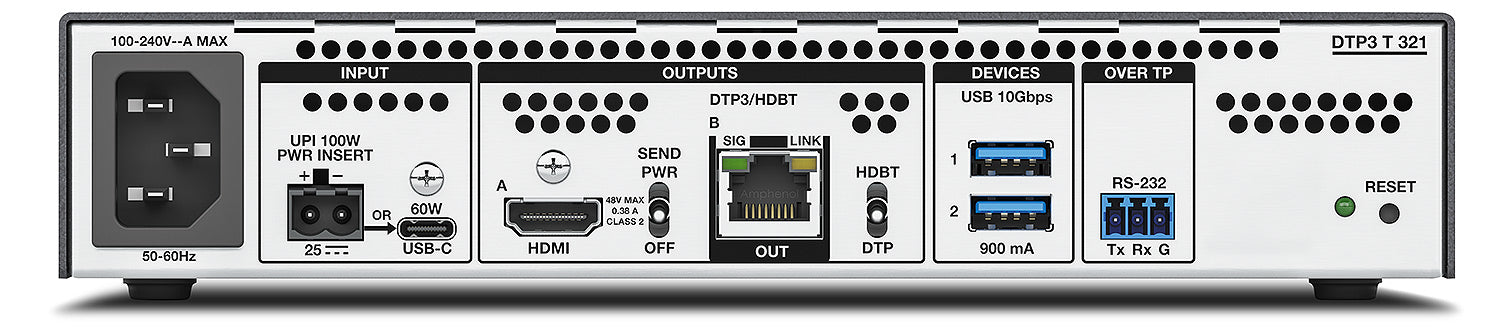

Connector: 1 female HDMI 1 female RJ-45
Connectors: 1 female USB Type-C
Cooling: Convection, vents on top and sides
Data transfer types: Bulk, control, interrupt, and isochronous
DisplayPort video: 1 DisplayPort Alt-Mode, DP 1.2 (2 or 4 lanes), RBR/1.62 Gbps, HBR/2.7 Gbps,HBR2/5.4 Gbps
EDID emulation: 128-256 byte EDID support (1-2 blocks)
Enclosure dimensions: 1.70" H x 8.68" W x 8.5" D (1U high, half rack wide)
Enclosure type: Metal
Everlast power supply warranty: 7 years parts and labor
Formats: RGB and YCbCr digital video
Frame rate1: 24, 25, 30, 50, or 60 fps
Furniture mount: Optional under-desk mount kit
Horizontal frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps
Max. video data rate: 18 Gbps (6 Gbps per color)
Maximum built-in USB hubs: 2
Maximum data rate: 18 Gbps (6 Gbps per color)
Maximum pixel clock: 600 MHz
Minimum built-in USB hubs: 1
NOTES: * Up to 60W of power delivery is available without use of a UPI 100 ** 100W of power delivery at this power profile when used with UPI 100
Number/signal type: 1 USB-C (DisplayPort Alt Mode, 2 or 4 lanes supported)
Optional built-in USB hubs: 1, device hub enabled
Pin configuration: Pin 1 = Tx, pin 2 = Rx, pin 3 = GND
Power consumption: TBD watts
Power supply: InternalInput: 100 to 240 VAC, 50-60 Hz
Product warranty: 3 years parts and labor
Product weight: TBD
Program control: Extron Simple Instruction Set™ (SIS™), Extron Product Configuration Software (PCS)
Rack mount: Yes, with optional 1U high rack shelf kit
Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Complies with appropriate requirements of RoHS, WEEE
SMPTE: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)
Sampling rates: 32 kHz, 44.1 kHz, 48 kHs, 96 kHz, 192 kHz
Serial control pass-through port: RS-232 via (1) 3.5 mm, 3 pole captive screw connector
Serial control port: 1 RS-232, 3.5 mm captive screw, 3-pole, rear panel
Serial pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Signal Type: HDMI 2.0b, DisplayPort 1.2 (Alt-Mode), HDCP 2.3
Source formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTSHD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Standards: HDMI 2.0b, USB-C (DP Alt-Mode), HDCP 1.x, HDCP 2.3
Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Termination standard: TIA/EIA T568B
Thermal dissipation: TBD BTU/hr
UPI power support: 25VDC, up to 110W
USB Host support: xHCI (USB 3.2), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)
USB Max data rate: Up to USB 10 Gbps
USB Max data rates: Up to USB 10 Gbps
USB control port: 1 female USB-C on front panel
USB standards: USB 3.2 (compatible), USB 2.0, USB 1.x
USB-C features supported: DisplayPort alt-mode video (2-lane, 4-lane) USB data USB-C Power Delivery
USB-C power delivery*: (15W) 5 VDC @ up to 3 A (27W) 9 VDC @ up to 3 A (36W) 12 VDC @ up to 3 A (45W) 15 VDC @ up to 3 A (60W) 20 VDC @ up to 3 A (100W) 20 VDC @ up to 5 A **
Ultra Wide & 5K: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080* @ 30 Hz, 5120x1440* @ 30 Hz
VESA: 640x480 to 4096x2160
Vertical frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps
