Extron DTP3 T 212 D 2-Input 4K/60 Decorator Wallplate Transmitter, White
- • White decorator faceplate, 2.6 in H x 1.3 in W x 0.25 in D
- • Two inputs: 1 female HDMI type A and 1 female USB type C (DP Alt Mode)
- • 18 Gbps uncompressed at a 600 MHz maximum pixel clock
- • Output selectable as DTP3 or HDBaseT on a single female RJ-45
- • 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable
- • Analog stereo jack embeds audio onto the digital video signal
- • 6.4 watt draw and remote power support on an 18 watt budget
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

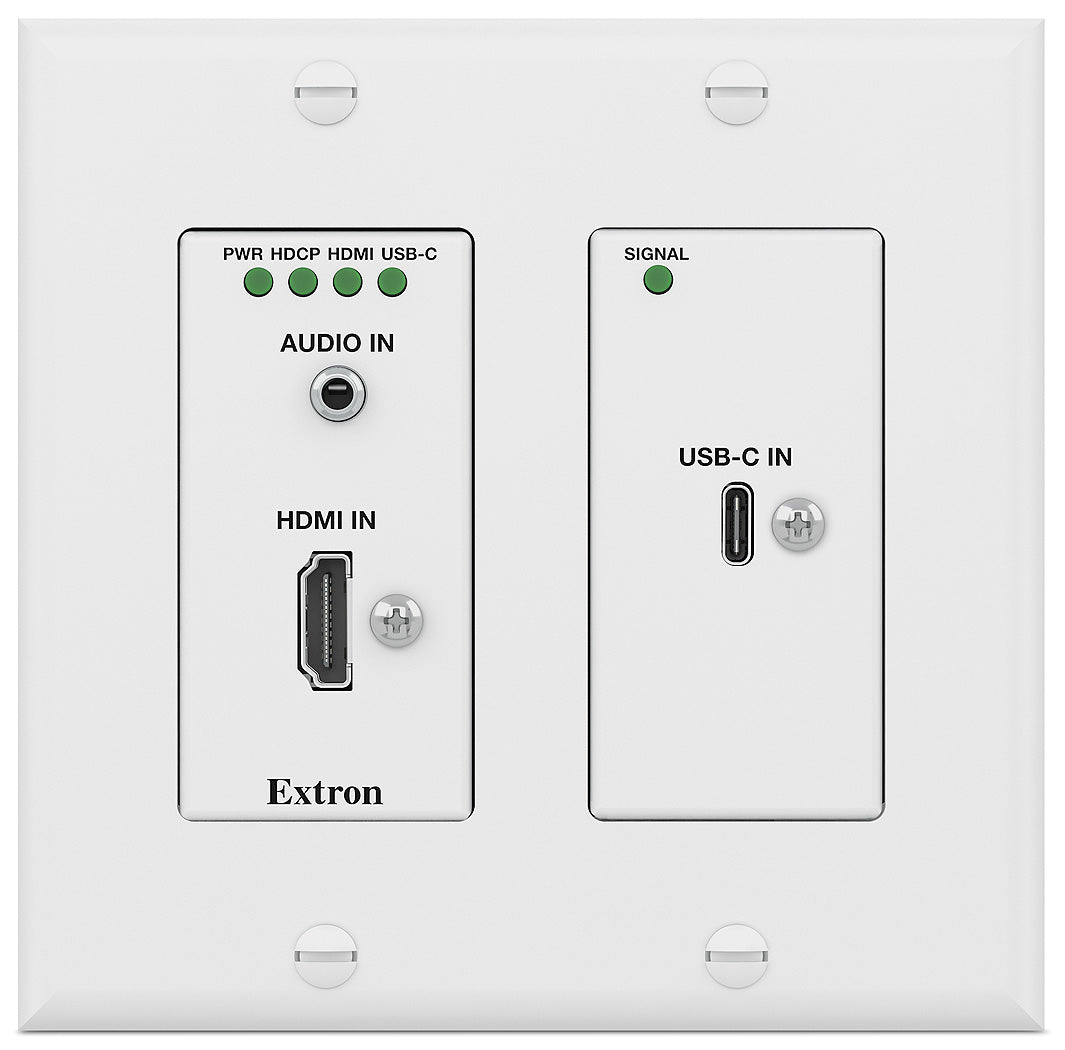

Extron DTP3 T 212 D (part number 60-1714-53, white faceplate) — a two-input decorator-style wallplate transmitter carrying USB-C and HDMI at 4K/60.

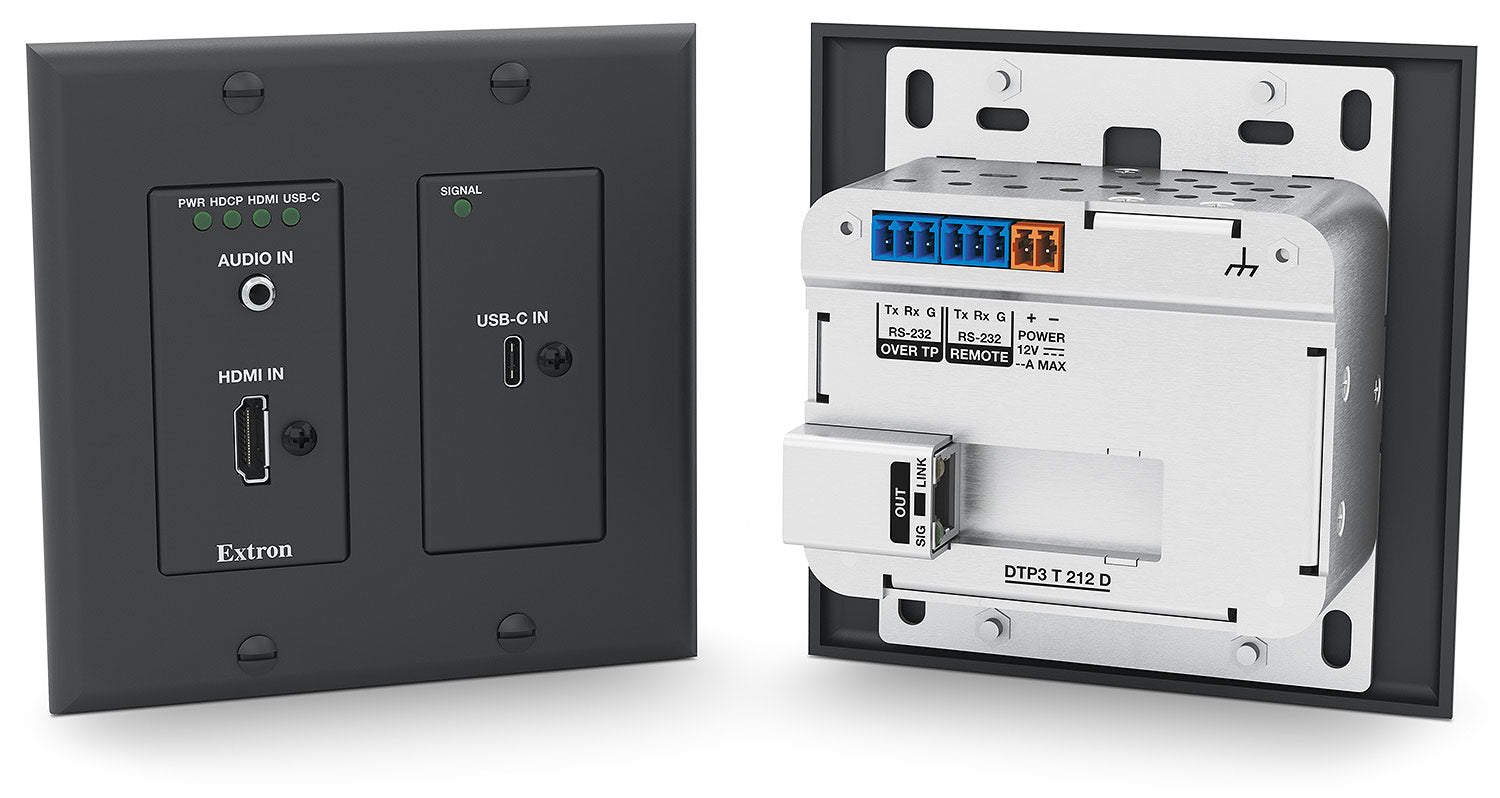

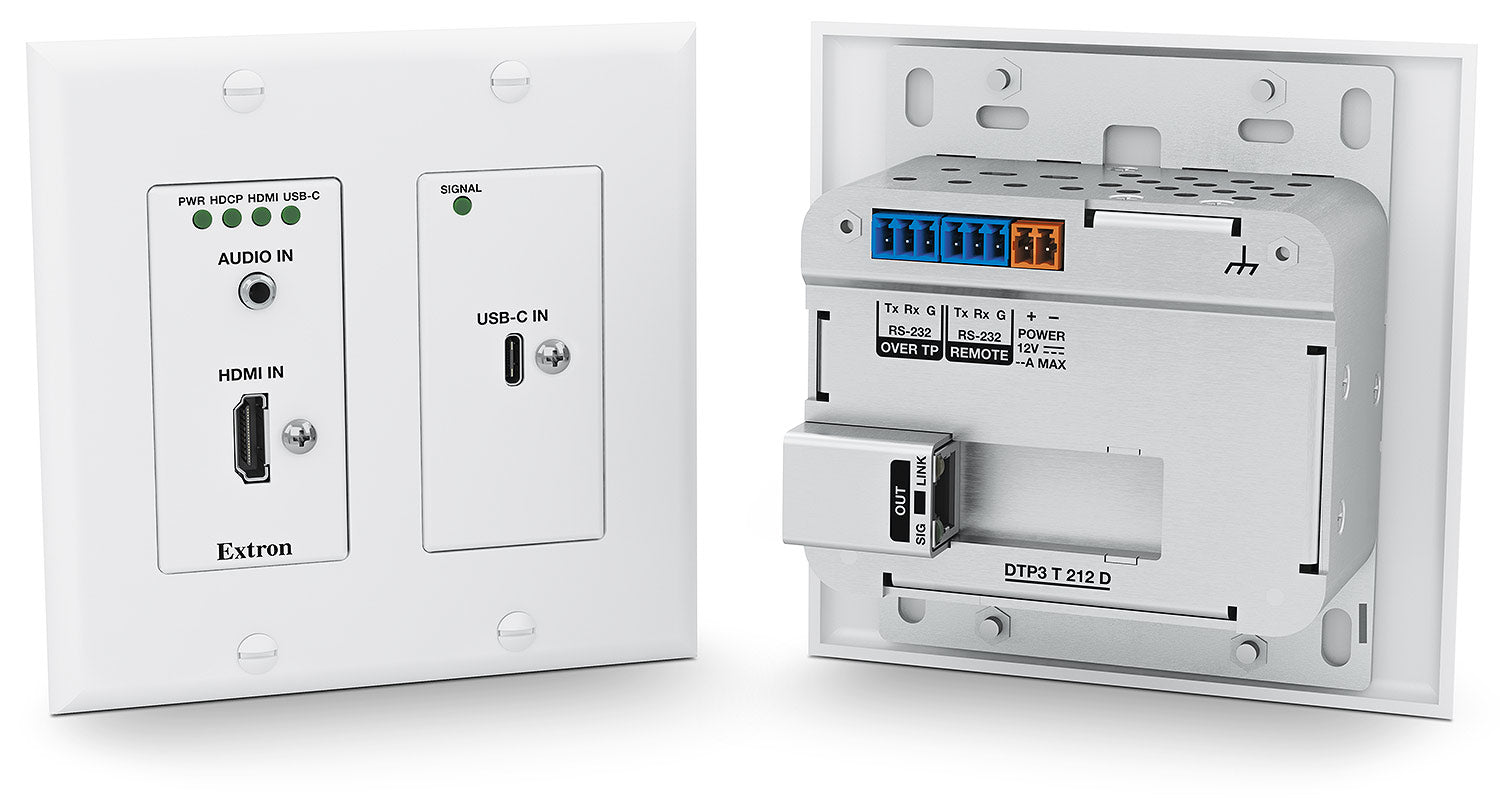

Three connections live behind the plate: a female HDMI type A port, a female USB type C port handling DisplayPort Alt Mode on two or four lanes, and a 3.5 mm analog stereo jack whose audio can be embedded into the digital stream at the transmitter. Everything leaves on one RJ-45, and that same twisted pair can feed the unit its power, which removes the need for an outlet inside the wall box. Installers can flip the output between DTP3 and HDBaseT to match whatever receiver already lives in the rack.
Key Capabilities
- 1 female HDMI type A plus 1 female USB type C input in a single decorator opening.
- Uncompressed 18 Gbps (6 Gbps per color) with a 600 MHz maximum pixel clock.
- Selectable DTP3 or HDBaseT output on one female RJ-45 connector.
- Runs 330 ft (100 m) at 4K/60 on Extron XTP DTP 22 cable.
- Audio path spans 20 Hz to 20 kHz within 0.5 dB, better than 90 dB signal to noise.
- 6.4 watt device draw; accepts remote power on an 18 watt budget.
- White faceplate at 2.6 in H x 1.3 in W x 0.25 in D.
Where It Is Used
The white finish is the usual choice for light-coloured walls and laminate furniture in classrooms, training rooms, huddle spaces, medical conference areas and lecture halls. Buildings that mix wall colours typically order it alongside the black 60-1714-52 so the same transmitter model can be specified everywhere.
Specifications at a Glance
- Signal type: HDMI 2.0b, DisplayPort 1.2 Alt Mode, HDCP 2.3
- Device size: 2.7 in H x 3.5 in W x 2.0 in D (4.2 in H with mounting tabs)
- Product weight: 0.55 lbs (0.25 kg)
- Operating range: +32 to +122 degrees F (0 to +50 degrees C)
- Regulatory: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI
Also referenced as Extron DTP3T212D, DTP3-T-212-D, part number 60171453.
