Details

Manufacturer: Extron | Model: DTP3 T 101 D | Part number: 60-1902-53 (also written 60190253)

The Extron DTP3 T 101 D, part number 60-1902-53, is a one-gang decorator-style wallplate transmitter in white that carries an HDMI source over shielded twisted pair cable to any DTP3-compatible receiver up to 330 ft away. It passes resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth at up to 18 Gbps, supports HDCP 2.3 and CEC pass-through, and carries embedded lossless HD audio formats. The unit mounts in a single-gang wall box and can be powered either from an included local supply or remotely by the connected receiver, removing the need for an outlet at the wall plate.

Conference rooms, classrooms and boardrooms use this transmitter to position an HDMI connection at a table or lectern without running separate power cabling. At 4K/60 on STP or XTP DTP 24 cable, reach is 150 ft with couplers or 175 ft coupler-free. On XTP DTP 22 cable, 4K/60 extends to 330 ft. Faceplate: 2.6 in H x 1.3 in W. Device body: 2.8 in H x 1.7 in W x 1.9 in D.

Specifications

Part Number: 60-1902-53

Manufacturer: Extron

Condition: New

1080p @ 60 Hz: Up to 330’ (100 m) using shielded twisted pair STP or XTP DTP 24 cable

4096x2160 at 30 Hz: 12 bit

4096x2160 at 60 Hz: 4:2:0

4K/UHD @ 30 Hz: Up to 330’ (100 m) using shielded twisted pair STP or XTP DTP 24 cable

4K/UHD @ 60 Hz (1): Up to 150' (45 m) using shielded twisted pair STP or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3') Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables

4K/UHD @ 60 Hz (1)(2): Up to 330' (100 m) using XTP DTP 22 cable Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable Using 2 couplers with 4' (1.2 m) (max) patch cables (each patch cable cannot exceed 4') Using two punch downs with 3' (0.9 m) to 8' (2.4 m) patch cables

4K/UHD @ 60 Hz (2): Up to 175’ (53 m) using shielded twisted pair STP or XTP DTP 24 cable with no couplers

5120x1440 at 60 Hz: 4:4:4

Height: 10.5" (26.7 cm)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Bit depths: 16, 20, 24 bit

Cable recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Cable requirements: Solid conductor, 24 AWG or better

Chroma sampling1: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10 or 12 bits – subject to the max data rate

Color bit depth1: 8, 10, or 12 bits per color

Connectors: 1 female HDMI type A (shared with video input)

Cooling: Convection, vent holes

Device: 5.04 watts

Device and power supply: 6.03 watts

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 2.6" H* x 1.3" W x 0.3" D (66 mm H* x 33 mm W x 8 mm D)

Formats: RGB and YCbCr digital video

Frame rate1: 24, 25, 30, 50, or 60 fps

Furniture or wall mount: Wall or furniture mount in a decorator-style opening

HDMI input: 1 HDMI (or signal link DVI-D, with appropriate DVI-HDMI adapters)

HDR: HDR10, HDR10+, Dolby Vision

Horizontal frequency range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Max. video data rate: 18 Gbps (6 Gbps per color)

Maximum data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Number/signal type: 1 digital audio, de-embedded from HDMI

Power supply: External (included with Tx) Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Product warranty: 3 years parts and labor

Product weight (transmitter): 0.4 lb (0.18 kg)

Program control: Extron Simple Instruction Set (SISTM) Extron Product Configuration Software (PCS)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Complies with the appropriate requirements of RoHS, WEEE

Remote power budget: 18 watts

Resolution and Refresh Rate: Chroma Sampling

SMPTE: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)

Sampling rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Signal Type: HDMI 2.0b, HDCP 2.3

Source formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Standards: DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3

Termination standards: TIA/EIA-T568B

USB control port: 1 back panel, female USB type C

USB standards: USB 2.0, low speed

Ultra Wide & 5K: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080* @ 60 Hz, 5120x1440* @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz

VESA: 640x480 to 4096x2160

Vertical frequency range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Diagram

Resources

Brochure | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D (dtp3_t_101_d_A.pdf)

Brochure | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D (DTP3-T-101-D_BR_A4_IT_RevA.pdf)

Brochure | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D (DTP3-T-101-D_BR_A4_SP_RevA.pdf)

Brochure | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D (DTP3-T-101-D_BR_A4_FR_RevA.pdf)

Brochure | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D (DTP3-T-101-D_BR_A4_GE_RevA.pdf)

Manual | DTP3 T 101 D 60-1902-53 | DTP Compatibility Guide

Manual | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D Setup Guide

Manual | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D User Guide

Manual | DTP3 T 101 D 60-1902-53 | DTP互換性ガイド

Specifications | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D

Panel Drawing | DTP3 T 101 D 60-1902-53 | DTP3 T 101 D

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP3 T 101 D 60-1902-53

Name: Extron DTP3 T 101 D 60-1902-53
Brand: Extron
SKU: EXTRON-DTP3T101D-60190253
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

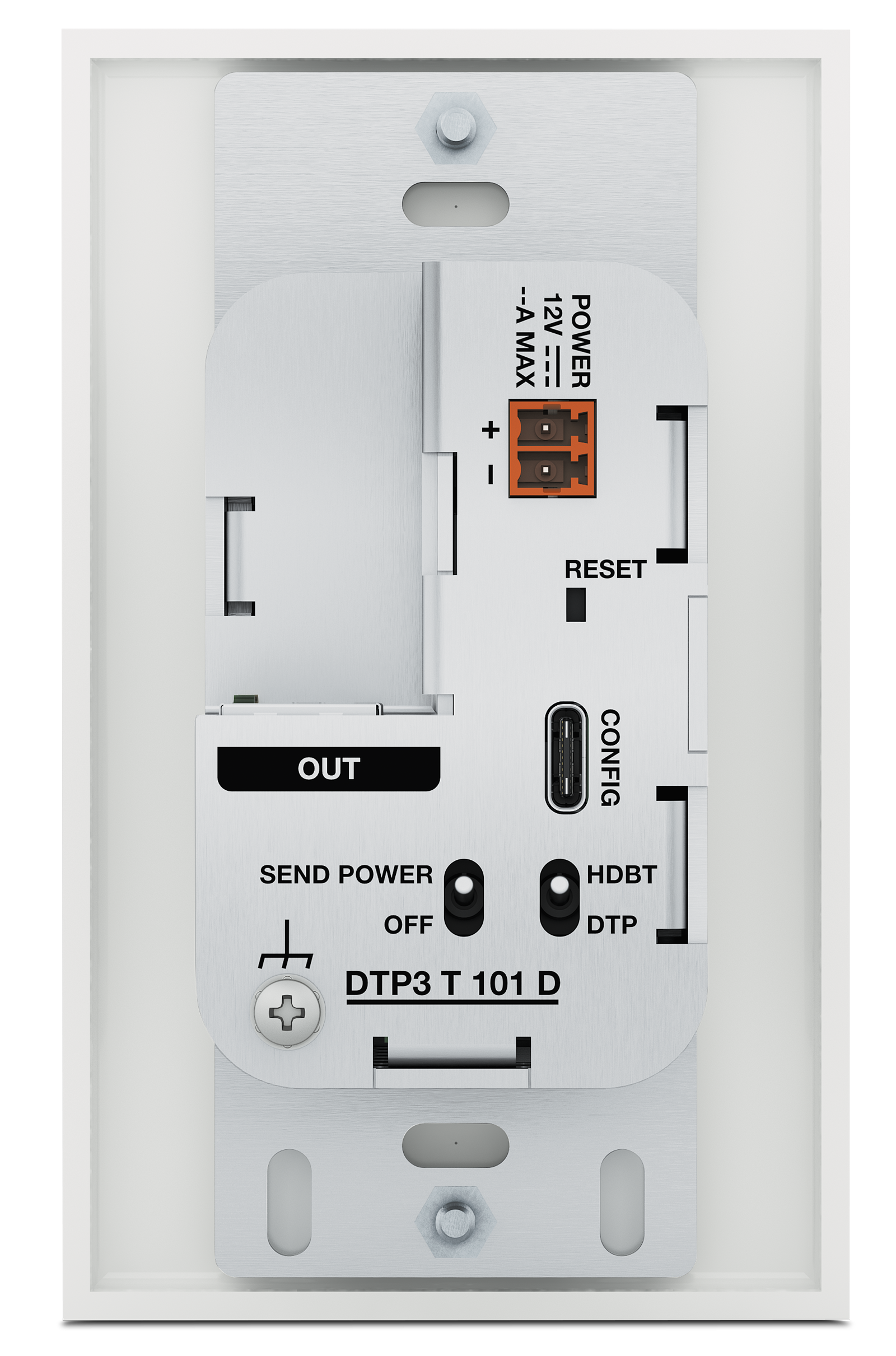

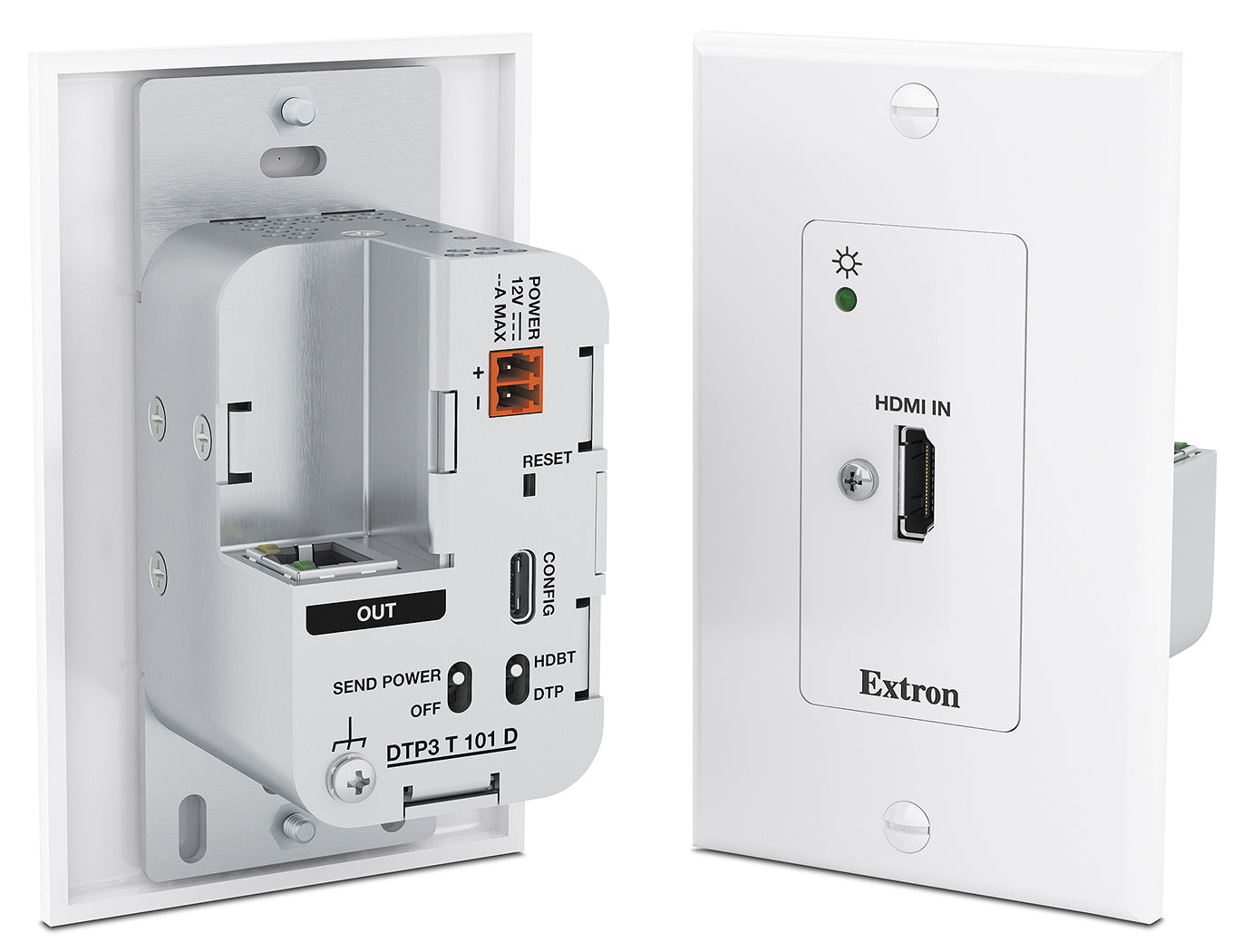

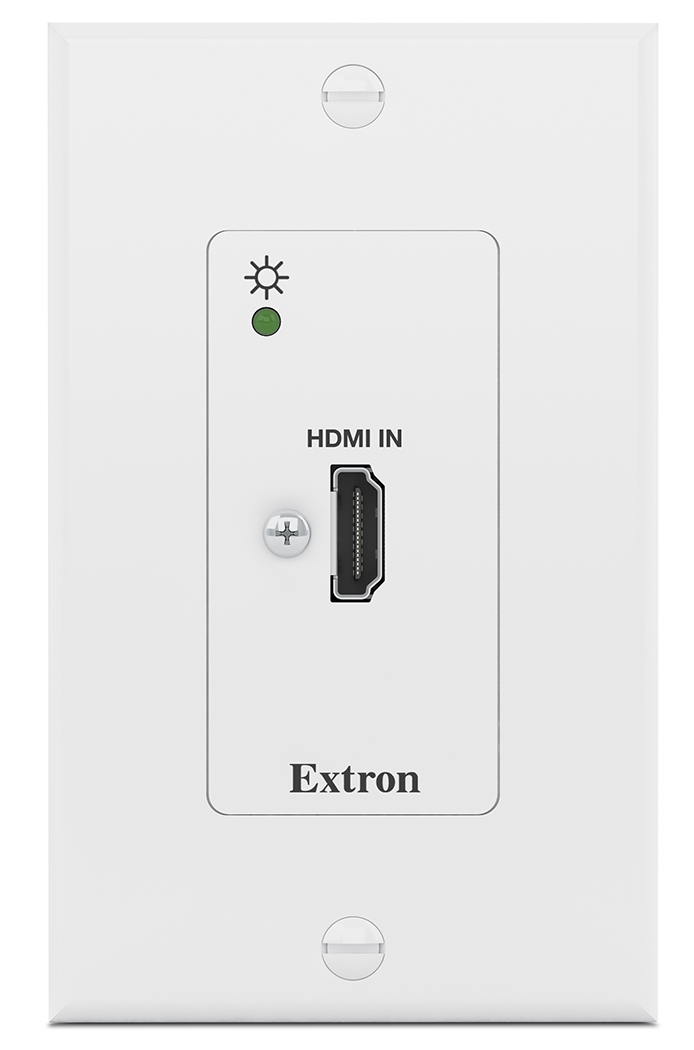

Extron DTP3 T 101 D 60-1902-53 HDMI Wallplate Transmitter

• One-gang white decorator wallplate HDMI transmitter for single-gang wall boxes
• 4K/60 4:4:4 at 18 Gbps, HDCP 2.3, CEC pass-through and lossless HD audio
• 330 ft reach on XTP DTP 22 cable, 175 ft coupler-free on STP or XTP DTP 24
• Powered locally by included supply or remotely by the connected receiver
• Eliminates need for a wall outlet at the plate
