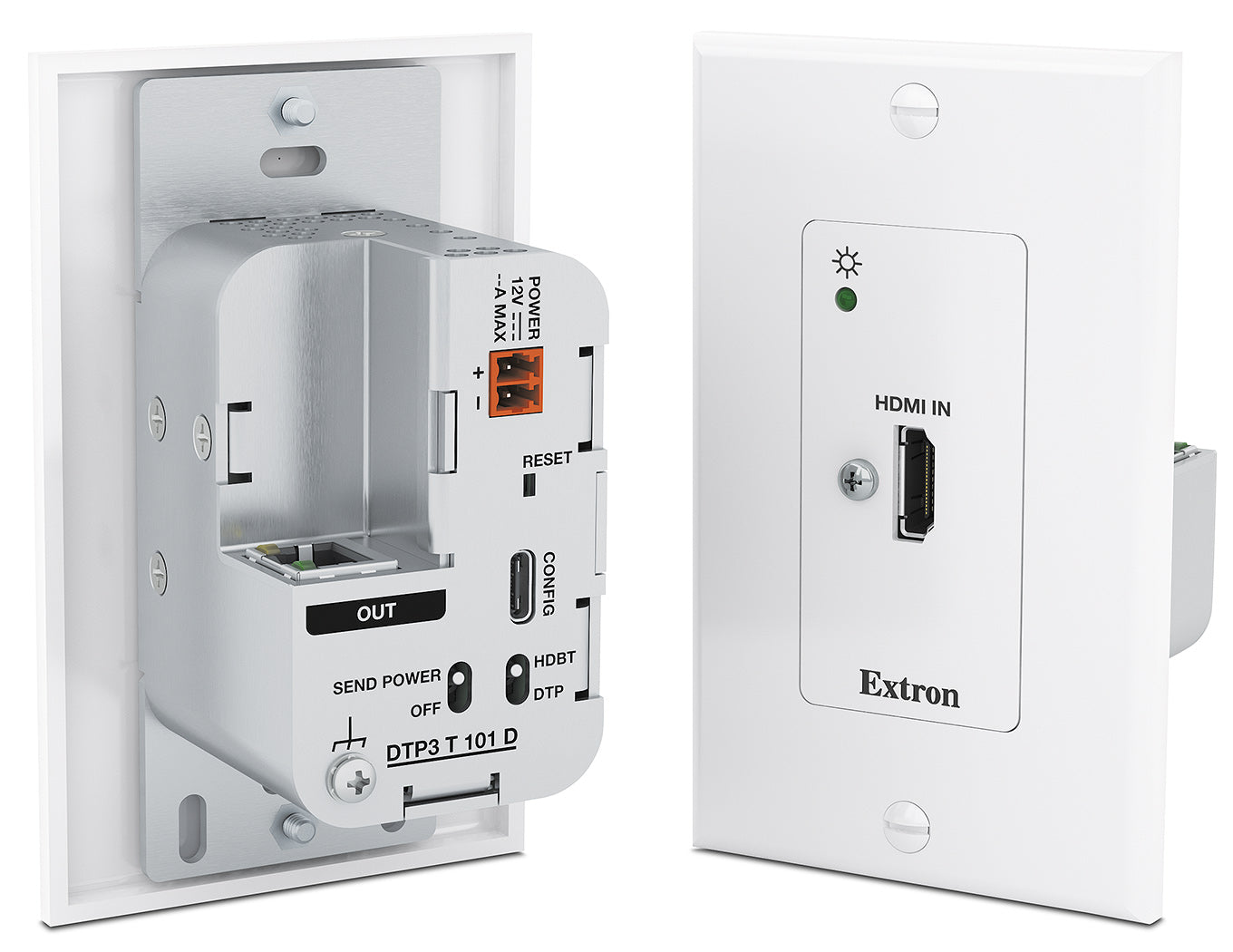

Extron DTP3 T 101 D (part number 60-1902-52) — the black one-gang decorator-style DTP3 transmitter, putting an HDMI input exactly where the source sits and sending it 330 feet over shielded CAT 6A.

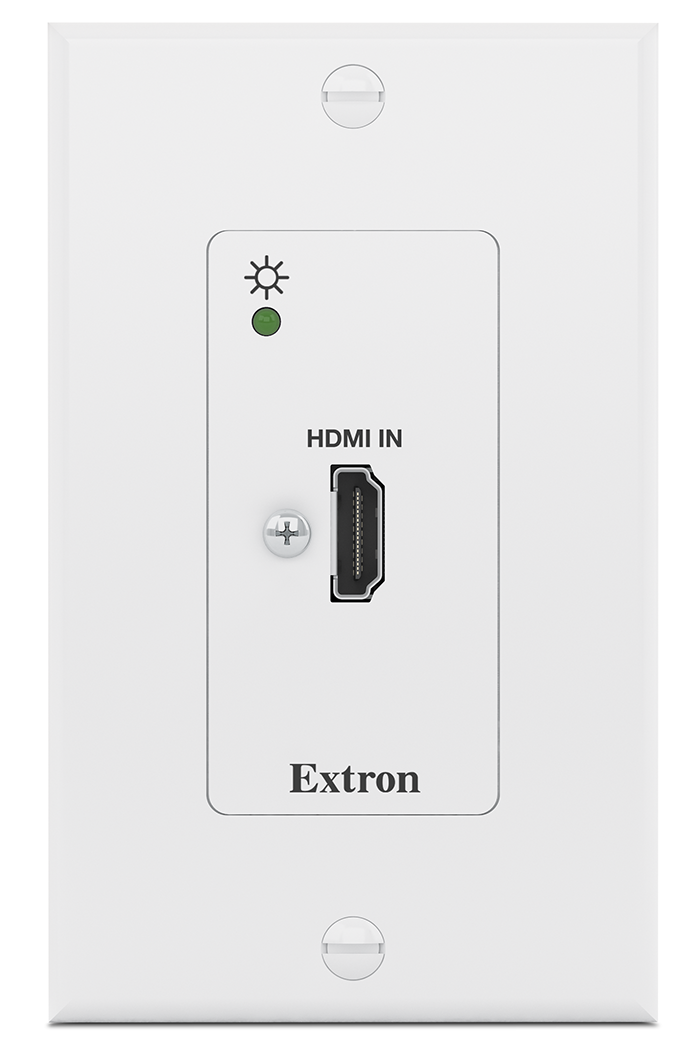

This is a wallplate, not a box: the device fits a standard US one-gang junction box behind a decorator-style opening, leaving nothing on show but a single female HDMI type A jack. Behind it, the transmitter carries uncompressed 4K/60 at 4:4:4 chroma with HDCP 2.3 and embedded multichannel audio to any DTP3 endpoint, or to an HDBaseT-enabled display when configured for it. EDID Minder holds a steady conversation with the source so laptops and media players wake up and output reliably. At 5.04 watts the transmitter is light enough to be powered remotely by the receiver, which removes a power drop from the wall location entirely.

Key Capabilities

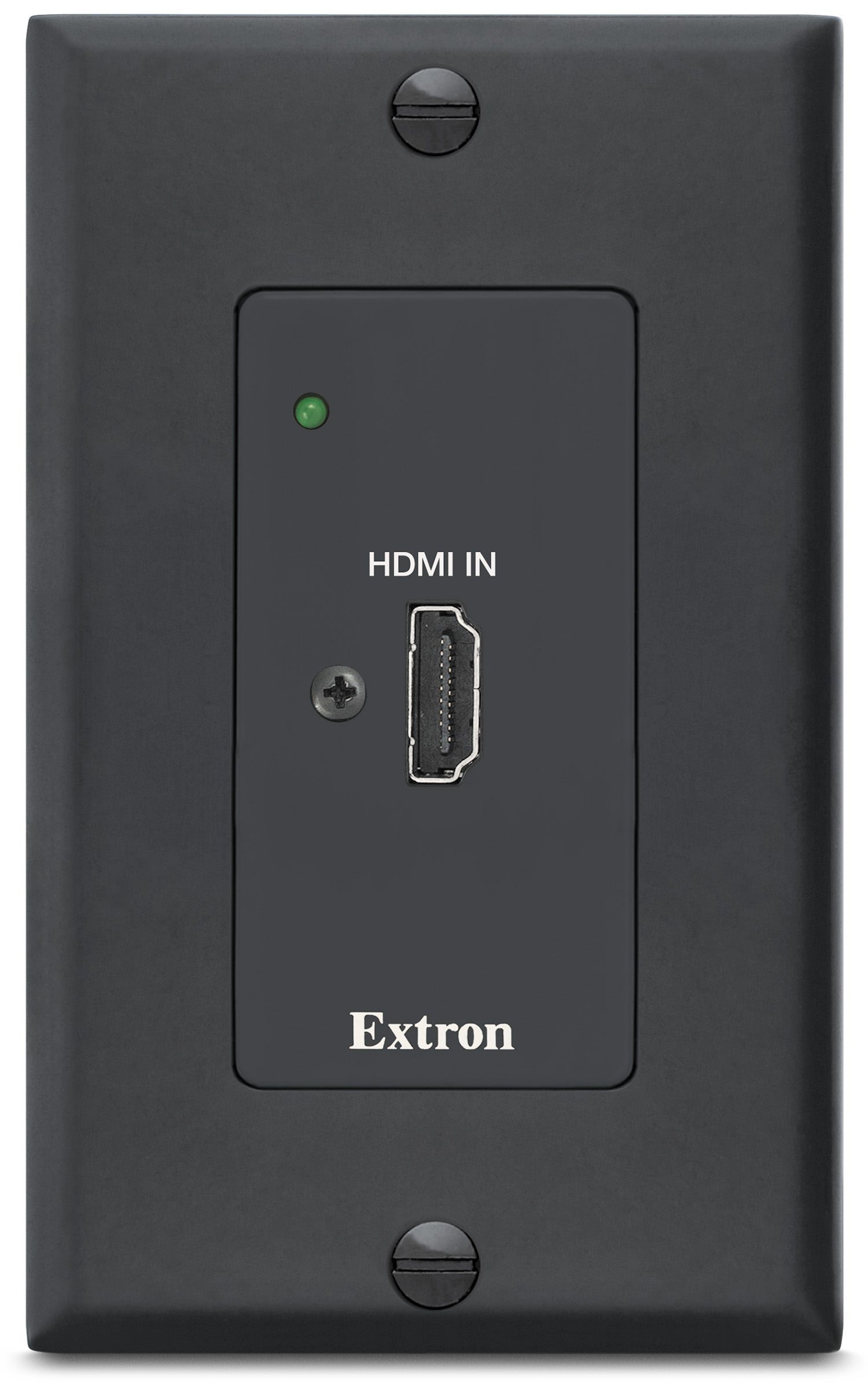

Black faceplate version, mounting in an included one-gang decorator-style wallplate
Sends 4K/60 4:4:4 HDMI up to 330 ft (100 m) with no compression and no added latency
18 Gbps data rate and 600 MHz pixel clock, carrying HDR10, HDR10+ and Dolby Vision
Accepts embedded audio to 192 kHz at 24-bit, including Dolby Atmos and DTS-HD Master Audio
Draws just 5.04 W, 17.20 BTU/hr, and can run entirely on remote power
Rear-panel USB-C port for firmware loading and PCS configuration

Where It Is Used

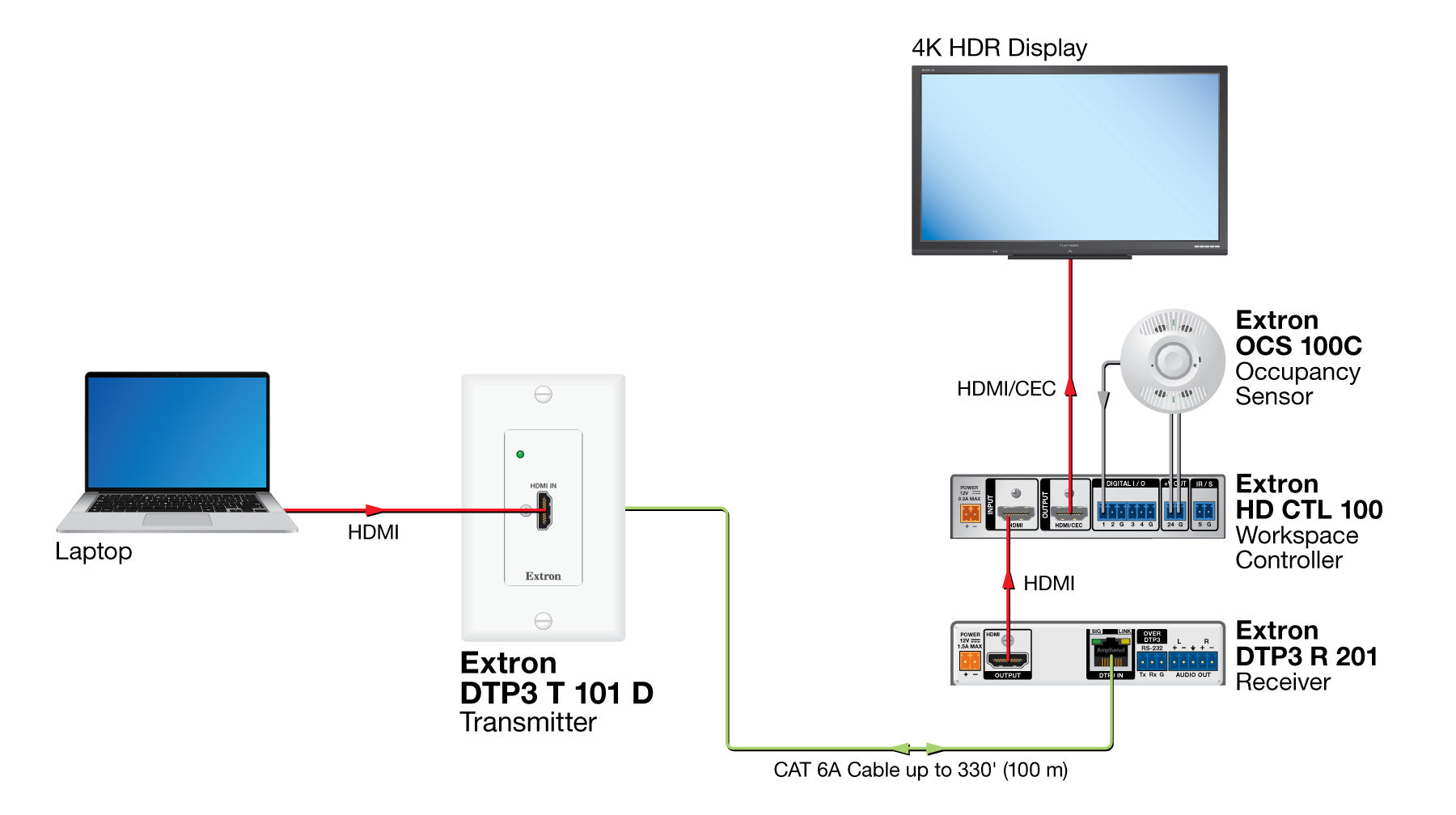

Wall boxes, floor boxes, lectern faces and furniture panels in classrooms, training rooms, huddle spaces, boardrooms and worship venues — anywhere a presenter needs a tidy HDMI connection point and the display or matrix lives somewhere else in the building.

Specifications at a Glance

Video input: 1 HDMI, or single link DVI-D with an adapter, on 1 female HDMI type A
Faceplate 2.6 in. H x 1.3 in. W x 0.3 in. D; device 2.8 in. H x 1.7 in. W x 1.9 in. D
Height reaches 4.2 in. (104 mm) including mounting tabs; weight 0.4 lb
3-year product warranty plus a 7-year Everlast power supply warranty

Also referenced as Extron DTP3T101D, DTP3-T-101-D, part number 60190252.

Specifications

Part Number: 60-1902-52

Manufacturer: Extron

Model: DTP3 T 101 D

Version: HDMI 4K/60 wallplate transmitter, black, 330 feet (100 m)

Condition: New

Signal type: HDMI 2.0b, HDCP 2.3

Maximum data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Resolution range (VESA): 640x480 to 4096x2160

Resolution range (SMPTE): Up to 1080p at 120 Hz, or 4K at 60 Hz with 4:4:4 chroma sampling

Ultra-wide and 5K resolutions: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080 at 60 Hz, 5120x1440 at 60 Hz, 5120x2160 at 30 Hz, 5120x2560 at 30 Hz, 5120x2880 at 30 Hz

Frame rate: 24, 25, 30, 50, or 60 fps

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Horizontal frequency range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical frequency range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, Dolby Vision

Standards: DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3

Video input, number and signal type: 1 HDMI, or single link DVI-D with appropriate DVI to HDMI adapters

Video input connector: 1 female HDMI type A

Audio sample rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Audio bit depths: 16, 20, 24 bit

Audio input, number and signal type: 1 digital audio, de-embedded from HDMI

Audio input connector: 1 female HDMI type A, shared with the video input

Supported source audio formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Transmitter to receiver connector: 1 female RJ-45 per unit

Termination standard: TIA/EIA T568B

Transmission distance, 1080p at 60 Hz: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 cable; up to 330 ft (100 m) over XTP DTP 22 cable

Transmission distance, 4K/UHD at 30 Hz: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 cable; up to 330 ft (100 m) over XTP DTP 22 cable

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 24, no couplers): Up to 175 ft (53 m)

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 24, with couplers or punch downs): Up to 150 ft (45 m)

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 22): Up to 330 ft (100 m), with or without couplers

Cable requirement, XTP DTP 24: Solid conductor, 24 AWG or better; 400 MHz bandwidth shielded twisted pair recommended

Cable requirement, XTP DTP 22: Solid conductor, 22 AWG or better; 500 MHz bandwidth shielded twisted pair recommended

USB control port: 1 back panel, female USB type C

USB standards: USB 2.0, low speed

Program control: Extron Simple Instruction Set (SIS); Extron Product Configuration Software (PCS)

Power supply: External, included with the transmitter. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power consumption, device: 5.04 watts

Power consumption, device and power supply: 6.03 watts

Remote power budget: 18 watts. The transmitter can be powered locally by an external supply or remotely by a receiver across the twisted pair link.

Ambient temperature and humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing

Cooling: Convection, vent holes

Thermal dissipation, device: 17.20 BTU/hr

Thermal dissipation, device and power supply: 20.58 BTU/hr

Mounting: Wall or furniture mount in a decorator-style opening

Enclosure type: Metal

Faceplate dimensions: 2.6 in. H x 1.3 in. W x 0.3 in. D (66 mm H x 33 mm W x 8 mm D)

Device dimensions: 2.8 in. H x 1.7 in. W x 1.9 in. D (71 mm H x 43 mm W x 48 mm D). Height is 4.2 in. (104 mm) including mounting tabs.

Product weight: 0.4 lb (0.18 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI. Complies with the appropriate requirements of RoHS and WEEE.

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor
