Details
Details
Manufacturer: Extron | Model: DTP3 CrossPoint 662 | Part number: 60-1694-01 (also written 60169401)
The Extron DTP3 CrossPoint 662 (60-1694-01) is the standard base model of the 662 series: a 2U full-rack matrix switcher with 4K/60 signal routing and Vector 4K scaling, without a built-in control processor or power amplifier. The configurable 6x6 to 8x4 matrix routes HDMI and DTP3 inputs through two reversible DTP3 ports, extending over shielded CAT 6A up to 330 ft at 1080p/4K/30 or 150 ft at 4K/60. Unamplified audio outputs feed an external amplifier. For the version with integrated IPCP processor and Class D amplifier, see the 60-1694-12 IPCP A variant.
Key capabilities
- 4K/60 4:4:4 routing at 18 Gbps with Vector 4K scaling and seamless switching
- Configurable 6x6 to 8x4 matrix via two reversible DTP3 ports
- DTP3 extension to 330 ft on CAT 6A at 1080p/4K/30, or 150 ft at 4K/60
- Unamplified balanced and unbalanced audio outputs for external amplifier
- Ethernet, RS-232, front-panel, and IR control
Where it is used
Conference rooms, training rooms, and divisible spaces where a separate Extron control processor is already specified or where routing and scaling are needed without an integrated amplifier.
Specifications at a glance
- Enclosure: 3.50 in H x 17.5 in W x 18 in D, 2U high, full rack wide
- Matrix: 6x6 to 8x4, configurable via reversible DTP3 ports
- Warranty: 3-year product, 7-year Everlast power supply
Also referenced as Extron DTP3CrossPoint662, DTP3-CrossPoint-662, part number 60169401.
Specifications
Specifications
Part Number: 60-1694-01
Manufacturer: Extron
Condition: New
1080p @ 60 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
3-pole captive screw: 1 = TX; 2 = RX; 3 = GND
3840x2160 at 30 Hz: 8 bit
3840x2160 at 60 Hz: 4:2:2
4096x2160 at 30 Hz: 4:4:4
4096x2160 at 60 Hz: 4:2:0
4K/UHD @ 30 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 60 Hz: Up to 150' (45 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3' [0.9 m]) Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
5-pole captive screw: 1 = TX; 2 = RX; 3 = GND; 4 = RTS, 5 = CTS
Height: 10.0" (25.4 cm)
AV LAN: Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.254.248 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
AV LAN Ethernet ports: 3 RJ-45 female connectors (isolated AV LAN; two ports support PoE+)
Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C)/10% to 90%, noncondensing Operating: +32 to +113°F (0 to +45°C)/10% to 90%, noncondensing
Amplifier type: Class D
Analog: Analog stereo audio
Audio bits depth: 16, 20, 24 bit
Audio codecs: OPUS
Audio format: Uncompressed, 24-bit, 48 KHz
Baud rate: 300 to 115200 baud Default setting (adjustable): 9600 baud
Baud rates: 300 to 115200 baud Default setting (adjustable): 9600 baud
CMRR: 65 dB @ 20 Hz to 20 kHz
Cable recommendations: 400 MHz bandwidth, STP cable
Cable requirements: Solid conductor, 24 AWG or better
Chroma sampling1: 4:4:4, 4:2:2, or 4:2:02
Color bit depth: 8, 10, and 12 bits per color – Subject to maximum data rate
Color bit depth1: 8, 10, and 12 bits per color
Color space: 4:4:4, 4:2:2, or 4:2:0
Colors: 1 billion (10 bit processing)
Communication: WebRTC
Connector: (1) 5 mm, screw lock captive screw connector, 4-pole
Connectors: 2 RJ-45, 2-port 1 Gbps switch to Dante interface (Primary Port has PoE)
Cooling: 2 fans, air flows from right to left (as viewed from the front)
Crosstalk: ≤-80 dB @ 1 kHz fully loaded
DC phantom power: +48 VDC ± 10% (can be switched on or off per mic/line input)
DTP3 CrossPoint 622: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 622 IPCP A: 375 watts
DTP3 CrossPoint 622 IPCP A SL: 390 watts
DTP3 CrossPoint 642: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 642 IPCP A: 287 watts
DTP3 CrossPoint 642 IPCP A SL: 401 watts
DTP3 CrossPoint 662: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 884: 6 HDMI2 HDMI or DTP3/XTP (selectable)
Data rate: 10/100/1000Base-T, half/full duplex with Auto-detect
Default settings: Link speed and duplex level: autodetected IP address: 192.168.254.254 Subnet mask: 255.255.255.0 Gateway: 0.0.0.0 DHCP: OFF
Default settings – LAN A: DHCP = ON Default STATIC IP settings if DHCP is switched OFF Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.253.249 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
Default settings – LAN B: DHCP = OFF Default STATIC IP settings Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.252.249 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
Digital I/O control: 4 digital input/output (configurable) (1) 3.5 mm captive screw connector, 5-pole
Digital outputs: 250 mA sink from 24 VDC max.
Digital port pin configuration: 1, 2, 3, 4 = digital I/O 1, 2, 3, 4; 5 = GND
Digital sampling: 8, 10, or 12 bits per color; 600 MHz pixel clock maximum
EDID and DDC: Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered.
EXP cable: Shielded CAT6 up to 10 meters
Enclosure type: Metal
Equalization: Automatic
Ethernet data rate: 10/100/1000 Base-T, half/full duplex with auto detect
Ethernet protocol: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Everlast power supply warranty: 7 years parts and labor
Formats: RGB and YCbCr digital video
Frame rate: 30 fps
Frame rate1: 24, 25, 30, 50, or 60 fps
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Gain: Unbalanced output: -6 dB; balanced output: 0 dB (default)
Gain error: ±0.5 dB channel to channel
Gain range: Adjustable, -18 dB to +24 dB, 1 dB steps, adjustable per input Mic/Line, -18 dB to +60 dB, 0.1 dB steps, adjustable per input
HDCP: Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards.
HDMI: LPCM up to 8-CH, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, DTS:X, Analog stereo
HDMI input cable length: Up to 12' (3.7 m)
HPD: Supports Hot Plug Detection (HPD) of display
Horizontal frequency: 15 kHz to 270 kHz
IR output carrier frequency: 30 kHz to 1 MHz
IR/serial control port connector: (1) 3.5 mm captive screw connector, 5-pole
IR/serial control ports: 2 programmable: unidirectional RS-232 (+5 V), or TTL Level (0 to 5 V) infrared (carrier and non-carrier)
IR/serial port pin configurations: For each port: 1 = signal; 2 = GND
Image codecs: BMP, JPG, PNG, TIFF
Image file formats: BMP, JPG, PNG, TIFF
Impedance: ≥10k ohms unbalanced, ≥20k ohms balanced
Input impedance: 28k ohms
Input voltage range: 0 to 24 VDC, clamped at +30 VDC
Inputs: 32 channel Rx
LAN Ethernet port: 1 RJ-45 female connector (house LAN)
Latency: Deterministic, based on user selection: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms
Load impedance: 4 or 8 ohms minimum
Logo effects: Transparency, RGB key, level key, alpha key
Max. video data rate: 18 Gbps (6 Gbps Per Color)
Maximum built-in USB hubs: 0
Maximum current source: 900 mA
Maximum data rate: 18 Gbps (6 Gbps Per Color)
Maximum level: Line inputs: +21 dBu balanced, +15 dBu unbalanced Mic/line inputs: +21 dBu balanced, +15 dBu unbalanced
Maximum level (Hi-Z): >+21 dBu balanced, +15 dBu unbalanced
Maximum pixel clock: 600 MHz
Minimum built-in USB hubs: 0
Mode 1: Up to 60 seconds
Mode 2: Up to 15 seconds
Network interface controllers (NICs): 3
Nominal level: Line inputs: +4 dBu (1.23 Vrms), -10 dBV (316 m Vrms) adjustable Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable
Number: 16 logo
Number/signal type: (2) 100 watts @ 8Ω / 4Ω (1) 200 watts @ 8Ω (Bridged) (1) 200 watts @ 70 volts (Bridged) (1) 200 watts @ 100 volts (Bridged)
Number/type: 1 front panel female USB-C
Operating system: Windows 11 64-bit and later macOS 14.0 and later Chrome OS 134 and later
Operating systems: Windows 11 and later Apple® macOS 14.0 and later
Optional built-in hubs: 0
Output cable length: At 4096x2160 @ 60 Hz, 4:4:4, 8-bit color Using HDMI Ultra — Up to 12 feet (3.6 meters) Using HDMI Pro — 25 feet (7.6 meters)
Output power: Stereo mode: 100 watts per channel, 4 or 8 ohms, 1 kHz, <0.1% THD Bridge mono low impedance: 200 watts per channel, 8 ohms, 1 kHz, <0.1% THD Bridge mono high impedance: 200 watts per channel, 70 V or 100 V, 1 kHz, <0.1% THD
Outputs: 32 channel Tx
Pass-through baud rate: 9600 to 115200 baud
Pass-through pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Pass-through port: (1) 3.5 mm, captive screw connector, 3-pole
Power for active cables: 250 mA or 1.25 W per output
Power supply: Internal Input: 100-240 VAC, 50-60 Hz
Program control: Extron Product Configuration Software (PCS) Extron Simple Instruction Set™ (SIS™)
Programmable pullup: 2k ohms to +5 VDC
Protection: Clip limiting, thermal, short circuit, DC output
Protocol: 8 or 7 data bits; 1 or 2 stop bits; even or odd parity
Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SNMP, SSH, TCP/IP, UDP/IP, SMB v1, SMB v2, SMB v3
Rack mount: Yes, with included, pre-installed brackets
Re-clocking: Automatic
Regulatory compliance: CE, C-UL, UL, FCC Class A, VCCI, AS/NZS, ICES, RoHs, Weee
Relay control connectors: (2) 3.5 mm captive screw connectors, 3-pole
Relay control contact rating: 24 V, 1 A
Relay control ports: 4 normally open relays
Remote power capability: Supports DTP3 and DTP remote power on all ports (Remote power not available in XTP and HDBaseT modes)
Resolution: Up to 4096x2160
Resolution and Refresh Rate: Chroma Sampling
Resolution range: Up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
S/N: >90 dB at maximum balanced output (unweighted)
SMPTE: 480i, 576i, 576p, 1080i, 2K, 3840x2160 (up to 60 Hz), 4096x2160 (up to 60 Hz)
Sampling rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Scaled resolutions: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz, 4096x2160 Column, 3840x2160 Column, and Custom 1-10
Security: HTTPS, DTLS v1.2
Serial control connector: (1) 3.5 mm captive screw connector, 5-pole (2) 3.5 mm captive screw connector, 3-pole
Serial control pass-through ports: RS-232 can be transmitted to and from DTP Tx via Ethernet insertion
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Serial control port: 3 bidirectional RS-232
Signal Type: DVI 1.0, HDMI 2.0b, HDCP 2.3
Software: ShareLink™ Pro for Windows® ShareLink™ Pro for macOS®
Source formats: LPCM up to 8-CH, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, DTS:X, Analog stereo
Standards: Up to HDMI 2.0b and HDCP 2.3, DVI 1.0
Stereo channel separation: >80 dB @ 1 kHz
Storage: 5 GB user memory for logos
THD + Noise: <0.01%, 20 Hz - 20 kHz nominal level
Termination standard: TIA/EIA T568B
Threshold high to low: <2.0 VDC
Threshold low to high: >2.8 VDC
Transmission type: Dante/AES-67, software selectable
USB standard: USB 2.0, high speed
USB standards: USB 3.1 Gen 1 (USB 3.0 – 5 Gbps), USB 2.0, USB 1.1, USB 1.0 compatible
Ultra Wide: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600
VESA: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
Vertical frequency: 24 Hz to 240 Hz
Video codecs: VP8
Video file formats: 264, AVI, M2T, M2TS, M4V, MKV, MOV, MP4, MPG, SDP, TS
Volume control range: -100 dB to 0 dB (control 0-100 in 1 dB steps) (control 0 to 64)
Warranty: 3 years parts and labor
Web browsers: Google Chrome 139 and later

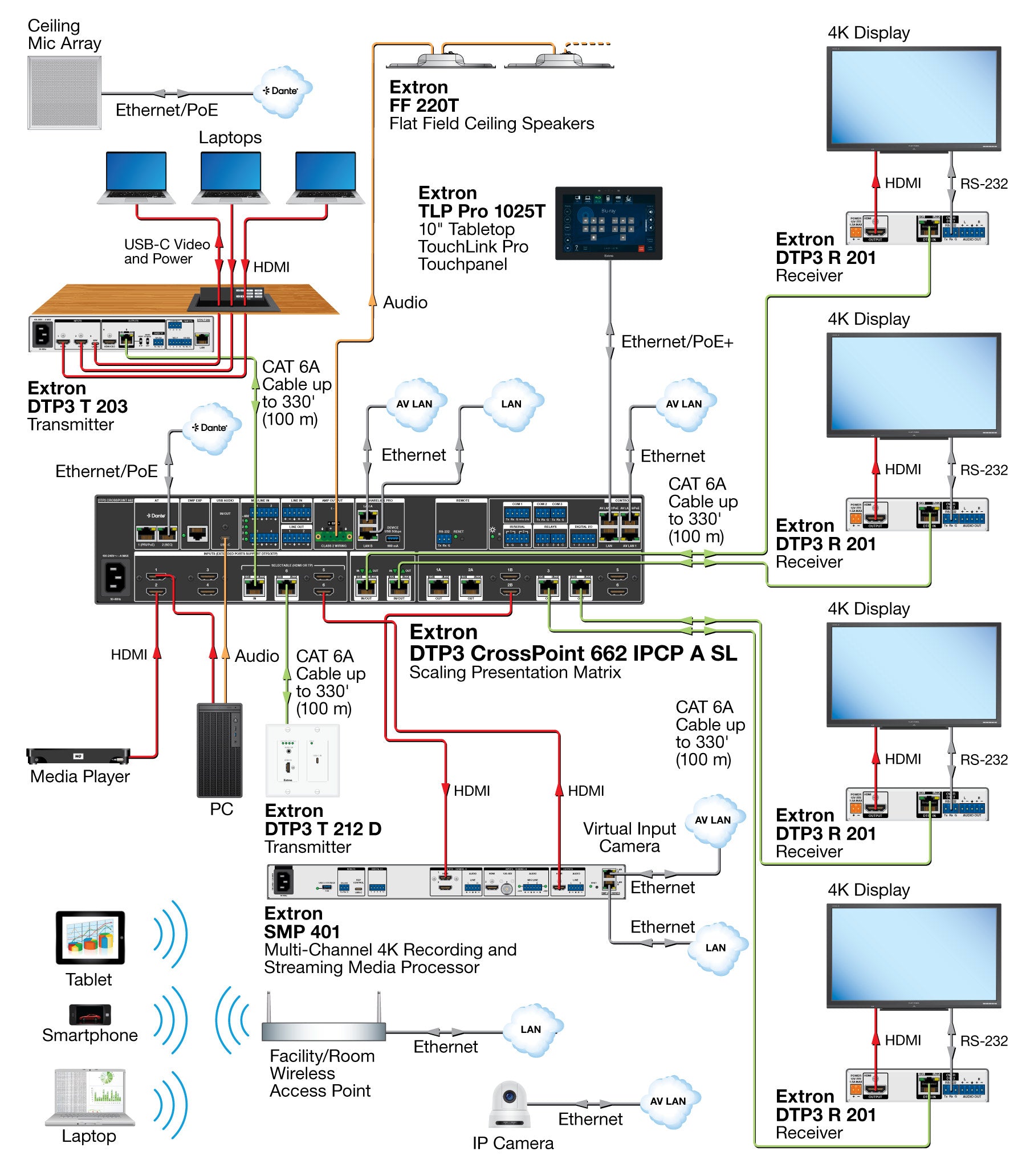

Diagram
Diagram
Resources
Resources
Brochure | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint Series
Brochure | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint 系列
Brochure | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint-Serie
Brochure | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPointシリーズ
Brochure | DTP3 CrossPoint 662 60-1694-01 | Gamme DTP3 CrossPoint
Brochure | DTP3 CrossPoint 662 60-1694-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_SP.pdf)
Brochure | DTP3 CrossPoint 662 60-1694-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_IT.pdf)
Manual | DTP3 CrossPoint 662 60-1694-01 | Control Systems Network Ports, Protocols, and Licenses
Manual | DTP3 CrossPoint 662 60-1694-01 | DTP Compatibility Guide
Manual | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint Series Setup Guide
Manual | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint Series User Guide
Manual | DTP3 CrossPoint 662 60-1694-01 | Extron Dante FAQ
Manual | DTP3 CrossPoint 662 60-1694-01 | DTP互換性ガイド
Specifications | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint Series
Panel Drawing | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint 662
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

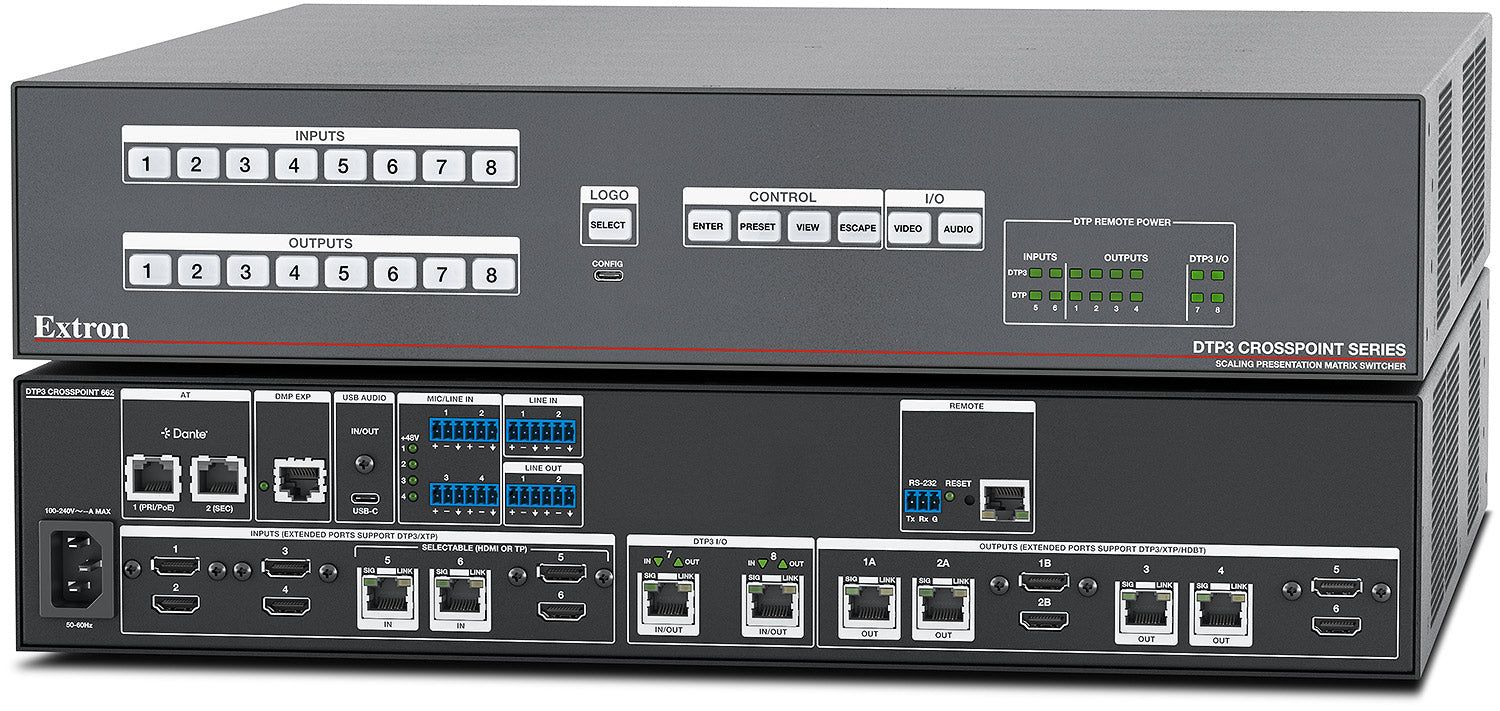

Extron DTP3 CrossPoint 662 60-1694-01
Extron DTP3 CrossPoint 662 60-1694-01
Manufacturer: Extron
Type: DTP Systems
Extron DTP3 CrossPoint 662 60-1694-01
- • Standard base model: 4K/60 routing and Vector scaling, no built-in processor or amplifier
- • Configurable 6x6 to 8x4 matrix via two reversible DTP3 ports
- • DTP3 extension up to 330 ft at 1080p, 150 ft at 4K/60 over shielded CAT 6A
- • Unamplified audio outputs standard on the base model
- • 2U full-rack-width metal enclosure, 3.50 in H x 17.5 in W x 18 in D
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron | Model: DTP3 CrossPoint 662 | Part number: 60-1694-01 (also written 60169401)
The Extron DTP3 CrossPoint 662 (60-1694-01) is the standard base model of the 662 series: a 2U full-rack matrix switcher with 4K/60 signal routing and Vector 4K scaling, without a built-in control processor or power amplifier. The configurable 6x6 to 8x4 matrix routes HDMI and DTP3 inputs through two reversible DTP3 ports, extending over shielded CAT 6A up to 330 ft at 1080p/4K/30 or 150 ft at 4K/60. Unamplified audio outputs feed an external amplifier. For the version with integrated IPCP processor and Class D amplifier, see the 60-1694-12 IPCP A variant.
Key capabilities
- 4K/60 4:4:4 routing at 18 Gbps with Vector 4K scaling and seamless switching
- Configurable 6x6 to 8x4 matrix via two reversible DTP3 ports
- DTP3 extension to 330 ft on CAT 6A at 1080p/4K/30, or 150 ft at 4K/60
- Unamplified balanced and unbalanced audio outputs for external amplifier
- Ethernet, RS-232, front-panel, and IR control
Where it is used
Conference rooms, training rooms, and divisible spaces where a separate Extron control processor is already specified or where routing and scaling are needed without an integrated amplifier.
Specifications at a glance
- Enclosure: 3.50 in H x 17.5 in W x 18 in D, 2U high, full rack wide
- Matrix: 6x6 to 8x4, configurable via reversible DTP3 ports
- Warranty: 3-year product, 7-year Everlast power supply
Also referenced as Extron DTP3CrossPoint662, DTP3-CrossPoint-662, part number 60169401.
Specifications
Specifications
Part Number: 60-1694-01
Manufacturer: Extron
Condition: New
1080p @ 60 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
3-pole captive screw: 1 = TX; 2 = RX; 3 = GND
3840x2160 at 30 Hz: 8 bit
3840x2160 at 60 Hz: 4:2:2
4096x2160 at 30 Hz: 4:4:4
4096x2160 at 60 Hz: 4:2:0
4K/UHD @ 30 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 60 Hz: Up to 150' (45 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3' [0.9 m]) Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
5-pole captive screw: 1 = TX; 2 = RX; 3 = GND; 4 = RTS, 5 = CTS
Height: 10.0" (25.4 cm)
AV LAN: Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.254.248 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
AV LAN Ethernet ports: 3 RJ-45 female connectors (isolated AV LAN; two ports support PoE+)
Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C)/10% to 90%, noncondensing Operating: +32 to +113°F (0 to +45°C)/10% to 90%, noncondensing
Amplifier type: Class D
Analog: Analog stereo audio
Audio bits depth: 16, 20, 24 bit
Audio codecs: OPUS
Audio format: Uncompressed, 24-bit, 48 KHz
Baud rate: 300 to 115200 baud Default setting (adjustable): 9600 baud
Baud rates: 300 to 115200 baud Default setting (adjustable): 9600 baud
CMRR: 65 dB @ 20 Hz to 20 kHz
Cable recommendations: 400 MHz bandwidth, STP cable
Cable requirements: Solid conductor, 24 AWG or better
Chroma sampling1: 4:4:4, 4:2:2, or 4:2:02
Color bit depth: 8, 10, and 12 bits per color – Subject to maximum data rate
Color bit depth1: 8, 10, and 12 bits per color
Color space: 4:4:4, 4:2:2, or 4:2:0
Colors: 1 billion (10 bit processing)
Communication: WebRTC
Connector: (1) 5 mm, screw lock captive screw connector, 4-pole
Connectors: 2 RJ-45, 2-port 1 Gbps switch to Dante interface (Primary Port has PoE)
Cooling: 2 fans, air flows from right to left (as viewed from the front)
Crosstalk: ≤-80 dB @ 1 kHz fully loaded
DC phantom power: +48 VDC ± 10% (can be switched on or off per mic/line input)
DTP3 CrossPoint 622: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 622 IPCP A: 375 watts
DTP3 CrossPoint 622 IPCP A SL: 390 watts
DTP3 CrossPoint 642: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 642 IPCP A: 287 watts
DTP3 CrossPoint 642 IPCP A SL: 401 watts
DTP3 CrossPoint 662: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 884: 6 HDMI2 HDMI or DTP3/XTP (selectable)
Data rate: 10/100/1000Base-T, half/full duplex with Auto-detect
Default settings: Link speed and duplex level: autodetected IP address: 192.168.254.254 Subnet mask: 255.255.255.0 Gateway: 0.0.0.0 DHCP: OFF
Default settings – LAN A: DHCP = ON Default STATIC IP settings if DHCP is switched OFF Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.253.249 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
Default settings – LAN B: DHCP = OFF Default STATIC IP settings Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.252.249 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
Digital I/O control: 4 digital input/output (configurable) (1) 3.5 mm captive screw connector, 5-pole
Digital outputs: 250 mA sink from 24 VDC max.
Digital port pin configuration: 1, 2, 3, 4 = digital I/O 1, 2, 3, 4; 5 = GND
Digital sampling: 8, 10, or 12 bits per color; 600 MHz pixel clock maximum
EDID and DDC: Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered.
EXP cable: Shielded CAT6 up to 10 meters
Enclosure type: Metal
Equalization: Automatic
Ethernet data rate: 10/100/1000 Base-T, half/full duplex with auto detect
Ethernet protocol: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Everlast power supply warranty: 7 years parts and labor
Formats: RGB and YCbCr digital video
Frame rate: 30 fps
Frame rate1: 24, 25, 30, 50, or 60 fps
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Gain: Unbalanced output: -6 dB; balanced output: 0 dB (default)
Gain error: ±0.5 dB channel to channel
Gain range: Adjustable, -18 dB to +24 dB, 1 dB steps, adjustable per input Mic/Line, -18 dB to +60 dB, 0.1 dB steps, adjustable per input
HDCP: Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards.
HDMI: LPCM up to 8-CH, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, DTS:X, Analog stereo
HDMI input cable length: Up to 12' (3.7 m)
HPD: Supports Hot Plug Detection (HPD) of display
Horizontal frequency: 15 kHz to 270 kHz
IR output carrier frequency: 30 kHz to 1 MHz
IR/serial control port connector: (1) 3.5 mm captive screw connector, 5-pole
IR/serial control ports: 2 programmable: unidirectional RS-232 (+5 V), or TTL Level (0 to 5 V) infrared (carrier and non-carrier)
IR/serial port pin configurations: For each port: 1 = signal; 2 = GND
Image codecs: BMP, JPG, PNG, TIFF
Image file formats: BMP, JPG, PNG, TIFF
Impedance: ≥10k ohms unbalanced, ≥20k ohms balanced
Input impedance: 28k ohms
Input voltage range: 0 to 24 VDC, clamped at +30 VDC
Inputs: 32 channel Rx
LAN Ethernet port: 1 RJ-45 female connector (house LAN)
Latency: Deterministic, based on user selection: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms
Load impedance: 4 or 8 ohms minimum
Logo effects: Transparency, RGB key, level key, alpha key
Max. video data rate: 18 Gbps (6 Gbps Per Color)
Maximum built-in USB hubs: 0
Maximum current source: 900 mA
Maximum data rate: 18 Gbps (6 Gbps Per Color)
Maximum level: Line inputs: +21 dBu balanced, +15 dBu unbalanced Mic/line inputs: +21 dBu balanced, +15 dBu unbalanced
Maximum level (Hi-Z): >+21 dBu balanced, +15 dBu unbalanced
Maximum pixel clock: 600 MHz
Minimum built-in USB hubs: 0
Mode 1: Up to 60 seconds
Mode 2: Up to 15 seconds
Network interface controllers (NICs): 3
Nominal level: Line inputs: +4 dBu (1.23 Vrms), -10 dBV (316 m Vrms) adjustable Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable
Number: 16 logo
Number/signal type: (2) 100 watts @ 8Ω / 4Ω (1) 200 watts @ 8Ω (Bridged) (1) 200 watts @ 70 volts (Bridged) (1) 200 watts @ 100 volts (Bridged)
Number/type: 1 front panel female USB-C
Operating system: Windows 11 64-bit and later macOS 14.0 and later Chrome OS 134 and later
Operating systems: Windows 11 and later Apple® macOS 14.0 and later
Optional built-in hubs: 0
Output cable length: At 4096x2160 @ 60 Hz, 4:4:4, 8-bit color Using HDMI Ultra — Up to 12 feet (3.6 meters) Using HDMI Pro — 25 feet (7.6 meters)
Output power: Stereo mode: 100 watts per channel, 4 or 8 ohms, 1 kHz, <0.1% THD Bridge mono low impedance: 200 watts per channel, 8 ohms, 1 kHz, <0.1% THD Bridge mono high impedance: 200 watts per channel, 70 V or 100 V, 1 kHz, <0.1% THD
Outputs: 32 channel Tx
Pass-through baud rate: 9600 to 115200 baud
Pass-through pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Pass-through port: (1) 3.5 mm, captive screw connector, 3-pole
Power for active cables: 250 mA or 1.25 W per output
Power supply: Internal Input: 100-240 VAC, 50-60 Hz
Program control: Extron Product Configuration Software (PCS) Extron Simple Instruction Set™ (SIS™)
Programmable pullup: 2k ohms to +5 VDC
Protection: Clip limiting, thermal, short circuit, DC output
Protocol: 8 or 7 data bits; 1 or 2 stop bits; even or odd parity
Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SNMP, SSH, TCP/IP, UDP/IP, SMB v1, SMB v2, SMB v3
Rack mount: Yes, with included, pre-installed brackets
Re-clocking: Automatic
Regulatory compliance: CE, C-UL, UL, FCC Class A, VCCI, AS/NZS, ICES, RoHs, Weee
Relay control connectors: (2) 3.5 mm captive screw connectors, 3-pole
Relay control contact rating: 24 V, 1 A
Relay control ports: 4 normally open relays
Remote power capability: Supports DTP3 and DTP remote power on all ports (Remote power not available in XTP and HDBaseT modes)
Resolution: Up to 4096x2160
Resolution and Refresh Rate: Chroma Sampling
Resolution range: Up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
S/N: >90 dB at maximum balanced output (unweighted)
SMPTE: 480i, 576i, 576p, 1080i, 2K, 3840x2160 (up to 60 Hz), 4096x2160 (up to 60 Hz)
Sampling rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Scaled resolutions: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz, 4096x2160 Column, 3840x2160 Column, and Custom 1-10
Security: HTTPS, DTLS v1.2
Serial control connector: (1) 3.5 mm captive screw connector, 5-pole (2) 3.5 mm captive screw connector, 3-pole
Serial control pass-through ports: RS-232 can be transmitted to and from DTP Tx via Ethernet insertion
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Serial control port: 3 bidirectional RS-232
Signal Type: DVI 1.0, HDMI 2.0b, HDCP 2.3
Software: ShareLink™ Pro for Windows® ShareLink™ Pro for macOS®
Source formats: LPCM up to 8-CH, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, DTS:X, Analog stereo
Standards: Up to HDMI 2.0b and HDCP 2.3, DVI 1.0
Stereo channel separation: >80 dB @ 1 kHz
Storage: 5 GB user memory for logos
THD + Noise: <0.01%, 20 Hz - 20 kHz nominal level
Termination standard: TIA/EIA T568B
Threshold high to low: <2.0 VDC
Threshold low to high: >2.8 VDC
Transmission type: Dante/AES-67, software selectable
USB standard: USB 2.0, high speed
USB standards: USB 3.1 Gen 1 (USB 3.0 – 5 Gbps), USB 2.0, USB 1.1, USB 1.0 compatible
Ultra Wide: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600
VESA: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
Vertical frequency: 24 Hz to 240 Hz
Video codecs: VP8
Video file formats: 264, AVI, M2T, M2TS, M4V, MKV, MOV, MP4, MPG, SDP, TS
Volume control range: -100 dB to 0 dB (control 0-100 in 1 dB steps) (control 0 to 64)
Warranty: 3 years parts and labor
Web browsers: Google Chrome 139 and later
Diagram
Diagram
Resources
Resources
Brochure | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint Series
Brochure | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint 系列
Brochure | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint-Serie
Brochure | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPointシリーズ
Brochure | DTP3 CrossPoint 662 60-1694-01 | Gamme DTP3 CrossPoint
Brochure | DTP3 CrossPoint 662 60-1694-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_SP.pdf)
Brochure | DTP3 CrossPoint 662 60-1694-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_IT.pdf)
Manual | DTP3 CrossPoint 662 60-1694-01 | Control Systems Network Ports, Protocols, and Licenses
Manual | DTP3 CrossPoint 662 60-1694-01 | DTP Compatibility Guide
Manual | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint Series Setup Guide
Manual | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint Series User Guide
Manual | DTP3 CrossPoint 662 60-1694-01 | Extron Dante FAQ
Manual | DTP3 CrossPoint 662 60-1694-01 | DTP互換性ガイド
Specifications | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint Series
Panel Drawing | DTP3 CrossPoint 662 60-1694-01 | DTP3 CrossPoint 662
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
