Details
Details
Manufacturer: Extron | Model: DTP3 CrossPoint 642 | Part number: 60-1661-01 (also written 60166101)
The Extron DTP3 CrossPoint 642 (60-1661-01) is the standard base model of the 642 series: a 2U full-rack matrix switcher that routes and scales 4K/60 signals without a built-in control processor or power amplifier. The matrix is configurable from 6x6 to 8x4 through reversible DTP3 ports. Each port carries HDMI video, audio, power, and RS-232 over shielded CAT 6A. Unamplified audio outputs connect to an external amplifier. Installers who need the IPCP Pro 360MQ xi processor and Class D amplifier built in should see the 60-1661-12 IPCP A variant instead.
Key capabilities
- 4K/60 4:4:4 routing at 18 Gbps with Vector 4K scaling and seamless switching
- Configurable 6x6 to 8x4 matrix via two reversible DTP3 ports
- DTP3 extension to 330 ft on CAT 6A at 1080p/4K/30, or 150 ft at 4K/60
- Unamplified balanced and unbalanced audio outputs
- Ethernet, RS-232, front-panel, and IR control
Where it is used
Training rooms, multi-screen lobbies, and secondary AV racks where a separate Extron control processor is already specified or where routing and scaling are needed without amplification.
Specifications at a glance
- Enclosure: 3.50 in H x 17.5 in W x 18 in D, 2U high, full rack wide
- Inputs: 6 HDMI plus 2 reversible DTP3
- Warranty: 3-year product, 7-year Everlast power supply
Also referenced as Extron DTP3CrossPoint642, DTP3-CrossPoint-642, part number 60166101.
Specifications
Specifications
Part Number: 60-1661-01
Manufacturer: Extron
Condition: New
1080p @ 60 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
3-pole captive screw: 1 = TX; 2 = RX; 3 = GND
3840x2160 at 30 Hz: 8 bit
3840x2160 at 60 Hz: 4:2:2
4096x2160 at 30 Hz: 4:4:4
4096x2160 at 60 Hz: 4:2:0
4K/UHD @ 30 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 60 Hz: Up to 150' (45 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3' [0.9 m]) Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
5-pole captive screw: 1 = TX; 2 = RX; 3 = GND; 4 = RTS, 5 = CTS
Height: 10.0" (25.4 cm)
AV LAN: Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.254.248 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
AV LAN Ethernet ports: 3 RJ-45 female connectors (isolated AV LAN; two ports support PoE+)
Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C)/10% to 90%, noncondensing Operating: +32 to +113°F (0 to +45°C)/10% to 90%, noncondensing
Amplifier type: Class D
Analog: Analog stereo audio
Audio bits depth: 16, 20, 24 bit
Audio codecs: OPUS
Audio format: Uncompressed, 24-bit, 48 KHz
Baud rate: 300 to 115200 baud Default setting (adjustable): 9600 baud
Baud rates: 300 to 115200 baud Default setting (adjustable): 9600 baud
CMRR: 65 dB @ 20 Hz to 20 kHz
Cable recommendations: 400 MHz bandwidth, STP cable
Cable requirements: Solid conductor, 24 AWG or better
Chroma sampling1: 4:4:4, 4:2:2, or 4:2:02
Color bit depth: 8, 10, and 12 bits per color – Subject to maximum data rate
Color bit depth1: 8, 10, and 12 bits per color
Color space: 4:4:4, 4:2:2, or 4:2:0
Colors: 1 billion (10 bit processing)
Communication: WebRTC
Connector: (1) 5 mm, screw lock captive screw connector, 4-pole
Connectors: 2 RJ-45, 2-port 1 Gbps switch to Dante interface (Primary Port has PoE)
Cooling: 2 fans, air flows from right to left (as viewed from the front)
Crosstalk: ≤-80 dB @ 1 kHz fully loaded
DC phantom power: +48 VDC ± 10% (can be switched on or off per mic/line input)
DTP3 CrossPoint 622: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 622 IPCP A: 375 watts
DTP3 CrossPoint 622 IPCP A SL: 390 watts
DTP3 CrossPoint 642: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 662: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 662 IPCP A: 444 watts
DTP3 CrossPoint 662 IPCP A SL: 460 watts
DTP3 CrossPoint 884: 6 HDMI2 HDMI or DTP3/XTP (selectable)
Data rate: 10/100/1000Base-T, half/full duplex with Auto-detect
Default settings: Link speed and duplex level: autodetected IP address: 192.168.254.254 Subnet mask: 255.255.255.0 Gateway: 0.0.0.0 DHCP: OFF
Default settings – LAN A: DHCP = ON Default STATIC IP settings if DHCP is switched OFF Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.253.249 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
Default settings – LAN B: DHCP = OFF Default STATIC IP settings Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.252.249 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
Digital I/O control: 4 digital input/output (configurable) (1) 3.5 mm captive screw connector, 5-pole
Digital outputs: 250 mA sink from 24 VDC max.
Digital port pin configuration: 1, 2, 3, 4 = digital I/O 1, 2, 3, 4; 5 = GND
Digital sampling: 8, 10, or 12 bits per color; 600 MHz pixel clock maximum
EDID and DDC: Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered.
EXP cable: Shielded CAT6 up to 10 meters
Enclosure type: Metal
Equalization: Automatic
Ethernet data rate: 10/100/1000 Base-T, half/full duplex with auto detect
Ethernet protocol: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Everlast power supply warranty: 7 years parts and labor
Formats: RGB and YCbCr digital video
Frame rate: 30 fps
Frame rate1: 24, 25, 30, 50, or 60 fps
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Gain: Unbalanced output: -6 dB; balanced output: 0 dB (default)
Gain error: ±0.5 dB channel to channel
Gain range: Adjustable, -18 dB to +24 dB, 1 dB steps, adjustable per input Mic/Line, -18 dB to +60 dB, 0.1 dB steps, adjustable per input
HDCP: Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards.
HDMI: LPCM up to 8-CH, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, DTS:X, Analog stereo
HDMI input cable length: Up to 12' (3.7 m)
HPD: Supports Hot Plug Detection (HPD) of display
Horizontal frequency: 15 kHz to 270 kHz
IR output carrier frequency: 30 kHz to 1 MHz
IR/serial control port connector: (1) 3.5 mm captive screw connector, 5-pole
IR/serial control ports: 2 programmable: unidirectional RS-232 (+5 V), or TTL Level (0 to 5 V) infrared (carrier and non-carrier)
IR/serial port pin configurations: For each port: 1 = signal; 2 = GND
Image codecs: BMP, JPG, PNG, TIFF
Image file formats: BMP, JPG, PNG, TIFF
Impedance: ≥10k ohms unbalanced, ≥20k ohms balanced
Input impedance: 28k ohms
Input voltage range: 0 to 24 VDC, clamped at +30 VDC
Inputs: 32 channel Rx
LAN Ethernet port: 1 RJ-45 female connector (house LAN)
Latency: Deterministic, based on user selection: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms
Load impedance: 4 or 8 ohms minimum
Logo effects: Transparency, RGB key, level key, alpha key
Max. video data rate: 18 Gbps (6 Gbps Per Color)
Maximum built-in USB hubs: 0
Maximum current source: 900 mA
Maximum data rate: 18 Gbps (6 Gbps Per Color)
Maximum level: Line inputs: +21 dBu balanced, +15 dBu unbalanced Mic/line inputs: +21 dBu balanced, +15 dBu unbalanced
Maximum level (Hi-Z): >+21 dBu balanced, +15 dBu unbalanced
Maximum pixel clock: 600 MHz
Minimum built-in USB hubs: 0
Mode 1: Up to 60 seconds
Mode 2: Up to 15 seconds
Network interface controllers (NICs): 3
Nominal level: Line inputs: +4 dBu (1.23 Vrms), -10 dBV (316 m Vrms) adjustable Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable
Number: 16 logo
Number/signal type: (2) 100 watts @ 8Ω / 4Ω (1) 200 watts @ 8Ω (Bridged) (1) 200 watts @ 70 volts (Bridged) (1) 200 watts @ 100 volts (Bridged)
Number/type: 1 front panel female USB-C
Operating system: Windows 11 64-bit and later macOS 14.0 and later Chrome OS 134 and later
Operating systems: Windows 11 and later Apple® macOS 14.0 and later
Optional built-in hubs: 0
Output cable length: At 4096x2160 @ 60 Hz, 4:4:4, 8-bit color Using HDMI Ultra — Up to 12 feet (3.6 meters) Using HDMI Pro — 25 feet (7.6 meters)
Output power: Stereo mode: 100 watts per channel, 4 or 8 ohms, 1 kHz, <0.1% THD Bridge mono low impedance: 200 watts per channel, 8 ohms, 1 kHz, <0.1% THD Bridge mono high impedance: 200 watts per channel, 70 V or 100 V, 1 kHz, <0.1% THD
Outputs: 32 channel Tx
Pass-through baud rate: 9600 to 115200 baud
Pass-through pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Pass-through port: (1) 3.5 mm, captive screw connector, 3-pole
Power for active cables: 250 mA or 1.25 W per output
Power supply: Internal Input: 100-240 VAC, 50-60 Hz
Program control: Extron Product Configuration Software (PCS) Extron Simple Instruction Set™ (SIS™)
Programmable pullup: 2k ohms to +5 VDC
Protection: Clip limiting, thermal, short circuit, DC output
Protocol: 8 or 7 data bits; 1 or 2 stop bits; even or odd parity
Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SNMP, SSH, TCP/IP, UDP/IP, SMB v1, SMB v2, SMB v3
Rack mount: Yes, with included, pre-installed brackets
Re-clocking: Automatic
Regulatory compliance: CE, C-UL, UL, FCC Class A, VCCI, AS/NZS, ICES, RoHs, Weee
Relay control connectors: (2) 3.5 mm captive screw connectors, 3-pole
Relay control contact rating: 24 V, 1 A
Relay control ports: 4 normally open relays
Remote power capability: Supports DTP3 and DTP remote power on all ports (Remote power not available in XTP and HDBaseT modes)
Resolution: Up to 4096x2160
Resolution and Refresh Rate: Chroma Sampling
Resolution range: Up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
S/N: >90 dB at maximum balanced output (unweighted)
SMPTE: 480i, 576i, 576p, 1080i, 2K, 3840x2160 (up to 60 Hz), 4096x2160 (up to 60 Hz)
Sampling rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Scaled resolutions: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz, 4096x2160 Column, 3840x2160 Column, and Custom 1-10
Security: HTTPS, DTLS v1.2
Serial control connector: (1) 3.5 mm captive screw connector, 5-pole (2) 3.5 mm captive screw connector, 3-pole
Serial control pass-through ports: RS-232 can be transmitted to and from DTP Tx via Ethernet insertion
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Serial control port: 3 bidirectional RS-232
Signal Type: DVI 1.0, HDMI 2.0b, HDCP 2.3
Software: ShareLink™ Pro for Windows® ShareLink™ Pro for macOS®
Source formats: LPCM up to 8-CH, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, DTS:X, Analog stereo
Standards: Up to HDMI 2.0b and HDCP 2.3, DVI 1.0
Stereo channel separation: >80 dB @ 1 kHz
Storage: 5 GB user memory for logos
THD + Noise: <0.01%, 20 Hz - 20 kHz nominal level
Termination standard: TIA/EIA T568B
Threshold high to low: <2.0 VDC
Threshold low to high: >2.8 VDC
Transmission type: Dante/AES-67, software selectable
USB standard: USB 2.0, high speed
USB standards: USB 3.1 Gen 1 (USB 3.0 – 5 Gbps), USB 2.0, USB 1.1, USB 1.0 compatible
Ultra Wide: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600
VESA: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
Vertical frequency: 24 Hz to 240 Hz
Video codecs: VP8
Video file formats: 264, AVI, M2T, M2TS, M4V, MKV, MOV, MP4, MPG, SDP, TS
Volume control range: -100 dB to 0 dB (control 0-100 in 1 dB steps) (control 0 to 64)
Warranty: 3 years parts and labor
Web browsers: Google Chrome 139 and later

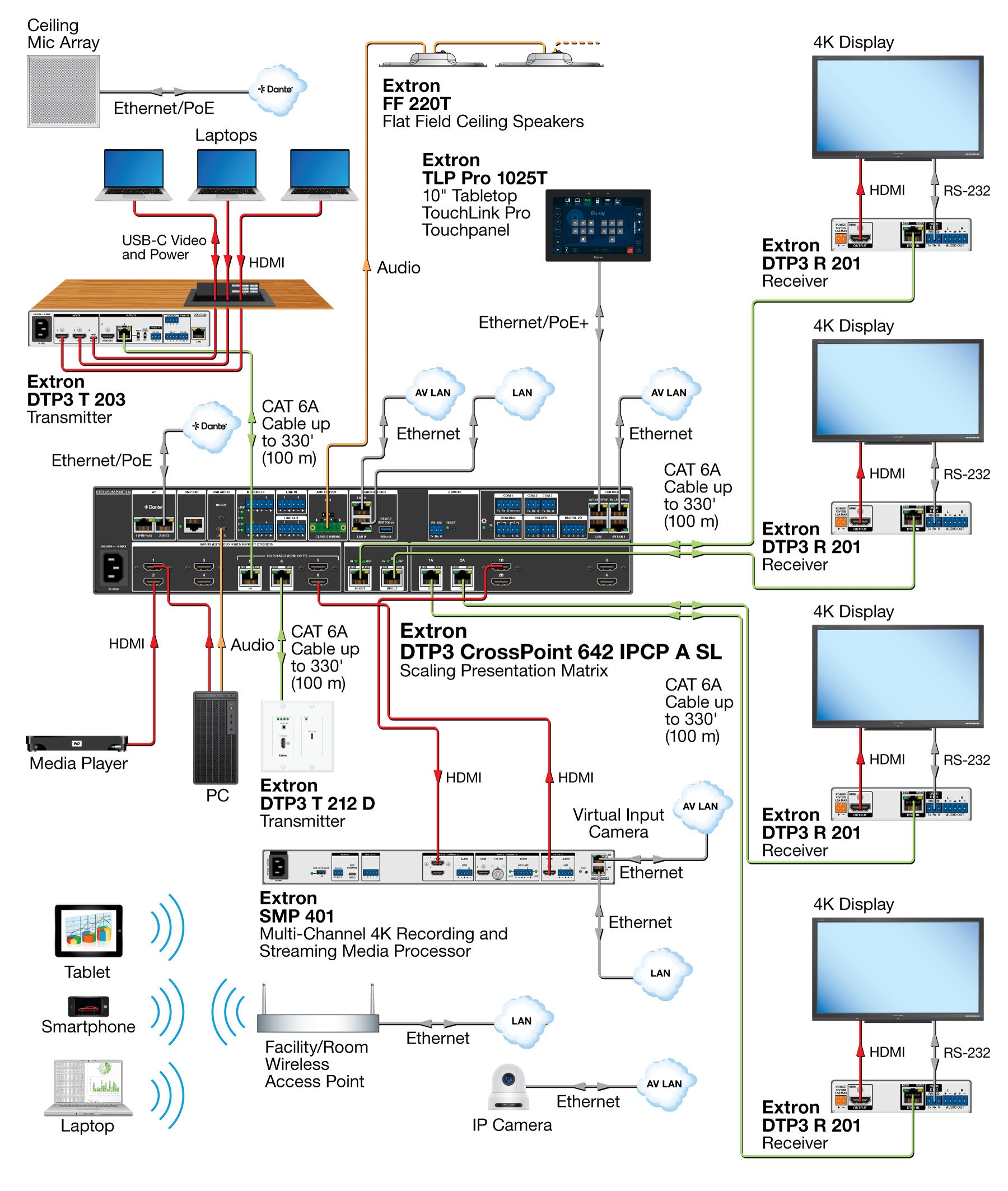

Diagram
Diagram
Resources
Resources
Brochure | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint Series
Brochure | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint 系列
Brochure | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint-Serie
Brochure | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPointシリーズ
Brochure | DTP3 CrossPoint 642 60-1661-01 | Gamme DTP3 CrossPoint
Brochure | DTP3 CrossPoint 642 60-1661-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_SP.pdf)
Brochure | DTP3 CrossPoint 642 60-1661-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_IT.pdf)
Manual | DTP3 CrossPoint 642 60-1661-01 | Control Systems Network Ports, Protocols, and Licenses
Manual | DTP3 CrossPoint 642 60-1661-01 | DTP Compatibility Guide
Manual | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint Series Setup Guide
Manual | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint Series User Guide
Manual | DTP3 CrossPoint 642 60-1661-01 | Extron Dante FAQ
Manual | DTP3 CrossPoint 642 60-1661-01 | DTP互換性ガイド
Panel Drawing | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint 642
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

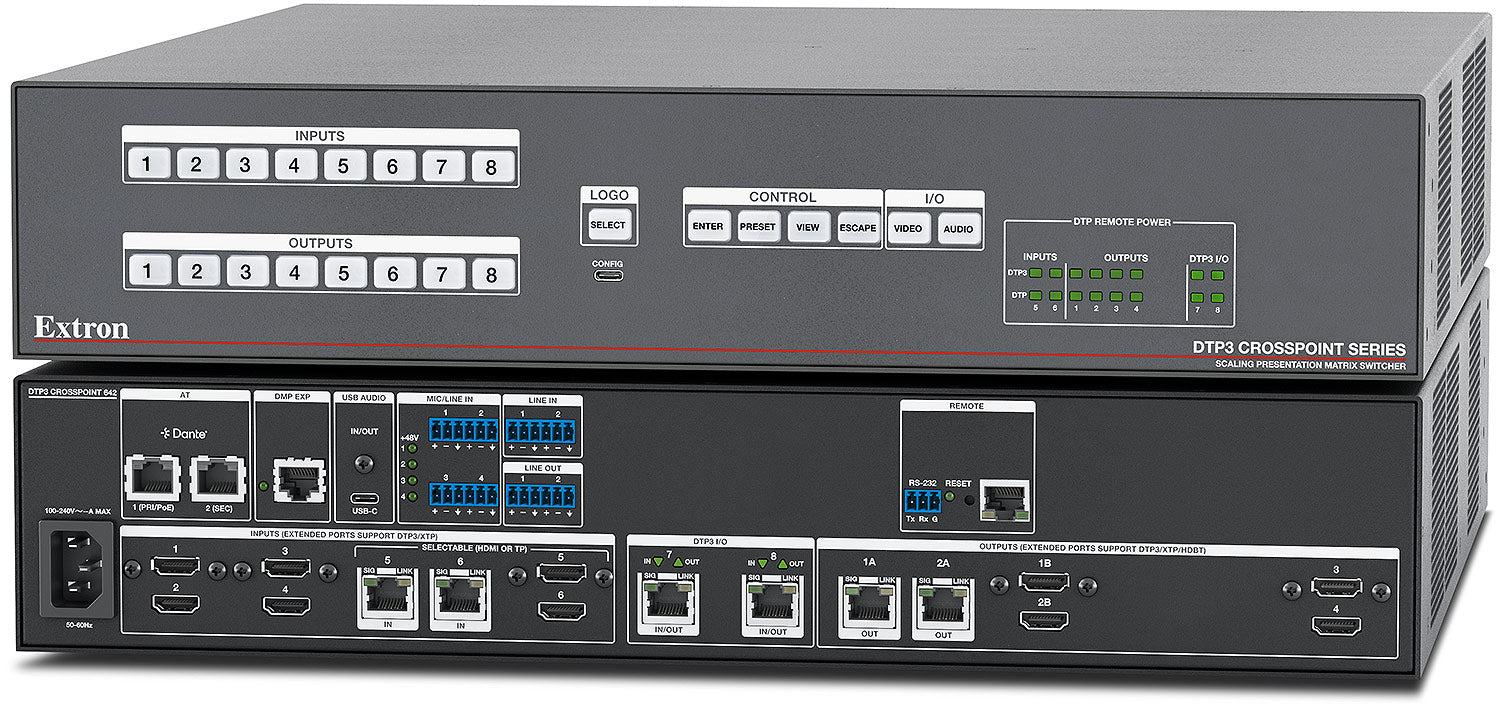

Extron DTP3 CrossPoint 642 60-1661-01
Extron DTP3 CrossPoint 642 60-1661-01
Manufacturer: Extron
Type: DTP Systems
Extron DTP3 CrossPoint 642 60-1661-01
- • Standard base model: 4K/60 routing and Vector scaling, no built-in processor or amplifier
- • Configurable 6x6 to 8x4 matrix via reversible DTP3 ports
- • DTP3 extension up to 330 ft at 1080p, 150 ft at 4K/60 over shielded CAT 6A
- • Unamplified audio outputs standard on the base model
- • 2U full-rack-width metal enclosure, 3.50 in H x 17.5 in W x 18 in D
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron | Model: DTP3 CrossPoint 642 | Part number: 60-1661-01 (also written 60166101)
The Extron DTP3 CrossPoint 642 (60-1661-01) is the standard base model of the 642 series: a 2U full-rack matrix switcher that routes and scales 4K/60 signals without a built-in control processor or power amplifier. The matrix is configurable from 6x6 to 8x4 through reversible DTP3 ports. Each port carries HDMI video, audio, power, and RS-232 over shielded CAT 6A. Unamplified audio outputs connect to an external amplifier. Installers who need the IPCP Pro 360MQ xi processor and Class D amplifier built in should see the 60-1661-12 IPCP A variant instead.
Key capabilities
- 4K/60 4:4:4 routing at 18 Gbps with Vector 4K scaling and seamless switching
- Configurable 6x6 to 8x4 matrix via two reversible DTP3 ports
- DTP3 extension to 330 ft on CAT 6A at 1080p/4K/30, or 150 ft at 4K/60
- Unamplified balanced and unbalanced audio outputs
- Ethernet, RS-232, front-panel, and IR control
Where it is used
Training rooms, multi-screen lobbies, and secondary AV racks where a separate Extron control processor is already specified or where routing and scaling are needed without amplification.
Specifications at a glance
- Enclosure: 3.50 in H x 17.5 in W x 18 in D, 2U high, full rack wide
- Inputs: 6 HDMI plus 2 reversible DTP3
- Warranty: 3-year product, 7-year Everlast power supply
Also referenced as Extron DTP3CrossPoint642, DTP3-CrossPoint-642, part number 60166101.
Specifications
Specifications
Part Number: 60-1661-01
Manufacturer: Extron
Condition: New
1080p @ 60 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
3-pole captive screw: 1 = TX; 2 = RX; 3 = GND
3840x2160 at 30 Hz: 8 bit
3840x2160 at 60 Hz: 4:2:2
4096x2160 at 30 Hz: 4:4:4
4096x2160 at 60 Hz: 4:2:0
4K/UHD @ 30 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 60 Hz: Up to 150' (45 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3' [0.9 m]) Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
5-pole captive screw: 1 = TX; 2 = RX; 3 = GND; 4 = RTS, 5 = CTS
Height: 10.0" (25.4 cm)
AV LAN: Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.254.248 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
AV LAN Ethernet ports: 3 RJ-45 female connectors (isolated AV LAN; two ports support PoE+)
Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C)/10% to 90%, noncondensing Operating: +32 to +113°F (0 to +45°C)/10% to 90%, noncondensing
Amplifier type: Class D
Analog: Analog stereo audio
Audio bits depth: 16, 20, 24 bit
Audio codecs: OPUS
Audio format: Uncompressed, 24-bit, 48 KHz
Baud rate: 300 to 115200 baud Default setting (adjustable): 9600 baud
Baud rates: 300 to 115200 baud Default setting (adjustable): 9600 baud
CMRR: 65 dB @ 20 Hz to 20 kHz
Cable recommendations: 400 MHz bandwidth, STP cable
Cable requirements: Solid conductor, 24 AWG or better
Chroma sampling1: 4:4:4, 4:2:2, or 4:2:02
Color bit depth: 8, 10, and 12 bits per color – Subject to maximum data rate
Color bit depth1: 8, 10, and 12 bits per color
Color space: 4:4:4, 4:2:2, or 4:2:0
Colors: 1 billion (10 bit processing)
Communication: WebRTC
Connector: (1) 5 mm, screw lock captive screw connector, 4-pole
Connectors: 2 RJ-45, 2-port 1 Gbps switch to Dante interface (Primary Port has PoE)
Cooling: 2 fans, air flows from right to left (as viewed from the front)
Crosstalk: ≤-80 dB @ 1 kHz fully loaded
DC phantom power: +48 VDC ± 10% (can be switched on or off per mic/line input)
DTP3 CrossPoint 622: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 622 IPCP A: 375 watts
DTP3 CrossPoint 622 IPCP A SL: 390 watts
DTP3 CrossPoint 642: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 662: 4 HDMI2 HDMI or DTP3/XTP (selectable)
DTP3 CrossPoint 662 IPCP A: 444 watts
DTP3 CrossPoint 662 IPCP A SL: 460 watts
DTP3 CrossPoint 884: 6 HDMI2 HDMI or DTP3/XTP (selectable)
Data rate: 10/100/1000Base-T, half/full duplex with Auto-detect
Default settings: Link speed and duplex level: autodetected IP address: 192.168.254.254 Subnet mask: 255.255.255.0 Gateway: 0.0.0.0 DHCP: OFF
Default settings – LAN A: DHCP = ON Default STATIC IP settings if DHCP is switched OFF Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.253.249 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
Default settings – LAN B: DHCP = OFF Default STATIC IP settings Link speed = Auto-detected Duplex level = Auto-detected IP address = 192.168.252.249 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DNS: 127.0.0.1
Digital I/O control: 4 digital input/output (configurable) (1) 3.5 mm captive screw connector, 5-pole
Digital outputs: 250 mA sink from 24 VDC max.
Digital port pin configuration: 1, 2, 3, 4 = digital I/O 1, 2, 3, 4; 5 = GND
Digital sampling: 8, 10, or 12 bits per color; 600 MHz pixel clock maximum
EDID and DDC: Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered.
EXP cable: Shielded CAT6 up to 10 meters
Enclosure type: Metal
Equalization: Automatic
Ethernet data rate: 10/100/1000 Base-T, half/full duplex with auto detect
Ethernet protocol: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Everlast power supply warranty: 7 years parts and labor
Formats: RGB and YCbCr digital video
Frame rate: 30 fps
Frame rate1: 24, 25, 30, 50, or 60 fps
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Gain: Unbalanced output: -6 dB; balanced output: 0 dB (default)
Gain error: ±0.5 dB channel to channel
Gain range: Adjustable, -18 dB to +24 dB, 1 dB steps, adjustable per input Mic/Line, -18 dB to +60 dB, 0.1 dB steps, adjustable per input
HDCP: Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards.
HDMI: LPCM up to 8-CH, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, DTS:X, Analog stereo
HDMI input cable length: Up to 12' (3.7 m)
HPD: Supports Hot Plug Detection (HPD) of display
Horizontal frequency: 15 kHz to 270 kHz
IR output carrier frequency: 30 kHz to 1 MHz
IR/serial control port connector: (1) 3.5 mm captive screw connector, 5-pole
IR/serial control ports: 2 programmable: unidirectional RS-232 (+5 V), or TTL Level (0 to 5 V) infrared (carrier and non-carrier)
IR/serial port pin configurations: For each port: 1 = signal; 2 = GND
Image codecs: BMP, JPG, PNG, TIFF
Image file formats: BMP, JPG, PNG, TIFF
Impedance: ≥10k ohms unbalanced, ≥20k ohms balanced
Input impedance: 28k ohms
Input voltage range: 0 to 24 VDC, clamped at +30 VDC
Inputs: 32 channel Rx
LAN Ethernet port: 1 RJ-45 female connector (house LAN)
Latency: Deterministic, based on user selection: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms
Load impedance: 4 or 8 ohms minimum
Logo effects: Transparency, RGB key, level key, alpha key
Max. video data rate: 18 Gbps (6 Gbps Per Color)
Maximum built-in USB hubs: 0
Maximum current source: 900 mA
Maximum data rate: 18 Gbps (6 Gbps Per Color)
Maximum level: Line inputs: +21 dBu balanced, +15 dBu unbalanced Mic/line inputs: +21 dBu balanced, +15 dBu unbalanced
Maximum level (Hi-Z): >+21 dBu balanced, +15 dBu unbalanced
Maximum pixel clock: 600 MHz
Minimum built-in USB hubs: 0
Mode 1: Up to 60 seconds
Mode 2: Up to 15 seconds
Network interface controllers (NICs): 3
Nominal level: Line inputs: +4 dBu (1.23 Vrms), -10 dBV (316 m Vrms) adjustable Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable
Number: 16 logo
Number/signal type: (2) 100 watts @ 8Ω / 4Ω (1) 200 watts @ 8Ω (Bridged) (1) 200 watts @ 70 volts (Bridged) (1) 200 watts @ 100 volts (Bridged)
Number/type: 1 front panel female USB-C
Operating system: Windows 11 64-bit and later macOS 14.0 and later Chrome OS 134 and later
Operating systems: Windows 11 and later Apple® macOS 14.0 and later
Optional built-in hubs: 0
Output cable length: At 4096x2160 @ 60 Hz, 4:4:4, 8-bit color Using HDMI Ultra — Up to 12 feet (3.6 meters) Using HDMI Pro — 25 feet (7.6 meters)
Output power: Stereo mode: 100 watts per channel, 4 or 8 ohms, 1 kHz, <0.1% THD Bridge mono low impedance: 200 watts per channel, 8 ohms, 1 kHz, <0.1% THD Bridge mono high impedance: 200 watts per channel, 70 V or 100 V, 1 kHz, <0.1% THD
Outputs: 32 channel Tx
Pass-through baud rate: 9600 to 115200 baud
Pass-through pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Pass-through port: (1) 3.5 mm, captive screw connector, 3-pole
Power for active cables: 250 mA or 1.25 W per output
Power supply: Internal Input: 100-240 VAC, 50-60 Hz
Program control: Extron Product Configuration Software (PCS) Extron Simple Instruction Set™ (SIS™)
Programmable pullup: 2k ohms to +5 VDC
Protection: Clip limiting, thermal, short circuit, DC output
Protocol: 8 or 7 data bits; 1 or 2 stop bits; even or odd parity
Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SNMP, SSH, TCP/IP, UDP/IP, SMB v1, SMB v2, SMB v3
Rack mount: Yes, with included, pre-installed brackets
Re-clocking: Automatic
Regulatory compliance: CE, C-UL, UL, FCC Class A, VCCI, AS/NZS, ICES, RoHs, Weee
Relay control connectors: (2) 3.5 mm captive screw connectors, 3-pole
Relay control contact rating: 24 V, 1 A
Relay control ports: 4 normally open relays
Remote power capability: Supports DTP3 and DTP remote power on all ports (Remote power not available in XTP and HDBaseT modes)
Resolution: Up to 4096x2160
Resolution and Refresh Rate: Chroma Sampling
Resolution range: Up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
S/N: >90 dB at maximum balanced output (unweighted)
SMPTE: 480i, 576i, 576p, 1080i, 2K, 3840x2160 (up to 60 Hz), 4096x2160 (up to 60 Hz)
Sampling rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Scaled resolutions: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz, 4096x2160 Column, 3840x2160 Column, and Custom 1-10
Security: HTTPS, DTLS v1.2
Serial control connector: (1) 3.5 mm captive screw connector, 5-pole (2) 3.5 mm captive screw connector, 3-pole
Serial control pass-through ports: RS-232 can be transmitted to and from DTP Tx via Ethernet insertion
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = GND
Serial control port: 3 bidirectional RS-232
Signal Type: DVI 1.0, HDMI 2.0b, HDCP 2.3
Software: ShareLink™ Pro for Windows® ShareLink™ Pro for macOS®
Source formats: LPCM up to 8-CH, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, DTS:X, Analog stereo
Standards: Up to HDMI 2.0b and HDCP 2.3, DVI 1.0
Stereo channel separation: >80 dB @ 1 kHz
Storage: 5 GB user memory for logos
THD + Noise: <0.01%, 20 Hz - 20 kHz nominal level
Termination standard: TIA/EIA T568B
Threshold high to low: <2.0 VDC
Threshold low to high: >2.8 VDC
Transmission type: Dante/AES-67, software selectable
USB standard: USB 2.0, high speed
USB standards: USB 3.1 Gen 1 (USB 3.0 – 5 Gbps), USB 2.0, USB 1.1, USB 1.0 compatible
Ultra Wide: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600
VESA: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
Vertical frequency: 24 Hz to 240 Hz
Video codecs: VP8
Video file formats: 264, AVI, M2T, M2TS, M4V, MKV, MOV, MP4, MPG, SDP, TS
Volume control range: -100 dB to 0 dB (control 0-100 in 1 dB steps) (control 0 to 64)
Warranty: 3 years parts and labor
Web browsers: Google Chrome 139 and later
Diagram
Diagram
Resources
Resources
Brochure | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint Series
Brochure | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint 系列
Brochure | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint-Serie
Brochure | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPointシリーズ
Brochure | DTP3 CrossPoint 642 60-1661-01 | Gamme DTP3 CrossPoint
Brochure | DTP3 CrossPoint 642 60-1661-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_SP.pdf)
Brochure | DTP3 CrossPoint 642 60-1661-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_IT.pdf)
Manual | DTP3 CrossPoint 642 60-1661-01 | Control Systems Network Ports, Protocols, and Licenses
Manual | DTP3 CrossPoint 642 60-1661-01 | DTP Compatibility Guide
Manual | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint Series Setup Guide
Manual | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint Series User Guide
Manual | DTP3 CrossPoint 642 60-1661-01 | Extron Dante FAQ
Manual | DTP3 CrossPoint 642 60-1661-01 | DTP互換性ガイド
Panel Drawing | DTP3 CrossPoint 642 60-1661-01 | DTP3 CrossPoint 642
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
