Part Number: 60-1570-01
Manufacturer: Extron

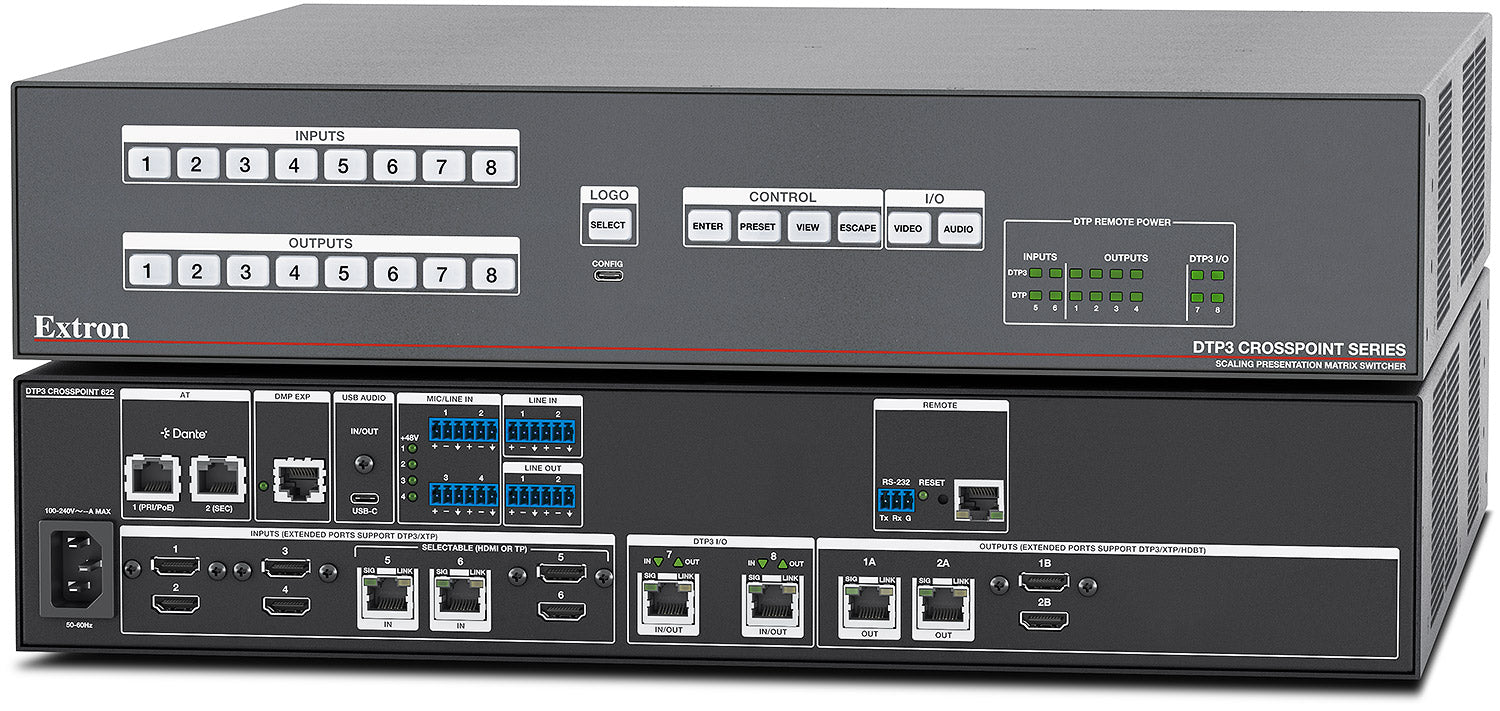

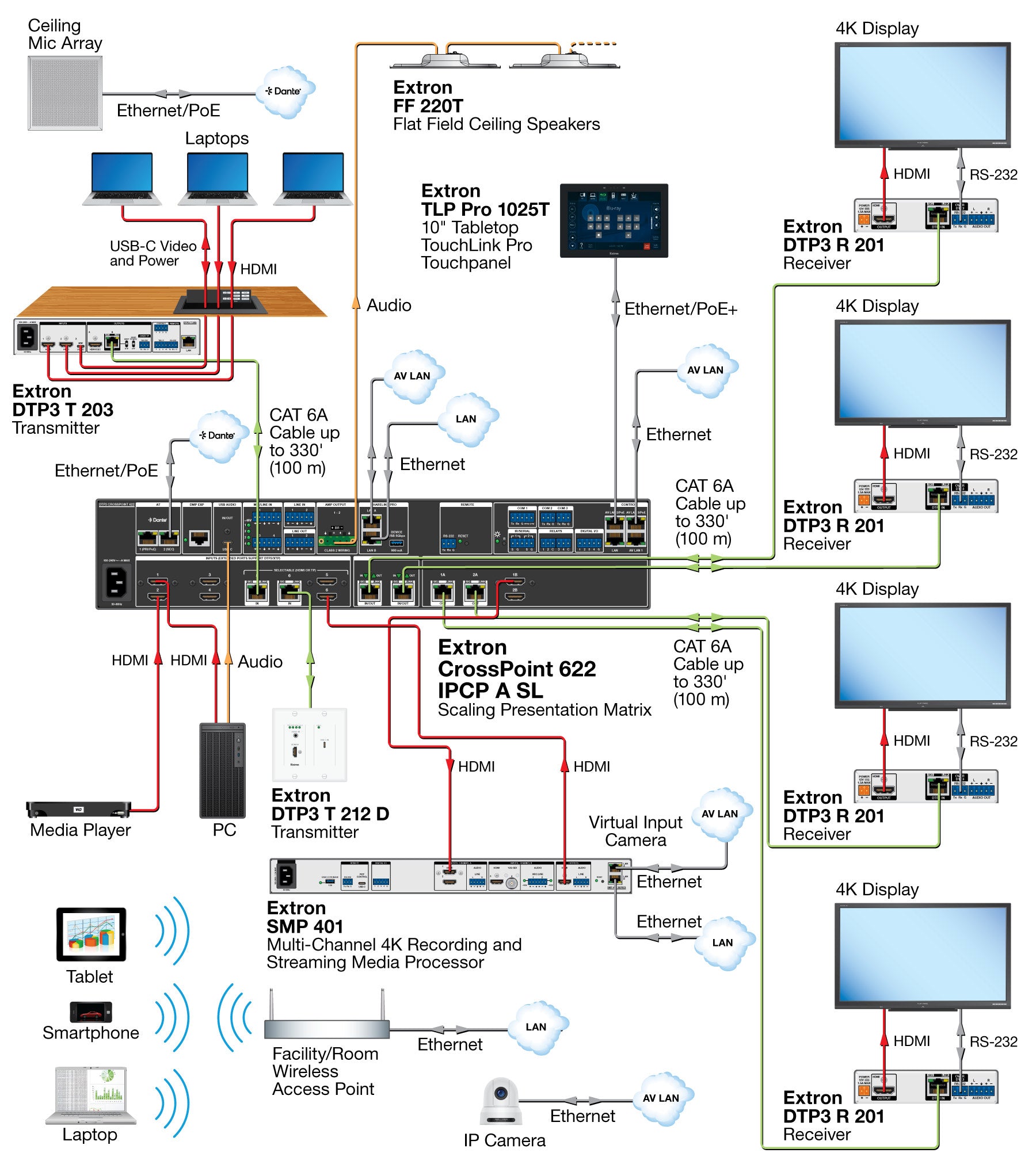

Model: DTP3 CrossPoint 622
Condition: New
Version: Standard Model
Matrix Configuration: Configurable from 6x4 to 8x2
Signal Type: DVI 1.0, HDMI 2.0b, HDCP 2.3
Maximum Data Rate: 18 Gbps (6 Gbps per color)
Maximum Pixel Clock: 600 MHz
Frame Rate: 24, 25, 30, 50, or 60 fps
Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0. 3840x2160 and 4096x2160 @ 50-60 Hz at 4:2:0 are supported at input only
Color Bit Depth: 8, 10, and 12 bits per color, subject to the maximum data rate
Resolution Range - VESA: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz
Resolution Range - SMPTE: 480i, 576i, 576p, 1080i, 2K, 3840x2160 (up to 60 Hz), 4096x2160 (up to 60 Hz)
Resolution Range - Ultra Wide: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600
Video Formats: RGB and YCbCr digital video
Video Standards: Up to HDMI 2.0b and HDCP 2.3, DVI 1.0
EDID and DDC: Supports EDID and DDC data using DVI and HDMI standards; EDID and DDC signals are actively buffered
HDCP: Compliant with High-bandwidth Digital Content Protection using DVI and HDMI standards
HPD: Supports Hot Plug Detection of the display
Equalization: Automatic
Horizontal Frequency: 15 kHz to 270 kHz
Vertical Frequency: 24 Hz to 240 Hz
HDMI Input Cable Length: Up to 12 ft (3.7 m)
Video Input: 4 HDMI; 2 HDMI or DTP3/XTP (selectable)
Video Input Connectors: 6 female HDMI type A; 2 female RJ-45
DTP3 I/Os: 2 DTP3 I/Os, configurable as input or output with scaling
DTP3 I/O Connectors: 2 female RJ-45
Video Output: 2 DTP3/XTP/HDBT scaled buffered outputs (configurable); 2 HDMI scaled buffered outputs. Both HDMI and selectable DTP3/XTP/HDBT outputs are simultaneously active and HDCP compliant
Video Output Connectors: 2 female HDMI type A; 2 female RJ-45
Power for Active Cables: 250 mA or 1.25 W per output
Re-Clocking: Automatic
Output Cable Length: At 4096x2160 @ 60 Hz, 4:4:4, 8-bit color: up to 12 ft (3.6 m) using HDMI Ultra cable, 25 ft (7.6 m) using HDMI Pro cable
Termination Standard: TIA/EIA T568B
Transmission Distance (XTP DTP 24 cable): 1080p @ 60 Hz and 4K/UHD @ 30 Hz up to 330 ft (100 m); 4K/UHD @ 60 Hz up to 150 ft (45 m) when couplers or punch downs are used, or up to 175 ft (45 m) with no couplers
Transmission Distance (XTP DTP 22 cable): 1080p @ 60 Hz, 4K/UHD @ 30 Hz and 4K/UHD @ 60 Hz up to 330 ft (100 m)
Cable Requirements: Solid conductor, 24 AWG or better for XTP DTP 24; 22 AWG or better for XTP DTP 22
Cable Recommendations: 400 MHz bandwidth STP cable for XTP DTP 24; 500 MHz bandwidth S/FTP cable for XTP DTP 22
Digital Sampling: 8, 10, or 12 bits per color; 600 MHz pixel clock maximum
Colors: 1 billion (10 bit processing)
Scaled Resolutions: 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz, 4096x2160 Column, 3840x2160 Column, and Custom 1-10
Logos: 16 logos up to 4096x2160 in BMP, JPG, PNG or TIFF, with transparency, RGB key, level key and alpha key effects
Audio Gain: Unbalanced output -6 dB; balanced output 0 dB (default)
Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
Audio THD + Noise: <0.01%, 20 Hz to 20 kHz at nominal level
Audio S/N: >90 dB at maximum balanced output (unweighted)
Audio Crosstalk: -80 dB or better @ 1 kHz fully loaded
CMRR: 65 dB @ 20 Hz to 20 kHz
Stereo Channel Separation: >80 dB @ 1 kHz
Audio Bit Depth: 16, 20, 24 bit
Sampling Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Audio Input: 32 Dante receive channels; 16 channels via the DMP EXP port; 4 mono mic/line level balanced or unbalanced with available phantom power; 0-6 channels from USB audio; 2 mono line level or 1 analog stereo, unbalanced or balanced; 8 digital audio de-embedded from HDMI, DTP3 or XTP inputs
Audio Input Connectors: (3) 3.5 mm, 6-pole captive screw connectors for line and mic/line; 6 female HDMI type A; 4 female RJ-45
Audio Source Formats: LPCM up to 8-CH, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, DTS:X, analog stereo
Audio Input Impedance: 10k ohms or greater unbalanced, 20k ohms or greater balanced
Audio Input Nominal Level: Line inputs +4 dBu (1.23 Vrms) or -10 dBV (316 mVrms), adjustable; mic/line inputs -60 dBV, +4 dBu or -10 dBV, adjustable
Audio Input Maximum Level: Line and mic/line inputs +21 dBu balanced, +15 dBu unbalanced
DC Phantom Power: +48 VDC ±10%, switchable on or off per mic/line input
Input Gain Range: -18 dB to +24 dB in 1 dB steps per input; mic/line -18 dB to +60 dB in 0.1 dB steps per input
Audio Output: 32 Dante transmit channels; 16 channels via the DMP EXP port; 0-6 channels from USB audio; 2 mono line level or 1 analog stereo, unbalanced or balanced; 2 DTP3 I/O when configured as output; 2 digital audio embedded from HDMI and/or DTP3/XTP/HDBT outputs; 1 stereo input from ShareLink (optional)
Audio Output Connectors: (1) 3.5 mm, 6-pole captive screw connector for line and mic/line; 2 female HDMI type A; 2 female RJ-45; 2 female RJ-45 (DTP3 I/O); 1 female USB-C
Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced
Audio Output Maximum Level (Hi-Z): >+21 dBu balanced, +15 dBu unbalanced
Audio Output Gain Error: ±0.5 dB channel to channel
Volume Control Range: -100 dB to 0 dB, control 0-100 in 1 dB steps
USB Audio Port: 1 USB 2.0 on a rear panel female USB-C, high speed; supports a 3x3 stereo channel interface in 0x6, 6x0, 2x2, 2x4 and 4x2 configurations
Dante AT Port: Dante or AES-67, software selectable; 2 RJ-45 forming a 2-port 1 Gbps switch to the Dante interface, primary port has PoE; 32 channel receive and 32 channel transmit; uncompressed 24-bit, 48 kHz; latency 0.25, 0.5, 1.0 (default), 2.0 or 5.0 ms
EXP Port: Proprietary transmission on 1 RJ-45; 16 channel receive and 16 channel transmit; uncompressed 24-bit, 48 kHz; shielded CAT6 up to 10 meters
Communication USB Port: 1 USB 3.0 on a rear panel female USB 3.0 type A; USB 3.1 Gen 1 (5 Gbps), USB 2.0, USB 1.1 and USB 1.0 compatible; maximum current source 900 mA
USB Configuration Port: 1 front panel female USB-C; IP over USB-C, USB 2.0 high speed
Ethernet Control Port: 1 rear panel female RJ-45 (base DTP3 CrossPoint models only); 10/100/1000Base-T, half or full duplex with auto detect; ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP; 802.1X security; default IP address 192.168.254.254, subnet mask 255.255.255.0, gateway 0.0.0.0, DHCP off
Serial Pass-Through: RS-232 can be transmitted to and from DTP3 and XTP transmitters via Ethernet insertion; 300 to 115200 baud, default 9600; 8 or 7 data bits, 1 or 2 stop bits, even or odd parity; pin 1 = Tx, pin 2 = Rx, pin 3 = GND
Remote RS-232 over DTP Port: (1) 3.5 mm captive screw connector, 3-pole; 9600 to 115200 baud; pin 1 = Tx, pin 2 = Rx, pin 3 = GND
Storage: 5 GB user memory for logos
Program Control: Extron Product Configuration Software (PCS); Extron Simple Instruction Set (SIS)
Power Supply: Internal; input 100-240 VAC, 50-60 Hz
Power Consumption - Full Power: 243 watts
Power Consumption - Power Save Mode 1: 87 watts
Thermal Dissipation - Full Power: 392 BTU/hr
Thermal Dissipation - Power Save Mode 1: 224 BTU/hr
Power Save Mode Restore Time: Mode 1 up to 60 seconds; mode 2 up to 15 seconds. Time varies with configuration, setup and the connected source and sink devices
Remote Power Capability: Supports DTP3 and DTP remote power on all ports; remote power is not available in XTP and HDBaseT modes
Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing
Cooling: 2 fans, air flows from right to left as viewed from the front
Fan Noise: 54 dB(A), variable speed fan measured at maximum speed
Rack Mount: Yes, with included pre-installed brackets
Enclosure Type: Metal
Enclosure Dimensions: 3.50 in H x 17.5 in W x 18 in D, 2U high and full rack wide (8.9 cm H x 44.4 cm W x 45.7 cm D); depth excludes connectors and knobs, width excludes rack ears
Product Weight: 15.5 lbs (7.03 kg)
Regulatory Compliance: CE, c-UL, UL, FCC Class A, VCCI, AS/NZS, ICES, RoHS, WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
