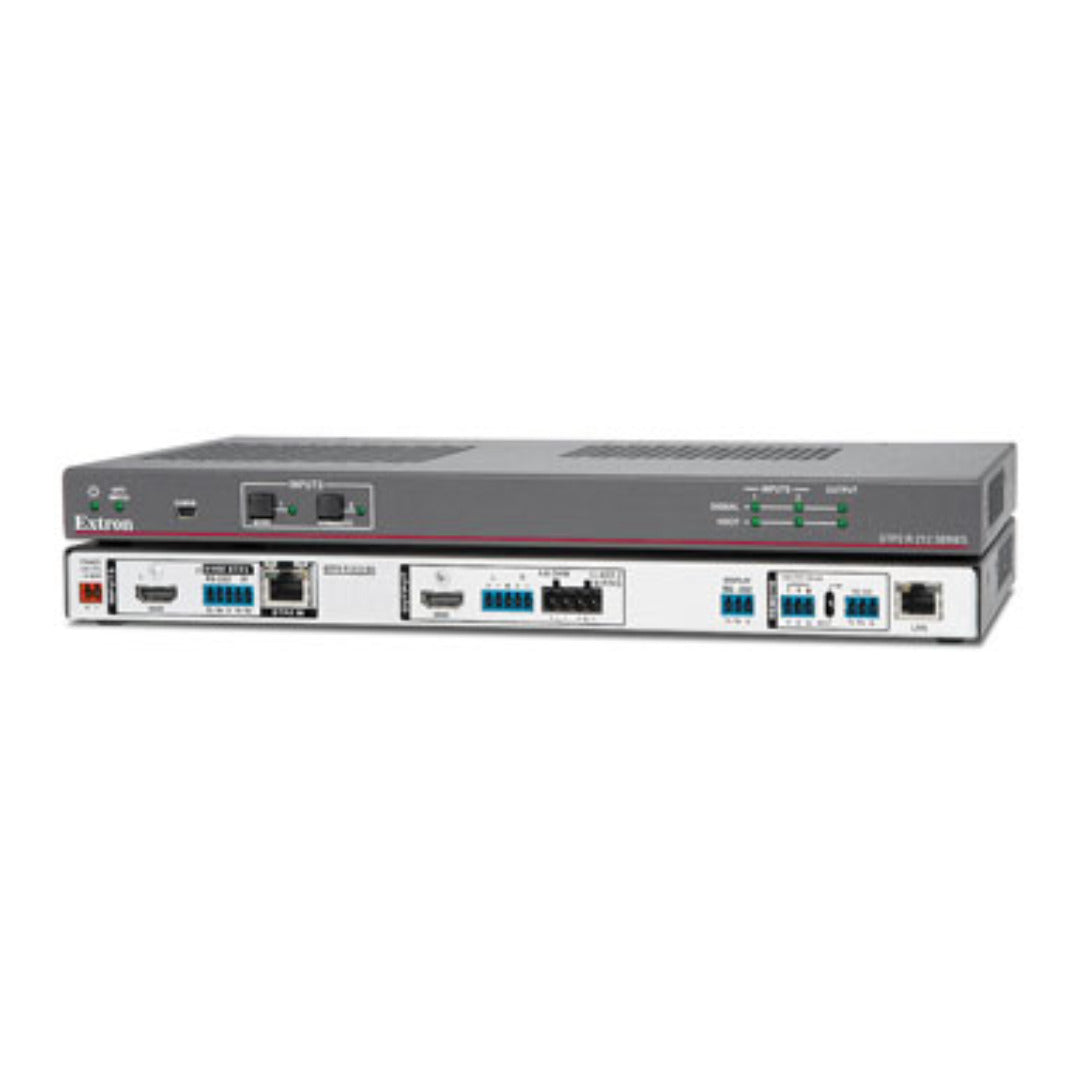

Extron DTP2 R 212 SA (part number 60-1588-53) — the stereo amplifier version of Extron's DTP2 switching receiver, so a small room needs no separate power amp.

The SA takes the same two video inputs as the standard model, a DTP2 twisted pair feed and a local HDMI connection, and drives a single HDMI output. What changes is the audio stage: instead of line-level outputs, a four-pole five millimetre captive screw connector feeds loudspeakers directly from an on-board Class D amplifier. That removes an amplifier, a rack space and a pair of interconnects from a huddle room or a classroom while keeping bass and treble adjustment and Ethernet control on board.

Key Capabilities

Built-in Class D stereo amplifier, one stereo pair or two mono channels
DTP2 input on RJ-45 plus a local HDMI input switched to one HDMI output
Damping factor above 100 into 8 ohms and a 4 ohm minimum load
Bass and treble each adjustable from +12 dB to -24 dB
Ethernet, RS-232, USB and browser control with Extron PCS and SIS
Transmits remote power to a DTP2 endpoint over the twisted pair link

Where It Is Used

Huddle rooms, classrooms, breakout spaces, waiting areas and small training rooms with ceiling or surface loudspeakers, where a separate amplifier would be an unnecessary box. Mounts on a rack shelf, behind a rack, or under a desk.

Specifications at a Glance

Amplifier output 7.6 watts rms per channel into 8 ohms, 12.9 watts into 4 ohms
Amplifier response 20 Hz to 20 kHz, +1/-3 dB at 8 ohms; THD+N below 0.1%
Video to UHD 3840x2160 at 60 Hz, 18 Gbps, HDMI 2.0b with HDCP 2.3
50 watt external supply; device draw 17.91 watts, 47.40 BTU/hr
Three-quarter rack chassis, 1.77 lbs (0.803 kg), 3 year warranty

Also referenced as Extron DTP2R212SA, DTP2-R-212-SA, part number 60158853.

Specifications

Part Number: 60-1588-53

Manufacturer: Extron

Model: DTP2 R 212 SA

Condition: New

Signal Type: HDMI 2.0b, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range: 2560x1600 @ 60 Hz or 1080p @ 60 Hz with 12-bit color; 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz; UHD (3840x2160) @ 60 Hz

Frame Rate - HDMI Input: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Frame Rate - DTP2 Input: 24, 25, 30, 50, 60, or 120 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0; HDMI 1.4, 2.0b; HDCP 1.4, 2.3; CEA-861-E

Video Input: 1 DTP2 and 1 HDMI (or single link DVI-D with appropriate DVI-HDMI adapters)

Video Input Connectors: 1 female RJ-45; 1 female HDMI type A

Horizontal Frequency: 15 kHz to 100 kHz

Vertical Frequency: HDMI input 24 Hz to 240 Hz; DTP2 input 24 Hz to 120 Hz, for resolutions up to 18 Gbps

Video Output: 1 HDMI output on 1 female HDMI type A

Interconnection Connector: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Signal Transmission Distance: Up to 330 ft (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Audio Gain: Unbalanced output 0 dB; balanced output +6 dB

Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

Audio THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Audio S/N: >90 dB at maximum output (15 dBu), balanced (unweighted)

Stereo Channel Separation: >80 dB @ 1 kHz to 20 kHz

Bass: +12 dB to -24 dB @ 100 Hz

Treble: +12 dB to -24 dB @ 8 Hz

Audio Input - HDMI: 1 embedded digital audio from HDMI

Audio Input - DTP/DTP2: 1 stereo unbalanced analog; 1 embedded digital audio from DTP

Embedded Digital Audio Source Formats: 2-ch PCM

Audio Input Connectors: 1 female HDMI type A; 1 female RJ-45 for audio over DTP

Audio Input Impedance: >10k ohms unbalanced, >20k ohms balanced

Audio Input Nominal Level: Over DTP input: +4 dBu or -10 dBu, adjustable

Audio Input Maximum Level: +15 dBu at rated THD+N when input gain is set to 0 dB

CMRR: >80 dB @ 1 kHz

Power Amplifier Output: 1 stereo or 2 mono, 2 channels total

Amplifier Output Connector: (1) 5 mm captive screw connector, 4-pole

Amplifier Type: Class D

Amplifier Load Impedance: 4 ohms, minimum

Amplifier Output Power: 7.6 watts rms per channel into 8 ohms at 1 kHz, 1% THD; 12.9 watts rms per channel into 4 ohms at 1 kHz, 1% THD

Amplifier Frequency Response: 20 Hz to 20 kHz, +1/-3 dB @ 8 ohms

Amplifier THD + Noise: <0.1%, 3 dB below clipping @ 1 kHz, 8 ohm load

Amplifier S/N: 90 dB, 20 Hz to 20 kHz, unweighted

Amplifier Damping Factor: >100 @ 8 ohms

Serial Control Port: 1 RS-232 on a 3.5 mm, 3-pole captive screw connector, rear panel; pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd; 9600 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 female mini-USB type B, front panel; USB 2.0, high speed

Ethernet Data Rate: 10/100Base-T, half or full duplex, with autodetect

Ethernet Protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, Telnet, SMTP

Program Control: Extron PCS, Extron Simple Instruction Set (SIS), Microsoft Edge, Telnet

Serial Pass-Through Port: 1 RS-232 via a 3.5 mm, 5-pole captive screw connector, shared with the IR port; pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd

Pass-Through Baud Rates: 300 to 115k baud; 8 or 7 data bits, 1 or 2 stop bits, no parity (default), even or odd parity

IR Pass-Through Port: 1 bidirectional TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz, shared with the RS-232 port; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4.2 A, 50 watts

Power Consumption - Device: 17.91 watts

Power Consumption - Device and Power Supply: 20.09 watts

Remote Power Budget: 18 watts

Remote Power Capability: Can only transmit power via DTP2

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Fan, air flows side to side, vents on sides

Thermal Dissipation - Device: 47.40 BTU/hr

Thermal Dissipation - Device and Power Supply: 54.83 BTU/hr

Rack Mount: Yes, with optional rack shelf kit; back-of-the-rack mountable with the optional back-of-the-rack mounting kit

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.00 in H x 13.1 in W x 6.0 in D, 1 in high and 3/4 rack wide (2.54 cm H x 33.3 cm W x 15.2 cm D); depth excludes connectors

Product Weight: 1.77 lbs (0.803 kg)

Regulatory Compliance: CE, c-UL, UL, C-Tick, FCC Class A, ICES, RoHS, WEEE, VCCI. UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release, excluding the power supply. Meets UL 60065 for safety

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (dtp2_r_212_A7.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | Everlast Power Supplies

Brochure | DTP2 R 212 SA 60-1588-53 | Alimentatori Everlast

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (DTP2-R-212_BR_A4_IT_RevA7.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (DTP2-R-212_BR_A4_FR_RevA7.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (DTP2-R-212_BR_A4_SP_RevA7.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (DTP2-R-212_BR_A4_GE_RevA7.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (dtp2_r_212_REV_A3_cn_ONLINE.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (DTP2-R-212_BR_A4_RU_RevA3.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (dtp2_r_212_REV_A3_kr_ONLINE.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 (DTP2-R-212_BR_A4_EN_RevA6_Japanese.pdf)

Brochure | DTP2 R 212 SA 60-1588-53 | Everlast 电源

Brochure | DTP2 R 212 SA 60-1588-53 | Everlast-Netzteile

Brochure | DTP2 R 212 SA 60-1588-53 | Fuentes de alimentación Everlast

Brochure | DTP2 R 212 SA 60-1588-53 | Sources d'alimentation Everlast

Manual | DTP2 R 212 SA 60-1588-53 | Cleaning Instruction Card

Manual | DTP2 R 212 SA 60-1588-53 | DTP Compatibility Guide

Manual | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 Series Set Up Guide

Manual | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 User Guide

Manual | DTP2 R 212 SA 60-1588-53 | DTP互換性ガイド

Specifications | DTP2 R 212 SA 60-1588-53 | DTP2 R 212 and DTP2 R 212 SA

Panel Drawing | DTP2 R 212 SA 60-1588-53 | DTP2 R 212
