Details

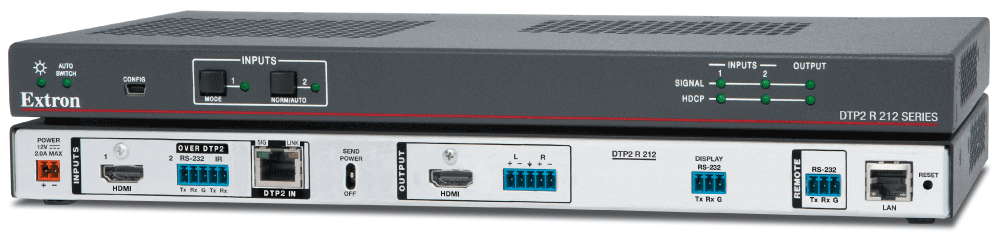

Extron DTP2 R 212 (part number 60-1588-52) — a switching DTP2 receiver that takes both a twisted pair feed and a local HDMI source, then drives one HDMI output plus balanced or unbalanced line audio.

Most receivers only terminate a link. This one also switches: a DTP2 input from a distant transmitter and a local HDMI input share the same output, so a room can carry a remote source and a lectern laptop without a separate switcher. Audio is handled properly too, with bass and treble adjustment, a fixed and a variable output on a five-pole captive screw connector, and volume control across a 100 dB range. Ethernet, RS-232 and a front USB port all configure the unit, and a pass-through serial and IR port reaches devices further down the chain.

Key Capabilities

Two video inputs, one DTP2 on RJ-45 and one HDMI type A, switched to one HDMI output
Audio de-embedding with fixed and variable stereo outputs, balanced or unbalanced
Tone control: bass and treble each adjustable from +12 dB to -24 dB
10/100Base-T Ethernet with ARP, ICMP, IP, TCP, DHCP, HTTP, Telnet and SMTP
Configured through Extron PCS, SIS commands, a browser or Telnet
Can transmit or receive remote power across the DTP2 link, 18 watt budget

Where It Is Used

Meeting rooms, classrooms, courtrooms, huddle spaces and medical conference rooms that need a distant source and a local one on the same display, with room audio taken off the link and sent to an amplifier or DSP.

Specifications at a Glance

18 Gbps maximum data rate, 600 MHz pixel clock, HDMI 2.0b with HDCP 2.3
330 ft (100 m) reach on 24 AWG solid-conductor 400 MHz STP or XTP DTP 24 cable
Line output above +21 dBu balanced and above +15 dBu unbalanced into high impedance
Device draw 11.50 watts, 39.30 BTU/hr; fan cooled with side vents
1.00 in H x 13.1 in W x 6.0 in D three-quarter rack chassis, 1.51 lbs (0.685 kg)

Also referenced as Extron DTP2R212, DTP2-R-212, part number 60158852.

Specifications

Part Number: 60-1588-52

Manufacturer: Extron

Model: DTP2 R 212

Condition: New

Signal Type: HDMI 2.0b, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range: 2560x1600 @ 60 Hz or 1080p @ 60 Hz with 12-bit color; 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz; 4K (4096x2160) @ 60 Hz, UHD (3840x2160) @ 60 Hz. 4096x2160 @ 60 Hz passes from the local input to the local output only

Frame Rate - HDMI Input: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Frame Rate - DTP2 Input: 24, 25, 30, 50, 60, or 120 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0; HDMI 1.4, 2.0b; HDCP 1.4, 2.3; CEA-861-E

Video Input: 1 DTP2 and 1 HDMI (or single link DVI-D with appropriate DVI-HDMI adapters)

Video Input Connectors: 1 female RJ-45; 1 female HDMI type A

Horizontal Frequency: 15 kHz to 100 kHz

Vertical Frequency: HDMI input 24 Hz to 240 Hz; DTP2 input 24 Hz to 120 Hz, for resolutions up to 18 Gbps

Video Output: 1 HDMI output on 1 female HDMI type A

Interconnection Connector: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Signal Transmission Distance: Up to 330 ft (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Audio Gain: Unbalanced output 0 dB; balanced output +6 dB

Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

Audio THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Audio S/N: >90 dB at maximum output (15 dBu), balanced (unweighted)

Stereo Channel Separation: >80 dB @ 1 kHz to 20 kHz

Bass: +12 dB to -24 dB @ 100 Hz

Treble: +12 dB to -24 dB @ 8 Hz

Audio Input - HDMI: 1 embedded digital audio from HDMI

Audio Input - DTP/DTP2: 1 stereo unbalanced analog; 1 embedded digital audio from DTP

Embedded Digital Audio Source Formats: 2-ch PCM

Audio Input Connectors: 1 female HDMI type A; 1 female RJ-45 for audio over DTP

Audio Input Impedance: >10k ohms unbalanced, >20k ohms balanced

Audio Input Nominal Level: Over DTP input: +4 dBu or -10 dBu, adjustable

Audio Input Maximum Level: +15 dBu at rated THD+N when input gain is set to 0 dB

CMRR: >80 dB @ 1 kHz

Analog Audio Output: 1 stereo, balanced or unbalanced (fixed and variable outputs); 1 analog audio and 1 embedded digital audio on HDMI

Analog Audio Output Connectors: (1) 3.5 mm captive screw connector, 5-pole; 1 female HDMI type A

Analog Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Analog Audio Output Gain Error: ±0.5 dB channel to channel

Analog Audio Output Maximum Level (Hi-Z): >+21 dBu balanced; >+15 dBu unbalanced

Output Volume Range: 0 to -100 dB in 1 dB steps

Nominal Level at Default Main Volume: -2 dBu (632 mVrms), balanced output

Serial Control Port: 1 RS-232 on a 3.5 mm, 3-pole captive screw connector, rear panel; pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd; 9600 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 female mini-USB type B, front panel; USB 2.0, high speed

Ethernet Data Rate: 10/100Base-T, half or full duplex, with autodetect

Ethernet Protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, Telnet, SMTP

Program Control: Extron PCS, Extron Simple Instruction Set (SIS), Microsoft Edge, Telnet

Serial Pass-Through Port: 1 RS-232 via a 3.5 mm, 5-pole captive screw connector, shared with the IR port; pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd

Pass-Through Baud Rates: 300 to 115k baud; 8 or 7 data bits, 1 or 2 stop bits, no parity (default), even or odd parity

IR Pass-Through Port: 1 bidirectional TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz, shared with the RS-232 port; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 2 A, 24 watts

Power Consumption - Device: 11.50 watts

Power Consumption - Device and Power Supply: 13.34 watts

Remote Power Budget: 18 watts

Remote Power Capability: Can transmit or receive power via DTP2

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Fan, air flows side to side, vents on sides

Thermal Dissipation - Device: 39.30 BTU/hr

Thermal Dissipation - Device and Power Supply: 44.60 BTU/hr

Rack Mount: Yes, with optional rack shelf kit; back-of-the-rack mountable with the optional back-of-the-rack mounting kit

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.00 in H x 13.1 in W x 6.0 in D, 1 in high and 3/4 rack wide (2.54 cm H x 33.3 cm W x 15.2 cm D); depth excludes connectors

Product Weight: 1.51 lbs (0.685 kg)

Regulatory Compliance: CE, c-UL, UL, C-Tick, FCC Class A, ICES, RoHS, WEEE, VCCI. UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release, excluding the power supply. Meets UL 60065 for safety

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

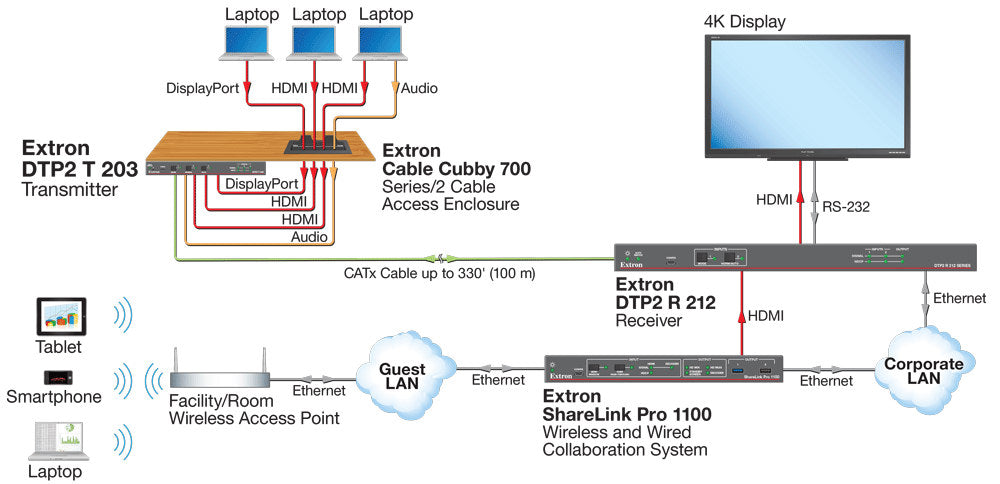

Resources

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (dtp2_r_212_A7.pdf)

Brochure | DTP2 R 212 60-1588-52 | Everlast Power Supplies

Brochure | DTP2 R 212 60-1588-52 | Alimentatori Everlast

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (DTP2-R-212_BR_A4_IT_RevA7.pdf)

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (DTP2-R-212_BR_A4_FR_RevA7.pdf)

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (DTP2-R-212_BR_A4_SP_RevA7.pdf)

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (DTP2-R-212_BR_A4_GE_RevA7.pdf)

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (dtp2_r_212_REV_A3_cn_ONLINE.pdf)

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (DTP2-R-212_BR_A4_RU_RevA3.pdf)

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (dtp2_r_212_REV_A3_kr_ONLINE.pdf)

Brochure | DTP2 R 212 60-1588-52 | DTP2 R 212 (DTP2-R-212_BR_A4_EN_RevA6_Japanese.pdf)

Brochure | DTP2 R 212 60-1588-52 | Everlast 电源

Brochure | DTP2 R 212 60-1588-52 | Everlast-Netzteile

Brochure | DTP2 R 212 60-1588-52 | Fuentes de alimentación Everlast

Brochure | DTP2 R 212 60-1588-52 | Sources d'alimentation Everlast

Manual | DTP2 R 212 60-1588-52 | Cleaning Instruction Card

Manual | DTP2 R 212 60-1588-52 | DTP Compatibility Guide

Manual | DTP2 R 212 60-1588-52 | DTP2 R 212 Series Set Up Guide

Manual | DTP2 R 212 60-1588-52 | DTP2 R 212 User Guide

Manual | DTP2 R 212 60-1588-52 | DTP互換性ガイド

Specifications | DTP2 R 212 60-1588-52 | DTP2 R 212 and DTP2 R 212 SA

Panel Drawing | DTP2 R 212 60-1588-52 | DTP2 R 212

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP2 R 212 4K/60 HDMI DTP2 Switching Receiver 60-1588-52

Name: Extron DTP2 R 212 4K/60 HDMI DTP2 Switching Receiver 60-1588-52
Brand: Extron
SKU: EXTRON-DTP2R212-60158852
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP2 R 212 4K/60 HDMI DTP2 Receiver and Switcher

• Switches a DTP2 twisted pair input and a local HDMI input to one HDMI output
• 18 Gbps DTP2 link with HDMI 2.0b and HDCP 2.3 over 330 ft (100 m)
• De-embeds audio to fixed and variable stereo outputs, balanced or unbalanced
• Bass and treble adjustable from +12 dB to -24 dB
• 10/100Base-T Ethernet control plus RS-232, USB and browser access
• Line output above +21 dBu balanced into high impedance
• Can transmit or receive DTP2 remote power, 18 watt budget
