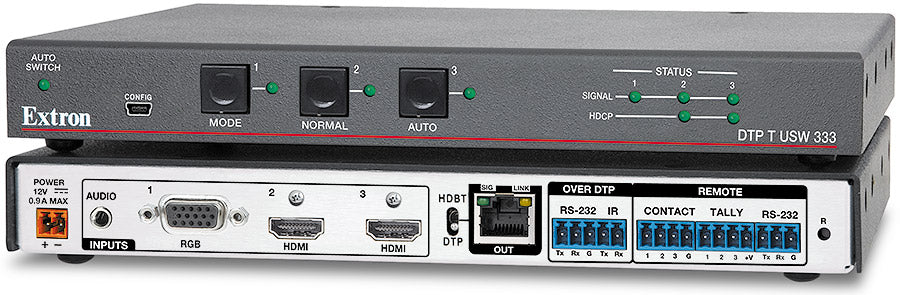

Extron DTP T USW 333 Three Input Switcher with Long Distance DTP Transmitter
- • Three sources onto one DTP 330 twisted pair link out to 330 ft (100 m)
- • Two HDMI inputs and one VGA-QXGA input, HDCP 1.1 compliant
- • Embeds analog stereo audio or passes HDMI audio to 7.1/24-bit/192 kHz
- • Audio input follows the video switch or stays fixed to one input
- • 9600 baud RS-232 control plus contact closure select and tally output
- • Half-rack metal chassis, 1.0 in high, 0.6 lbs (0.3 kg)
- • Shares one 12 VDC supply with the far-end device via remote power
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP T USW 333 (part number 60-1551-52) — the long-distance three-input DTP switcher and transmitter, supplied under Extron's later part number.
Everything a small presentation room needs upstream of the display sits in one half-rack box: three source inputs, automatic selection, EDID handling, analog audio embedding and a DTP 330 twisted pair output good for a full 100 metres. The switcher never scales, so the far-end receiver or matrix sees the source timing intact. Analog audio can shadow the video switch or stay pinned to one input, which suits rooms where a wireless microphone feed must ride along regardless of which laptop is on screen.
Key Capabilities
- Two HDMI and one VGA input, output as a single DTP 330 twisted pair signal
- HDCP 1.1 compliant with EDID management across the extended link
- Embedded audio formats include LPCM 7.1/24-bit/192 kHz, Dolby TrueHD and DTS-HD Master Audio
- Tally port and contact closure inputs drive simple button panels without a processor
- Over DTP port relays RS-232 from 300 to 115200 baud and IR from 30 to 60 kHz
- Shares one power supply with the far-end device through remote powering
Where It Is Used
Distance-limited retrofits, campus buildings, conference centres and multipurpose halls where a lectern or table pocket sits well beyond the 70 metre limit of a standard DTP transmitter. Mounts on a rack shelf or under a work surface.
Specifications at a Glance
- DTP 330 output on a female RJ-45 terminated to TIA/EIA T568B
- Video to 1920x1200, 1080p @ 60 Hz and 2K; 165 MHz maximum pixel clock
- Audio THD+N 0.01% @ 1 kHz, crosstalk below -45 dB @ 20 kHz
- External supply 100-240 VAC in, 12 VDC 1.5 A 18 watts out; 5.8 watts with supply
- 0.6 lbs (0.3 kg); 3 year product warranty, 7 years on the Everlast supply
Also referenced as Extron DTPTUSW333, DTP-T-USW-333, part number 60155152.
