Extron DTP T USW 333 Three Input Switcher with Long Distance DTP Transmitter
- • Long distance DTP 330 output reaches 330 ft (100 m) on shielded CATx
- • Two HDMI inputs and one VGA-QXGA input in a half-rack chassis
- • 170 MHz (-3 dB) VGA bandwidth, unity gain, sub-5 ms switching
- • Analog stereo embedding with -18 dB to +24 dB per-input gain trim
- • Auto-switching plus RS-232, contact closure select and tally output
- • Bidirectional RS-232 and IR pass-through on a 5-pole Over DTP port
- • Remote power over the DTP link; 4.2 watt device draw
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

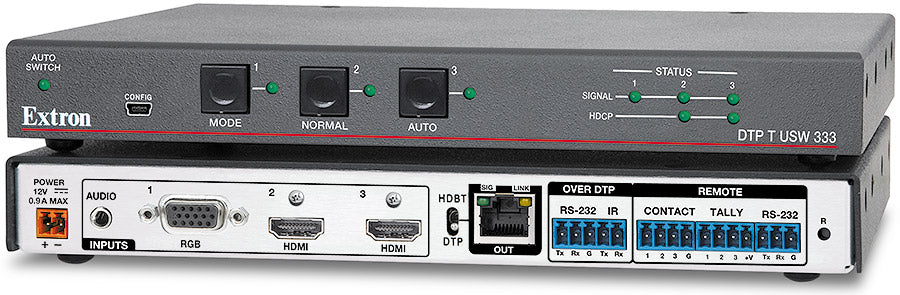

Extron DTP T USW 333 (part number 60-1329-52) — a three-input switcher with an integrated long-distance DTP 330 transmitter and analog audio embedding.
Three sources arrive: two on HDMI, one on a 15-pin HD VGA connector. One shielded CATx cable leaves, carrying video, embedded audio and control as far as 330 feet to a DTP 330 receiver, a DTP CrossPoint matrix or an HDBaseT endpoint. The VGA feed is digitised onto the link without being scaled, and the separate analog stereo jack can be tied to a specific video input or told to follow whatever the switcher selects. Auto-switching, contact closure select and a tally output let the unit run in rooms with no control processor at all.
Key Capabilities
- Two HDMI inputs plus one VGA-QXGA RGBHV input feeding a single DTP 330 output
- Analog stereo embedding with -18 dB to +24 dB gain trim in 1 dB steps per input
- EDID management between the sources and the display at the far end of the link
- RS-232 control at 9600 baud, contact closure selection and a 4-pole tally port
- Separate Over DTP port passes bidirectional RS-232 and 30-60 kHz modulated IR
- Powered locally or remotely from a DTP 330-enabled device across the same cable
Where It Is Used
Lecture theatres, divisible ballrooms, large training rooms and multi-storey corporate fitouts where the source pocket and the rack are a full cable pull apart. The half-rack chassis hides in a lectern or fastens under a table with the optional bracket.
Specifications at a Glance
- Reach 330 ft (100 m) on shielded twisted pair or XTP DTP 24 cable
- Resolutions to 1920x1200, 1080p @ 60 Hz and 2K; 6.75 Gbps HDMI data rate
- VGA path 170 MHz (-3 dB), unity gain, switching under 5 ms
- Device draw 4.2 watts, 14.2 BTU/hour, 12 watt remote power budget
- Metal chassis 1.0 in H x 8.75 in W x 6.0 in D, 0.6 lbs (0.3 kg)
Also referenced as Extron DTPTUSW333, DTP-T-USW-333, part number 60132952.
