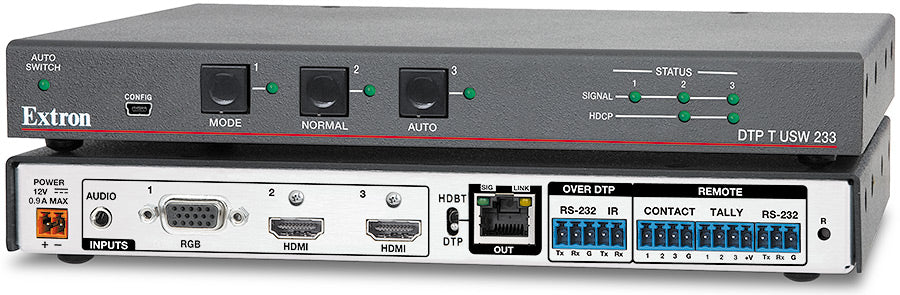

Extron DTP T USW 233 (part number 60-1551-12) — the current Extron part number for the three-input switcher with a built-in DTP 230 transmitter and analog audio embedding.

This is the box that collapses a lectern full of source cables into one shielded CATx run. Two HDMI ports and a 15-pin HD VGA port share a single DTP 230 output; the VGA signal is digitised onto the link rather than scaled, and an analog stereo jack can be assigned to any video input or made to follow the switch. At the far end, a DTP 230 receiver, a DTP CrossPoint matrix or an HDBaseT display recovers the video, the audio and the control data.

Key Capabilities

Three sources in, one twisted pair out: 2 HDMI plus 1 VGA-QXGA RGBHV
Analog audio input assignable to any video input or set to follow switching
EDID Minder keeps format negotiation stable between sources and the remote display
RS-232 at 9600 baud on a 3-pole port, plus contact closure select and tally out
Separate 5-pole Over DTP port passes bidirectional RS-232 and IR to the endpoint
Runs on the supplied external supply or on remote power from the receiver

Where It Is Used

Podium and table-mounted source pockets in universities, corporate training rooms, hospital education suites and municipal chambers. The low-profile half-rack chassis fits an under-desk bracket or a shared 1U shelf alongside a control processor.

Specifications at a Glance

Up to 1920x1200, 1080p @ 60 Hz and 2K; HDCP 1.1, CEA-861E, DVI 1.0
230 ft (70 m) reach over 24 AWG solid-conductor 400 MHz STP
Audio THD+N 0.01% @ 1 kHz, S/N above 90 dB, CMRR above 60 dB typical
Embedded formats include LPCM 7.1/24-bit/192 kHz, Dolby TrueHD and DTS-HD Master Audio
Metal enclosure, 0.6 lbs (0.3 kg), 3 year parts and labor warranty

Also referenced as Extron DTPTUSW233, DTP-T-USW-233, part number 60155112.

Specifications

Part Number: 60-1551-12

Manufacturer: Extron

Model: DTP T USW 233

Condition: New

Version: Three Input Switcher with DTP Tx - 230 feet (70 m)

VGA Gain: Unity

VGA Bandwidth: 170 MHz (-3 dB)

VGA Crosstalk: -50 dB @ 10 MHz, -30 dB @ 100 MHz

Switching Speed: <5 ms (max)

HDMI Maximum Data Rate: 6.75 Gbps (2.25 Gbps per color)

HDMI Maximum Pixel Clock: 165 MHz

Resolution Range: Up to 1920x1200 or 1080p @ 60 Hz; 2K

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0, HDMI, HDCP 1.1, CEA-861E

HDMI Video Input: 2 HDMI inputs (or single link DVI-D with the appropriate DVI-HDMI adapters)

HDMI Input Connectors: 2 female HDMI type A

VGA Video Input: 1 VGA-QXGA; RGBHV. The VGA input is digitized and output as DTP and is not scaled

VGA Input Connector: 1 female 15-pin HD

VGA Nominal Level: 0.7 Vp-p

VGA Minimum/Maximum Level: Analog, 0.3 V to 1.5 Vp-p with no offset

VGA Input Impedance: 75 ohms

VGA Horizontal Frequency: 15 kHz to 145 kHz

VGA Vertical Frequency: 30 Hz to 170 Hz

VGA Return Loss: <-40 dB @ 5 MHz

Sync Input Type: RGBHV, bi-level and tri-level sync

Sync Input Level: 1.9 V to 5.0 Vp-p

Sync S/N: >90 dB at maximum input (unweighted)

Sync Maximum Input Voltage: 5.0 Vp-p

DTP Output: 1 DTP 230 output

DTP Connector: 1 female RJ-45

Termination Standard: TIA/EIA T568B

Transmission Distance: Up to 230 ft (70 m) using shielded twisted pair cable or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Input and Output Mode Signaling: DTP carries HDMI with embedded audio, analog audio, RS-232 and IR, and remote power; HDBT carries HDMI with embedded audio plus RS-232 and IR

Audio Gain: Unbalanced output 0 dB; balanced output +6 dB

Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

Audio THD + Noise: 0.01% @ 1 kHz at nominal level

Audio S/N: >90 dB at maximum input (unweighted)

Audio Crosstalk: <-45 dB @ 20 kHz, or -72 dB @ 1 kHz or below

Stereo Channel Separation: >80 dB @ 1 kHz to 20 kHz

Audio Input: 1 analog stereo, unbalanced, or 2 digital audio embedded in the HDMI

Audio Input Connectors: 1 female 3.5 mm mini stereo jack; 2 female HDMI type A shared with the video inputs

HDMI Audio Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Analog Audio Source Format: Analog stereo audio

Audio Input Impedance: 10k ohms, DC coupled

Audio Input Nominal Level: -10 dBV

Audio Input Maximum Level: +6 dBV, unbalanced

CMRR: >60 dB typical @ 1 kHz

Input Gain Adjustment: -18 dB to +24 dB in 1 dB steps, adjustable per input

Audio Output: 1 analog audio over the DTP signal, or 1 embedded digital audio over the DTP signal

Audio Output Connector: 1 RJ-45 jack

Serial Control Port: RS-232 via (1) 3.5 mm, 3 pole captive screw connector

Serial Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Tally Port: (1) 3.5 mm, 4 pole captive screw connector; pin 1 = input 1 tally, pin 2 = input 2 tally, pin 3 = input 3 tally, pin 4 = +5 VDC

Contact Closure Remote Control: (1) 3.5 mm, 4 pole captive screw connector; pin 1 = input 1, pin 2 = input 2, pin 3 = input 3, pin 4 = Gnd

USB Control Port: 1 front panel female mini USB, type B

USB Standards: USB 2.0, high speed

Program Control: Extron Simple Instruction Set (SIS)

Serial Pass-Through Port: 1 RS-232 and IR via (1) 3.5 mm, 5-pole captive screw connector

Pass-Through Baud Rates: 300 to 115200 baud

Pass-Through Protocol: 8 or 7 data bits, 1 or 2 stop bits, no parity (default), even or odd parity

IR Pass-Through Control Port: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Consumption - Device: 4.7 watts

Power Consumption - Device and Power Supply: 6.4 watts

Remote Power Budget: 12 watts

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents on top and sides

Thermal Dissipation - Device: 16.0 BTU/hour

Thermal Dissipation - Device and Power Supply: 21.6 BTU/hour

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 8.75 in W x 6.0 in D, half rack wide (2.5 cm H x 22.2 cm W x 15.2 cm D); depth excludes connectors

Product Weight: 0.6 lbs (0.3 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance: Safety: CE, c-UL, UL. EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI. Environmental: complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
