Extron DTP T USW 233 Three Input Switcher with DTP Transmitter
- • Two HDMI inputs and one VGA input feeding a single DTP 230 output
- • Extends video, audio and control 230 ft (70 m) on shielded CATx
- • 170 MHz (-3 dB) VGA bandwidth with unity gain and sub-5 ms switching
- • Embeds analog stereo audio with -18 dB to +24 dB per-input gain trim
- • Auto-switching plus RS-232, contact closure and tally output
- • Half-rack 1.0 in high metal body for lectern or under-desk mounting
- • Remote power over the DTP link, 4.7 watt device draw
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

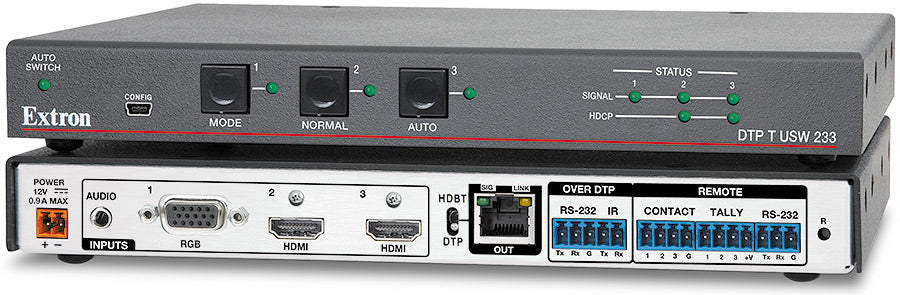

Extron DTP T USW 233 (part number 60-1329-12) — a three-input switcher with an integrated DTP 230 transmitter and analog audio embedding.

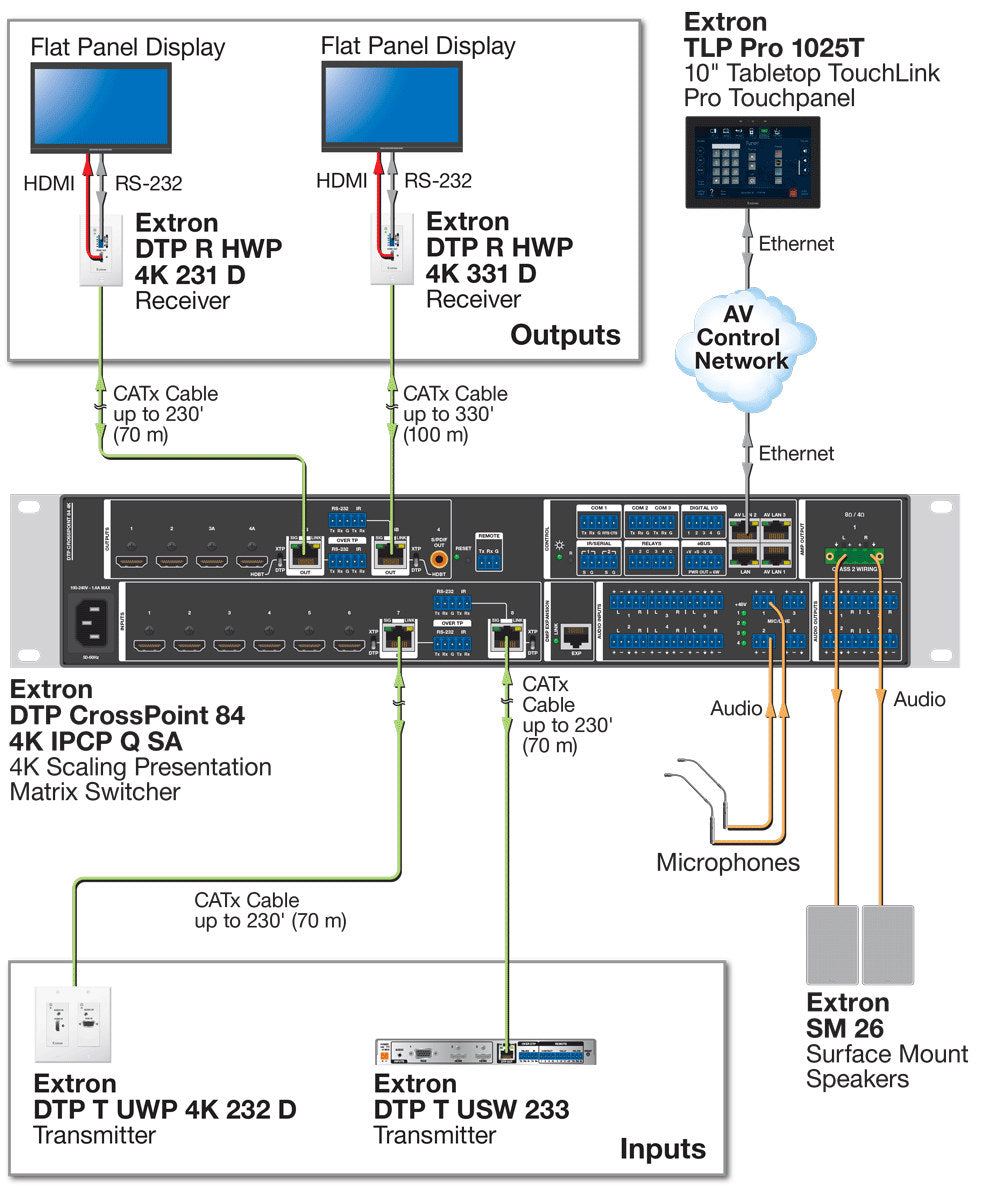

Two HDMI sources and one VGA source connect here, and one shielded CATx cable leaves. The switcher digitises the VGA feed onto the DTP stream without scaling it, embeds an analog stereo input onto the outgoing signal, and delivers video, audio and control to any DTP 230 receiver or DTP-enabled matrix up to 230 feet away. Auto-switching keeps the box unattended in a lectern or under a table, while a tally port and contact closure inputs let a simple wall control select sources without a full control system.
Key Capabilities
- Two HDMI inputs plus one VGA-QXGA RGBHV input on a 15-pin HD connector
- Analog stereo audio embedding with per-input gain trim from -18 dB to +24 dB
- EDID management so sources and the remote display negotiate a usable format
- Auto-switching with configurable priority, or selection by RS-232 or contact closure
- Tally output reports the active input back to a control panel or logic device
- DTP output also drives HDBaseT-enabled equipment, and the unit accepts remote power
Where It Is Used
Lecterns, credenzas, under-table mounts and equipment shelves in classrooms, boardrooms, training suites and clinical conference rooms. The half-rack, 1U-high metal body hides easily and can be shelf-mounted or fixed under a work surface with the optional kit.
Specifications at a Glance
- Reach 230 ft (70 m) on shielded twisted pair or XTP DTP 24 cable
- Resolutions to 1920x1200, 1080p @ 60 Hz and 2K; 6.75 Gbps maximum HDMI data rate
- VGA path: 170 MHz (-3 dB) bandwidth, unity gain, switching under 5 ms
- Enclosure 1.0 in H x 8.75 in W x 6.0 in D, 0.6 lbs (0.3 kg)
- Device draw 4.7 watts, 16.0 BTU/hr; 12 watt remote power budget
Also referenced as Extron DTPTUSW233, DTP-T-USW-233, part number 60132912.
