Extron DTP T SW4 HD 4K Four Input HDMI Switcher with DTP 330 Output
- • Four single link HDMI inputs switched onto one DTP 330 twisted pair output
- • 330 ft (100 m) reach at 1080p, 2560x1600 and 4K/UHD at 30 and 60 Hz
- • 10.2 Gbps maximum data rate; 600 MHz pixel clock for 4:2:0 4K rates
- • Auto-input switching enabled by shorting a 2-pole captive screw connector
- • Contact closure select and +5 VDC 0.2 A tally output on shared ports
- • Optional IR 102 handheld remote works to 30 ft, 40 degrees off axis
- • 1U half-rack metal chassis, 0.5 lb (0.3 kg), 7.7 watt draw
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

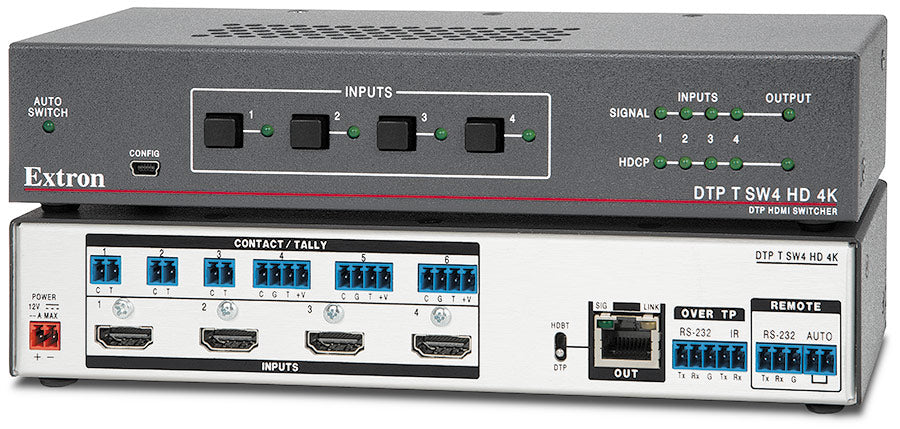

Extron DTP T SW4 HD 4K (part number 60-1625-01) — a four-input HDMI switcher whose output is a DTP 330 twisted pair link rather than a local HDMI cable.
Four HDMI sources land on the rear panel and exactly one shielded CATx cable leaves for the display end, carrying video and embedded audio a full 330 feet. Switching can be driven by RS-232, by contact closures on the captive screw ports, by the optional IR 102 handheld, or left to automatic selection by shorting two pins on the auto-switch connector. Tally outputs share those same connectors so a button panel can light up to show which source is live.
Key Capabilities
- Four single link HDMI inputs feeding one DTP 330 or HDBaseT output on RJ-45
- Full 330 ft (100 m) reach at 1080p, 2560x1600 and 4K/UHD at 30 and 60 Hz
- Automatic input switching enabled by a two-pole captive screw connector
- Contact closure select and tally output on shared 2-pole and 4-pole ports
- Optional IR 102 remote control works to 30 ft and 40 degrees off axis
- Configured with Extron PCS software for Windows or with SIS commands over RS-232
Where It Is Used
Divisible meeting rooms, classrooms, simulation labs, houses of worship and any space where several fixed sources share one distant display. The 1U half-rack chassis mounts on a shelf or under or through a desk with the optional kits.
Specifications at a Glance
- Up to 1920x1200 or 1080p @ 60 Hz with 12-bit color; 4K/UHD @ 60 Hz using 4:2:0
- 10.2 Gbps maximum data rate; 300 MHz pixel clock, 600 MHz for 4:2:0 4K rates
- Device draw 7.7 watts, 26.0 BTU/hr; 12 watt remote power budget
- Tally output power +5 VDC at 0.2 A
- 1.75 in H x 8.75 in W x 3.0 in D, 0.5 lb (0.3 kg), 3 year warranty
Also referenced as Extron DTPTSW4HD4K, DTP-T-SW4-HD-4K, part number 60162501.
Specifications
Specifications

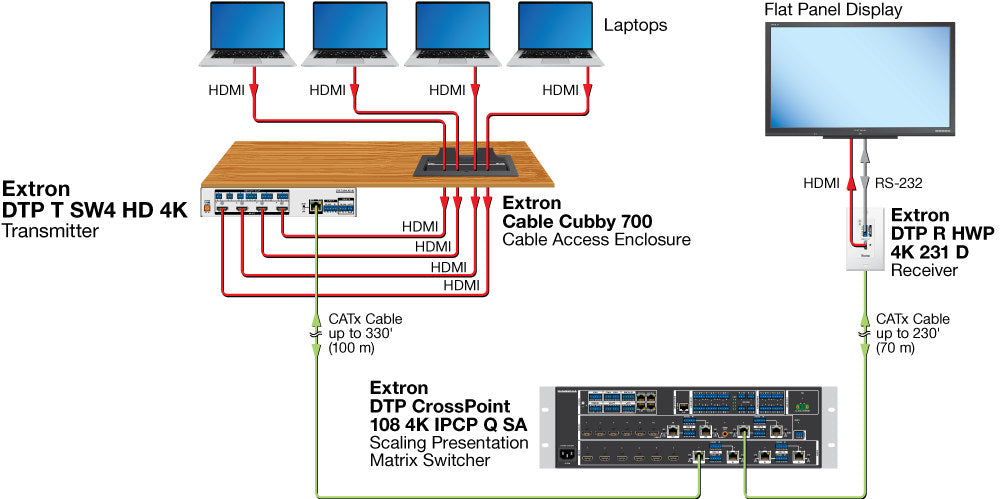

Diagram
