Extron DTP T MK 4K 231 4K HDMI Transmitter for MK Junction Boxes
- • Fits 1-gang MK enclosures and frames that accept 55 mm x 55 mm modules
- • Sends HDMI, embedded audio and remote power on one RJ-45 twisted pair link
- • 1080p reaches 230 ft (70 m); 4K/UHD at 30 Hz reaches 130 ft (40 m)
- • 10.2 Gbps maximum data rate with a 300 MHz pixel clock
- • HDCP 2.2 and HDCP 1.4 authentication maintained end to end
- • DTP or HDBaseT output mode signaling for mixed equipment estates
- • Draws just 2.9 watts and weighs 0.2 lbs (0.1 kg)
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

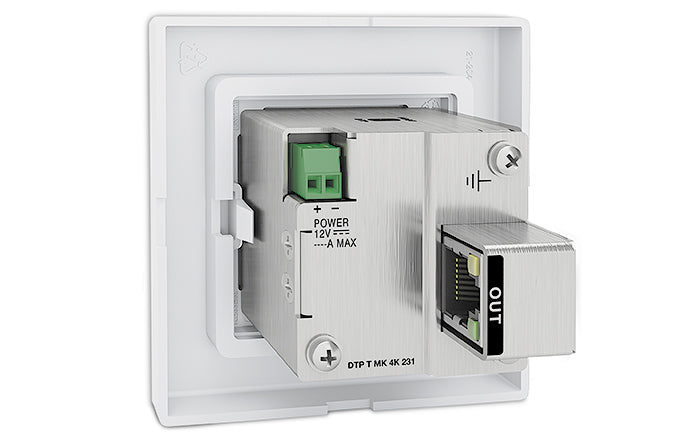

Extron DTP T MK 4K 231 (part number 60-1533-12) — a modular HDMI DTP transmitter sized to drop into a 1-gang MK junction box enclosure.
This is architectural extension reduced to its smallest useful form. The device module measures 55 mm square, so it seats in any mounting frame built for 55 mm modules and disappears behind a matching plate. One HDMI source goes in; digital video, embedded digital audio and remote power come out on a single shielded twisted pair run to a DTP or HDBaseT receiver. Because power can travel back up the same cable from a powered endpoint, a room with no accessible mains at the plate location still works.
Key Capabilities
- Single link HDMI input on a female HDMI type A connector, DVI-D via adapter
- Carries digital video, embedded digital audio and remote power on one RJ-45 link
- Output mode signaling for either DTP or HDBaseT receiving equipment
- HDCP 2.2 and HDCP 1.4 authentication maintained across the extended run
- Powered locally from the supplied 12 VDC unit or remotely by the far-end device
- Metal module and frame designed for 1-gang MK enclosures and 55 mm frames
Where It Is Used
European-style modular wall systems, meeting-room furniture, floor boxes and lectern panels where a full decorator plate will not fit. Common in refits that standardise on 55 mm modular frames across an estate.
Specifications at a Glance
- 1080p @ 60 Hz to 230 ft (70 m); 4K/UHD @ 30 Hz to 130 ft (40 m)
- Resolution to 1920x1200 with 12-bit color depth, 2K, and 4K (4096x2160) @ 30 Hz
- 10.2 Gbps maximum data rate, 3.4 Gbps per color; 300 MHz pixel clock
- Device draw 2.9 watts, 9.8 BTU/hr; 12 watt remote power budget
- Device module 55.0 mm square x 38.4 mm deep; 0.2 lbs (0.1 kg)
Also referenced as Extron DTPTMK4K231, DTP-T-MK-4K-231, part number 60153312.
Specifications
Specifications

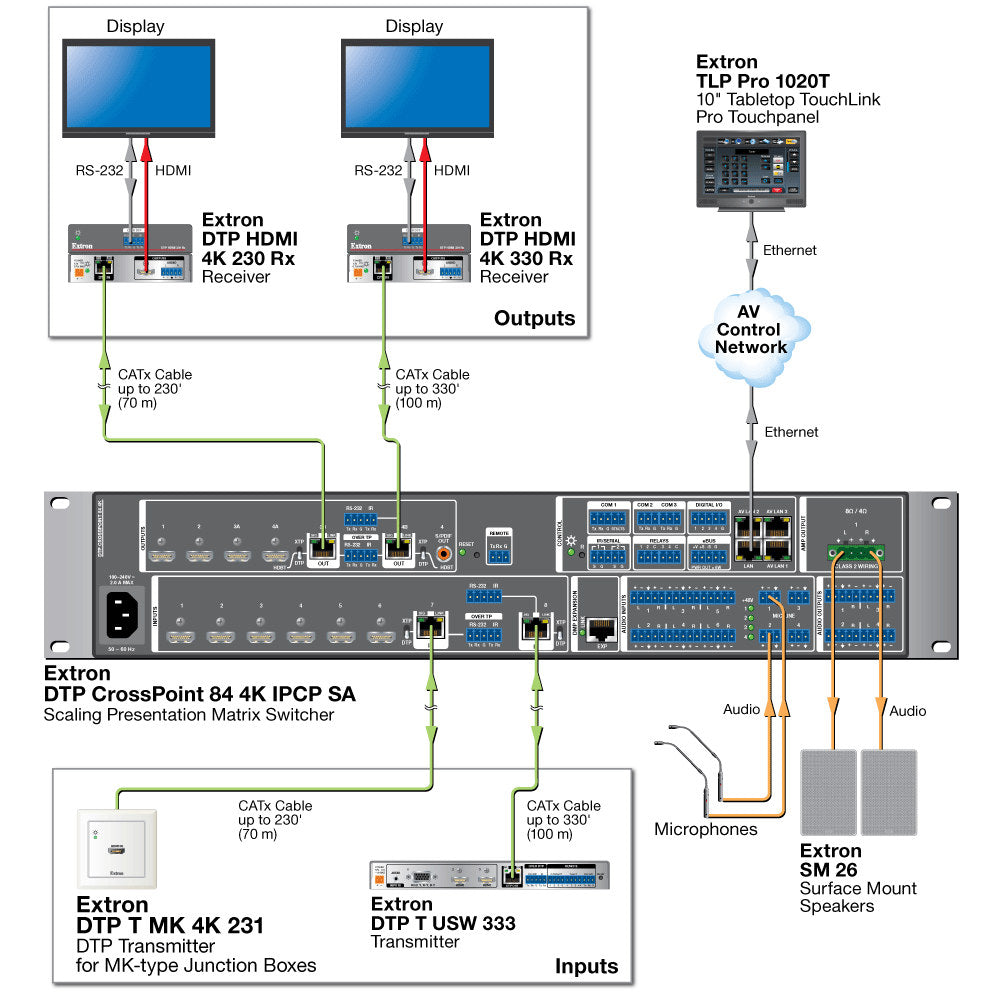

Diagram
