Extron DTP T HWP 232 D Two-Input HDMI Wallplate Transmitter
- • Sends two HDMI sources plus audio over one STP run up to 230 ft (70 m)
- • Mounts flush in a standard two-gang decorator wallplate opening
- • Embeds unbalanced analog stereo audio onto the digital DTP stream per input
- • Passes 1920x1200, 1080p/60 and 2048x1080p 2K at 8 bit color depth
- • Bidirectional RS-232 plus modulated IR pass-through from 30 kHz to 60 kHz
- • Remote powering over the DTP link with a 12 watt budget, 4.1 watt draw
- • Backed by a 3 year Extron parts and labor warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

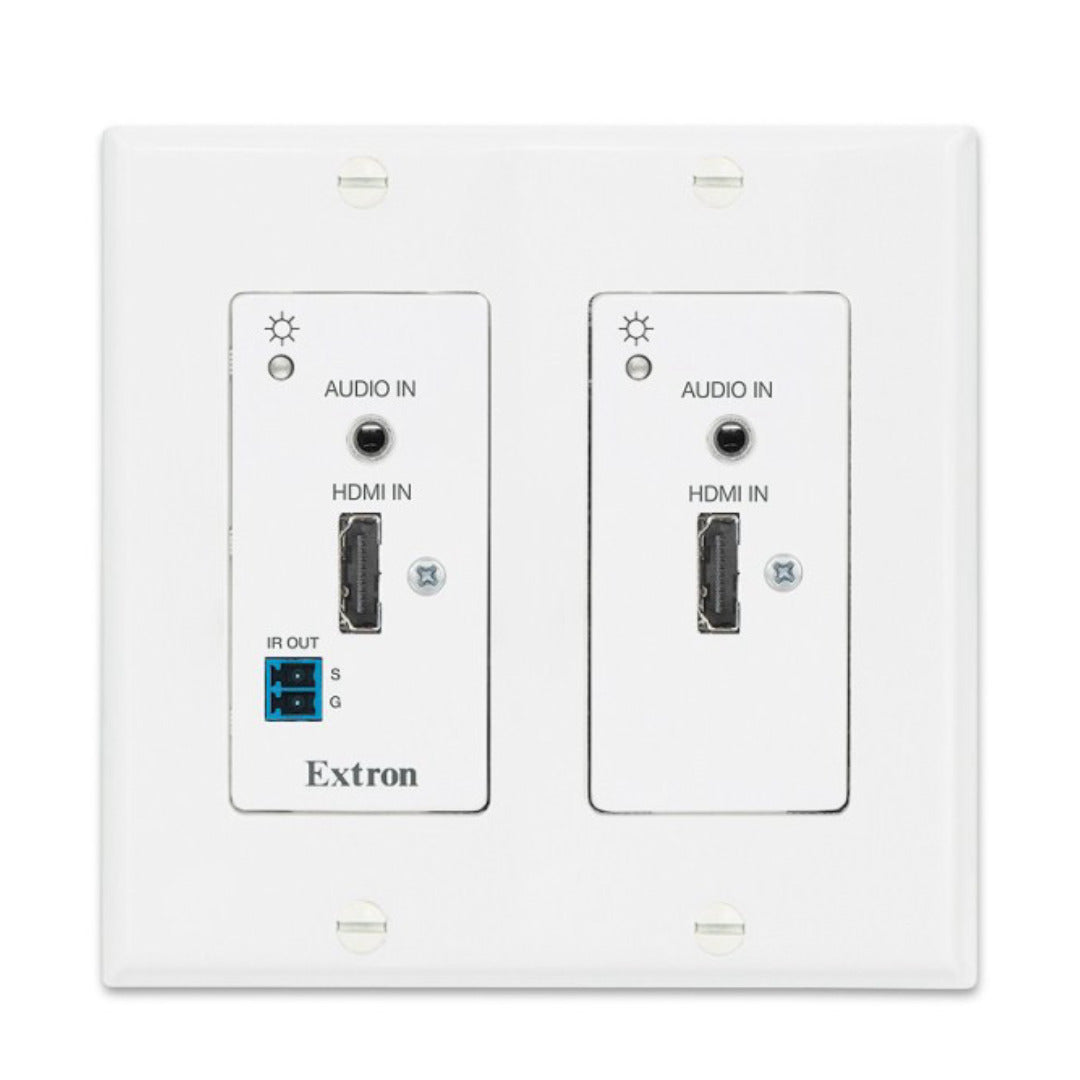

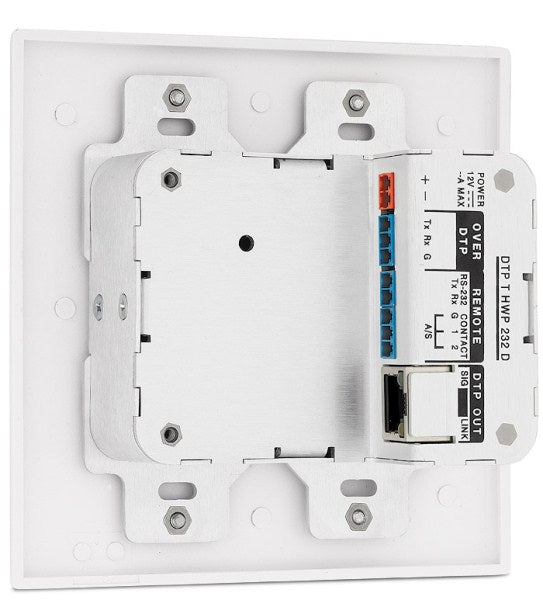

Extron DTP T HWP 232 D (part number 60-1365-13) — a two-input HDMI transmitter built into a decorator-style wallplate for DTP 230 extension.
Instead of pulling several long HDMI runs back to an equipment rack, this transmitter terminates two sources at the wall and forwards everything on one shielded twisted pair line to a compatible DTP 230 or DTP 330 endpoint. Each HDMI port has its own unbalanced stereo audio jack, so a laptop and a room PC can keep separate analog feeds. RS-232 travels in both directions and modulated IR travels outward, letting a control processor reach equipment at the far end of the same cable.
Key Capabilities
- Two single link HDMI inputs on female HDMI type A connectors; DVI-D sources work through an adapter
- One DTP 230 output on a female RJ-45 jack, terminated to the TIA/EIA T568B standard
- Analog stereo audio embedding, selectable per input as embedded, analog, or automatic
- RS-232 pass-through in both directions from 300 to 115200 baud, plus 30 kHz to 60 kHz modulated IR out
- Front-panel mini USB type B port for SIS configuration and firmware loading
- Powers from the supplied 12 VDC unit or remotely from the device at the far end of the DTP link
Where It Is Used
Decorator wallplate transmitters suit huddle rooms, classrooms, boardrooms, courtrooms and clinical review spaces where a guest laptop plus a fixed room source must both reach a projector or display several rooms away. The metal enclosure fits a two-gang opening, so the plate disappears into the millwork while the switching electronics stay serviceable.
Specifications at a Glance
- Reach: up to 230 ft (70 m) on 24 AWG solid-conductor STP rated at 400 MHz
- Resolution: to 1920x1200 and 1080p @ 60 Hz, plus 2048x1080p @ 60 Hz (2K) at 8 bit color depth
- Maximum data rate 6.75 Gbps, 2.25 Gbps per color, with a 165 MHz pixel clock
- Device draw 4.1 watts, 12 watt remote power budget, 0.4 lbs (0.2 kg)
- 3 year parts and labor warranty; 7 years on the Everlast power supply
Also referenced as Extron DTPTHWP232D, DTP-T-HWP-232-D, part number 60136513.
