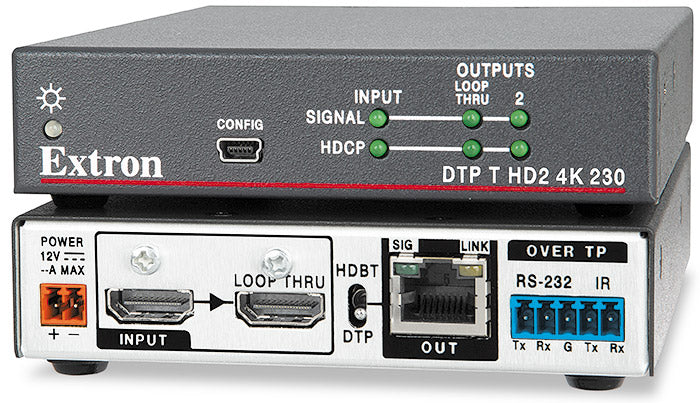

Extron DTP T HD2 4K 230 (part number 60-1491-12) - a quarter-rack HDMI transmitter that puts video, embedded audio and pass-through device control on one shielded twisted pair cable, with a local HDMI loop-thru kept on the front end.

A source that has to feed both a nearby confidence monitor and a distant display normally needs a distribution amplifier plus a separate control cable. This transmitter collapses that into one box. One single link HDMI input feeds an HDMI loop-thru output and a DTP 230 output at the same time. RS-232 and IR arrive on a shared 3.5 mm five-pole captive screw connector and ride the DTP link out to the receiver, where they emerge for control of the remote source or sink. A front-panel mini USB B port handles configuration through Extron's Simple Instruction Set and Product Configuration Software, and the unit can draw remote power from the far end within a 12 W budget.

Key Capabilities

1080p/60 travels 230 ft (70 m) on shielded twisted pair or XTP DTP 24 cable
2560x1600/60 and 4K/UHD at 30 or 60 Hz travel 130 ft (40 m) on the same cable
10.2 Gbps data rate, 300 MHz pixel clock, and 8, 10 or 12-bit color
Simultaneous HDMI loop-thru output for a local monitor alongside the DTP output
Bidirectional RS-232 from 300 to 115200 baud plus 30 kHz to 60 kHz IR pass-through
Compact metal chassis at 1.0 in H x 4.3 in W x 6.0 in D, one rack unit high and quarter-rack wide

Where It Is Used

This is a workhorse for boardrooms, divisible meeting rooms, classrooms, lecture halls, training suites and control rooms where the source rack and the display sit at opposite ends of a structured cabling run, and where the same run has to deliver serial and infrared commands to the far end.

Specifications at a Glance

Video input: 1 single link HDMI on a female 19-pin HDMI type A connector
Input cable length: up to 50 ft (15 m) at 225 MHz, 100 ft (30 m) at 165 MHz
Link: 1 RJ-45 jack, TIA/EIA T568B, 400 MHz bandwidth STP recommended
Power: 6.0 W device draw from an external 12 VDC, 1.5 A, 18 W supply
Operating range: +32 to +122 °F (0 to +50 °C); 3-year parts and labor warranty

Frequently asked questions about the Extron DTP T HD2 4K 230 HDMI over CATx Transmitter

Does Ampronix sell the Extron DTP T HD2 4K 230 HDMI over CATx Transmitter?

Yes. Ampronix is an authorized Extron distributor and sells the Extron DTP T HD2 4K 230 HDMI over CATx Transmitter (60-1491-12). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron DTP T HD2 4K 230 HDMI over CATx Transmitter?

Yes. Ampronix provides sales, replacement and exchange for the Extron DTP T HD2 4K 230 HDMI over CATx Transmitter. Call Ampronix for a quote.

Is the Extron DTP T HD2 4K 230 HDMI over CATx Transmitter listed under other names?

Yes. The Extron DTP T HD2 4K 230 HDMI over CATx Transmitter is also referenced as Extron DTPTHD24K230, DTP-T-HD2-4K-230, part number 60149112.

What are the key features of the Extron DTP T HD2 4K 230 HDMI over CATx Transmitter?

Key points: 1080p/60 travels 230 ft (70 m) on shielded twisted pair or XTP DTP 24 cable; 2560x1600/60 and 4K/UHD at 30 or 60 Hz travel 130 ft (40 m) on the same cable; 10.2 Gbps data rate, 300 MHz pixel clock, and 8, 10 or 12-bit color; Simultaneous HDMI loop-thru output for a local monitor alongside the DTP output. Call Ampronix to confirm details for your application.

Also referenced as Extron DTPTHD24K230, DTP-T-HD2-4K-230, part number 60149112.

Specifications

Part Number: 60-1491-12

Manufacturer: Extron

Model: DTP T HD2 4K 230

Condition: New

Signal Type: HDMI, HDCP

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Resolution Range: Up to 2560x1600 (reduced blanking) @ 60 Hz, 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, or 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits, subject to the maximum data rate limit

Formats: RGB and YCbCr digital video

Standards: DVI 1.0, HDMI, HDCP, CEA-861E

Video Input: 1 single link HDMI (or DVI-D)

Video Input Connector: 1 female 19-pin HDMI type A

Input Cable Length: Up to 50' (15 m) with a 225 MHz signal, 100' (30 m) with a 165 MHz signal

Video Output: 1 single link HDMI loop-thru and 1 DTP 230 output

Link Connector: 1 RJ-45 jack

Termination Standards: TIA/EIA T568B

Transmission Distance, 1080p @ 60 Hz: Up to 230' (70 m) on STP or XTP DTP 24 cable

Transmission Distance, 2560x1600 @ 60 Hz: Up to 130' (40 m) on STP or XTP DTP 24 cable

Transmission Distance, 4K/UHD @ 30 and 60 Hz: Up to 130' (40 m) on STP or XTP DTP 24 cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth STP cable

USB Control Port: 1 front panel female mini USB B, USB 2.0 low speed

Program Control: Extron Simple Instruction Set (SIS) and Extron Product Configuration Software (PCS)

Serial Control Port: RS-232 on (1) 3.5 mm 5-pole captive screw connector, shared with the IR control ports

Baud Rate and Protocol: 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity

Serial Control Pin Configuration: Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd

IR Pass-Through Control Port: (1) 3.5 mm 5-pole captive screw connector shared with the RS-232 port; TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

IR Control Pin Configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Consumption, Device: 6.0 watts

Power Consumption, Device and Power Supply: 7.5 watts

Remote Power Budget: 12 watts

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; operating +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing

Cooling: Convection, no vents

Thermal Dissipation, Device: 19.2 BTU/hr

Thermal Dissipation, Device and Power Supply: 24.2 BTU/hr

Rack Mount: Yes

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 4.3 in W x 6.0 in D (1 in high, 1/4 rack wide); 2.5 cm H x 10.9 cm W x 15.2 cm D, depth excludes connectors

Product Weight: 0.5 lb (0.3 kg)

Shipping Weight: 1.0 lb (0.5 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory, Safety: CE, c-UL, UL

Regulatory, EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Regulatory, Environmental: Complies with the appropriate requirements of RoHS and WEEE

Warranty: 3 years parts and labor

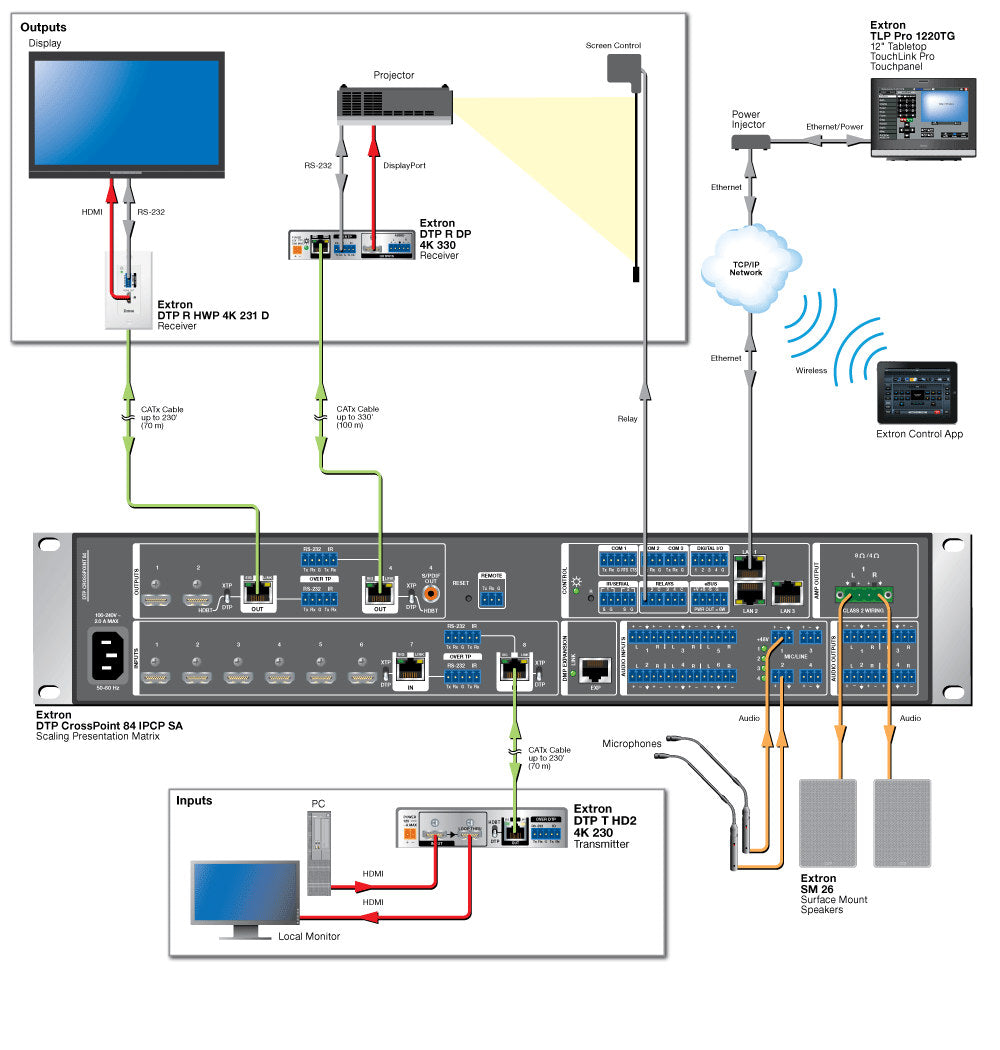

Diagram
