Extron DTP T EU 4K 331 HDMI EU Wallplate Transmitter
- • Holds a full 330 ft (100 m) reach on shielded twisted pair or XTP DTP 24 cable
- • Handles HDMI 1.4 with HDCP 2.3, 2.0 and 1.4 for modern protected sources
- • 10.2 Gbps data rate and 300 MHz pixel clock support 4K/30 and UHD/30

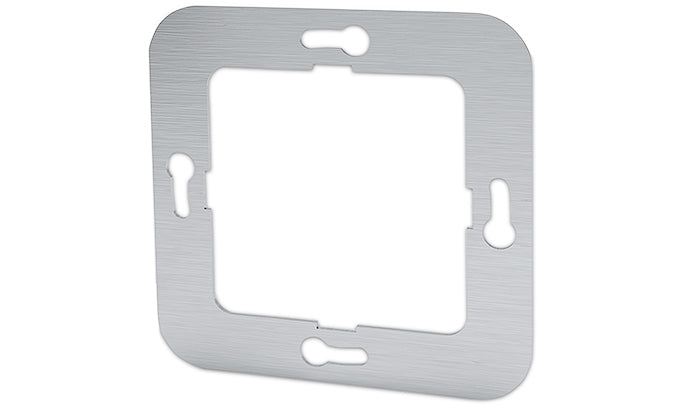

- • Installs in 1-gang EU boxes with 60 mm centers and 55 mm insert frames
- • Sips only 2.9 W and dissipates 9.8 BTU/hr with fanless convection cooling
- • Accepts remote power from the receiver within a 12 W power budget
- • Selectable DTP or HDBaseT output signaling suits mixed installations
- • 3-year product warranty plus 7-year Everlast power supply coverage
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

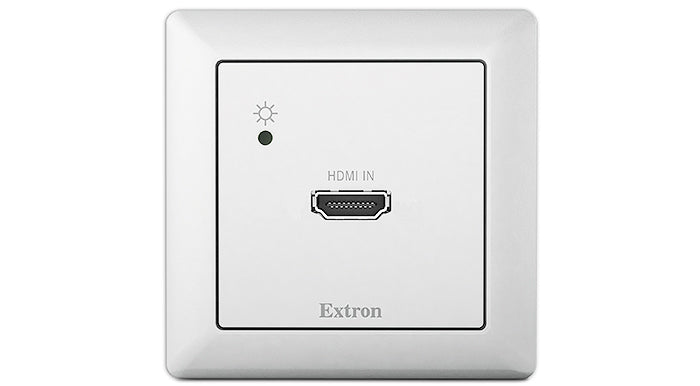

Extron DTP T EU 4K 331 (part number 60-1532-52) — a one-gang EU wallplate HDMI transmitter rated for a full 330 ft (100 m) of shielded twisted pair, with remote powering and HDCP 2.3 handling.

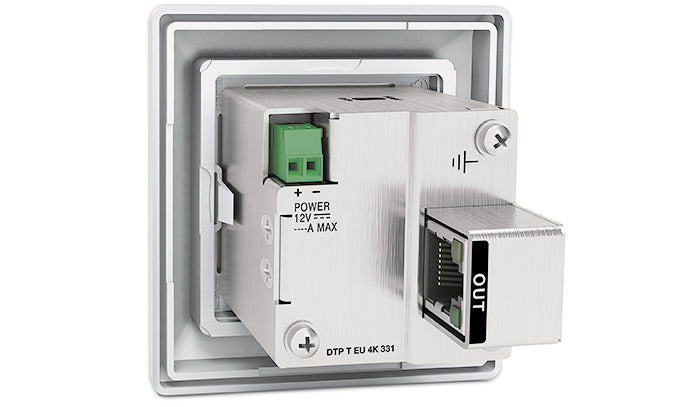

This is the long-reach member of the EU wallplate transmitter line. Where the shorter-distance variant tapers off, the 331 holds its stated 330 ft (100 m) figure on shielded twisted pair or XTP DTP 24 cable, which lets a designer place a wall input on one floor and the matrix or receiver several rooms away. A single link HDMI source connects to the female HDMI type A jack behind the plate; the DTP link then carries video, embedded digital audio and remote power over one RJ-45 terminated run. Output signaling is selectable between DTP, which includes remote power, and HDBaseT, which carries video with embedded audio.
Key Capabilities
- Rated for 330 ft (100 m) on shielded twisted pair or XTP DTP 24 cable
- Signal handling covers HDMI 1.4 with HDCP 2.3, 2.0 and 1.4
- 10.2 Gbps maximum data rate, 300 MHz maximum pixel clock
- Carries 1920x1200 and 1080p/60 at 12-bit color plus 4K (4096x2160) and UHD at 30 Hz
- Very low 2.9 W draw and 9.8 BTU/hr dissipation, cooled by convection with no vents
- Metal module of 2.17 in x 2.17 in x 1.52 in for frames accepting 55 mm x 55 mm inserts
Where It Is Used
Long cable pulls are what this model is for: divisible ballrooms, auditoriums, multi-room training centers, university lecture halls and hospital conference facilities laid out on European one-gang frames, where the presentation input sits at the wall and the rack sits at the other end of a 100 m cable path.
Specifications at a Glance
- Video input: 1 single link HDMI, female HDMI type A connector
- Cable: solid conductor 24 AWG or better, 400 MHz bandwidth STP recommended
- Power: external 12 VDC, 1.5 A, 18 W supply, or 12 W remote power budget
- Operating range: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing
- Warranty: 3 years parts and labor, plus a 7-year Everlast power supply warranty
Also referenced as Extron DTPTEU4K331, DTP-T-EU-4K-331, part number 60153252.
Specifications
Specifications

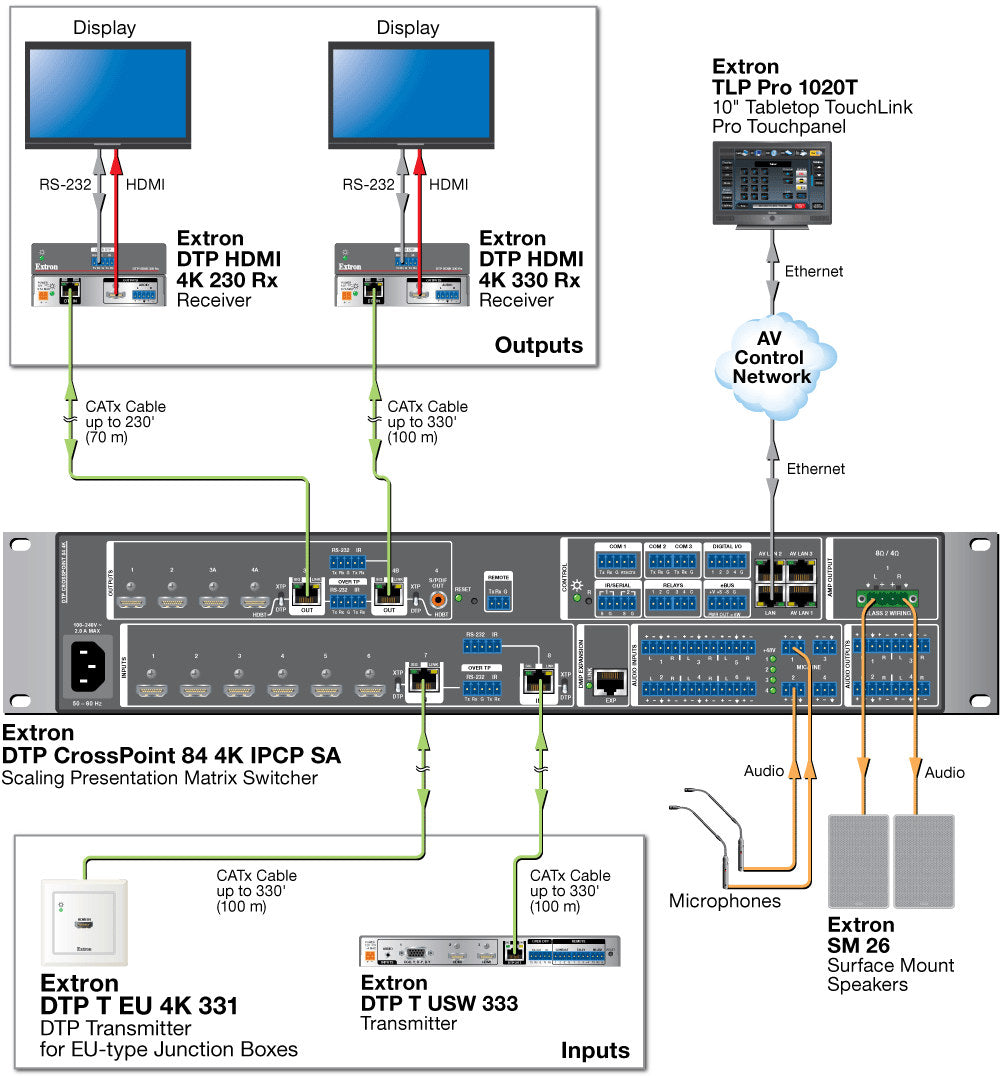

Diagram
