Extron DTP T EU 4K 231 (part number 60-1532-12) — a one-gang EU wallplate HDMI transmitter that hides the source connection inside the junction box and carries video, embedded audio and remote power on a single shielded twisted pair run.

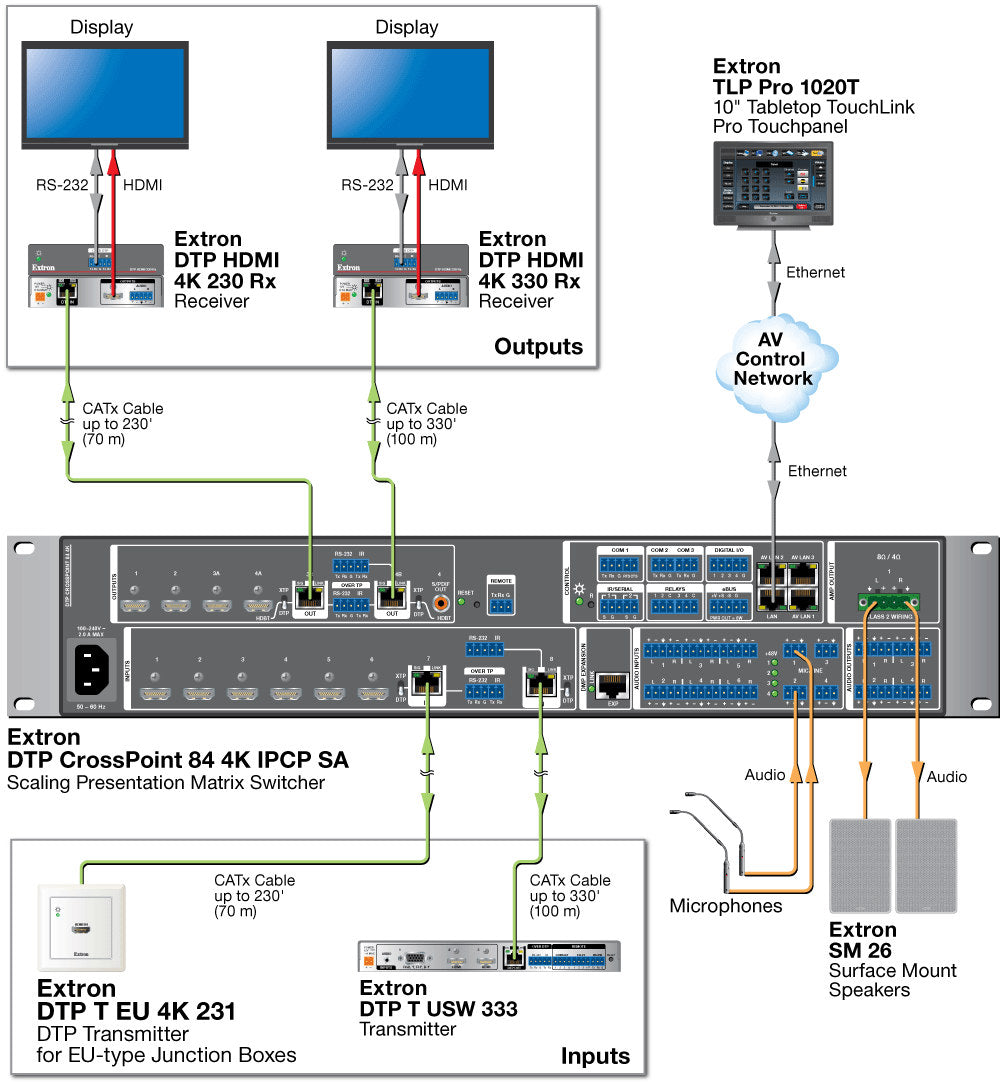

Putting a source input at the wall normally forces a choice between a long, fragile HDMI run and a bulky surface box. This transmitter removes that choice. It accepts one single link HDMI feed (or DVI-D through an adapter) on a female HDMI type A jack, converts it to the DTP format, and delivers it to a DTP-compatible receiver or matrix across one RJ-45 terminated STP cable. Because the DTP link also carries remote power, the unit can run entirely from the powered device at the far end, so no mains outlet is required behind the plate. Output signaling can be set for DTP mode, which passes video, embedded audio and remote power, or HDBaseT mode, which passes video and embedded audio.

Key Capabilities

• 10.2 Gbps maximum data rate with a 300 MHz maximum pixel clock
• Handles 1080p/60 and 1920x1200 at 12-bit color, plus 4K (4096x2160) and UHD (3840x2160) at 30 Hz
• Reaches 230 ft (70 m) at 1080p/60 and 130 ft (40 m) at 4K/UHD 30 Hz over STP or XTP DTP 24 cable

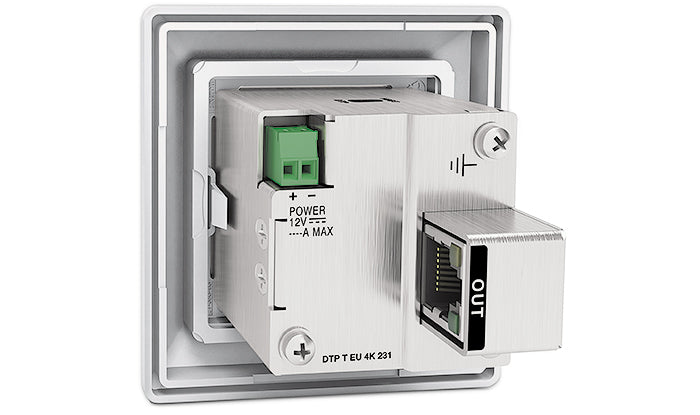

• Powered locally by the included 12 VDC supply or remotely from the receiver inside a 12 W budget

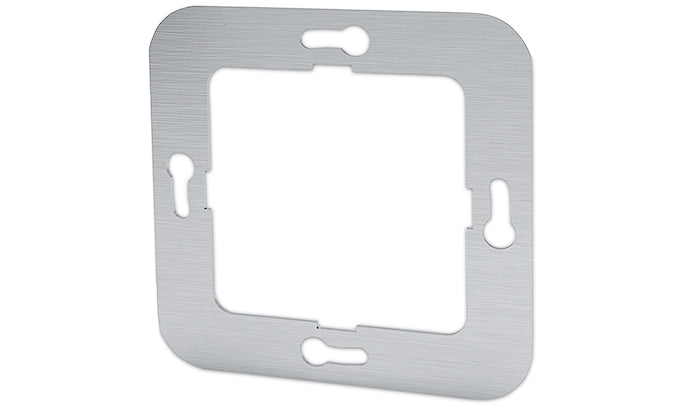

• Metal module measuring 2.17" x 2.17" x 1.52", sized for frames that take 55 mm x 55 mm inserts
• Draws only 3.2 W and gives off 10.8 BTU/hr, cooled by convection with no vents

Where It Is Used

The natural home for this transmitter is a European-standard boardroom, meeting room, lecture theater, training suite or huddle space built on one-gang frames with 60 mm mounting centers. It suits any layout where a presenter needs a tidy HDMI input at the table or wall while the switching and display hardware stays in a remote rack.

Specifications at a Glance

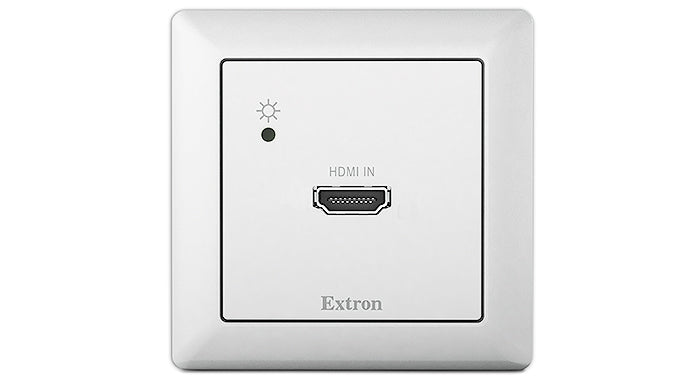

• Video input: 1 single link HDMI on a female HDMI type A connector
• Standards: DVI 1.0, HDMI 1.4, HDCP 2.2, 1.4, CEA-861E
• Link: 1 female RJ-45, TIA/EIA T568B, solid 24 AWG conductor or better
• Operating range: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing
• Warranty: 3 years parts and labor, plus a 7-year Everlast power supply warranty
