Extron DTP T EU 232 2-Gang EU Wall Plate DTP Transmitter 60-1439-12
Extron DTP T EU 232 2-Gang EU Wall Plate DTP Transmitter 60-1439-12
Extron DTP T EU 232 2-Gang EU Wall Plate DTP Transmitter
- • Mounts into an EU 2-gang junction box or furniture cutout
- • 165 MHz pixel clock and 6.75 Gbps maximum data rate
- • Carries 1920x1200, 1080p/60 and 2048x1080p at 60 Hz (2K)
- • DTP 230 link runs to 230 ft (70 m) on 24 AWG STP cable
- • HDMI type A and 15-pin HD inputs in one faceplate
- • Serial pass-through covers 300 to 115200 baud, plus IR to 60 kHz
- • Compact 1.9 x 4.3 x 1.4 in body weighing 0.7 lbs (0.3 kg)
- • Remote power from either end, so no local outlet is required
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP T EU 232 (part number 60-1439-12) — the EU-format wall plate build of Extron's two-input DTP transmitter, listed at Ampronix under this specific part number.
The DTP T EU 232 puts two source connections and a twisted pair uplink behind one flush wall plate, so a lectern or meeting table needs a single CATx run back to the rack instead of separate video, audio and control cabling. An HDMI input and a 15-pin HD analog input share the faceplate, and whichever one a presenter reaches for is carried to the matrix switcher or receiver at the far end along with stereo audio and bidirectional RS-232 and IR. Because either end of the link can supply power, the plate does not have to sit next to a mains outlet.
Key Capabilities

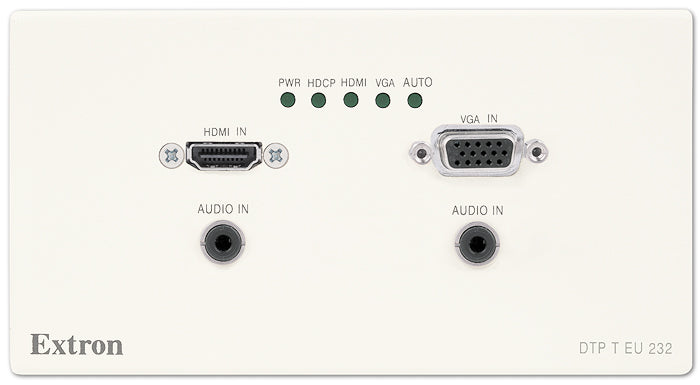

- Digital and analog side by side: female HDMI type A for HDMI or DVI-D, female 15-pin HD for RGBHV.
- 165 MHz maximum pixel clock and a 6.75 Gbps ceiling, supporting 1920x1200, 1080p/60 and 2048x1080p at 60 Hz.
- Metal body measuring 1.9" H x 4.3" W x 1.4" D behind a 2-gang faceplate of 3.2" H x 6.0" W x 0.5" D.
- Analog audio arrives on two 3.5 mm stereo jacks; embedded digital audio travels the DTP link.

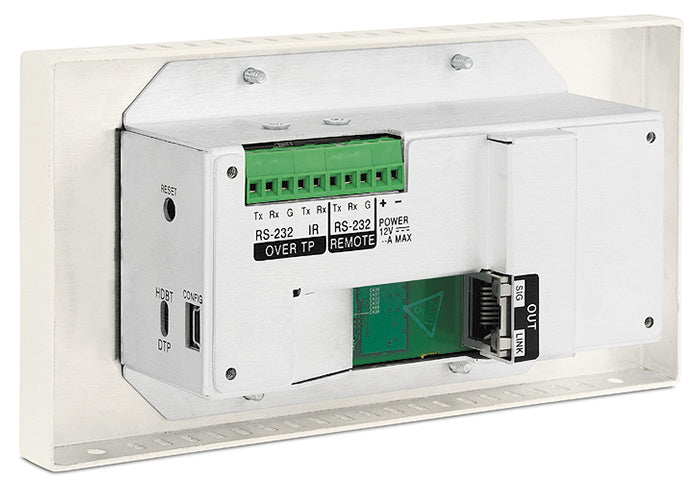

- Serial and IR pass-through share a 5-pole captive screw connector, with baud rates from 300 to 115200.
- Either end of the link can supply power, so the plate does not always need a local outlet.
Where It Is Used
Because it mounts into an EU 2-gang electrical junction box or a furniture cutout, this transmitter is specified for European and international installations — university lecture rooms, corporate training floors, meeting suites and clinical review rooms where the connection plate must finish flush with the surface.
Specifications at a Glance
- Link reach: up to 230' (70 m) on solid 24 AWG or better STP, 400 MHz cable recommended
- Analog path: 0.7 Vp-p RGB, 75 ohms, 15 kHz to 130 kHz horizontal, 30 Hz to 150 Hz vertical
- Audio: 20 Hz to 20 kHz ±0.5 dB, THD+N 0.03%, channel separation greater than 80 dB
- Consumption: 4.1 W device, 5.6 W with supply; 12 W remote power budget
- Weight 0.7 lbs (0.3 kg); CE, c-UL, UL, VCCI, RoHS and WEEE compliant
Also referenced as Extron DTPTEU232, DTP-T-EU-232, part number 60143912.
