Extron DTP R HWP 4K 331 D HDMI Decorator Wallplate Receiver, White
- • White faceplate that drops into a 1 gang decorator wallplate opening
- • Full 330 ft (100 m) reach at every resolution, including 4K and UHD
- • Female HDMI type A output, HDMI 1.4, HDCP 2.3, DVI 1.0 and CEA-861E
- • 10.2 Gbps video path with a 300 MHz pixel clock
- • Stereo audio breakout on 3.5 mm 5-pole captive screw, 50 ohm unbalanced
- • Runs on 7.5 watts with vent-free convection cooling
- • Local or remote power from the 12 VDC, 1.5 A external supply
- • Metal enclosure, 0.34 lbs, 3 year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

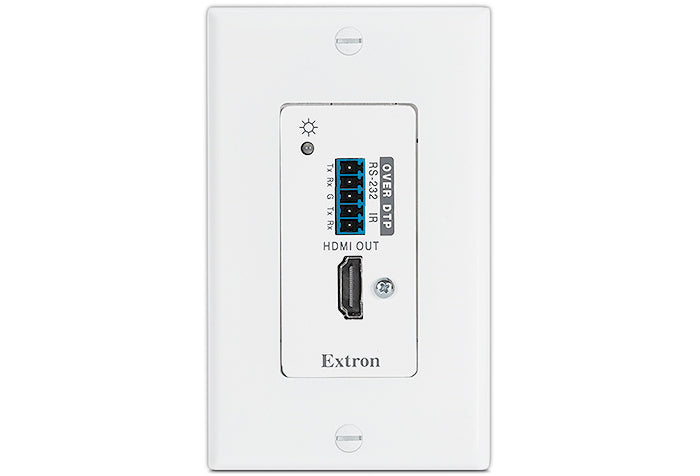

Extron DTP R HWP 4K 331 D (part number 60-1531-53) — the white-finish decorator-style receiver that closes a DTP 330 link at the display end.

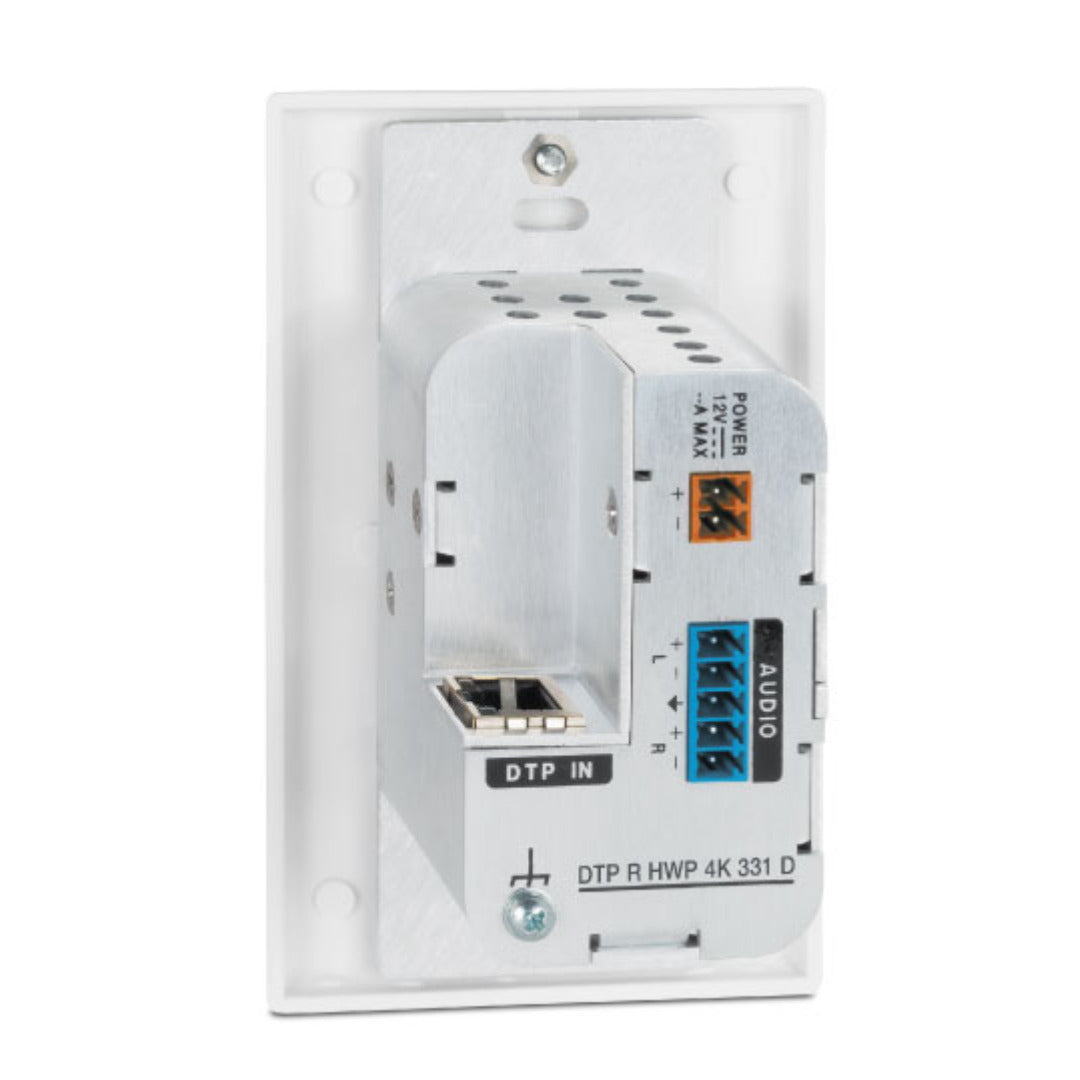

Order this part when the room hardware is white and the cable run is long. Functionally identical to its black counterpart, it delivers a full 100 m of reach that does not shrink as resolution climbs: 1080p at 60 Hz, 2560x1600 at 60 Hz and 4K or UHD at 30 and 60 Hz all travel the same 330 ft on shielded twisted pair. The chassis tucks behind a faceplate cut for the opening of a 1 gang decorator wallplate, so HDMI, a stereo audio breakout and RS-232 or IR control land flush in a wall, floor box or furniture panel.
Key Capabilities
- Uniform 330 ft (100 m) distance across every supported resolution on STP or XTP DTP 24 cable.
- Female HDMI type A output carrying a single link signal; single link DVI-D is reachable through an adapter.
- Video path rated to 10.2 Gbps with a 300 MHz pixel clock and 8, 10 or 12 bit color.
- Standards coverage spanning HDMI 1.4, HDCP 2.3, DVI 1.0 and CEA-861E, RGB and YCbCr.
- De-embedded stereo audio on a 3.5 mm 5-pole captive screw, balanced or unbalanced, 50 ohm unbalanced impedance.
- Remote powering across the link, or local powering from the 12 VDC, 1.5 A external supply.
Where It Is Used
Divisible ballrooms, distance-learning classrooms, hospital and clinical suites, houses of worship and campus buildings where the transmitter sits far from the screen and white trim is the standard. Vent-free convection cooling and a 0.34 lb weight let it live inside sealed millwork and floor boxes.
Specifications at a Glance
- Link input: 1 DTP 330 input, female RJ-45, TIA/EIA-T568B termination
- Cable: solid conductor 24 AWG or better; 400 MHz STP recommended
- Consumption: 7.5 watts device, 9.4 watts with supply; 20.6 BTU/hr combined
- Operating range +32 to +122 degrees F, 10% to 90% noncondensing
- Compliance: c-UL, CE, FCC Class A, ICES, UL, VCCI, RoHS and WEEE
Also referenced as Extron DTPRHWP4K331D, DTP-R-HWP-4K-331-D, part number 60153153.
