Extron DTP R HWP 4K 331 D HDMI Decorator Wallplate Receiver, Black
- • Black 1 gang decorator-style receiver for DTP 330 links
- • Holds a full 330 ft (100 m) at 1080p/60, 2560x1600 and 4K/UHD alike
- • 10.2 Gbps data rate with a 300 MHz pixel clock for 4K sources
- • Single link HDMI type A output, HDMI 1.4 and HDCP 2.3 compliant
- • Analog stereo out on 3.5 mm 5-pole captive screw, over +14 dBu balanced
- • Draws just 7.5 watts and dissipates only 14.0 BTU/hr
- • Powered locally or remotely across the same twisted pair run
- • Metal enclosure, 0.34 lbs, 3 year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

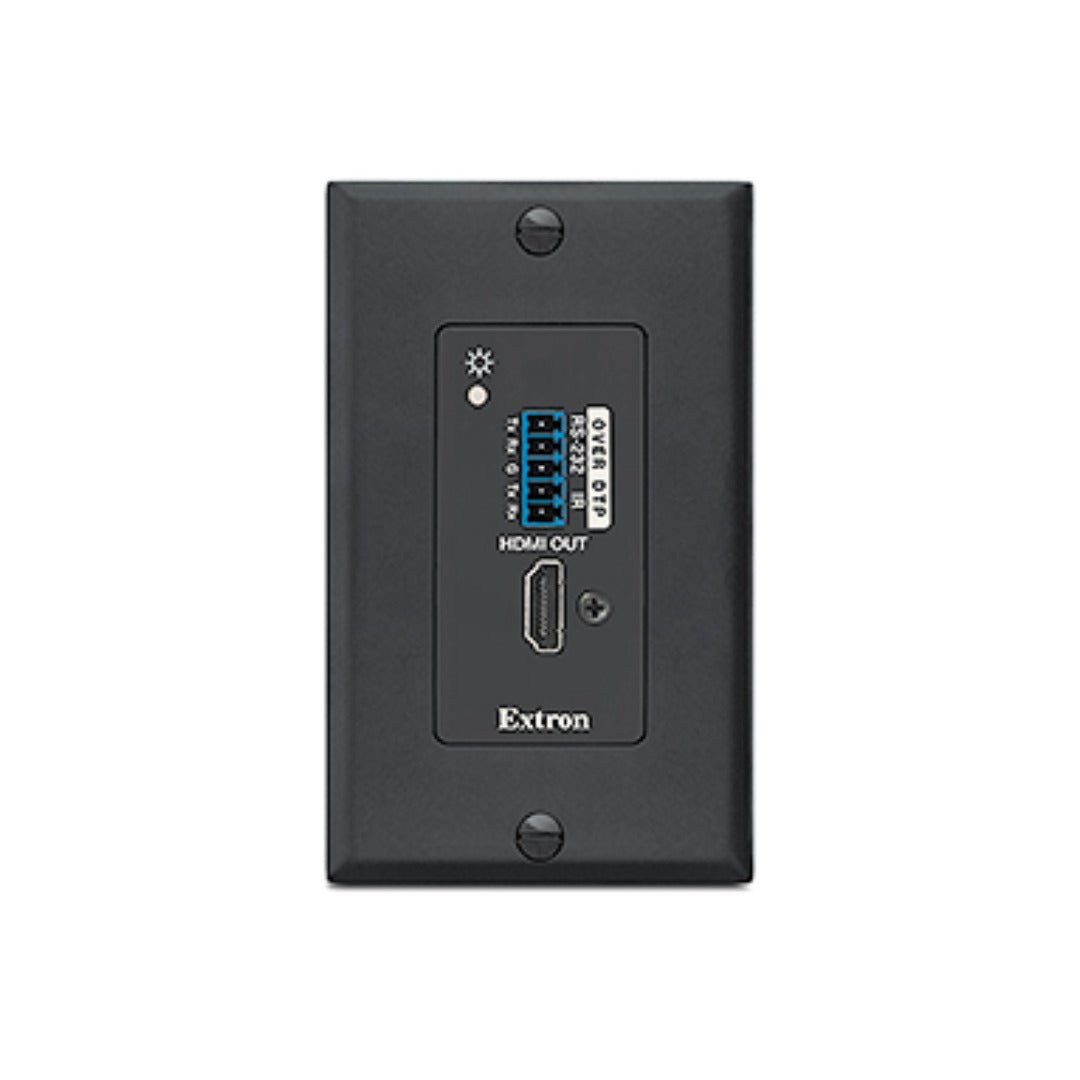

Extron DTP R HWP 4K 331 D (part number 60-1531-52) — black decorator-style wallplate receiver for DTP 330 links that need full distance at every resolution.
The defining number on this model is that the distance figure never changes with resolution. 1080p at 60 Hz, 2560x1600 at 60 Hz and 4K or UHD at 30 and 60 Hz all run the full 330 ft (100 m) over shielded twisted pair, so a designer can lay out a room from the cable plan rather than working backwards from a resolution ceiling. The receiver itself hides behind a black faceplate cut to drop into the opening of a 1 gang decorator wallplate, putting HDMI, analog stereo audio and RS-232 or IR control right at the display position.
Key Capabilities
- A flat 330 ft (100 m) reach at 1080p/60, 2560x1600 and 4K/UHD alike, on STP or XTP DTP 24 cable.
- One single link HDMI output on a female type A connector; single link DVI-D works with the right adapter.
- 10.2 Gbps maximum data rate and a 300 MHz pixel clock, carrying 8, 10 or 12 bits per color.
- HDMI 1.4, HDCP 2.3, DVI 1.0 and CEA-861E compliance across RGB and YCbCr formats.
- Separate analog stereo output on a 3.5 mm 5-pole captive screw connector, balanced or unbalanced, above +14 dBu balanced.
- Powered at either end of the link from the external 12 VDC, 1.5 A supply.
Where It Is Used
Large lecture theatres, auditoriums, hospital and imaging departments, command centers and multi-building campus rooms where the cable run is long and the display feed still has to terminate in a finished plate. The metal body is 2.2 in deep and cools by convection with no vents, so it can sit inside lecterns, floor boxes and casework.
Specifications at a Glance
- Link input: 1 DTP 330 input on a female RJ-45 jack, TIA/EIA-T568B
- Cable: solid conductor, 24 AWG or better; 400 MHz bandwidth STP recommended
- Power: 7.5 watts device, 9.4 watts with supply; 14.0 BTU/hr
- Metal enclosure, 4.2 in H x 1.7 in W x 2.2 in D, 0.34 lbs (0.15 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron DTPRHWP4K331D, DTP-R-HWP-4K-331-D, part number 60153152.
Specifications
Specifications

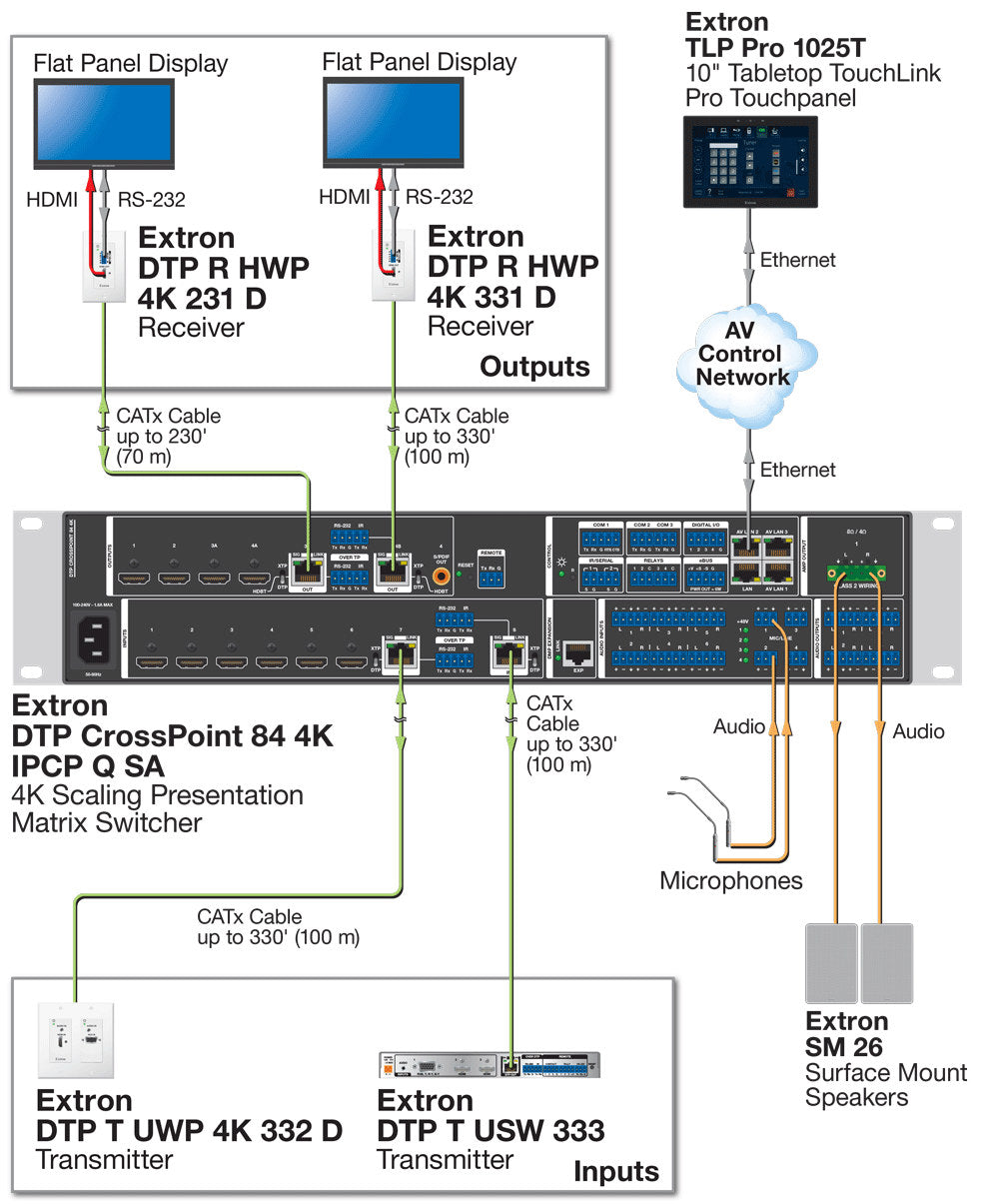

Diagram
