Extron DTP R HWP 4K 231 D HDMI Decorator Wallplate Receiver, White
- • White decorator-style faceplate sized for a 1 gang wallplate opening
- • 230 ft (70 m) at 1080p/60; 130 ft (40 m) at 2560x1600 and 4K/UHD
- • Single link HDMI type A output with DVI-D support via adapter
- • 10.2 Gbps video path, 300 MHz pixel clock, 8 to 12 bit color
- • HDCP 2.3 and HDMI 1.4 compliant for protected content
- • Stereo audio out on 3.5 mm 5-pole captive screw, 50 ohm unbalanced
- • Local or remote power from the 12 VDC, 1.5 A external supply
- • Compact 0.34 lb metal body with a 3 year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

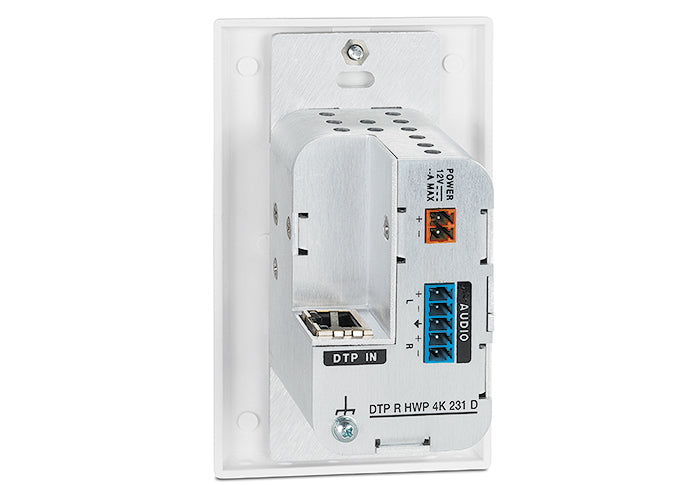

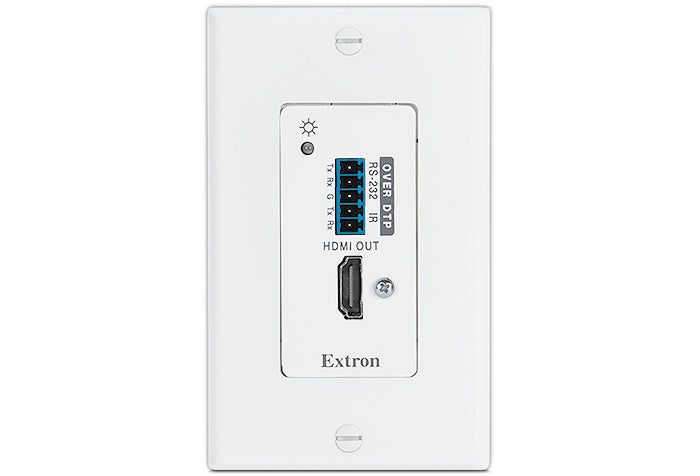

Extron DTP R HWP 4K 231 D (part number 60-1531-13) — the white version of Extron's decorator-style DTP 230 receiver for wallplate installs.
Where a room finish calls for white trim, this is the same DTP 230 endpoint as the black unit with a white faceplate. The electronics sit behind a plate sized to the opening of a 1 gang decorator wallplate, letting an installer put an HDMI feed, a stereo audio breakout and serial or IR control exactly where the display, projector or touch panel needs them. Everything arrives on one shielded twisted pair cable, so there is no second conduit run and no requirement for a mains outlet at the far end.
Key Capabilities
- Single link HDMI output through one female type A jack, with single link DVI-D possible using a suitable cable or adapter.
- Distance budget of 230 ft (70 m) for 1080p at 60 Hz; 2560x1600 and 4K/UHD signals are supported out to 130 ft (40 m).
- Video pipeline rated at 10.2 Gbps and a 300 MHz pixel clock, with 8, 10 or 12 bit color and RGB or YCbCr formats.
- Compliance across HDMI 1.4, HDCP 2.3, DVI 1.0 and CEA-861E for protected sources and legacy displays.
- Analog stereo output on a 3.5 mm 5-pole captive screw connector, balanced or unbalanced, better than +14 dBu balanced with a 50 ohm unbalanced impedance.
- Remote or local powering from the external 12 VDC, 1.5 A supply.
Where It Is Used
Classrooms, training rooms, hospital conference and reading rooms, hospitality spaces and corporate lobbies where white plates match existing device trim. The 1.7 in wide metal body slides into wall boxes, floor boxes and furniture cutouts, and convection cooling without vents means it can be enclosed in millwork.
Specifications at a Glance
- Link input: 1 DTP 230 input, female RJ-45, terminated TIA/EIA-T568B
- Cable: 24 AWG or heavier solid conductor; 400 MHz STP recommended
- Consumption: 8.2 watts alone, 8.9 watts with the supply; 17.5 BTU/hr
- Operating range +32 to +122 degrees F, 10% to 90% noncondensing
- Weight 0.34 lbs (0.15 kg); 3 year parts and labor warranty
Also referenced as Extron DTPRHWP4K231D, DTP-R-HWP-4K-231-D, part number 60153113.
