Extron DTP R HWP 4K 231 D HDMI Decorator Wallplate Receiver, Black
- • Black decorator-style receiver that fits a standard 1 gang wallplate opening
- • Reaches 230 ft (70 m) at 1080p/60 and 130 ft (40 m) at 2560x1600 or 4K/UHD
- • 10.2 Gbps data rate and 300 MHz pixel clock for 4K and UHD sources
- • One single link HDMI type A output, HDMI 1.4 and HDCP 2.3 compliant
- • Stereo audio breakout on a 3.5 mm 5-pole captive screw, over +14 dBu balanced
- • Powered locally or remotely across the same shielded twisted pair run
- • Draws only 8.2 watts and cools by convection with no vents
- • Covered by a 3 year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

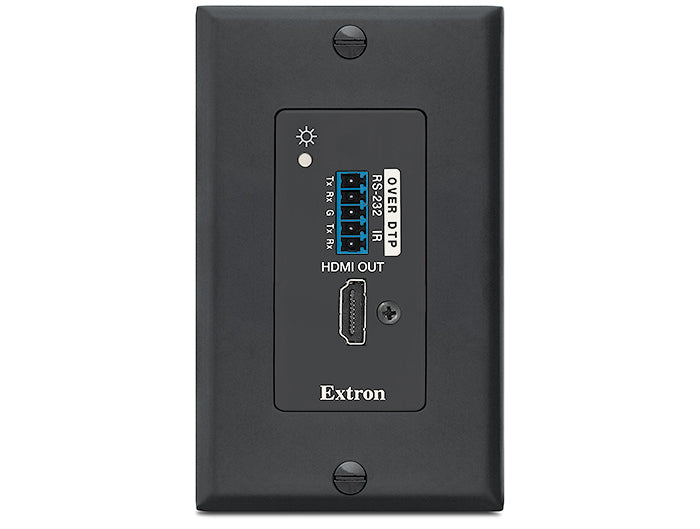

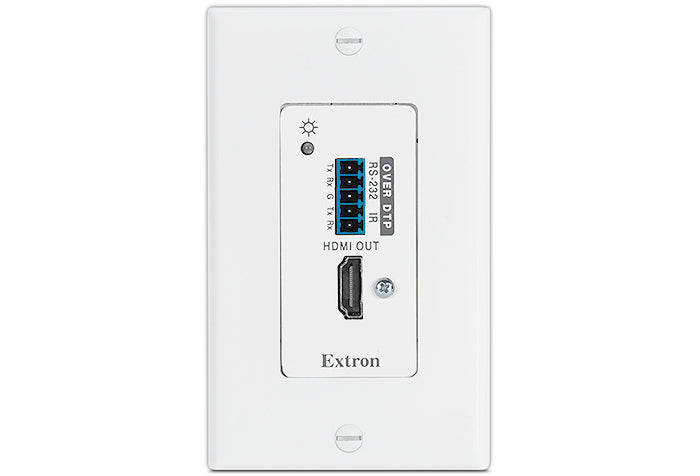

Extron DTP R HWP 4K 231 D (part number 60-1531-12) — the black decorator-style wallplate receiver that ends a DTP 230 link right at the display.

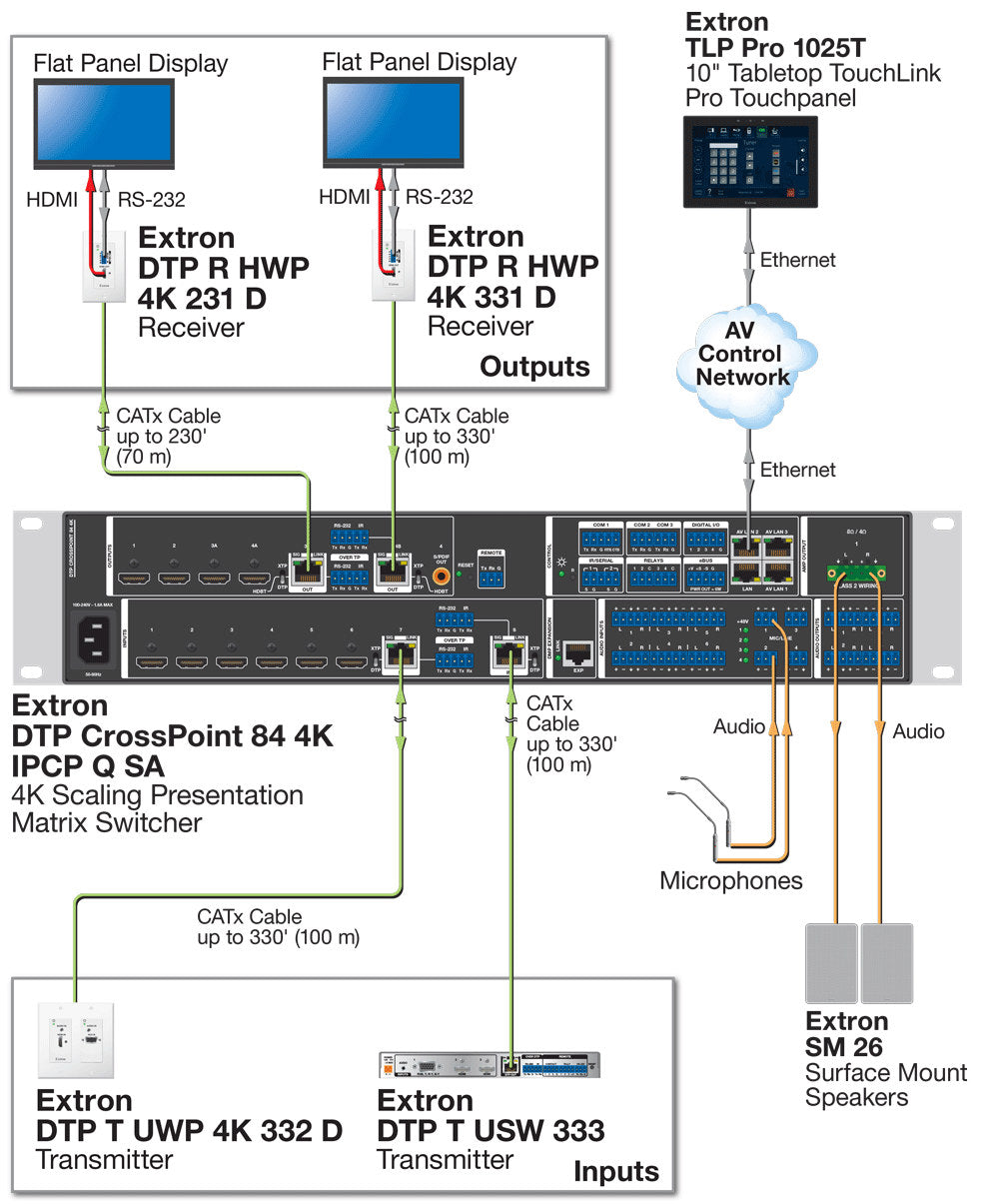

This unit terminates a shielded twisted pair run without asking for a rack shelf or a surface box. Its faceplate drops into the opening of a standard 1 gang decorator wallplate, so the HDMI, analog audio and control connections finish flush in a wall, a floor box or a furniture cutout. A single STP run carries video, embedded and analog audio, RS-232, IR and remote power, which means no separate outlet is needed behind the display. The black finish suits dark millwork and podium faces where a white plate would stand out.
Key Capabilities
- One single link HDMI output on a female type A connector; single link DVI-D is supported with the correct adapter or cable.
- Reach of 230 ft (70 m) at 1080p at 60 Hz, dropping to 130 ft (40 m) for 2560x1600 and for 4K/UHD at 30 or 60 Hz.
- Maximum data rate of 10.2 Gbps with a 300 MHz pixel clock, handling 8, 10 or 12 bits per color.
- Signal compliance covering HDMI 1.4, HDCP 2.3, DVI 1.0 and CEA-861E, with RGB and YCbCr formats.
- De-embedded stereo audio on a 3.5 mm 5-pole captive screw connector, balanced or unbalanced, rated above +14 dBu balanced.
- Power delivered locally from the external 12 VDC supply or remotely from the far end of the link.
Where It Is Used
Conference and huddle rooms, lecture halls, clinical review and imaging suites, courtrooms and control consoles all ask for a display feed to arrive at a finished plate rather than an exposed box. A 4.2 in deep device body and convection cooling with no vents let it live inside millwork, lecterns and floor boxes that would not accept a full-size extender.
Specifications at a Glance
- DTP input: 1 DTP 230 input on a female RJ-45 jack, TIA/EIA-T568B
- Cable: solid conductor, 24 AWG or better; 400 MHz bandwidth STP recommended
- Power draw: 8.2 watts device, 8.9 watts with supply; 17.5 BTU/hr
- Metal enclosure, 4.2 in H x 1.7 in W x 2.2 in D, 0.34 lbs (0.15 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron DTPRHWP4K231D, DTP-R-HWP-4K-231-D, part number 60153112.
