Extron DTP R DP 4K 330 DisplayPort Twisted Pair Receiver
- • DTP 330 receiver holding 330 ft (100 m) at every rated resolution
- • Single female DisplayPort output, DisplayPort 1.1a with HDCP 1.4 and 2.3
- • 268 MHz receiver pixel clock; 10.8 Gbps link, 2.7 Gbps per lane
- • 8, 10 or 12 bit color with 4:4:4 or 4:2:2 chroma sampling
- • Analog audio out at 50 ohms unbalanced or 100 ohms balanced, 3.5 mm 5 pole
- • Channel separation above 80 dB, signal-to-noise above 90 dB unweighted
- • 5.5 W device draw, 6.8 W with supply, 12 W remote power budget
- • Fanless metal enclosure, 4.3 in wide, 1.0 lb (0.5 kg), 21.9 BTU/hr with supply
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

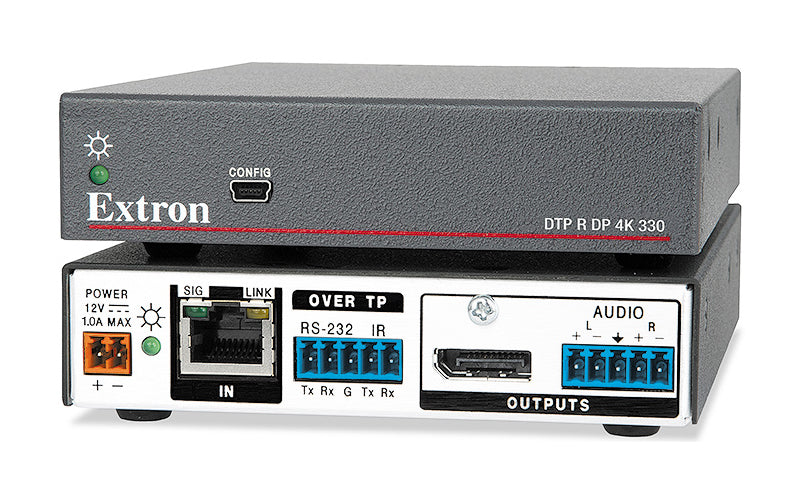

Extron DTP R DP 4K 330 (part number 60-1076-53) — DisplayPort receiver for DTP 330 links, listed under an alternate part reference.

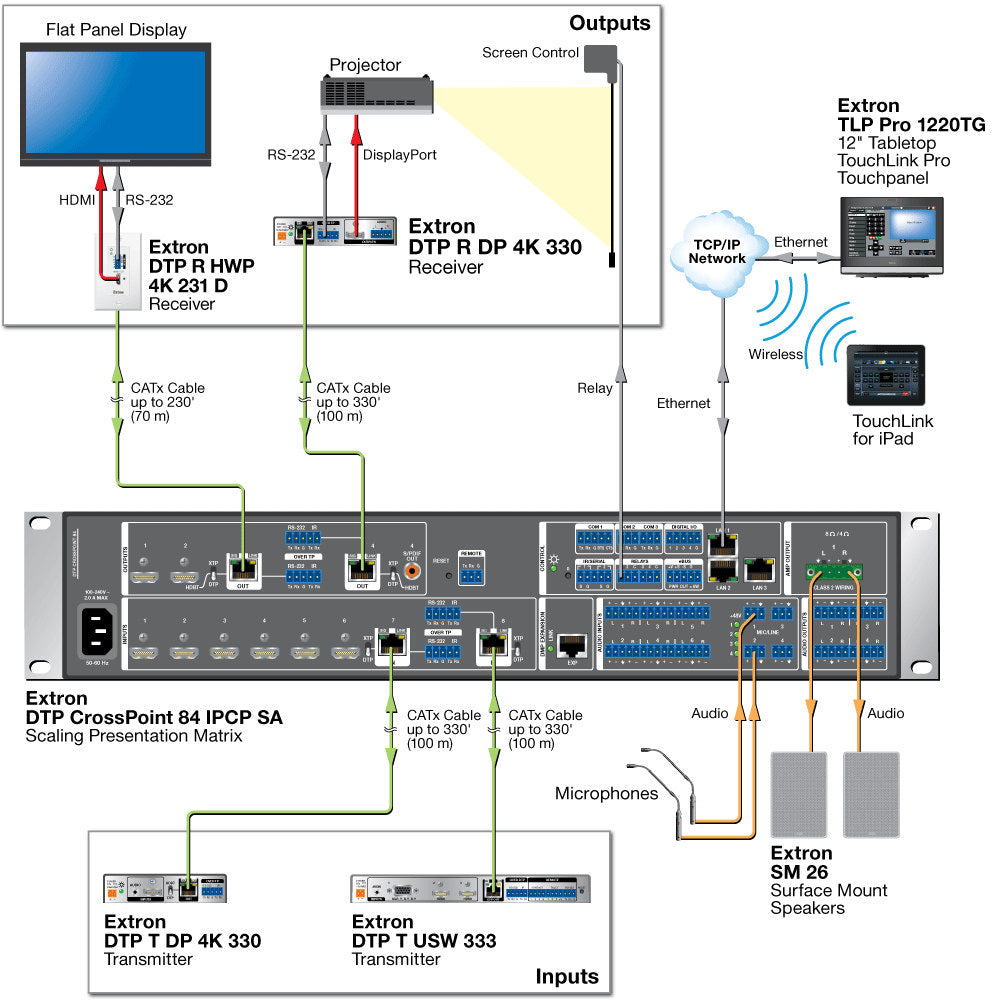

Mounted at the display end of the run, this unit closes a DTP 330 twisted pair link and hands off a DisplayPort video signal, a two-channel analog audio output, and RS-232 plus IR control to the connected device. Its defining trait within the family is distance stability: 330 ft (100 m) applies equally to 1080p at 60 Hz, 2560x1600 at 60 Hz and 4K or UHD at 30 Hz. The DTP T DP 4K 330 transmitter completes the set and is bought separately.
Key Capabilities
- DisplayPort output on a single female connector, conforming to DisplayPort 1.1a with HDCP 1.4 and 2.3.
- Receiver pixel clock of 268 MHz over a link rated at 10.8 Gbps total, 2.7 Gbps per lane.
- Colour handling of 8, 10 or 12 bits with 4:4:4 or 4:2:2 sampling, within the data rate ceiling.
- Analog audio output impedance of 50 ohms unbalanced or 100 ohms balanced on a 5-pole 3.5 mm connector.
- Audio channel separation better than 80 dB and signal-to-noise better than 90 dB unweighted.
- Serial control at 300 to 115200 baud on a 3-pole captive screw connector, plus IR from 30 kHz to 60 kHz.
Where It Is Used
Chosen for long cable routes in auditoriums, sports venues, teaching hospitals, university lecture blocks and distributed digital signage, where the head end is centralised and displays are scattered. Remote powering over the twisted pair removes the need for an outlet at each screen position.
Specifications at a Glance
- Link: DTP 330 on one female RJ-45, TIA/EIA T568B, 24 AWG or better solid conductor STP.
- Power: 5.5 watts device, 6.8 watts with supply, 12 watt remote power budget.
- Thermal: 17.6 BTU/hr device, 21.9 BTU/hr including the power supply.
- Physical: metal, quarter rack wide, 1.0 in H x 4.3 in W x 6.0 in D, 1.0 lb (0.5 kg).
- Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI.
Also referenced as Extron DTPRDP4K330, DTP-R-DP-4K-330, part number 60107653.
