Details

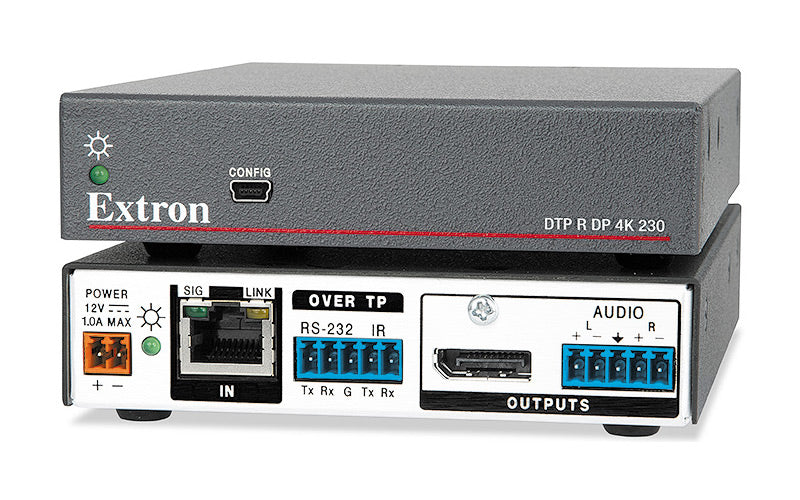

Extron DTP R DP 4K 230 (part number 60-1076-23) - the display-end unit of a DTP 230 DisplayPort extension link.

Sitting behind the screen or inside a lectern, this receiver takes in the DTP 230 twisted pair feed and rebuilds it into a DisplayPort output, a balanced or unbalanced analog stereo audio output, and RS-232 and IR control for the connected device. It pairs with a DTP T DP 4K 230 transmitter, which is purchased on its own. A single RJ-45 terminated to TIA/EIA T568B replaces what would otherwise be three or four separate cable pulls.

Key Capabilities

Outputs one DisplayPort signal on a female DisplayPort connector, DisplayPort 1.1a with HDCP 1.4 and 2.3.
Receiver-side pixel clock of 268 MHz across a link carrying up to 10.8 Gbps, 2.7 Gbps per lane.
Drives 4K 4096x2160 or UHD 3840x2160 at 30 Hz, and 2560x1600 at 60 Hz with reduced blanking.
Analog stereo audio leaves on a 5-pole 3.5 mm captive screw connector at greater than +14 dBu balanced into 600 ohms.
Audio output impedance of 50 ohms unbalanced or 100 ohms balanced, with channel-to-channel gain error held to 0.2 dB.
Local RS-232 on a 3-pole captive screw connector, plus IR pass-through from 30 kHz to 60 kHz.

Where It Is Used

Lands in boardrooms, classrooms, huddle spaces, courtrooms, control rooms and clinical review stations - wherever the display is fixed and the source has to stay in a rack. It can be powered locally or drawn remotely from the transmitter, which matters when the display location has no spare outlet.

Specifications at a Glance

Reach: 230 ft (70 m) at 1080p 60 Hz; 130 ft (40 m) at 2560x1600 60 Hz and at 4K/UHD 30 Hz.
Power: 5.2 watts at the device, 6.6 watts including the supply, 12 watt remote power budget.
Thermal load: 16.5 BTU/hr device, 21.4 BTU/hr with the power supply.
Enclosure: metal, quarter rack wide, 1.0 in H x 4.3 in W x 6.0 in D, 1.0 lb (0.5 kg).
Warranty: 3 years parts and labor, plus 7 years on the Everlast power supply.

Frequently asked questions about the Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver

Does Ampronix sell the Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver?

Yes. Ampronix is an authorized Extron distributor and sells the Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver (60-1076-23). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver?

Yes. Ampronix provides sales, replacement and exchange for the Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver. Call Ampronix for a quote.

Is the Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver listed under other names?

Yes. The Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver is also referenced as Extron DTPRDP4K230, DTP-R-DP-4K-230, part number 60107623.

What are the key features of the Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver?

Key points: Outputs one DisplayPort signal on a female DisplayPort connector, DisplayPort 1.1a with HDCP 1.4 and 2.3; Receiver-side pixel clock of 268 MHz across a link carrying up to 10.8 Gbps, 2.7 Gbps per lane; Drives 4K 4096x2160 or UHD 3840x2160 at 30 Hz, and 2560x1600 at 60 Hz with reduced blanking; Analog stereo audio leaves on a 5-pole 3.5 mm captive screw connector at greater than +14 dBu balanced into 600 ohms. Call Ampronix to confirm details for your application.

Also referenced as Extron DTPRDP4K230, DTP-R-DP-4K-230, part number 60107623.

Specifications

Part Number: 60-1076-23

Manufacturer: Extron

Model: DTP R DP 4K 230 (receiver)

Condition: New

Signal Type: DisplayPort, HDCP

Maximum Data Rate: Up to 10.8 Gbps (2.7 Gbps per lane)

Maximum Pixel Clock: 268 MHz

Resolution Range: Up to 2560x1600 @ 60 Hz (reduced blanking), 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz

Frame Rate: 24, 25, 30 fps (subject to the maximum data rate limit)

Chroma Sampling: 4:4:4 or 4:2:2

Color Bit Depth: 8, 10, or 12 bits - subject to the maximum data rate limit

Formats: RGB and YCbCr digital video

Standard: DisplayPort 1.1a, HDCP 1.4, 2.3 (Single Stream Transport only)

Video Output: 1 DisplayPort

Video Output Connector: 1 female DisplayPort

Interconnection Signal Type: DTP 230

Interconnection Connector: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Transmission Distance, 1080p @ 60 Hz: Up to 230 ft (70 m) on shielded twisted pair (STP) or XTP DTP 24 STP cable

Transmission Distance, 2560x1600 @ 60 Hz: Up to 130 ft (40 m) on shielded twisted pair (STP) or XTP DTP 24 STP cable

Transmission Distance, 4K/UHD @ 30 Hz: Up to 130 ft (40 m) on shielded twisted pair (STP) or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Audio Gain: Unbalanced output 0 dB; balanced output +6 dB

Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Signal-to-Noise Ratio: Greater than 90 dB at maximum input (unweighted)

Stereo Channel Separation: Greater than 80 dB

Digital Sampling: 48 kHz

Audio Bit Depth: 16 bit

Audio Output Signal Type: Analog stereo (2 channel), balanced/unbalanced over DTP; embedded digital audio on the DTP signal

Embedded Digital Audio Source Formats: 2-ch PCM, PCM, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS Digital Surround 5.1, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Gain Error: Plus or minus 0.2 dB channel to channel

Audio Output Maximum Level (600 ohm): Greater than +14 dBu, balanced

Audio Output Connector, Digital: Female DisplayPort

Audio Output Connector, Analog: (1) 3.5 mm captive screw connector, 5 pole

Serial Control Port Input/Output: 1 set of proprietary signals on a female RJ-45 jack

Serial Control Port Output/Input: RS-232 via a 3.5 mm, 3 pole captive screw connector

Baud Rate and Protocol: 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

IR Control Port: (1) 3.5 mm captive screw connector, 5 pole (shared with the RS-232 control port); TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

IR Control Pin Configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 1.5 A, 18 watts

Power Consumption, Device: 5.2 watts

Power Consumption, Device and Power Supply: 6.6 watts

Remote Power Budget: 12 watts

Temperature/Humidity: Storage -40 to +158 F (-40 to +70 C) / 10% to 90%, noncondensing. Operating +32 to +122 F (0 to +50 C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Thermal Dissipation, Device: 16.5 BTU/hr

Thermal Dissipation, Device and Power Supply: 21.4 BTU/hr

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide (2.5 cm H x 10.9 cm W x 15.2 cm D); depth excludes connectors

Product Weight: 1.0 lb (0.5 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

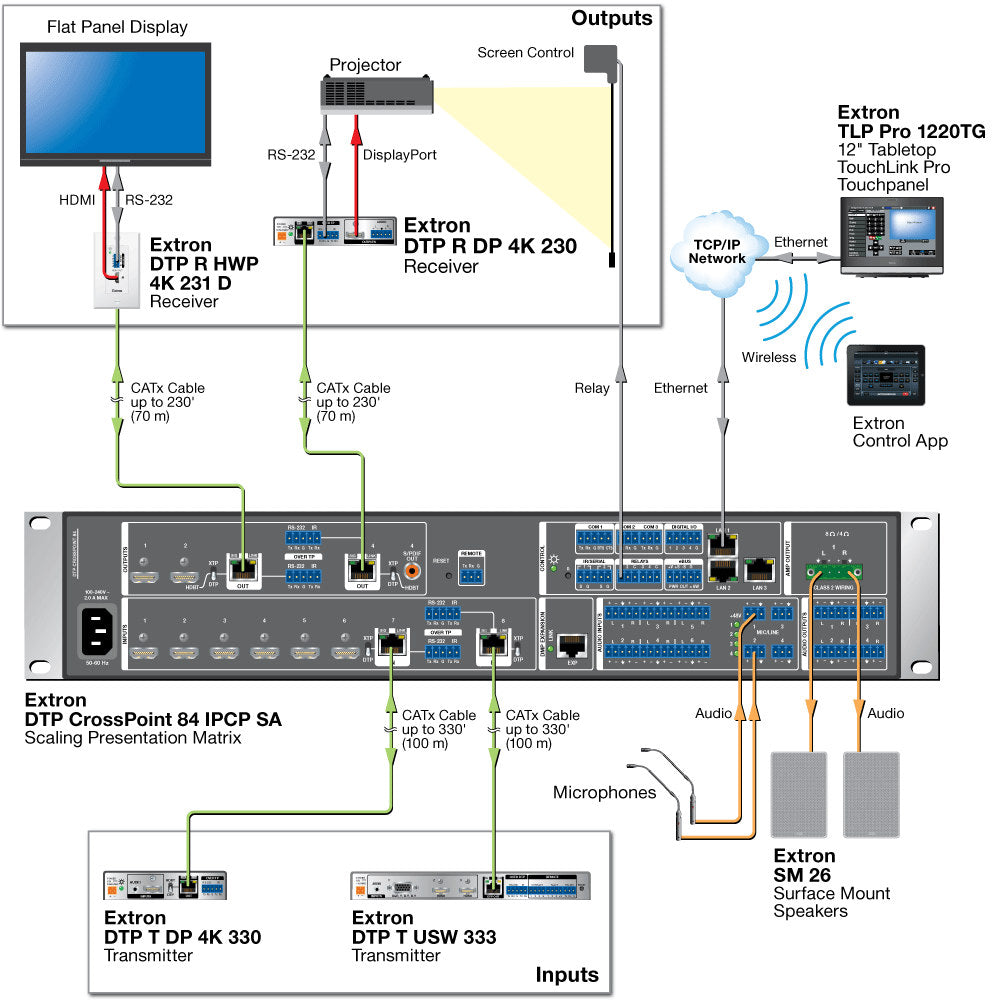

Diagram

Resources

Brochure | DTP R DP 4K 230 60-1076-23 | DTP DP 4K 230 (dtp_dp_4k_230_bro_vA4.pdf)

Brochure | DTP R DP 4K 230 60-1076-23 | Extron Government Solutions

Brochure | DTP R DP 4K 230 60-1076-23 | DTP DP 4K 230 (DTP-DP-4K-230_BR_A4_SP_RevA1.pdf)

Brochure | DTP R DP 4K 230 60-1076-23 | DTP DP 4K 230 (dtpdp4k230_bro_A1_cn.pdf)

Brochure | DTP R DP 4K 230 60-1076-23 | Extron-Lösungen für Behörden

Brochure | DTP R DP 4K 230 60-1076-23 | Solutions Extron pour structures gouvernementales

Brochure | DTP R DP 4K 230 60-1076-23 | Soluzioni Extron per ambienti governativi

Manual | DTP R DP 4K 230 60-1076-23 | Cleaning Instruction Card

Manual | DTP R DP 4K 230 60-1076-23 | DTP Compatibility Guide

Manual | DTP R DP 4K 230 60-1076-23 | DTP T/R DP 4K Series Setup Guide

Manual | DTP R DP 4K 230 60-1076-23 | DTP T/R DP 4K Series User Guide

Manual | DTP R DP 4K 230 60-1076-23 | DTP互換性ガイド

Specifications | DTP R DP 4K 230 60-1076-23 | DTP T/R DP 4K 230

Panel Drawing | DTP R DP 4K 230 60-1076-23 | DTP R DP 4K 230
